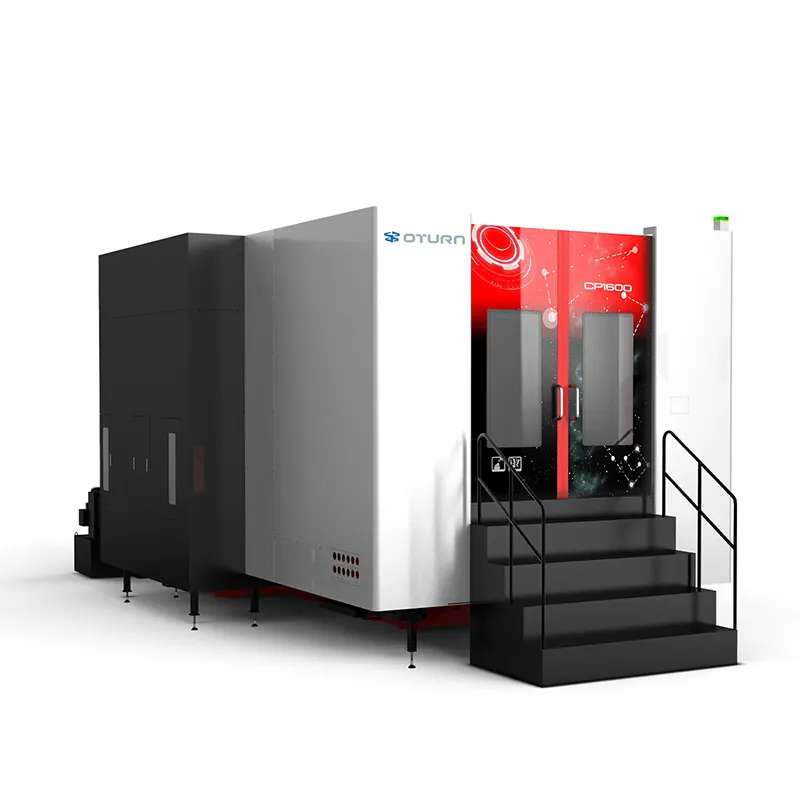

Horizontal CNC Milling Machine Center for Precision Machining
Horizontal CNC Milling Machine Center for Precision Machining Original price was: $138,000.00.Current price is: $137,000.00.
-4%

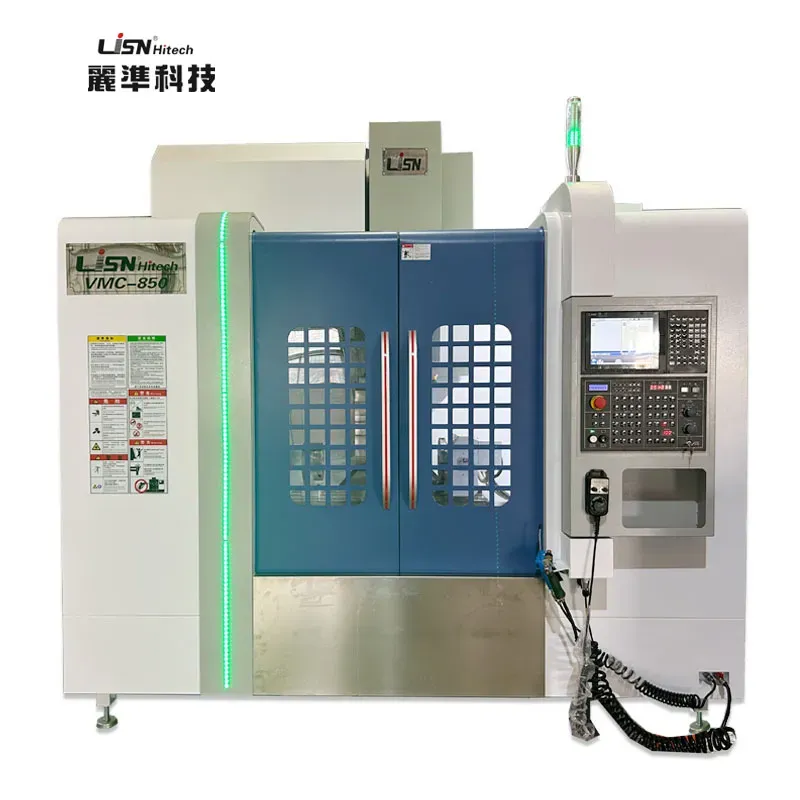

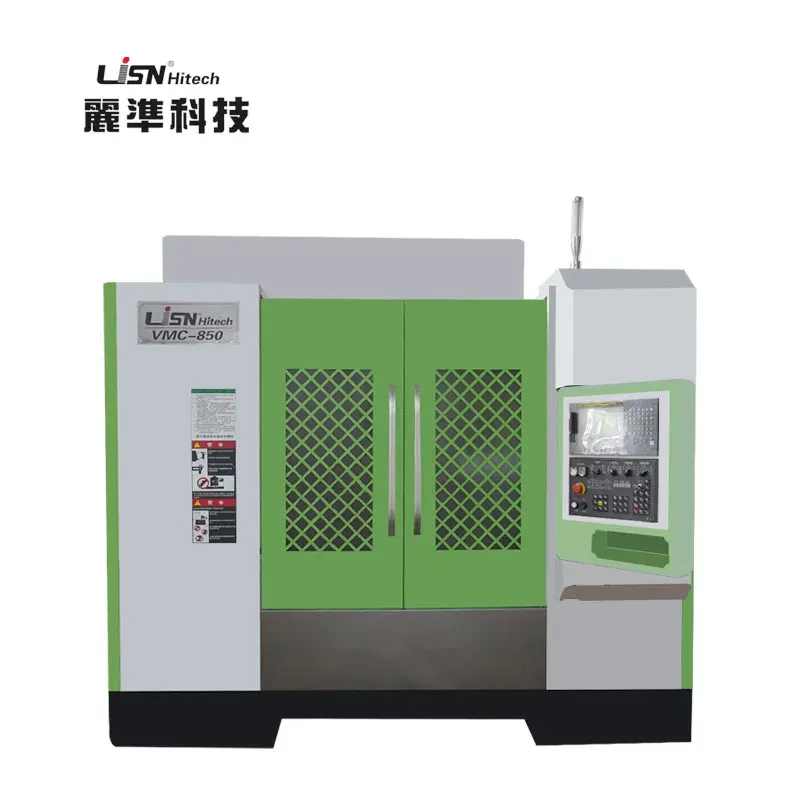

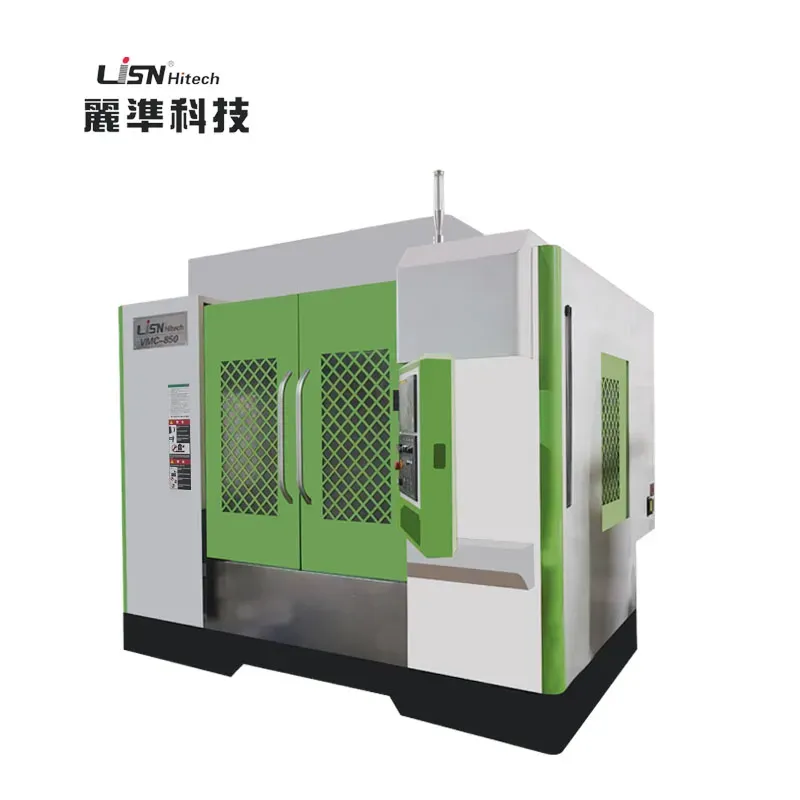

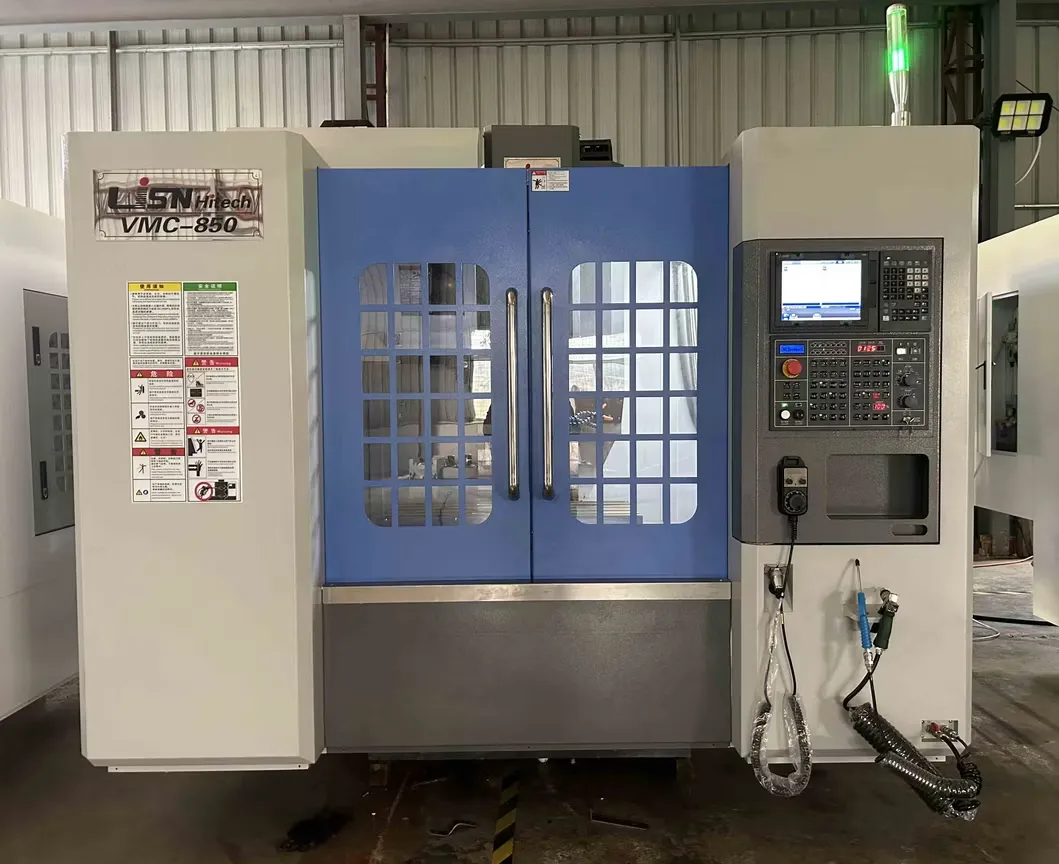

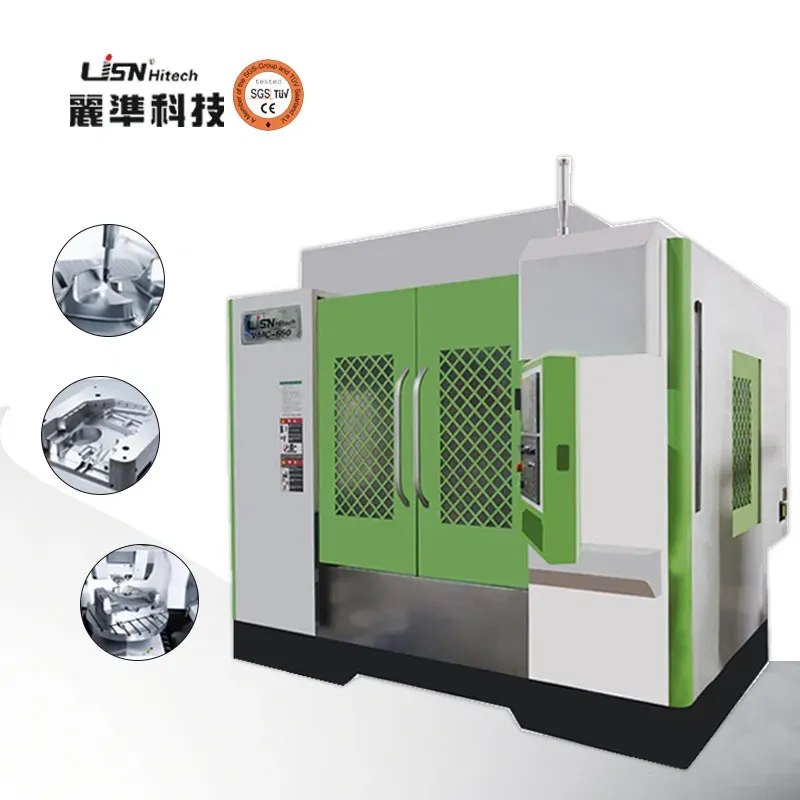

High Precision Vertical Milling Machine Center CNC Manchine - Image 1
High Precision Vertical Milling Machine Center CNC Manchine - Image 2
High Precision Vertical Milling Machine Center CNC Manchine - Image 3
High Precision Vertical Milling Machine Center CNC Manchine - Image 4
High Precision Vertical Milling Machine Center CNC Manchine - Image 5
High Precision Vertical Milling Machine Center CNC Manchine - Image 6
Click to enlarge
High Precision Vertical Milling Machine Center CNC Manchine
High Precision Vertical Milling Machine Center CNC Manchine - Image 2
High Precision Vertical Milling Machine Center CNC Manchine - Image 3
High Precision Vertical Milling Machine Center CNC Manchine - Image 4
High Precision Vertical Milling Machine Center CNC Manchine - Image 5
High Precision Vertical Milling Machine Center CNC Manchine - Image 6

High Precision Vertical Milling Machine Center CNC Manchine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Processing Precision 0.01 – 0.02 mm (High-Precision)
Spindle Speed 12,000 rpm (High-Speed Finishing)
Spindle Taper BT40
X/Y/Z Axis Travel 800 / 500 / 500 mm
Worktable Size 1,000 x 500 mm
Control Method Semi-Closed Loop Control

Original price was: $27,888.00.Current price is: $26,888.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

The 4 axis VMC-850 is a high performance CNC vertical machining center developed and manufactured by our company. The machine has the characteristics of high rigidity, high speed and high precision and has more advantages on operation and capabilities compared with similar products. All castings of the machine have been secondary tempered to provide excellent rigidity and stability for the whole machine. This machine applied with high rigid C design on structure, it also has been done with reinforcement on machine ribs.All the contact faces have been scraped manually, which guarantees the durability of accuracy. X/Y axes apply with two types of rolling guide way: ball bearing and roller guide way, which is optional that customer can choose base on customer’s needs. Z axis applies roller guide way, which enables the machine to be with high rigidity, low noise, and small friction. The machine equips with an air tank, and the water can be drained out manually. Spindle is connected directly, and the highest speed can reach 10000RPM, which make this machie as a good choice for machining some complex parts with high efficiency.



Main Features

  • Mitsubishi M80 control system
  • High speed and precision spindle
  • Excellent chip flushing system
  • Excellent structure design
  • High rigidity of the whole machine
  • Excellent worktable size: 500mm*1000mm
  • Excellent load capability of worktable: 200kg
Detailed Photos

Vmc850 4 Axis Lizhun High Precision Vertical Milling Machine Center CNC Manchine
Vmc850 4 Axis Lizhun High Precision Vertical Milling Machine Center CNC ManchineVmc850 4 Axis Lizhun High Precision Vertical Milling Machine Center CNC ManchineVmc850 4 Axis Lizhun High Precision Vertical Milling Machine Center CNC Manchine



Customer Reviews

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “High Precision Vertical Milling Machine Center CNC Manchine”

Your email address will not be published. Required fields are marked *

Related Products

-3%
Add to wishlist

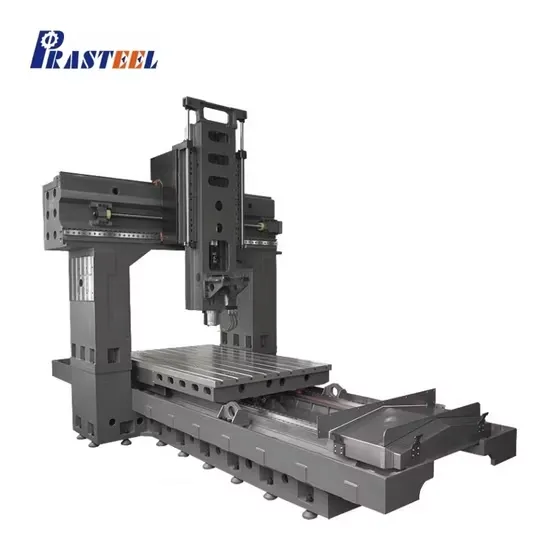

2.5m Gantry Milling Machine Center Pl2518 Machine Frame

Original price was: $32,000.00.Current price is: $31,000.00.
Compare
Quick view
-5%
Add to wishlist

Building Aggregates Sand Stone Jaw Cone Impact VSI Roller Rock Crusher Crushing Mining Machine for Quarry/Basalt/Granite/Limestone

,
Original price was: $21,000.00.Current price is: $20,000.00.
Compare
Quick view
-2%
Add to wishlist

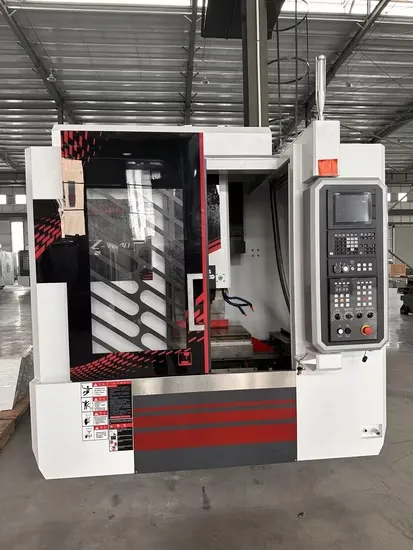

High-Precision Automated CNC Milling Machine for Vertical Applications

Original price was: $41,000.00.Current price is: $40,000.00.
Compare
Quick view
-1%
Add to wishlist

Horizontal CNC Milling Machine Center for Precision Machining

Original price was: $138,000.00.Current price is: $137,000.00.
Compare
Quick view
-2%
Add to wishlist

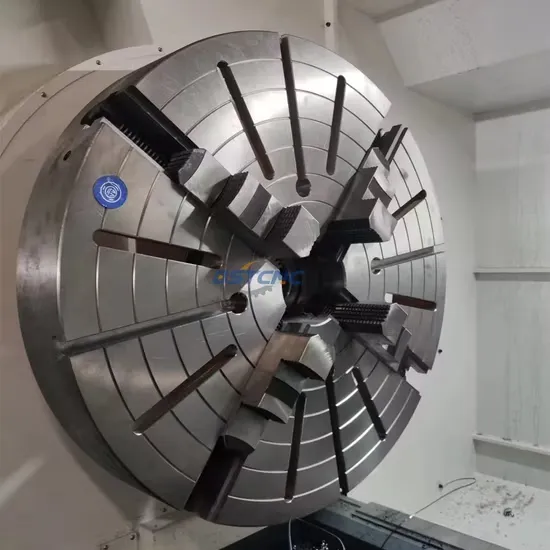

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine

,
