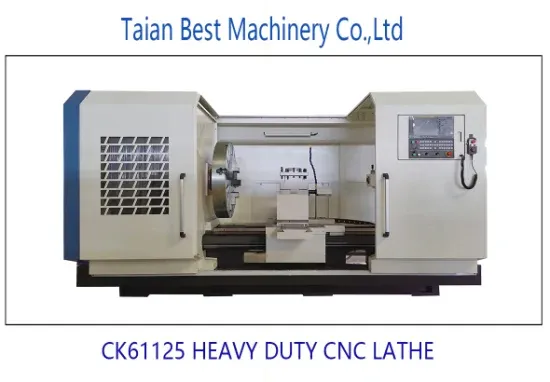

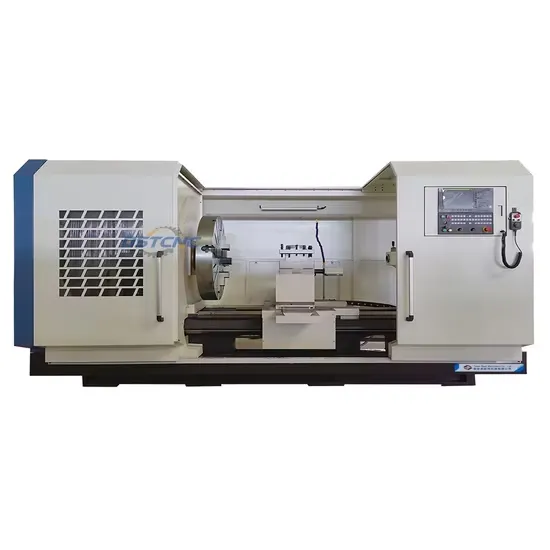

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine
Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine - Image 2
Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine - Image 3
Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine - Image 4
Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine - Image 5

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Max. Swing Over Bed 1,250 mm (Large-Diameter Capacity)
Max. Swing Over Cross Slide 930 mm
Max. Workpiece Length 1,500 mm
Processing Precision 0.020 mm
Spindle Motor Power 15 kW / 22 kW (High Torque)
Spindle Bore 105 mm
X/Z Axis Min. Feeding Unit 0.001 mm

Original price was: $40,800.00.Current price is: $39,800.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine

Product Description



This series CNC lathe is an economic machine tool  which capables of rough machining and finish machining with mechanical workpieces. Its main characters such as reliable structure , easy operating,  economical and practical, with comprehensive control system meet the performance needs of many industries. This series lathe is mainy used for the processing of the inner hole, end face, cylindrical surface, conical surface, threading of shafts ,discs and rotational parts. lt is widely used in auto industry because of its high efficiency and high precision machining features.

Product features

-High strength iron casting overall bed, aging treatment, good rigidity, high accuracy,high hardness, and long service life .
-The bed saddle adopts a rail surface pasting process with good wear resistance and high accuracy.
-Three gears speed change of main spindle, stepless freguency conversion speed regulation within gear .
-Widening carriage .

Product Parameters

Iitems Unit CK61125
Max dia.swing over bed mm 1250
Max dia.swing over cross slide mm 930
Max.length of work-piece mm 1500
Width of bed mm 600/650/755
Spindle nose C11
Spindle taper 1:20/120
Spindle bore mm 105
Power of spindle motor Kw 15/22
Mode of spindle speed Three gears,smooth adjustment
L:25-100,M:80-260,H:240-700
Min.Feeding set unit of X/Z axis mm 0.001
X/Z rapid traverse mm/min 4000/5000
Tailstock Diameter mm 100
Travel mm 250
Taper                         MT6
Electric tool-post Model HAK-21280
No.of tool stations Vertical four station
Tool shank size mm 40×40
Turret indexing time S 4.1
Chuck three jaw manual chuck
Positioning accuracy mm 0.020
Repositioning accuracy mm 0.01
Overall dimensions(L*W*H) mm 3900×2300×2200
Machine weight KG 8500
Standard configuration:
-GSK980TC3 control system;
-3 jaws manual chuck ;
–4 station electric tool post ;
–Manual tailstock;
–Automatic lubrication
–Coolant system
–Semi-closed metal house		 Optional configuration:-Siemens808D,Fanuc0i-TF, Syntec22TA…..
–Hydraulic chuck, Pneumatic chuck ;
–8/12 station electric tool post or Servo , hydraulic and power turret;
-Hydraulic / Pneumatic tailstock;
-Chip conveyor ;
-Full-closed metal house

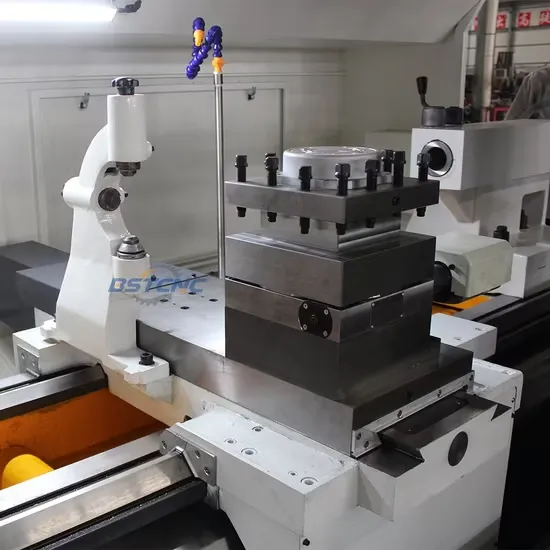

Detailed Photos

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine

Horizontal Large Aperture Ck61125 Heavy Duty Metal-Drilling Tapping Milling Turning CNC Machine
