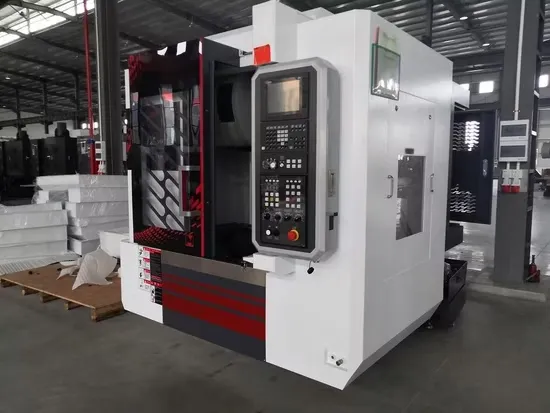

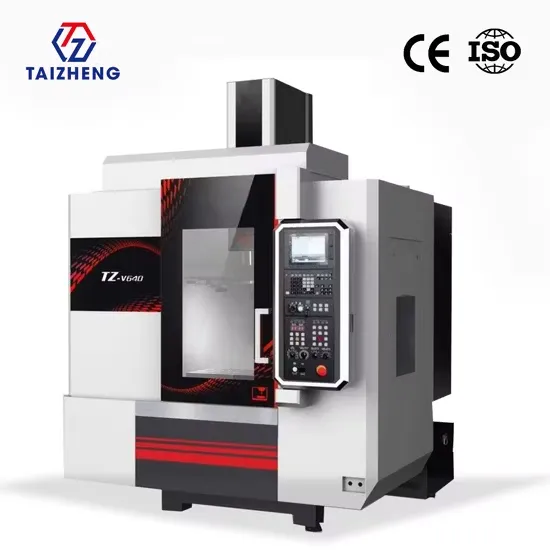

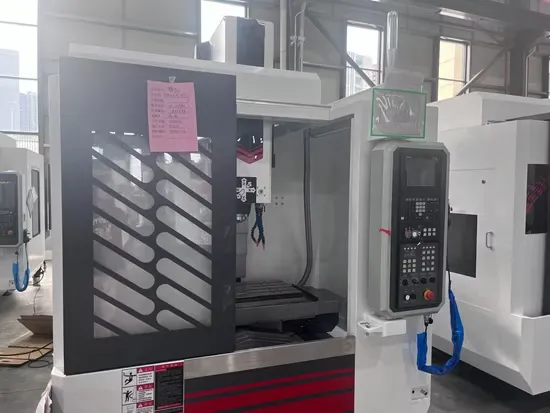

High-Precision Automated CNC Milling Machine for Vertical Applications - Image 1
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 2
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 3
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 4
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 5
Click to enlarge
High-Precision Automated CNC Milling Machine for Vertical Applications
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 2
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 3
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 4
High-Precision Automated CNC Milling Machine for Vertical Applications - Image 5

High-Precision Automated CNC Milling Machine for Vertical Applications

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Processing Precision 0.03 – 0.04 mm
X / Y / Z Axis Travel 600 mm × 400 mm × 450 mm
X/Y/Z Rapid Feed Speed 48 / 48 / 48 (m/min)
Spindle Taper BBT40
A.T.C. Capacity 24 Tools
T-Slot (No. / Width / Pitch) 3 × 18 × 125 mm

Original price was: $41,000.00.Current price is: $40,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

High-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical Applications

Model TZ-V640 TZ-V850 TZ-V855 TZ-V1165 TZ-V1270
Worktable size L*W (mm) 700×420 1000×500 1000×550 1100×530 1200×600
Work table Max. loading kg 350 400 500 500 600
T-slots size  (N×W×D)  mm 3x18x125 5x18x90 5x18x90 5x18x90 5x18x100
X/Y/Z axis travel mm 600/400/450 800/500/500 800/500/550 1100/650/600 1200/700/700
X/Y/Z axis feed speed m/min 48/48/48 48/48/48 48/48/48 48/48/48 48/48/48
X/Y/Z axis motor kw 1.5/1.5/3 kw 2/2/3 kw 2/2/3 kw 2/2/3 kw 3/3/3 kw
X/Y/Z axis roller Guide mm 30/30/35 35/35/35 35/45/45 35/45/45 45/45/45
Spindle taper BT40 BT40 BT40 BT40 BT40
Max. spindle speed rpm 12000 12000 12000 12000 12000
Spindle motor power kw 7.5 7.5/11 7.5/11 7.5/11 11
Distance from spindle nose to workbench mm 150-610 120-620 120-670 150-750 140-840
A.T.C capacity pcs 24 24 24 24 24
Positioning accuracy (X/Y/Z) mm  ±0.005/300  ±0.005/300  ±0.005/300  ±0.005/300  ±0.005/300
Re-positioning accuracy(X/Y/Z) mm  ±0.003/300  ±0.003/300  ±0.003/300  ±0.003/300  ±0.003/300
Machine weight kg 4300 5000 6000 6800 8100
Machine size (L*W*H) mm 2000*2400*2600 2500*2250*2650 2600*2500*2650 2700*2500*2750 3100*2760*3100
Main Parts Branch/ Origin
CNC System M80B Mitsubishi/ Japan
Spindle and three-axis servo motor Mitsubishi/ Japan
Spindle Dejiu TAIZ/ Taiwan
Ball screw Yintai or Shangyin/ Taiwan (C3)
Screw bearing P4NSK/ Japan
Rail Yintai or Shangyin/ Taiwan (P)
A.T.C capacity TAIZ or Deda/ Taiwan
Body casting High density and high strength resin sand cast iron
Coupling R+W\NBK  / German
Electrical components Franch
Handwheel pulse East Test/Internal Security Control / Janpan
Pneumatic components Taiwan AirTAC/ Japan SMC
High-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical ApplicationsHigh-Precision Automated CNC Milling Machine for Vertical Applications
