Building Aggregates Sand Stone Jaw Cone Impact VSI Roller Rock Crusher Crushing Mining Machine for Quarry/Basalt/Granite/Limestone
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $21,000.00.$20,000.00Current price is: $20,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Crushing Degree | Intermediate (Secondary/Tertiary) |
| Finished Surface | Outer Surface Process (Cubical Shape) |
| Certification | CE Certified |
| Condition | New |
| Color | Industrial Yellow |
| Delivery Time | 15 Working Days |
Product Description
Our company successfully achieved ISO9001:2008 Quality Management Certificate and EU CE certificate. Kinglink is able to offer products with high performance as well as quality service support and solutions to our customers home and abroad. We have cultivated a professional engineering team equipping with advanced mechanical design system and one efficient after-sales service team who can respond customers’ concerns quickly.

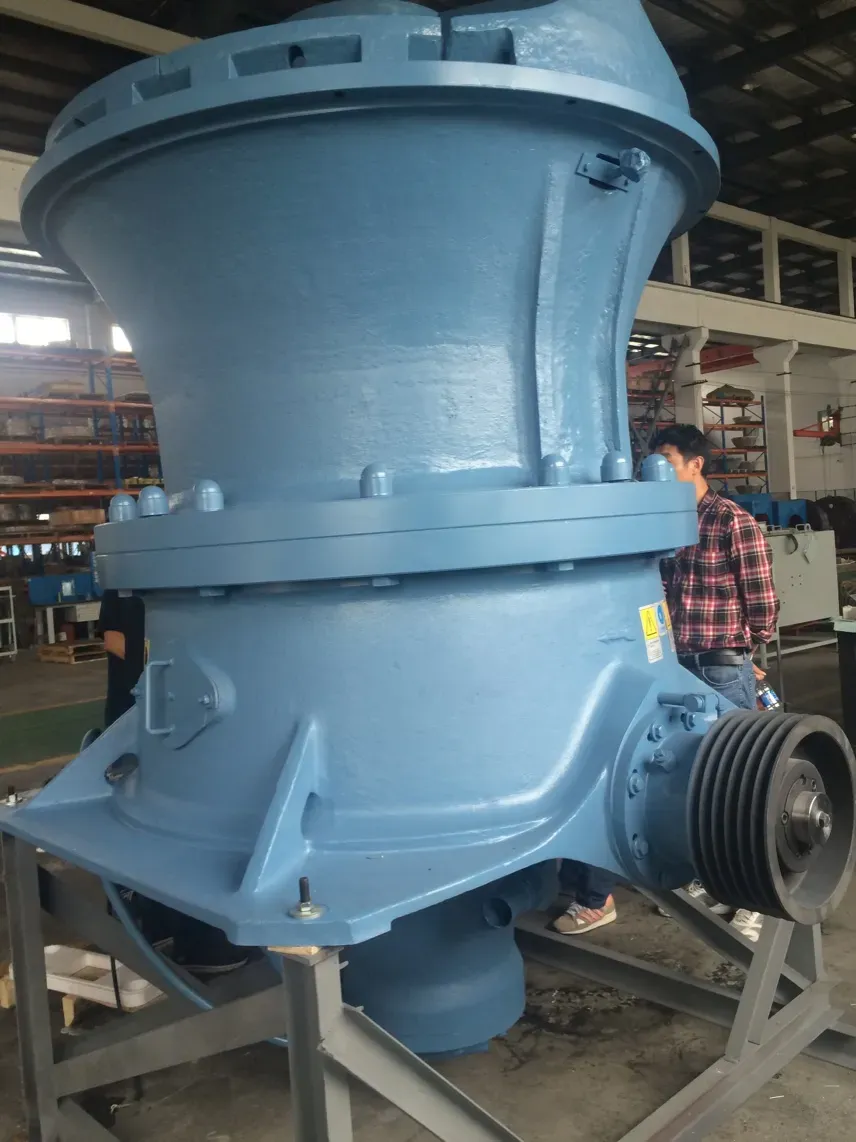

Introduction & Application of KL Cone Crushers
KL series symons cone crusher is developed with national patent based on international technology and innovation. It can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone
Advantages & Characteristics
New special design, simple and reasonable structure, smooth and stable running and low operation cost.
Cone frame is cast steel structure; High pressure points are reinforced by hard steel
Each side of drive-shaft is equipped with roller bearings. Bearing base uses seal ring to prevent lubricating oil leakage.
Hydraulic adjustment devices make it convenient to adjust discharge opening size.
Hydraulic release system consists of several hydraulic cylinders. Easy to release jammed materials.
“Spring type” over-load protection. This release system allows un-crushable materials to pass through without causing damage.
A complete lubricating oil circle system, including oil pump, oil reserve tank, oil pipeline, etc. If oil temperature is over high or oil flows slowly, the machine can be shut down automatically. This protection extends crusher’s service life.
Technical Parameters
| Model | Max Feed Size (MM) |
Min Discharge opening (mm) |
Main Motor Power (kw) |
Close Discharge Size(mm) Capacity(TPH) | |||||||||
| 6 | 10 | 13 | 16 | 19 | 22 | 25 | 38 | 51 | 64 | ||||
| KLC1000 | 160 | 13 | 90-110 | 70 | 90 | 125 | 135 | 160 | 215 | ||||
| KLM1000 | 115 | 10 | 90-110 | 55 | 65 | 70 | 90 | 120 | 135 | ||||
| KLF1000 | 80 | 8 | 90-110 | 47 | 50 | 60 | 67 | 90 | |||||
| KLC1160 | 180 | 13 | 110-132 | 105 | 120 | 135 | 160 | 180 | 220 | ||||
| KLM1160 | 130 | 10 | 110-132 | 72 | 92 | 105 | 135 | 150 | 170 | ||||
| KLF1160 | 90 | 10 | 110-132 | 70 | 90 | 100 | 125 | ||||||
| KLC1300 | 200 | 16 | 132-160 | 135 | 160 | 180 | 200 | 290 | 350 | ||||
| KLM1300 | 150 | 13 | 132-160 | 105 | 125 | 135 | 160 | 180 | |||||
| KLF1300 | 102 | 10 | 132-160 | 80 | 105 | 135 | 140 | ||||||
| KLC1380 | 215 | 19 | 185-220 | 180 | 200 | 230 | 310 | 400 | |||||
| KLM1380 | 160 | 16 | 185-220 | 130 | 160 | 180 | 200 | ||||||
| KLF1380 | 115 | 13 | 185-220 | 135 | 170 | 190 | 210 | ||||||
| KLC1500 | 235 | 22 | 185-220 | 210 | 245 | 290 | 380 | 480 | 530 | ||||
| KLM1500 | 175 | 19 | 185-220 | 195 | 234 | 250 | 295 | ||||||
| KLF1500 | 130 | 13 | 185-220 | 170 | 190 | 220 | 230 | 250 | |||||
| KLC1650 | 267 | 22 | 250-300 | 300 | 350 | 475 | 600 | 660 | |||||
| KLM1650 | 203 | 16 | 250-300 | 210 | 250 | 280 | 300 | ||||||
| KLF1650 | 140 | 13 | 250-300 | 170 | 205 | 240 | 310 | ||||||
