Product Description

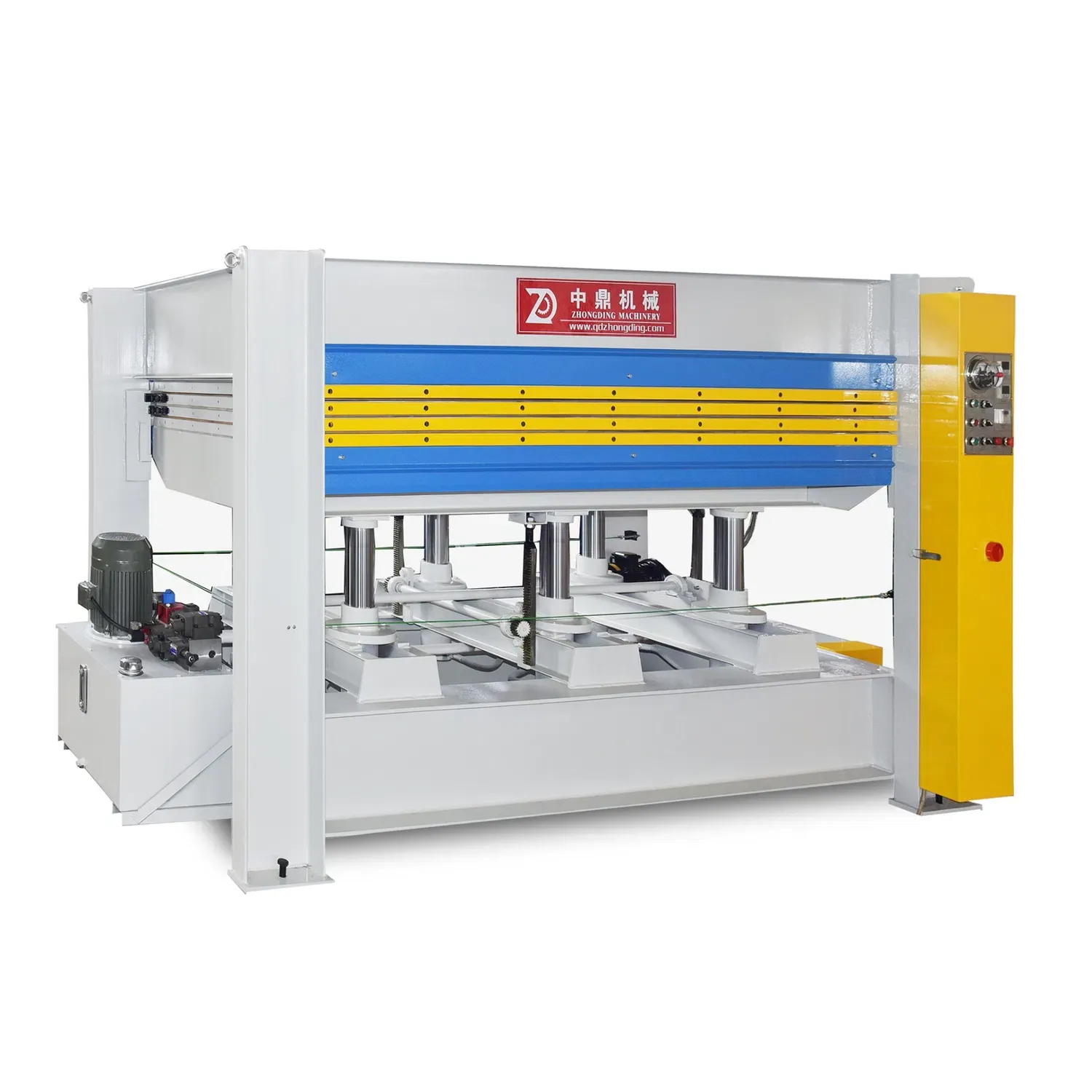

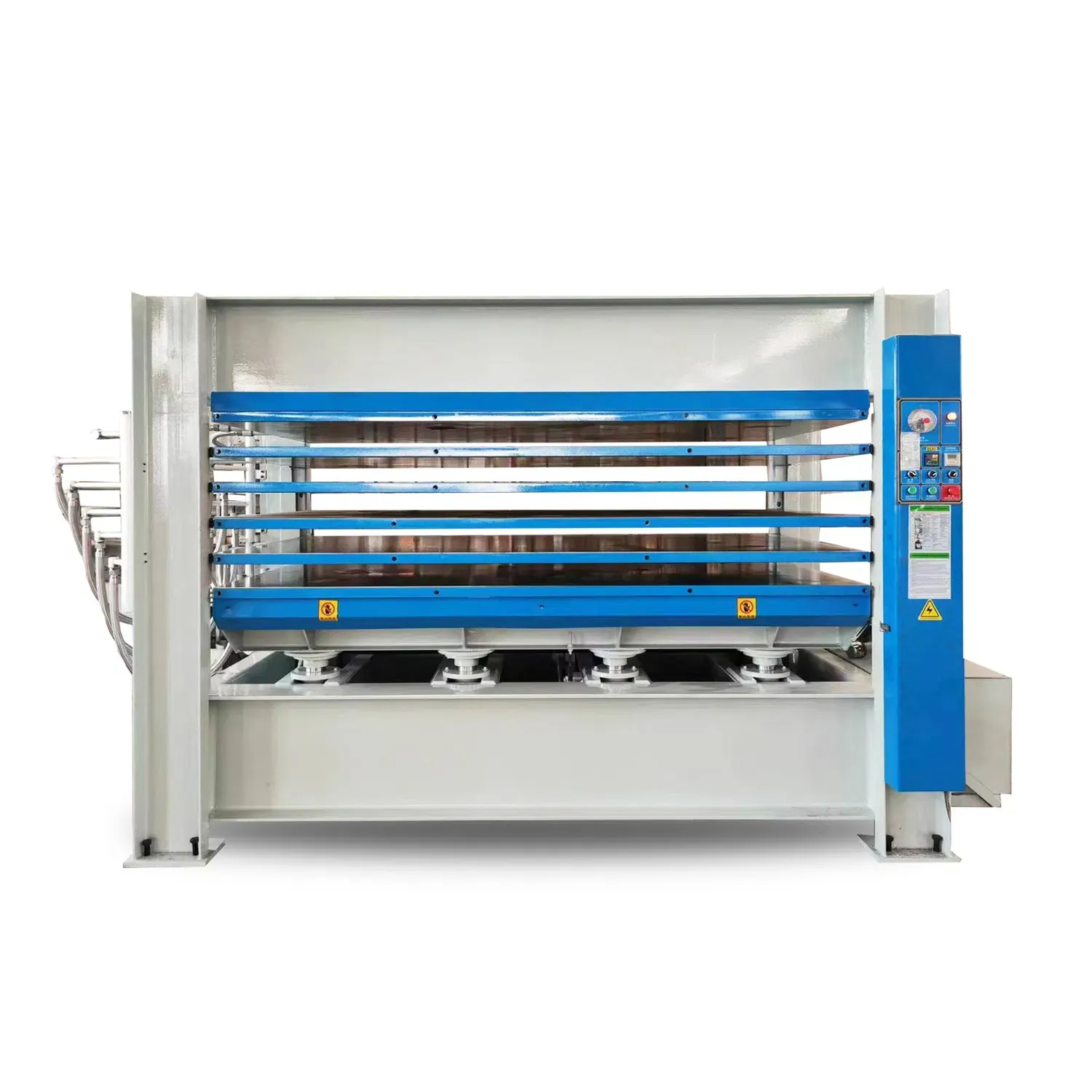

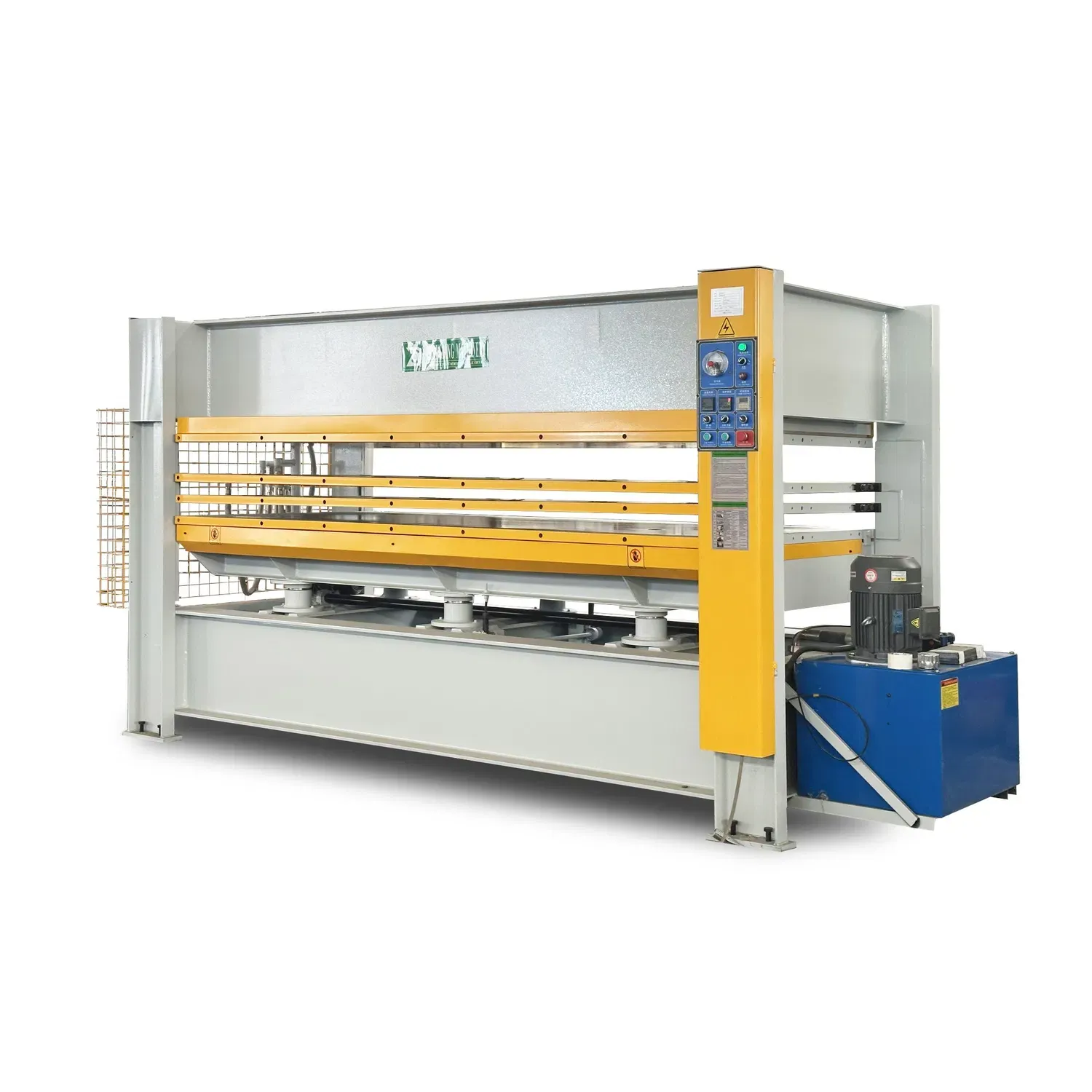

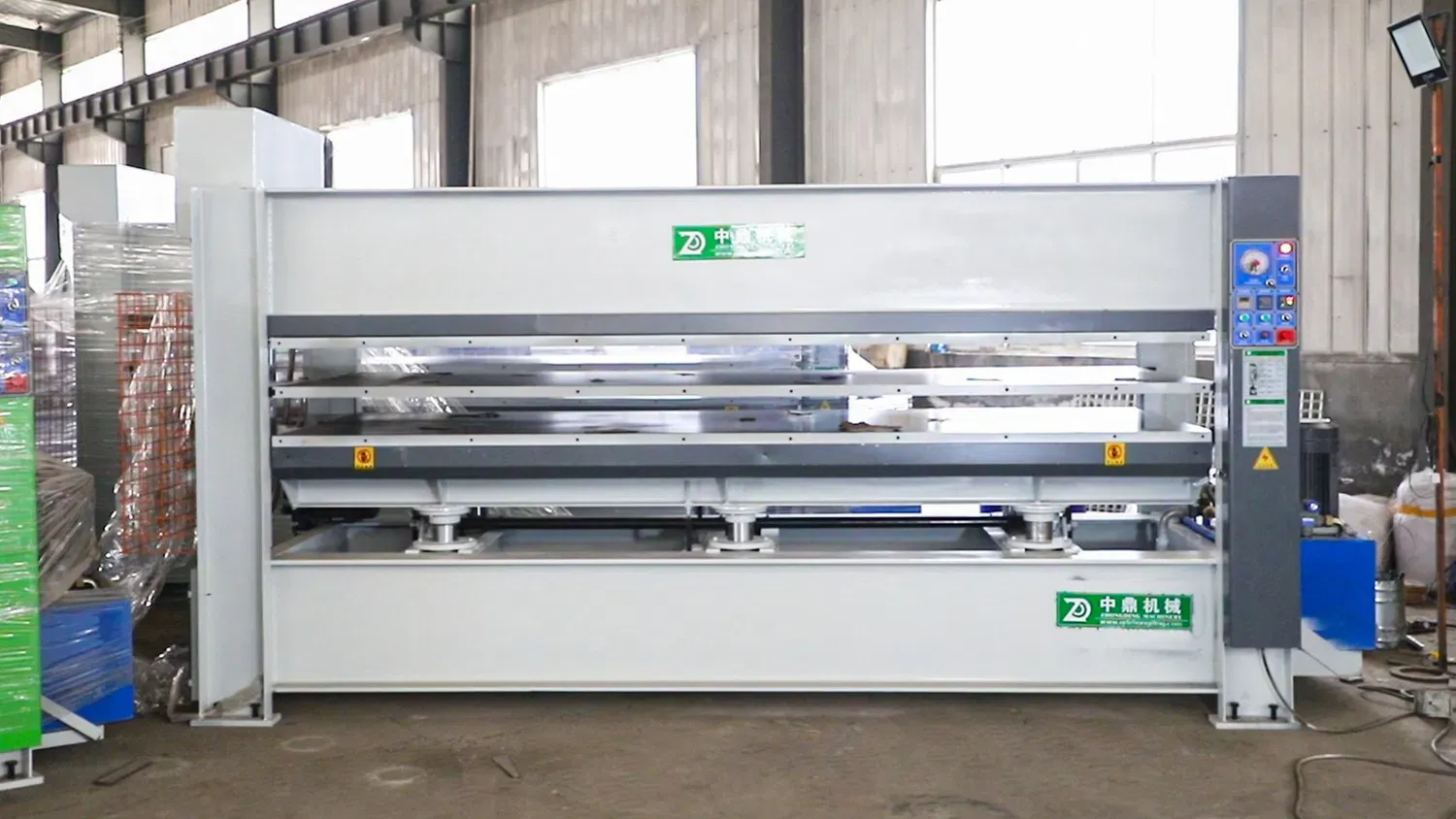

Woodworking Hot Press Machine Door Skin Heat Press Machine
The application of hydraulic heat press is to press or combine the laminate sheets on to the plywood, doors, boards or block boards. Hydraulic cold press are widely used in the plywood industry, furniture making industries, to stick the laminate sheets on to the plywood, doors, boards or block boards. The main function of this machine is to make a instantaneous and nonstop pressure on work piece
|
Model
|
ZD214
|
ZD214x8/20(2)H
|
ZD214x8/20(3)H
|
ZD214x8/20(6)H
|
|
Total pressure (KN)
|
1000 KN
|
1200 KN
|
2000 KN
|
2000 KN
|
|
Platen No & size (mm)
|
1300x2500x42 mm
|
1300x2500x42 mm
|
1500x3000x42 mm
|
1500x3000x42 mm
|
|
Opening (mm)
|
80-150mm
|
80-150mm
|
80-150 mm
|
80-150 mm
|
|
Layer Numbers
|
1
|
2
|
3
|
6
|
|
Cylinder No &Diameter (mm)
|
6 x100mm
|
6 x100mm
|
8 x100mm
|
8 x100mm
|
|
Hot platen open way
|
Automatically
|
Automatically
|
Automatically
|
Automatically
|
|
Closing speed (mm/s)
|
40 mm/s
|
40 mm/s
|
40 mm/s
|
40 mm/s
|
High strength solid steel plate
The hot plate is a solid drilled plate, and the oil circuit layout is reasonable and even, which greatly ensures the heating speed and temperature uniformity of the hot plate. After the surface of the hot plate is milled and rough ground, a CNC grinder is used to perform secondary finishing on the surface of the hot plate. The plane accuracy is within 0.15mm, ensuring the plane accuracy of the hot plate. It has good pressure-bearing performance and is not easy to deform.
Anti-rust chrome-plated integrated oil cylinder
Integrated oil cylinder, solid plunger rod, hard chrome plated, with imported sealing ring inside. It will not leak oil or rust even after long-term use, and has excellent pressure-maintaining effect.
Thickened “H” steel machine body
The thickened H-shaped channel steel body can effectively ensure the stable operation of the machine, is not easy to deform, and has a longer service life.
