Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 2
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 3
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 4
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 5
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 6
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 7
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 8
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 9
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 10
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 11
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 12
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels - Image 13

Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Original price was: $39,000.00.Current price is: $38,000.00.


Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Feature Details
Primary Function Integrated Box Molding and High-Speed Sealing
Material Handling Solid Goods / Pre-Packed Primary Bags
Forming Species Box/Carton Molding
Packaging Material Industrial Grade Paper / Cardboard
Driven Type Electric (Precision Synchronized Drive)
Performance Tier High-Efficiency Continuous Throughput
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Efficient practical intelligent automatic nailing machine with six servo motors to control the movement, is the company’s latest launch of an intelligent and highly efficient high speed nailing machine,nailing speed and running nails with the same speed and durable and stable head
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels

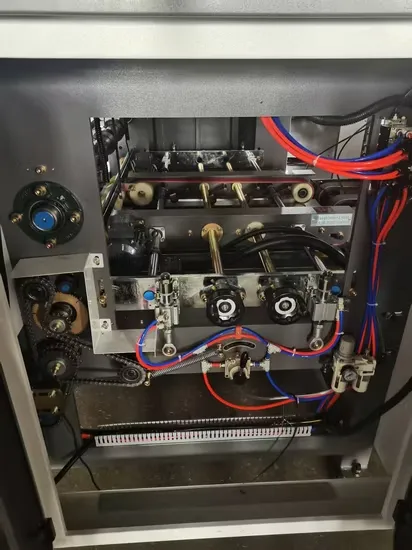

lt is composed of five parts: paper feeding part, folding part,nailing part, counting output part and electrical control part.
PLC control touch screen input data, nail box action servo motor control, simple and reliable operation.
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Automatic paper feeding, automatic folding, automatic correction,automatic pinning,automatic counting,automatic stacking output,The whole machine board combination structure, synchronous adjustment before and after, order storage, one-key exchange, distinguish the shortcomings of the machine and the machine, the main machine nailing up and down intelligent automatic adjustment,automatic conversion, left and right transverse movement, independent operation of nailing work, The adjustment is more convenient, fast and efficient. Advanced technology, reliable quality.
Technical Parameters
Model and Parameters
QDJ-2600C
Disable
QDJ-2600C
Enable
QDJ-3000C
Disable
QDJ-3000C
Enable
QDJ-3500C
Disable
QDJ-3500C
Enable
Maximum size(A+B)*2(mm)
2600(nail)
2400(stick)
2600
3000(nail)
2800(stick)
3000
3500(nail)
3300(stick)
3500
minimum size
(A+B)*2(mm)
730(nail)
430(stick)
1060
730(nail)
430(stick)
1010
820
940
Maximum size(C+D+C) (mm)
1200
1200
1200
1200
2200
2200
Minimum size(C+D+C) (mm)
350(nail)
170(stick)
530
350(nail)
170(stick)
530
350
530
Minimum Shaking CapC(mm)
75
Maximum shaking capC(mm)
320
320
320
320
330
330
maximum widthB(mm)
500
500
600
600
650
650
 Min,widthB(mm)
150(nail)
80(stick)c
250
165(nail)
80(stick)
250
160
220
Max,lengthA(mm)
800
800
900
900
1100
1100
Min,lengthA(mm)
200(nail)
135(stick)
280
200(nail)
135(stick)
280
250
250
Max,heightD(mm)
650
650
650
650
1550
1550
Min,heightD(mm)
200
Tongue widthE(mm)
30-35
Mechanical length(mm)
13000
Mechanical width(mm)
3800
3800
4000
4000
4250
4250
Mechanical weight(T)
11
11
12
12
13.5
13.5
Power(kw)
23
Mechanical speed(nails/min)
1000
Order number
1-99
Nail pitch(mm)
30-80
Box speed(three nails)
110-130slice
60-90slice
110-130slice
60-90slice
110-130slice
60-90slice
Glue box speed (m/min
120
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
Self-Developed Highly Efficient Stable Packing Machine for Splicing of Panels
