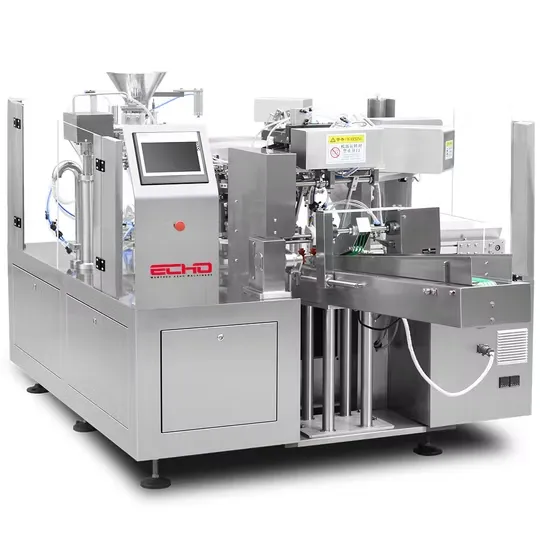

CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 2
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 3
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 4
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 5
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 6
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 7
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean - Image 8

CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Material Type Solid / Granular / Formed Products
Primary Applications Snacks, Rice, Flour, Meat, Fish, Tea, Seasoning
Industrial Use Cleaning Detergents, Skin Care, Dairy Products
Forming Function Integrated Filling and Heat Sealing
Packaging Material Industrial Plastic / Composite Films
Condition New (CNC & Factory Production)

Original price was: $47,000.00.Current price is: $46,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

Features and Characteristics:

1. Easy to operate: PLC controller, HMI system, fault indication on the touch screen.

2. Easy to adjust: All working process in one station, more easily adjusting.
3. Frequency control: Speed can be adjusted by frequency conversion within the range.
4. High Automation: Unmanned in weighing and packing process, machine will show alarm automatically when failure.
5. Pouch size change: 8 sets of gripper can be adjusted hand wheel at one time .
6. No pouch/ incorrect pouch opening-no fill-no seal, machine alarm.
7.Machine will show alarm and stop when inadequate air pressure.
8. Safety guards with safety-switches, machine alarm and stop when the safety guards are opened.
9. Hygienic construction, the product contact parts are adopted sus 304 stainless steel.
10. Imported engineering plastic bearings, no need oil, no contamination.
11. Oil-free vacuum pump, avoid the pollution of the production environmental.
12.Suitable for M shaped bag
13.Innovative machine-clamping device, large opening and firm bag clamping
14.Mechanical transmission
15.Automatic lubricating oil system
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean

Product Parameters

Model MRM8-180 / MRM-250
Bags Size Width: 80-180mm Length: 150-350mm  /Width: 150-250mm Length: 150-350mm
Capacity 20-40 bags/min (The speed is determined by the product itself and the filling weight)
Total Power 7KW (220V/380V, 3PH, 60HZ/50HZ)
Demension 2070*1810*1620mm (L*W*H)  / 2300*1800*1500mm(L*W*H)
Weight 2400KGS  /3500KGS
Compress air requirement ≥ 0.8m³/min supply by user
Pouch type Gusseted bag / M type bag

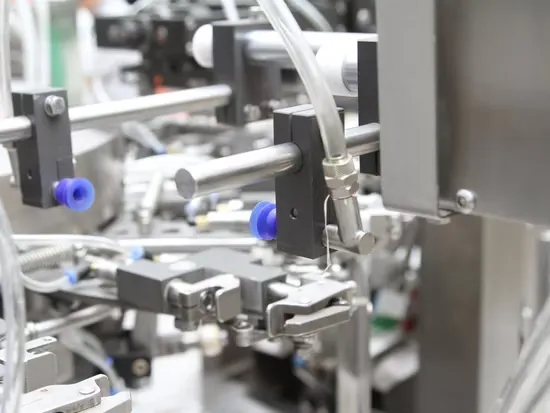

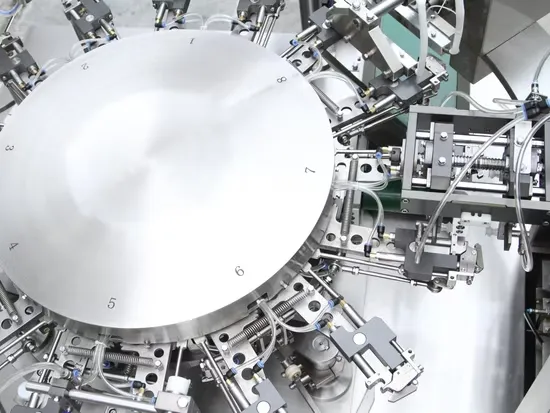

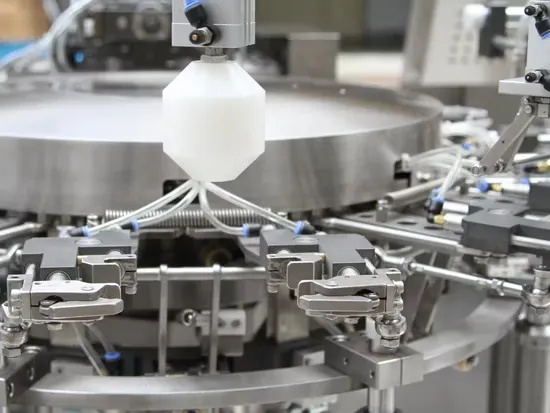

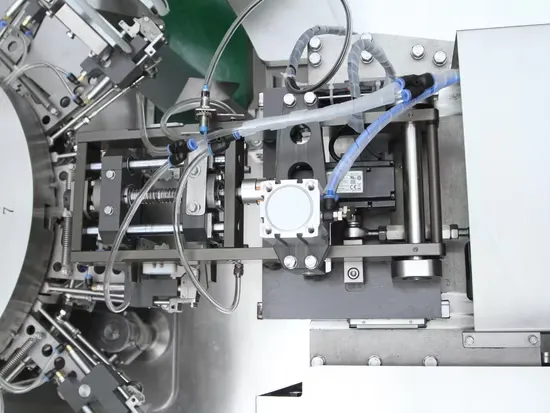

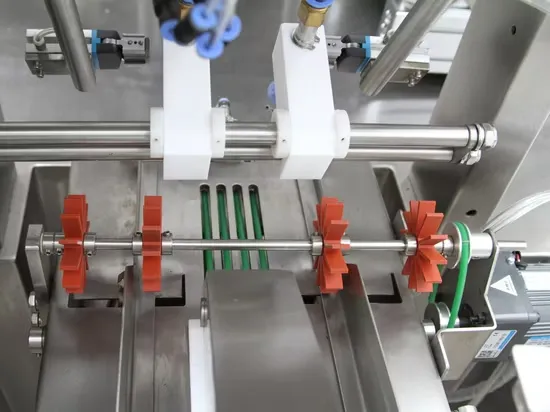

Detailed Photos

Work process
Safety Measures
1.no bag feeding, no filling and no sealing.
2.no bag opening/open error, no filling and no sealing
3.no filling, no sealing
Product
Process
Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zippe bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing
Remark:No.5.6.7.Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output
Stations are based on customer requirements for adjusting.

CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean

CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
CE Approved Multifunction Automatic Quad Seal Bag Packing Machine for Coffee Bean
