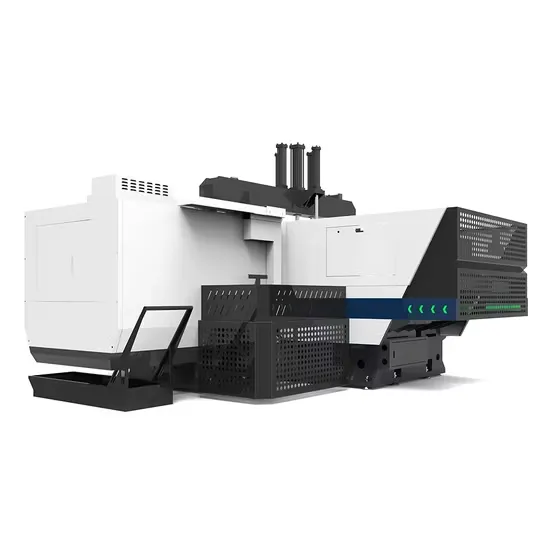

End Milling Machine Metal Cutting Tool Horizontal CNC Milling Machine
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $46,000.00.$45,000.00Current price is: $45,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Cutting Size Range | 200 mm – 1600 mm |
| Max. Load Capacity | 9000 kg |
| Cutter Diameters | $\phi$ 350 mm / $\phi$ 400 mm / $\phi$ 450 mm |
| X/Y/Z Rapid Feed Rate | 6000 mm/min |
| Controlling Mode | CNC |
| Condition | New |
Product Description

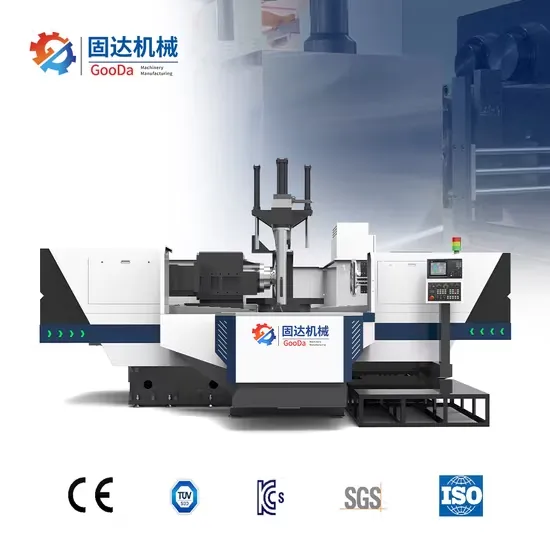

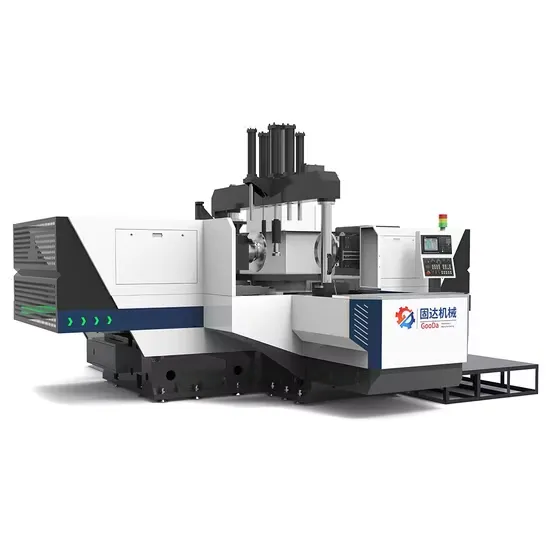

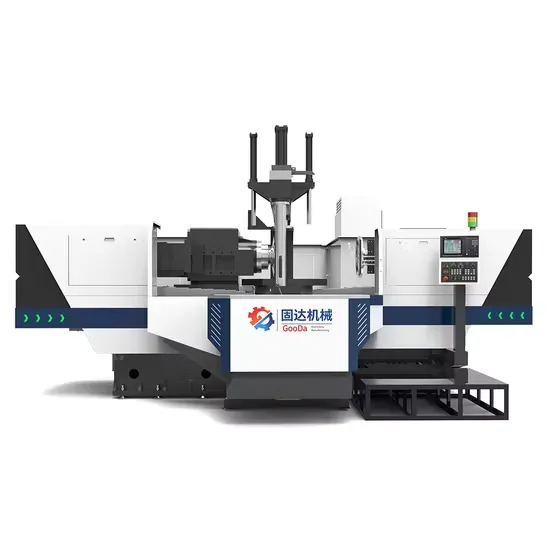

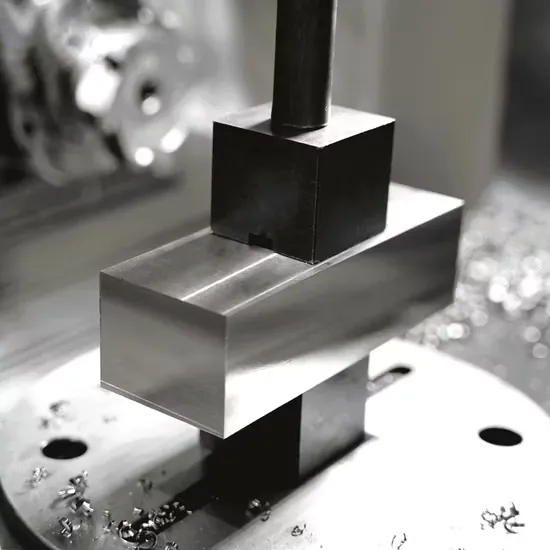

Automatic milling of all four surfaces in a single setup with GooDa Twin Spindle Milling Machine, minimizing setup time, enhancing efficiency, and reducing operating costs.
-Two surfaces are milled simultaneously with twin cutters;
-The index table automatically rotates 90° after milling 2 surfaces;
-The remaining two surfaces are milled automatically;
-Chamfering can be completed as required while milling faces.
•2-surfaces & 4-surfaces machining system
•Clamping force adjustment function
•Spindle: gear-driven/belt-driven
•CNC System: Mitsubishi/GooDa/FANUC
•Hydraulic clamping system: main & auxiliary hydraulic cylinders
•Chamfering function
•Servo-driven positioning plate
•Gantry frame: auto open & close
| Machine Model | TH-1600NCA | ||
| Category | Attribute | Value | Unit |
| Processing capacity | Number of control axes | 5 | / |
| Cutting capacity | 2*3 | mm | |
| Cutting size | 200-1600 | mm | |
| Worktable | Worktable size | 1100*1100 | mm |
| Max. load capacity | 9000 | KG | |
| Spindle | Spindle speed | 50-500 | rpm |
| Spindle motor | 2*30/2*37 | kW | |
| Cutter diameter | Φ350/Φ400/Φ450 | mm | |
| Positioning plate | Servo-driven positioning plate | 1000*350 | / |
| X/Y/Z axis | X/Y/Z servo motor | 5.5/4.4/4.4/2.9/1.8 | kW |
| X/Y/Z maximum rapid feed rate | 6000/6000/6000 | mm/min | |
| Accuracy | Squareness | 0.02 | mm/300mm |
| Accuracy for dimension | 0.05 | mm/300mm | |
| Tank capacity | Hydraulic oil tank | 80 | L |
| Lubrication oil tank | 4 | L | |
| Main power | Power supply | AC3P380V/3P220V | V |
| Size & weight | Machine weight | About 26000-27000 | KG |
| Machine size (L*W*H) | 6040*6710*3250 | mm | |
