Product Description

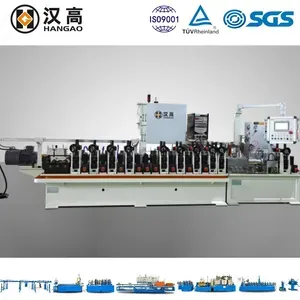

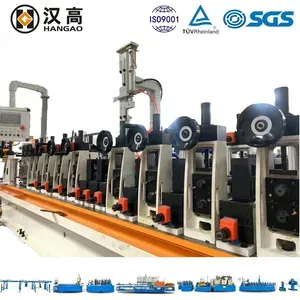

Stainless Steel Tube Mill Forming Section
The mold material you can choose Taiwan SKD11, domestic Cr12MoV, copper alloy and other materials manufacturing, production line mold using vacuum heat treatment, hardness HRC60 degrees or more (different materials, India is not the same), CNC high-precision processing.


PLC + Tig Tube Mill Welding Section (with box )
Process improvement and innovative design : (This Picture is before design ) the unit table surface we changed to segment design, after the completion of welding plus annealing process to remove the welding stress, to ensure that the later processing is not deformed. After milling the plane, add a plane grinding to ensure that the accuracy of the machine is controlled at 0.01-0.02mm .

| Model | Material | Welding type | O.D. (mm) |
Thickness (mm) | Motor Power (KW) | Size(L*W*H)(m) |
| SZG-30 | SST | TIG | 6-16 | 0.4-1.5 | 5.5 | Customized |
| SZG-40 | SST | TIG | 16-50.8 | 0.5-2.5 | 7.5 | Customized |
| SZG-50 | SST | TIG | 25.4-76 | 0.5-3.0 | 11 | Customized |
| SZG-60 | SST | TIG | 50.8-114 | 1.0-4.0 | 15 | Customized |
| SZG-80 | SST | TIG | 89-168 | 1.0-5.0 | 18.5 | Customized |
| SZG-100 | SST | TIG | 114-219 | 2.0-8.0 | 30 | Customized |
| SZG-120 | SST | TIG | 168-325 | 3.0-10.0 | 37 | Customized |
