Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder - Image 2
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder - Image 3
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder - Image 4
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder - Image 5

Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Center Height 270 mm
Loading Capacity 1,000 kg (Heavy-Duty Load)
Processing Object Gears, Shafts, Industrial Rollers
Abrasives High-Performance Grinding Wheel
Precision Tier High-Precision Toolroom Grade
Color Options Customer Selection

Original price was: $50,000.00.Current price is: $49,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

 Universal Cylindrical Grinding-machine

1 The worktable and wheelhead guideway adopt hydrostatic lubrication, its movement on low speed is smooth.
2 Wheel head spindle is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
3 For UG-500, spindle of workhead adopts sliding bearing structure. the clearance of the front bearing can be adiusted to make it suitable for the grinding use center or chuck.

SPECIFICATION UNIT G-500(G-500A) UG-500(UG-500A)
Distance between centers mm 1500/2000/3000/4000 1500/2000/3000/4000
Center height mm 270 270
Dia. ground(O. D) mm 25-500 25-500
Dia. ground(I. D) mm – 30-200
Grinding length(O. D) mm 1500/2000/3000/4000 1500/2000/3000/4000
Grinding length(I. D) mm – 320
Loading capacity kg 1000(2000) 1000(2000)
Workhead swivel angle ° – +90°
Workhead spindle taper – MT6 MT6
Workhead spindle speed rpm 18-180(10-100) 20-224
Wheelhead spindle speed rpm 870 1330/665
Wheelhead rapid feed travel mm 100 100
Wheelhead cross travel mm 438 370
Wheelhead swivel angle ° – 30°
Wheelhead feed of handwheel per rev. (rough/fine) mm/rev 4/0.5 4/0.5
Wheelhead feed of handwheel per gra. (rough/fine) mm/gra 0.02/0.0025 0.02/0.0025
External grinding wheel size mm 750x75x305 500x75x305
Max.peripheral speed of grinding wheel m/s 35 35/17.5
Internal grinding spindle speed rpm – 10000
Internal grinding wheel size mm – Max: 175x32x32  Min: 30x25x10
Table feed of handwheel per rev. mm 5 5
Table swivel angle(CW) ° 3°/2°/2°/1° 3°/2°/2°/1°
Table swivel angle(CCW) ° 6°/5°/3°/2° 6°/5°/3°/2°
Table longitudinal feed speed m/min 0.1-3 0.1-3
Tailstock quill taper – MT6 MT6
Tailstock quill travel mm 70 70
External grinding motor power kw 15 5/7.5
Internal grinding motor  power kw – 1.5
Workhead motor power kw 4(7.5) 4(7.5)
Gross weight tons 10/11/13/17 10/11/13/17
Packing size(LxWxH) cm 510/585/785/1000x228x210
STANDARD ACCESSORIES:
Measuring bridge plate, Open steady rest, Wheel flange, Wheel extractor, Balancing arbor, Grinding wheel, Coolant tank, Carbide tripped center, Driving dog, Wheel dresser (Without diamond pen), Work lamp, Internal grinding attachment (UG), 3-jaw chuck (UG), Extension shaft (UG), Internal grinding wheel (UG), Full set tools, Leveling wedge, Operation manual (English edition).
OPTIONAL ACCESSORIES:
Balancing stand, Digital readout, Close steady rest, End wheel dresser, Radius wheel dresser, Center grinding attachment (G), Magnetic separator, Paper filter.

Detailed Photos

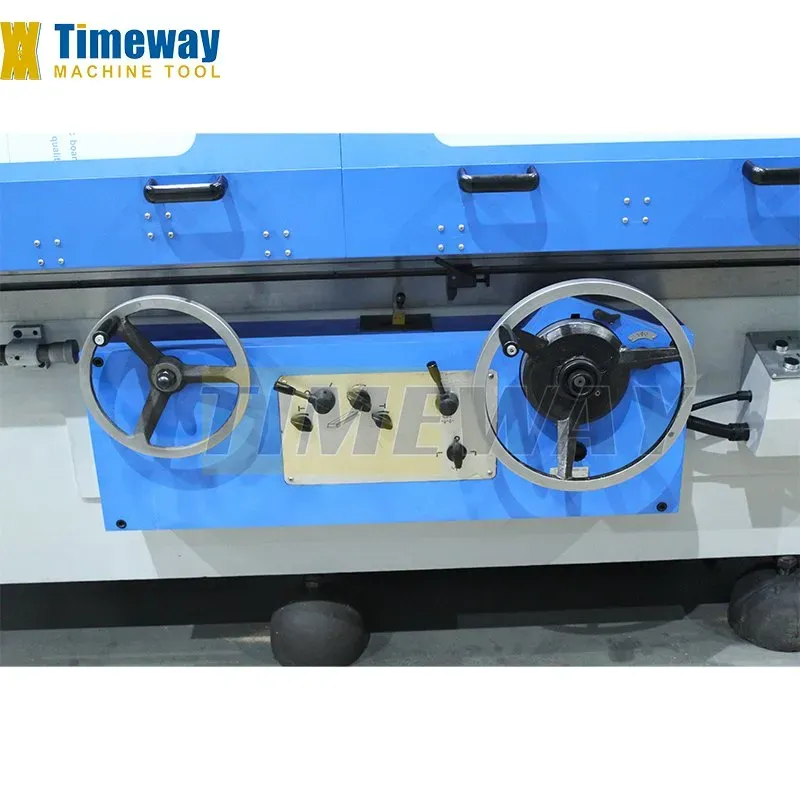

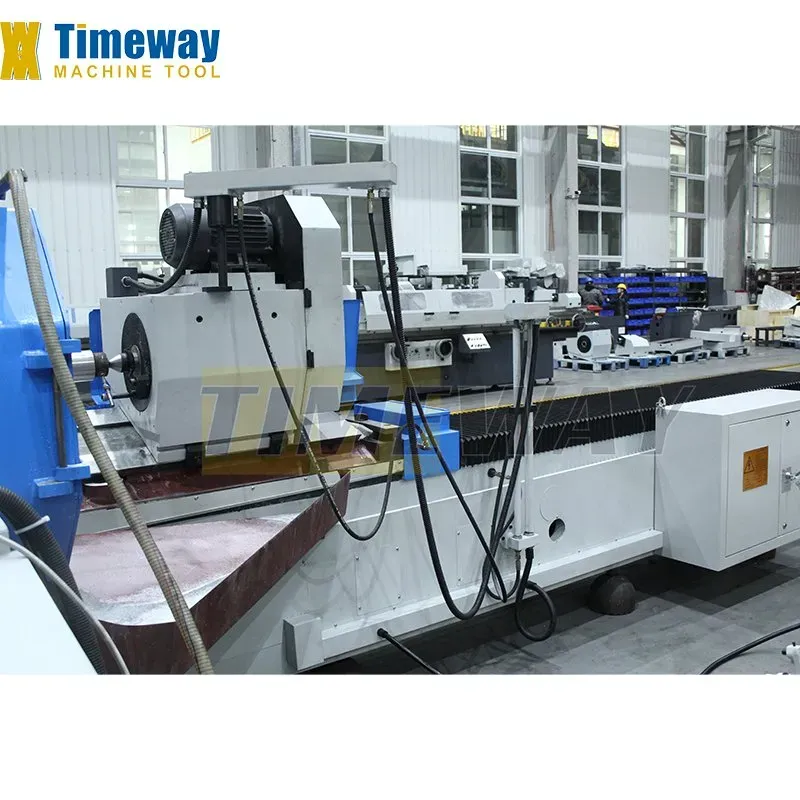

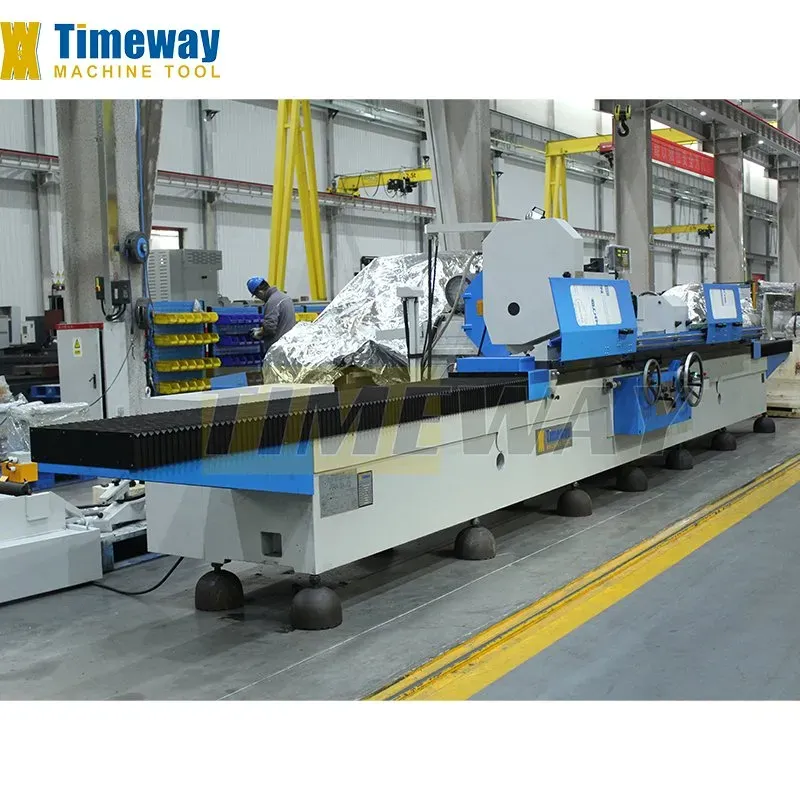

Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder
The workhead spindle, wheelhead spindle, internal grinding spindle are driven by separate motors. Worktable with hydrostatic pressure support for large loading and low wear Independent hydraulic station assembles with air cooling, running stably with small temperature rise, provide enough power for precision grinding.
