Long Bar Grinding-High Precision CNC Centreless/ Cylindrical Grinding Machine
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $101,000.00.$100,000.00Current price is: $100,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Primary Function | Precision Tool Grinding & Cylindrical Finishing |
| Processing Object | Metal Cutting Tools (End Mills, Drills, Reamers) |
| Abrasives | High-Performance Grinding Wheel |
| Motion Logic | Multi-Axis Synchronized Pathing |
| Condition | New |
| Certification | ISO 9001 |
Product Description
Machine tool characteristics

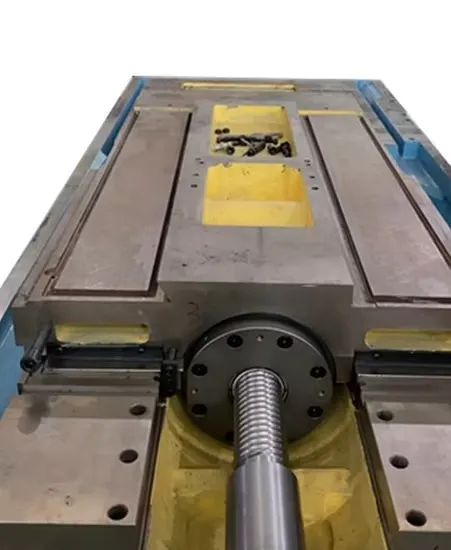

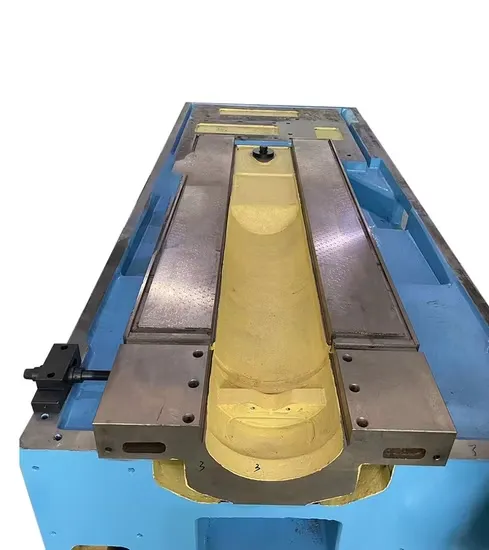

Three layer structure. The superior layer is cone adjustment turntable, the middle layer is feeding guide rail, and the inferior layer is guide rail of guide wheel platform.
The guide rail is wide & thick, the fixing surface is plated with chromium, and the mobile surface is stuck with plastic, which owns high rigidity, high precision, high wear resistance & high vibration absorption.

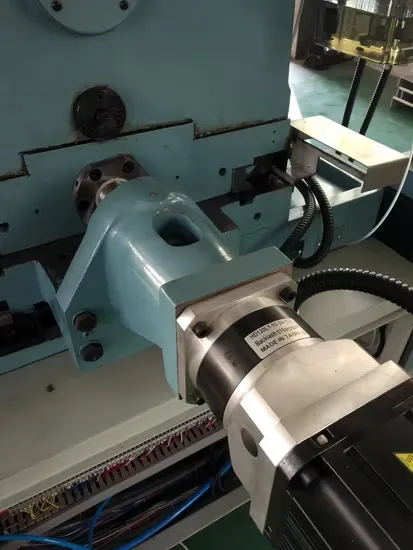

It’s driven & fed by ball screw & worm and gear together, so as to ensure the micro-advancing precision.
Machine tool parameters
| Grinding diameter (mm) | φ1.6-φ120 | |
| Grinding maximum length (mm) | 400 | |
| Grinding wheel specifications (mm) | φ610×405×φ305 | |
| Guide wheel specifications (mm) | φ330×405×φ203 | |
| Maximum working linear speed of grinding wheel (m/s) | 45 | |
| Grinding wheel speed (rpm) | 1400 | |
| Guide wheel stepless frequency conversion speed regulation (rpm) | 12-230 | |
| Guide wheel rotation angle (°) | +5°~-5° | |
| For standard test sample | Roundness(mm) | 0.001 |
| Cylindricity (mm) | 0.002 | |
| Machine dimensions (mm) | 3500×2700 | |
| Machine weight (kg) | About 10000 | |
