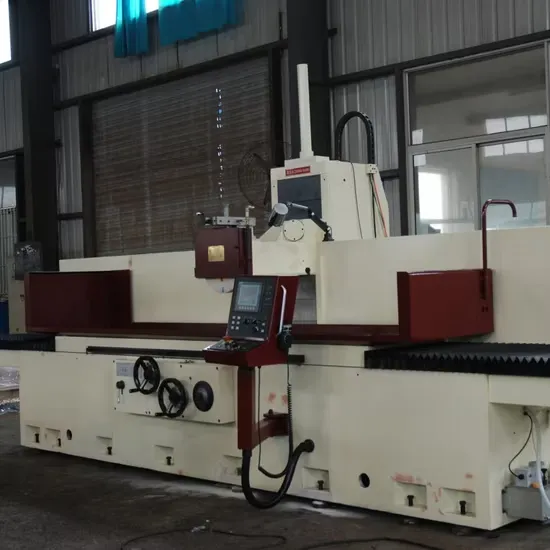

Hot Sale Flat Grinder Precision Hydraulic Big Surface Grinding Machine
Hot Sale Flat Grinder Precision Hydraulic Big Surface Grinding Machine Original price was: $60,500.00.Current price is: $59,500.00.
Back to products
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder
Precision Grinding Cylindrical Grinding Machine Internal and External Cylindrical Grinder Original price was: $50,000.00.Current price is: $49,000.00.
Sale
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 1
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 2
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 3
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 4
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 5
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 6
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 7
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 8
Click to enlarge

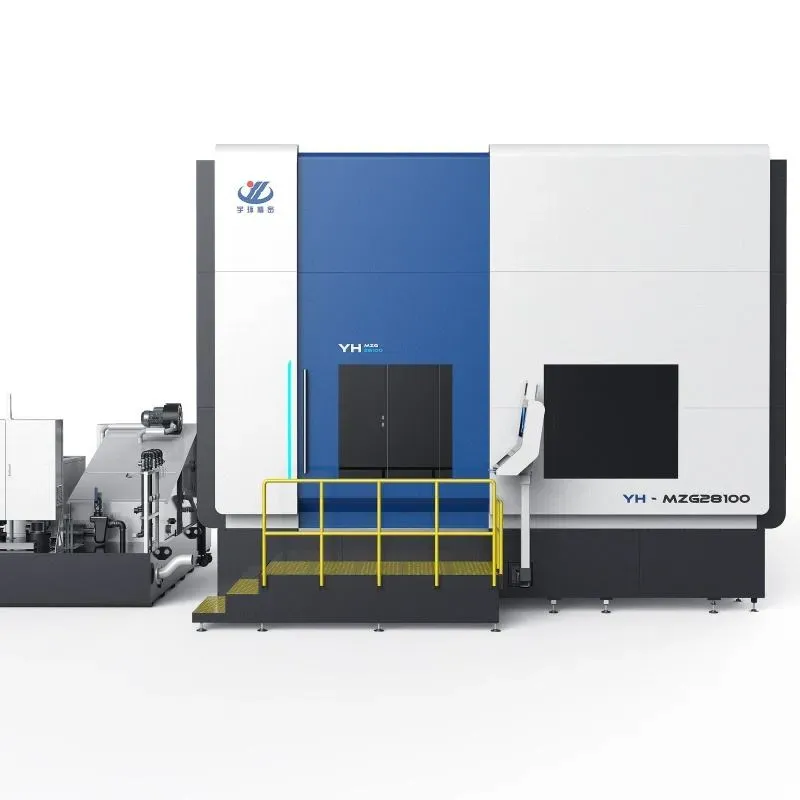

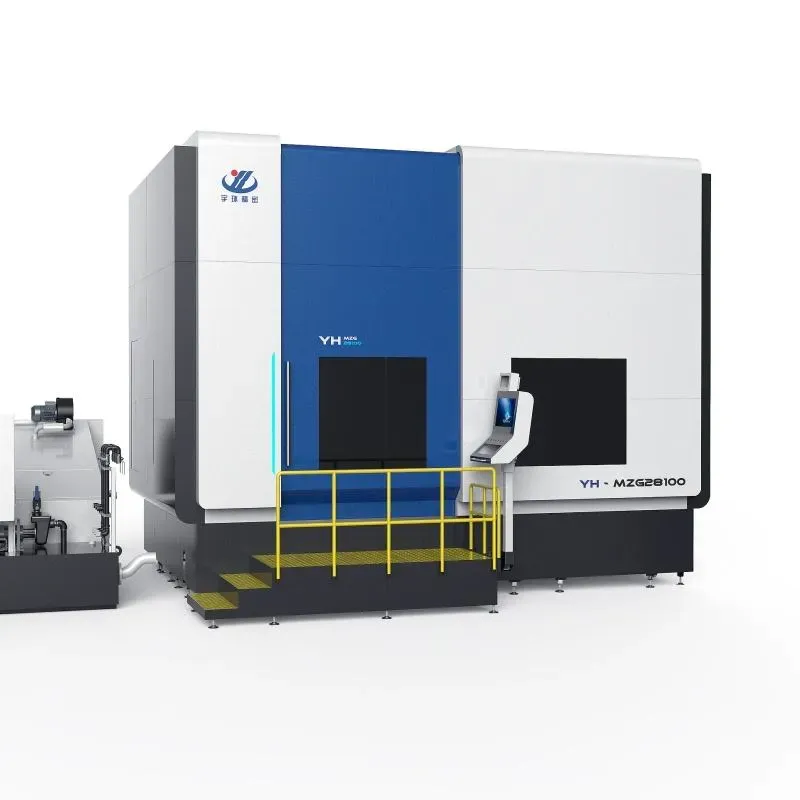

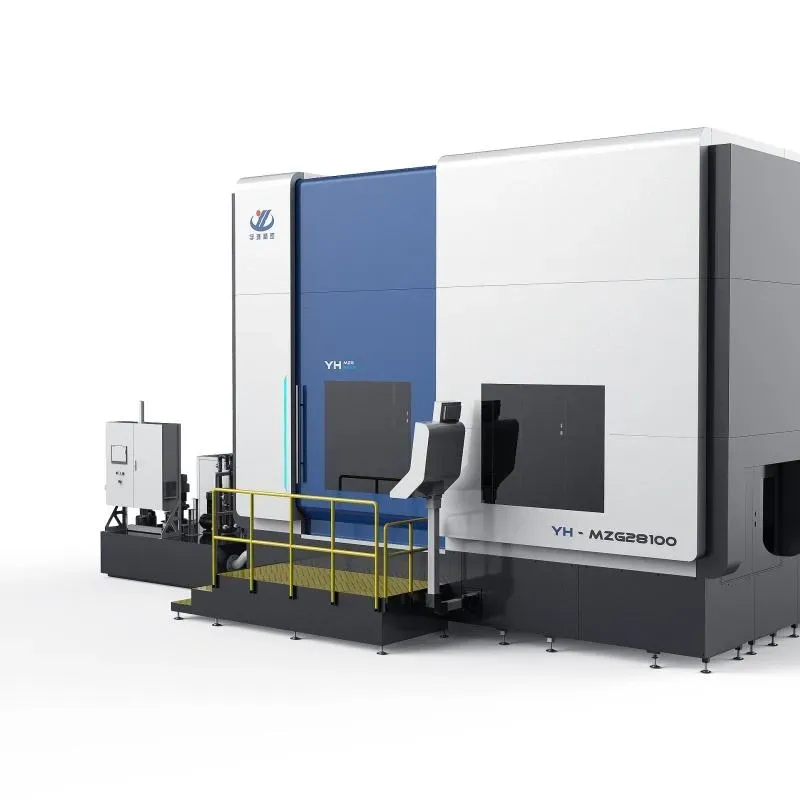

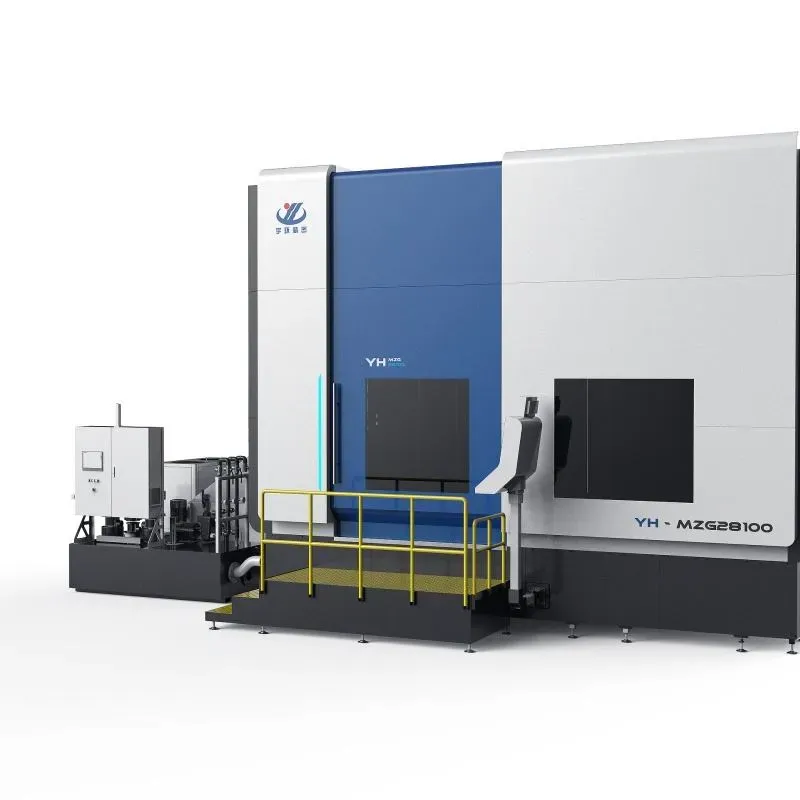

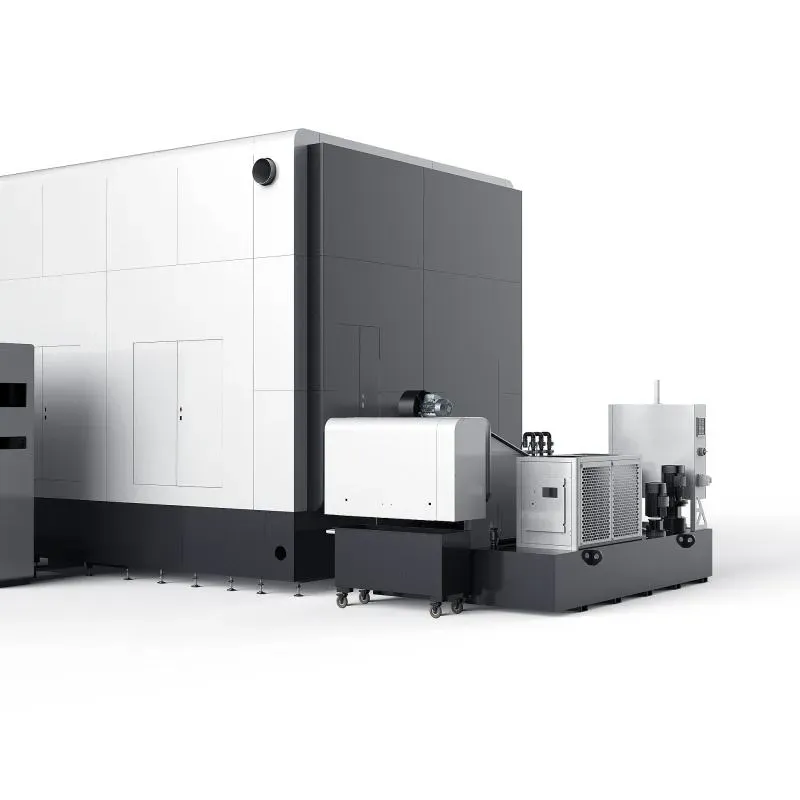

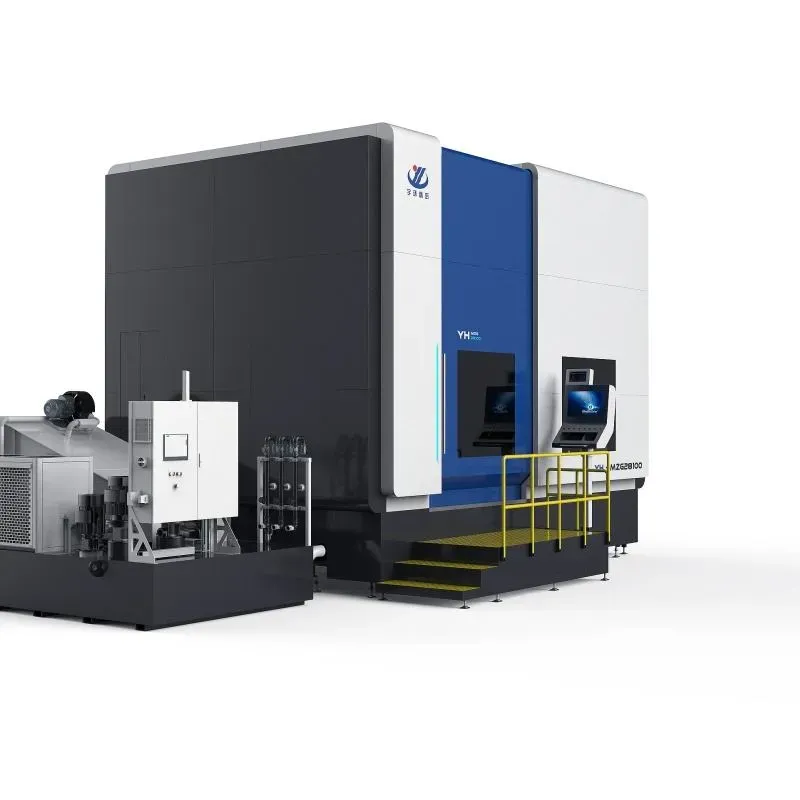

YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 2
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 3
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 4
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 5
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 6
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 7
YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts - Image 8

YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Turret Diameter φ1,000 mm
Max. Swing Diameter φ1,200 mm
Max. Workpiece Height 650 mm
Max. Workpiece Weight 2,000 kg (Heavy-Duty Capacity)
Abrasives High-Performance Grinding Wheel
Applications Piston Rings, Seals, Automotive Hubs, Ceramics

Original price was: $751,000.00.Current price is: $750,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

YH-MZG28100 High-Precision Vertical Grinding Solution is widely used in aerospace,rail transit,machine tool manufacturing,automotive parts,shipbuilding,semiconductor industry,and other fields,it requires high precision and high surface quality for parts processing.

It can achieve efficient grinding of workpiece internal holes,external circles,end faces,conical surfaces,straightteeth,arc end teeth,non-circular contour surfaces,andother elements.IT3~IT1 grade,surface roughness ≤Ra0.2.

Features:

1.Multi-process

Multiple processes are completed in one clamping;

2.Multi-function

Selection of various CNC axis linkage functions to complete complex profile machining;

3.High Rigidity

Liquid hydrostatic technology ensures high rigidity and high load capacity;

4.High Convenience

3D simulation human-computer interaction software, full-function CNC program package;

5.High Efficiency

Automatic transition between multi-head processes;

Surface finishing and profile grinding;

6.High Precision

Hydrostatic technology and direct drive technology ensure extremely high machining accuracy and precision retention;

7.High Performance

Online dynamic balancing, AE system, online measurement, etc., provide perfect high-precision machining performance.

Item    Parameter Item Parameter
Table size φ800mm The workbench

is beating

 Radial, endface

≤ 0.001mm
Max grinding height 650mm B-axis rotation

angle

 0~285°
The max load capacity

of the workbench

 1500 Kg X-axis movement

speed(continuous

speed change)



0.01 ~10m/min
Table speed (stepless) 0.01-100 rpm Z-axis movement

speed(continuous

speed change)



0.01 ~8m/min
The max speed of the

spindle andInterface

(internal and external

cylindrical grinding head)



8000rpm,HSK63-C

(18000rpm optional)

 X and Z axispositioning

accuracy

Repeatability accuracy



±0.003mm

±0.002mm
The max speed of the

spindle and Interface

(surface grinding head)



4500rpm,N56



Spindle runout



Radial, endface

≤ 0.001mm

Performance:

High-precision CNC universal vertical grinding machine – product range

Model



 Turret diameter

(mm)



 Maxi swing

diameter(mm)



 Max workpiece

height(mm)



 Max workpiece

weight(Kg)
YHJMKG2835 φ350 φ500 400 800
YHJMKG2860 φ600 φ750 500 1000
YHJMKG2880 φ800 φ1000 650 1500
YHJMKG28100 φ1000 φ1200 650 2000
YHJMKG28125 φ1250 φ1500 650 3000
YHJMKG28160 φ1600 φ1850 850 5000
YHJMKG28200 φ2000 φ2300 1050 5000

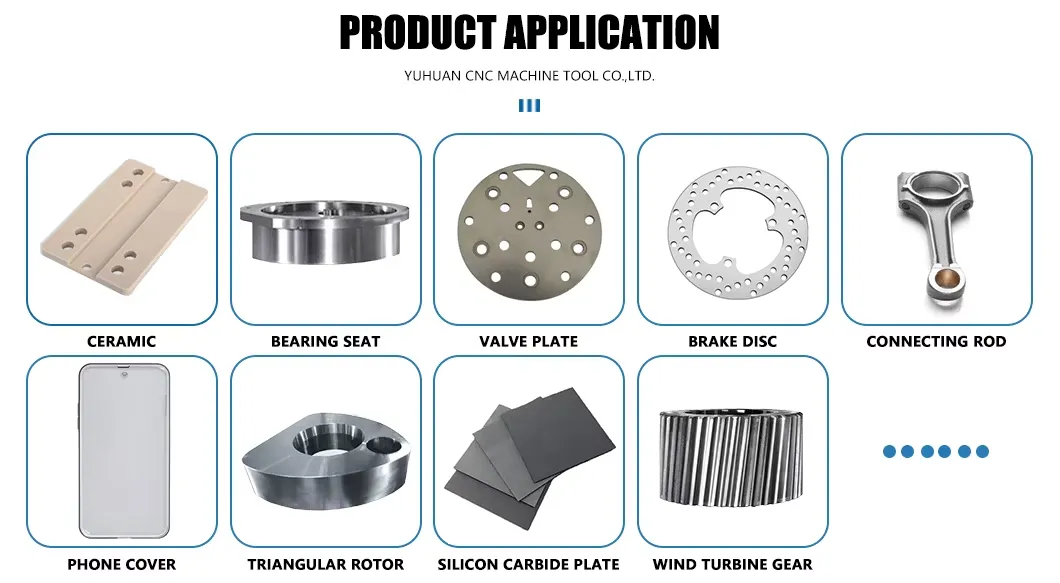

Product Application

YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts





Customer Reviews

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “YH-MZG28100 Vertical Grinding Machine for inner hole, outer circle, cone surface, end face and special-shaped surface profile of ring and set parts”

Your email address will not be published. Required fields are marked *

Related Products

-5%
Add to wishlist

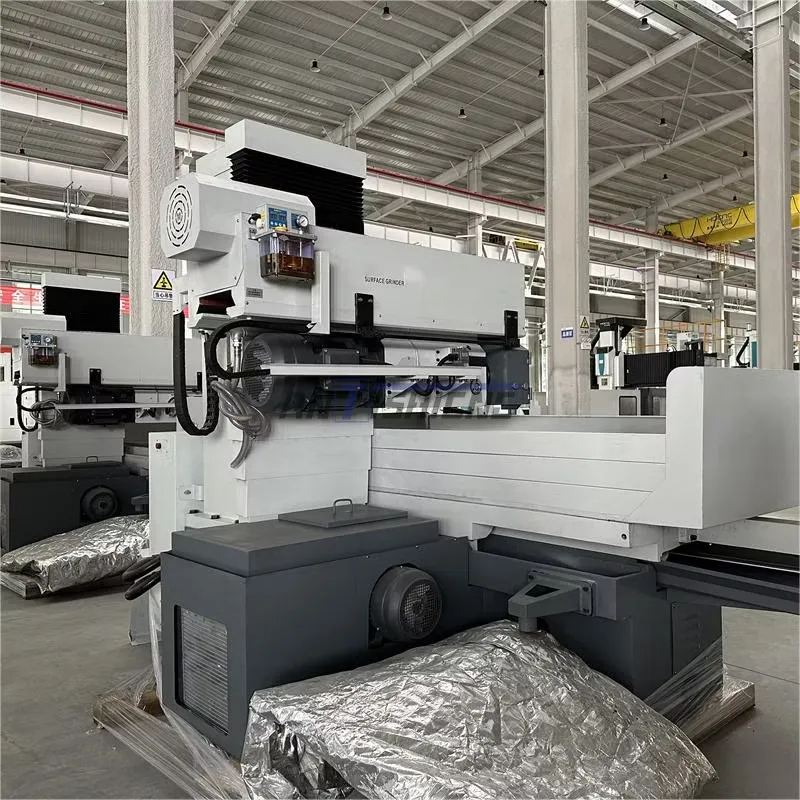

Antishicnc M7130A Wheel Head Moving Metal Surface Grinder M71 Series Factory Surface Grinding Machine

Original price was: $18,800.00.Current price is: $17,800.00.
Compare
Quick view
-1%
Add to wishlist

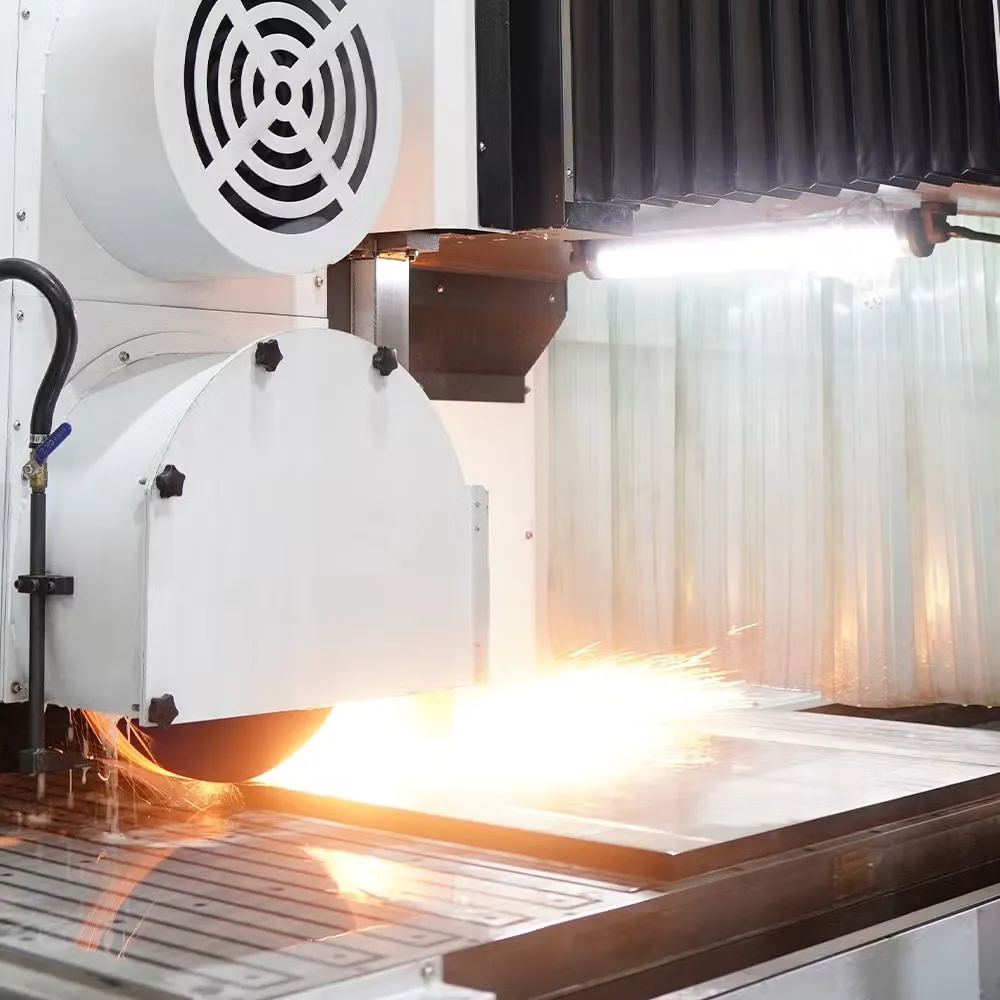

CNC Surface Grinder Manufacturing Machine for Metal or Mold Surface Processing
