Product Description

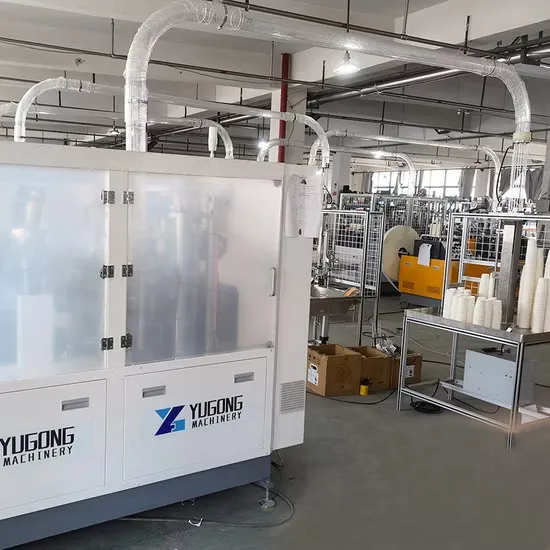

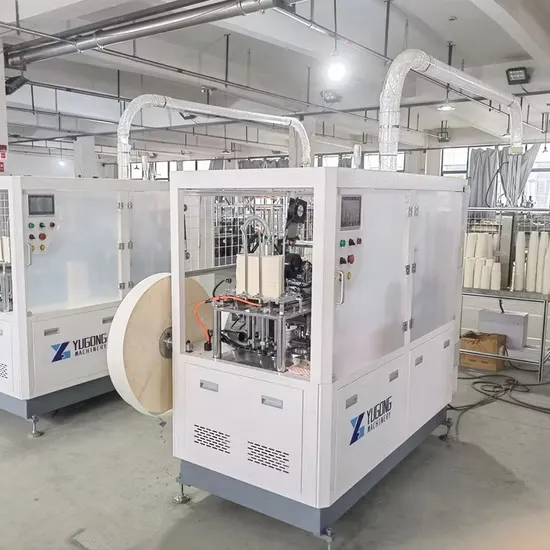

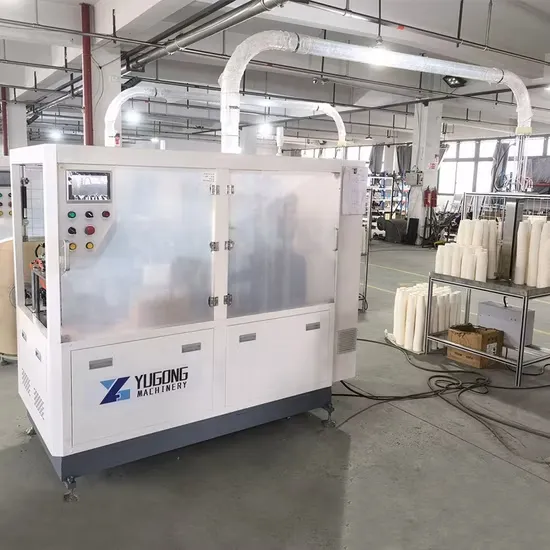

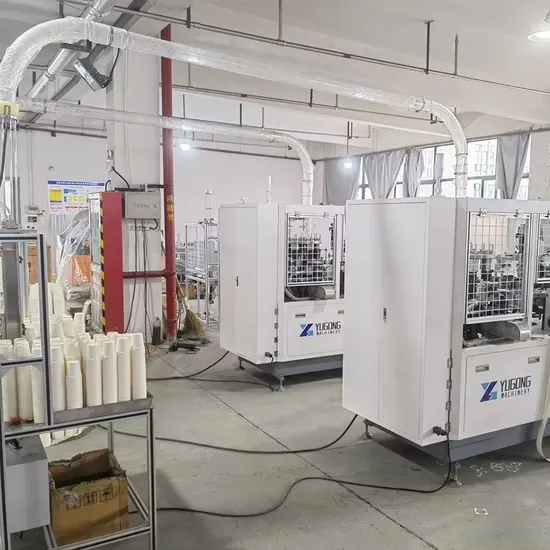

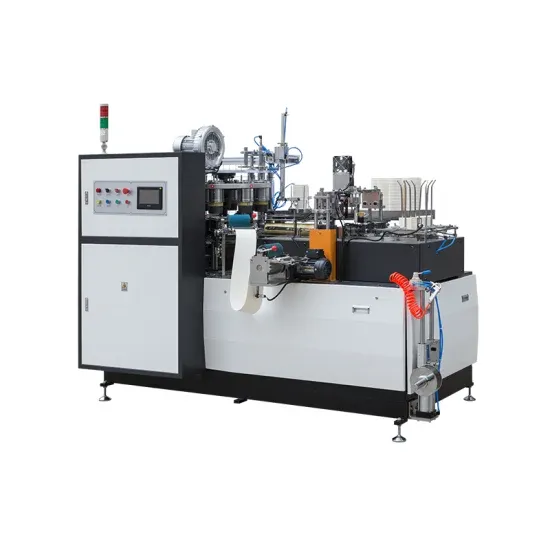

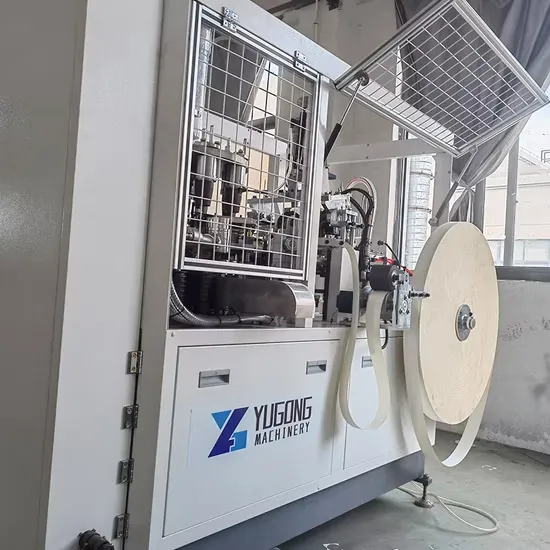

High Speed Fully Automatic Disposable Single Double Wall Coffee Ice Cream Paper Bowl Paper Cup Forming Making Machine for Hot Cold Drink Cup

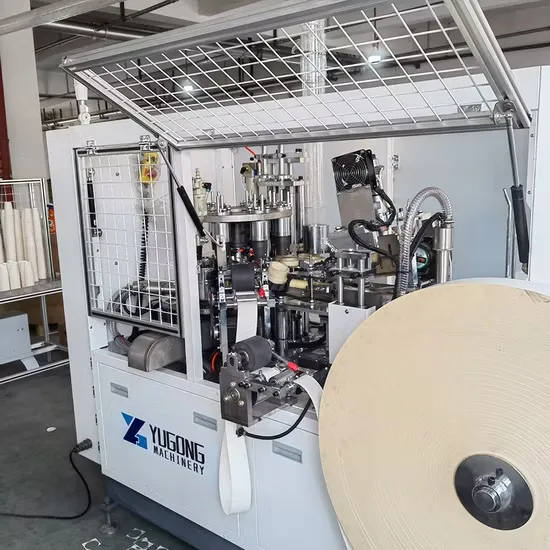

Paper Cup Making Machine:New paper cup forming machine is a fully automatic paper cup forming machine, which can automatically feed paper through multiple rows, paper anti-backing device (to ensure accurate positioning), ultrasonic welding, transfer of mechanical paper tube, oil injection, bottoming, folding bottom, Pre-heating, knurling, unloading and other continuous processes can stably produce paper cups of various specifications.
Main feature:
1. The whole steel plate fuselage,interlayer paper feeding design and the style of oil poured lubrication system is Ensured the
equipment long-term normal and Stable Work;
2. Short distance double vertical axis combine advanced and high-precision cylinder open type cam drive make every stations
high-speed worked accurate without mistake;
3. Single wrap the leaf groove cam structure combine seesaw roof bar design can make the high-speed paper feeding go to the place accurately;
4. Exquisite original creation 490mm mould turn plate design make the equipment work load more light and the speed to be more
fast;
5. Scientific and reasonable mechanical is fit Itinerary design can using in premise of exchange mould can make the products
producing range 6oz-22oz ;paper thickness 170g-350g.
Paper bottom heating system(Switzerland Leister)uses 2 steps flameless heating.
Every step in production is monitored by photocell (Japan Omron)and be reported.
The function of machine is controlled by human-computer interface and PLC system.
Manual operation can be replaced by automatic paper cup counting and collection table with appropriate setting.
| Cup size | 6~16oz(outside diameter ofa cup 60-90mm,outside diameter of bottom 50~70mm,height of cup 50~135mm,depth of bottom 5~10mm) |
| Rated speed | 90-110pcs/min |
| Main motor power | 2.2KW |
| Electro thermal power | 8.6/13.2KW |
| Air source | 0.6m/min;0.6MPa customer-owned |
| Applical base paper | 190~350g/(single or double PE coating paper) |
| Weight | 3.8T |
| Main size | 2700*1500*1800mm |
| Paper cup collector size | 1150*850*2000mm |
| Actual power consumption | 7.5KW |
