Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine
Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine - Image 2
Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine - Image 3
Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine - Image 4

Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Pipe Diameter Range 2″ – 60″ (Versatile Large-Scale Capacity)
Cutting Accuracy ± 1 mm
Cutting Types CNC, Flame, and Plasma (Dual-Mode)
Applicable Materials Carbon Steel (CS), Stainless Steel (SS), Alloy Steel (AS)
Movement Method Linear Control
Control Method Open-Loop Control

Original price was: $101,000.00.Current price is: $100,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

AUTO Five Axis CNC Flame / Plasma Pipe Cutting and Profiling Machine
It has features as following:
1.Several models available (16″type, 24″ type, 32″ type, 48″ type, 60″ type);
2. Cutting precision: + 1mm;
3. PLC system control;
4.High efficient pipe cutting with automatic self-measuring, pipe end beveling; intersection line profiling for both main and branch pipe function;
5.Multi-axis cutting machine can profile more complicated outlines with bevel;
6.  Widely used for C.S / Alloy Steel pipe fabrication.
Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine

Five Axis CNC Flame/Plasma Pipe Cutting and Profiling Machine

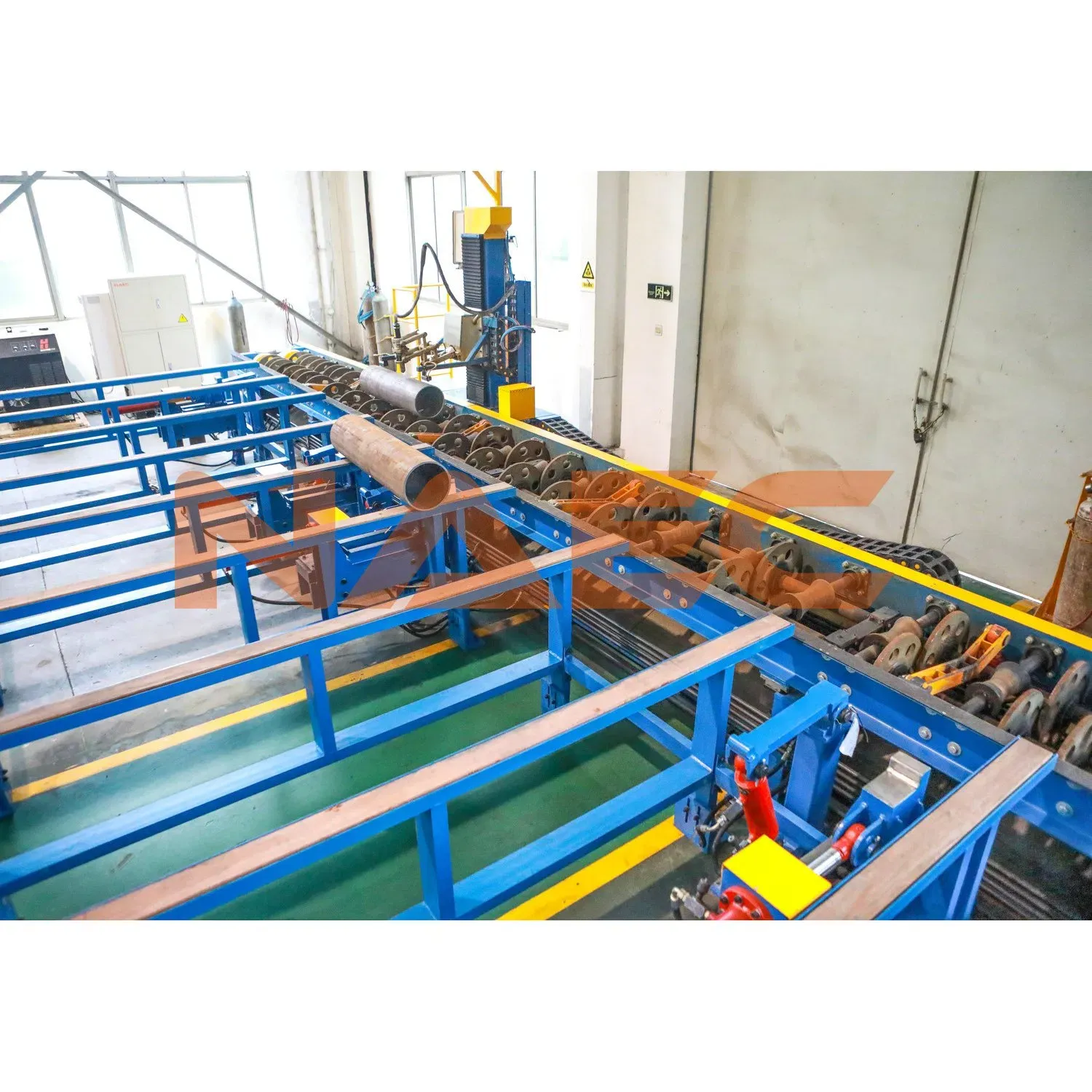

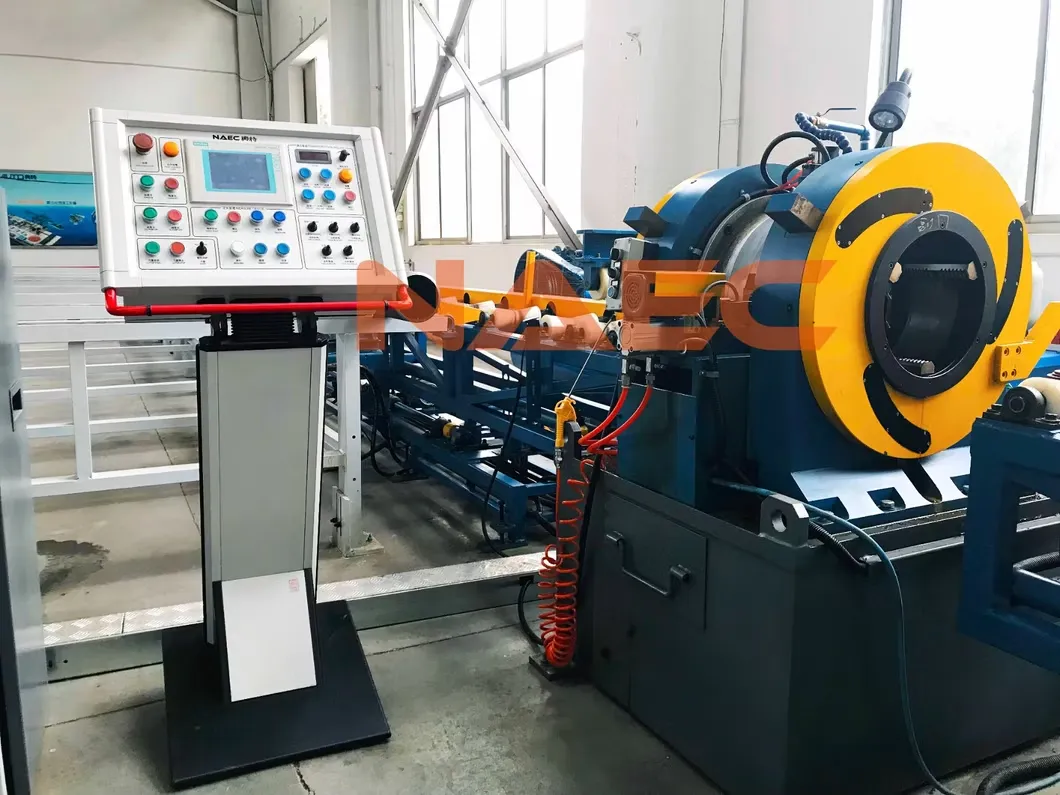

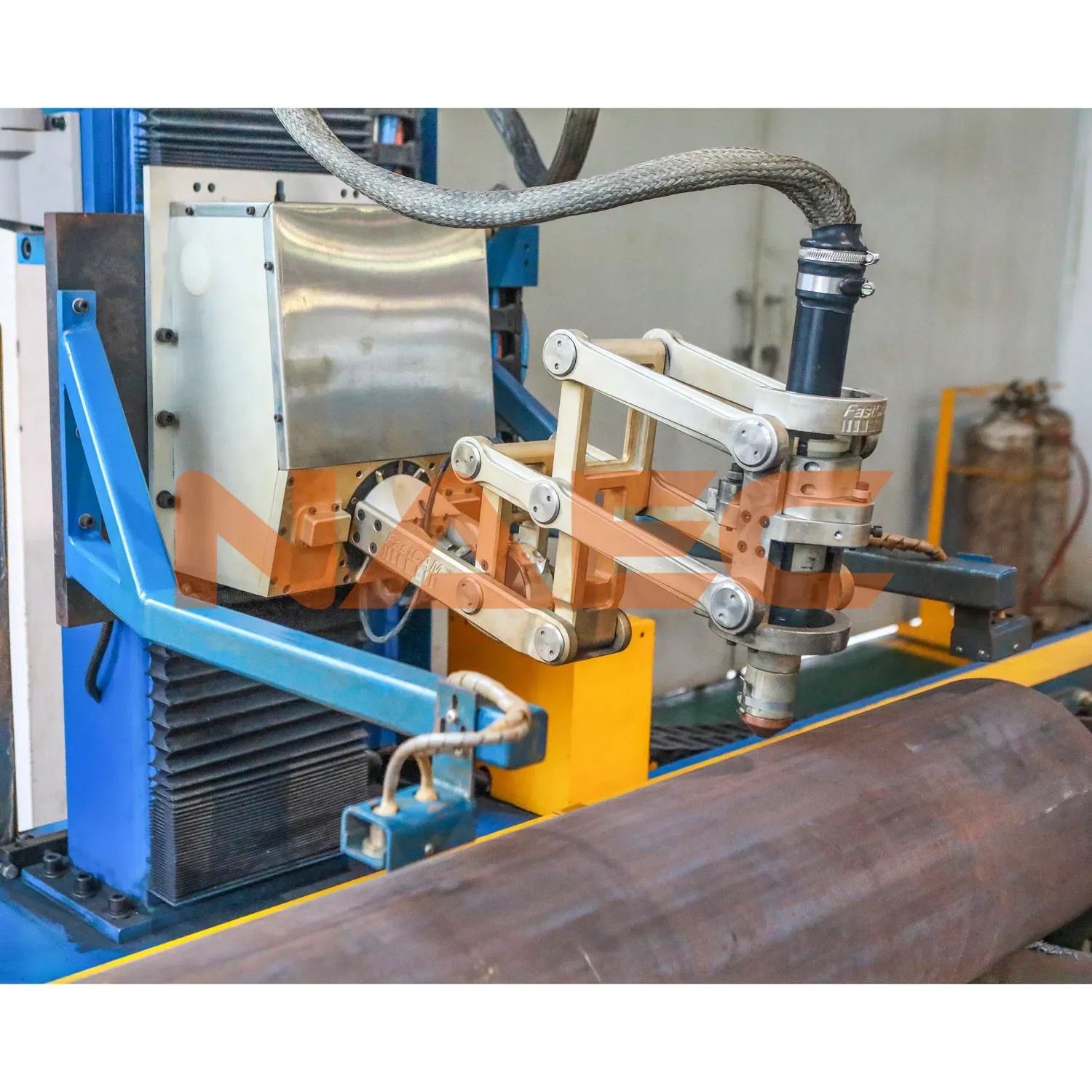

NAEC Two-axis/Six Axis CNC Flame / Plasma Pipe Cutting and Profiling Machine can be used for the cutting and beveling with various pipe materials in fixed angle, different pipe end shapes, grooves and holes. It is consists of CNC rotating and lifting roller conveyor, CNC vertical cutting carriage, guide rail, electric control system, air course system, plasma system, loading/unloading mechanism, etc. By feeding the workpiece onto the CNC rotating/lifting roller conveyor, and then lowering the conveyor leaving workpiece onto the rotating roller, it is able to cut and bevel pipes automatically with selected parameters through Programmed Control System.

The combination of automatic programming and manual programming can realize the jacking cutting, with the function of cutting uprightly, cutting in any angle (manual adjustment), cutting with angle turning, multi-section elbow unfold cutting, intersection line cutting of plug-type/riding-type, etc. It is with characteristics of reasonable organization, easy operation, and high efficiency.
