Overview

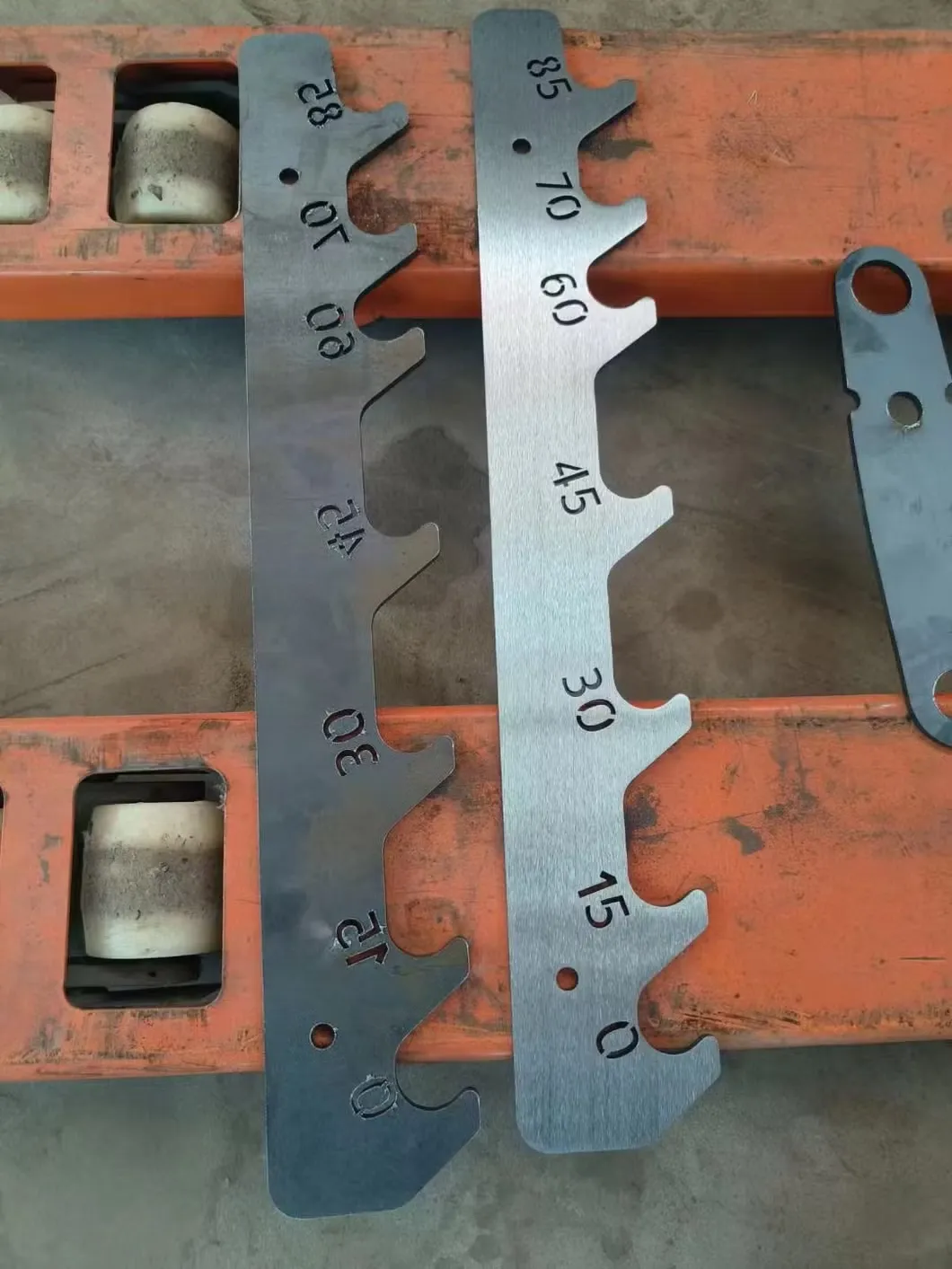

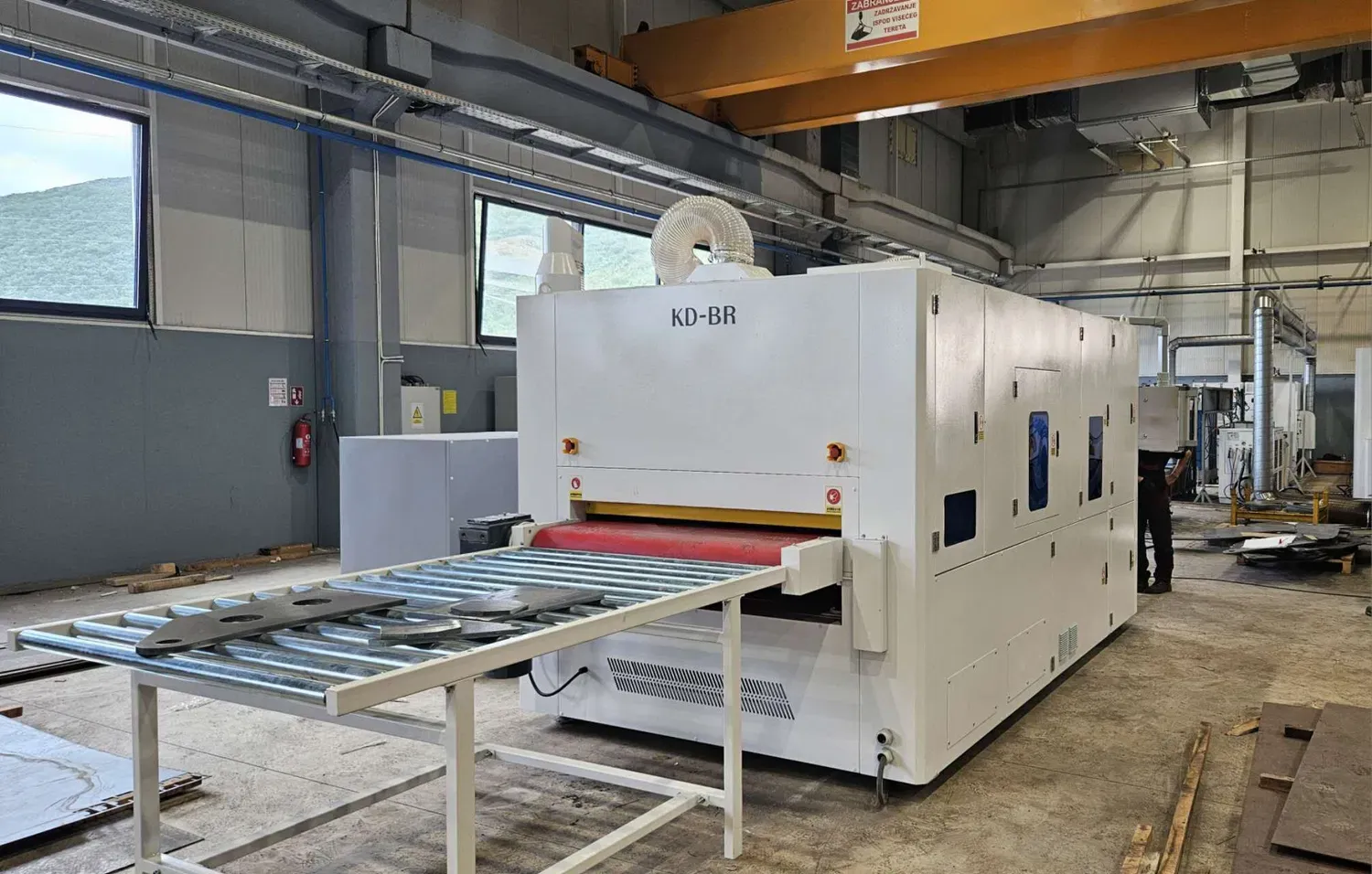

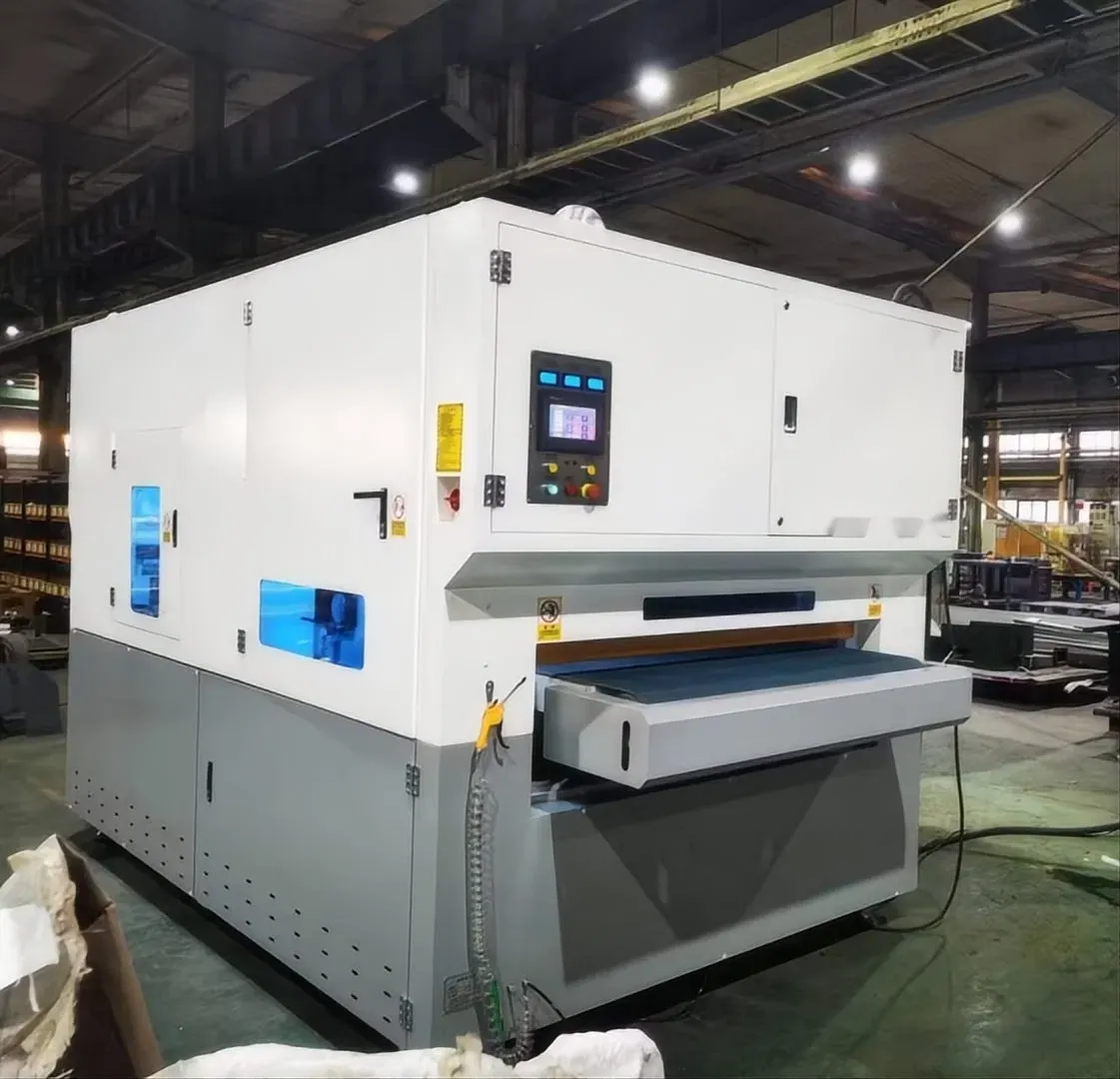

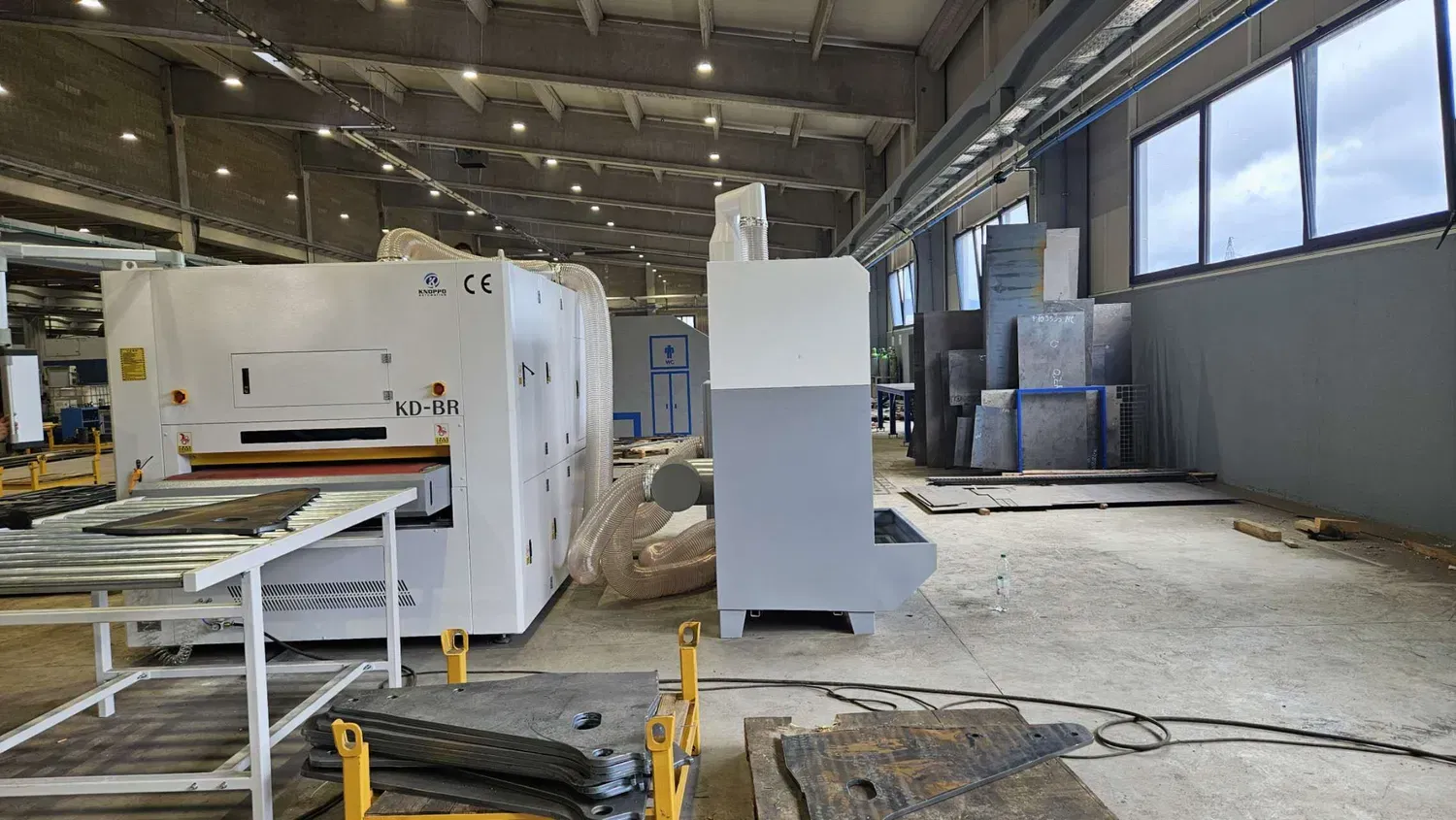

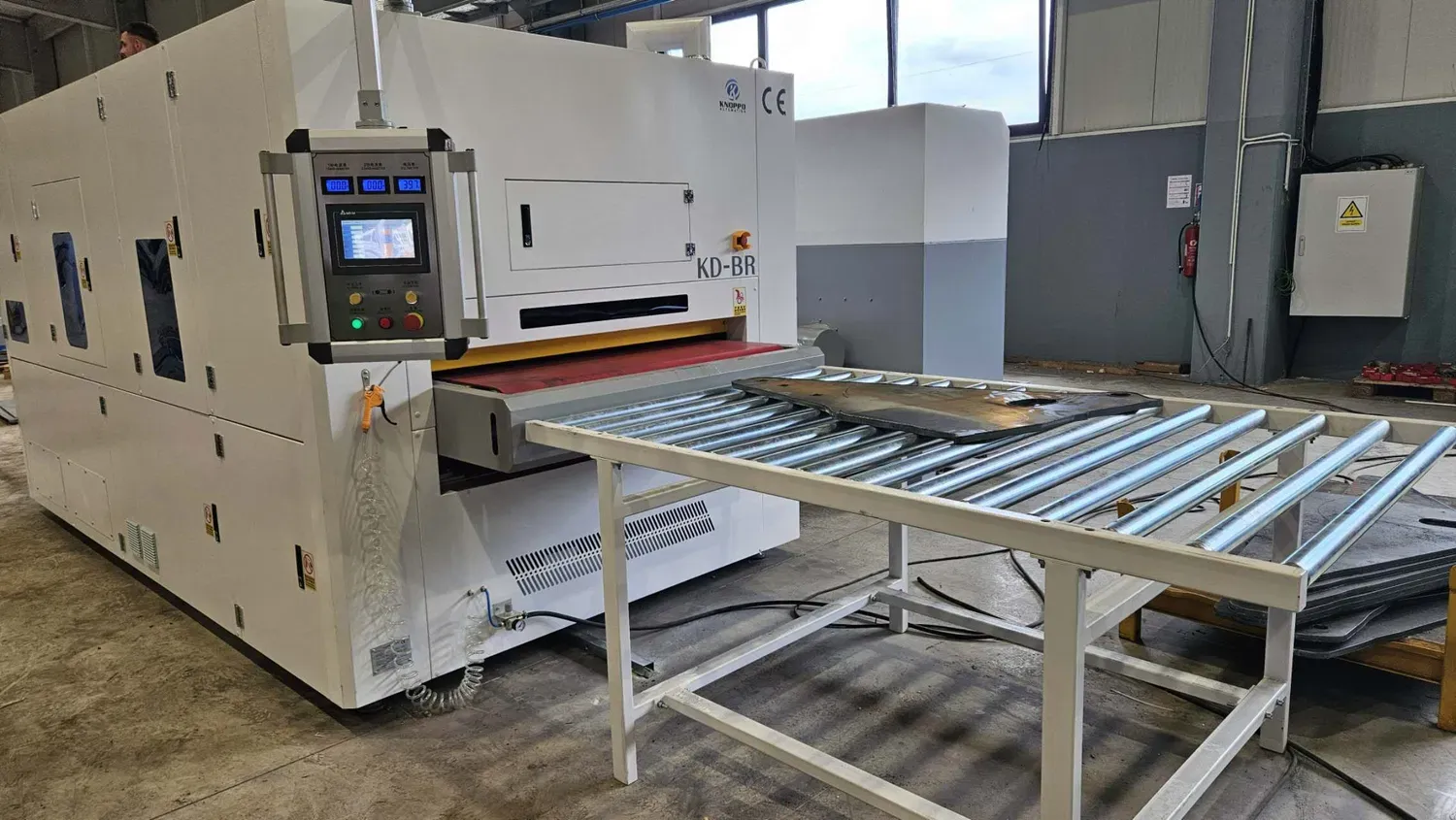

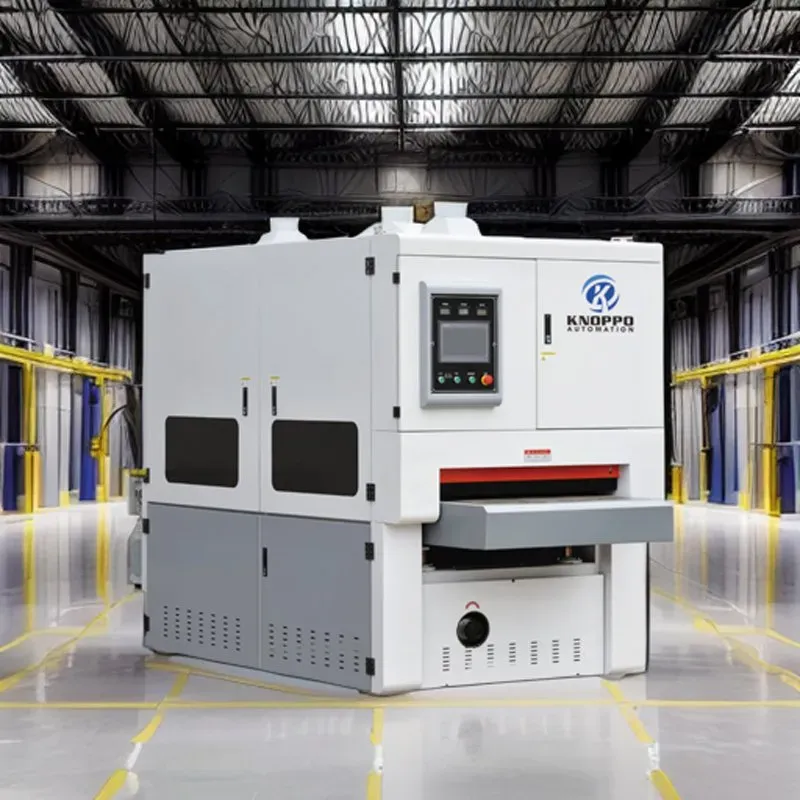

This deburring machine support laser cutting machine, CNC stamping, various CNC processing or other machining deburring front production line. It can work by through straight line processing, sanding belt and multiple groups of sanding line wheel rotation, revolution, alternate, can be a real uniform removal of parts surface, contour edge and hole edge burr and uniform chamfering.


Option




Product Parameters
| MODEL | KD-BR |
| Minimum size of part | 50mm |
| Function | Deburring , chamfering |
| Electronic component | schneide |
| Bearing | NSK |
| Max width | 450mm 800mm 1000mm 1300mm 1600mm |
| Max thickness | 80mm |
| transferred speed | 1~10m/min |
| power of lift motor | 0.37kw/2 |
| power of propeller motor | 7.5kw/1 |
| brush roll motor power | 2.2kw/2 |
| transferred motor power | 1.5kw/1 |
| Total power | 26.64kw |
| Diameter of brush roll | 300mm |
| NO. of brush roll | 4 / 6 / 8 |
| Machine size | 3350*2250*2200mm |
| Weight | 4600kg |
