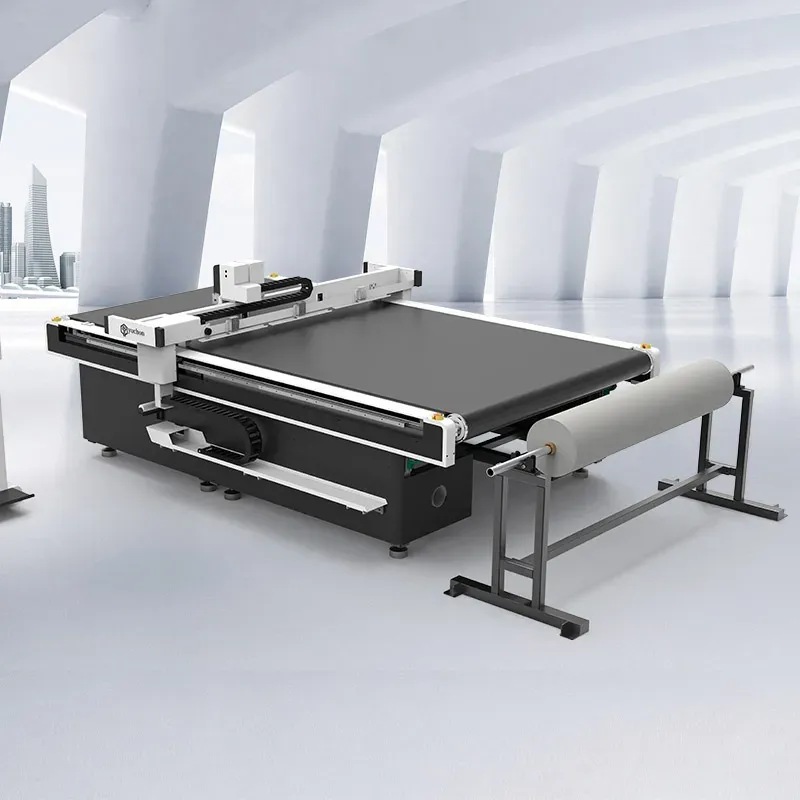

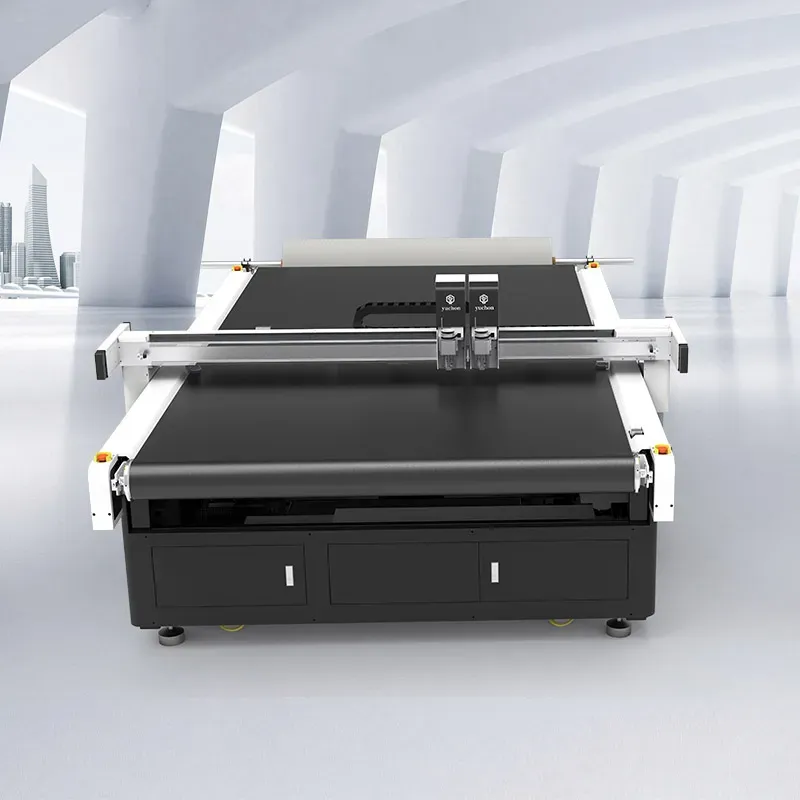

Factory Price Yuchon 1625 Automatic CNC Oscillating Knife Cutting Machine Textile Cloth Round Knife Cutter Fabric Apparel Pattern with Blade
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $16,500.00.$15,500.00Current price is: $15,500.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model | YC-1630A / YC-1625AC |
| Effective Cutting Area | $2500 \times 1600 \text{ mm}$ (Customizable) |
| Max Cutting Speed | $1200 \text{ mm/S}$ |
| Cutting Accuracy | $0.1 \text{ mm}$ |
| Cutting Thickness | $0.1 \text{ – } 20 \text{ mm}$ (Material dependent) |
| Drive System | Panasonic Servo Motor |
| Transmission | SMTYCC Linear Rail and Rack |
| Material Fixation | High-Power Vacuum Absorption |
| Interface | Ethernet Port |
| Safety Features | Infrared Blocking Device |
| Rated Power | $11 \text{ kW}$ |
Product Description
Yuchen focus on the research and development of CNC fabric cutting machine more than 10 years,widely popular because of its long service life, complete functions, and simple operation
Brand: Yuchon
Model: YC-1625A (size can be customized)
Work Size: 1600*2500mm
Applicable cutting materials: knitted material,fur, PU leather, jean,canvas,artificial leather,blend fabrics,Cotton & Linen, etc
Functions: cutting, drawing and punching.
cutting tool: driven Rotary cutting tool
| Model | YC-1625L YC-1625A |
YC-1630L YC-1630A |
YC-1830L YC-1830A |
Other sizes are customizable |
| Working area | 2500×1600mm | 3000×1600mm | 3000×1800mm | |
| Operation properties | Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime | |||
| Safety device | Infrared blocking device,Emergency stop button switch, Intelligent anti-collision device. sensitive response; safe and reliable |
|||
| Max. cutting speed | 1200mm/s | |||
| No-load speed | 1500mm/s | |||

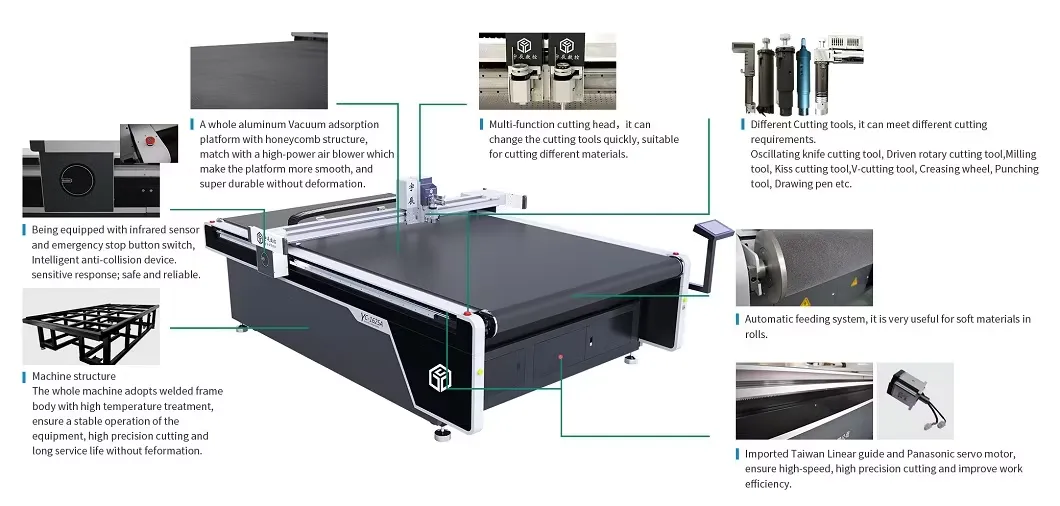

| Multifunctional head cutting tools | Oscillating knife cutting tool, Driven rotary cutting tool,Pneumatic cutting tool, Milling tool, Kiss cutting tool,V-cutting tool, Creasing wheel, Punching tool, Drawing pen etc. | |||
| Cutting thickness | 0.1-20mm ; 0.1-60mm0.1-20mm (subject to material) ; 0.1-60mm(Optional) | |||
| Cutting accuracy | ±0.1mm | |||
| Transmission interface | Ethernet | |||
| Transmission system | Panasonic Servo Motor/SMTYCC Linear rail and rack | |||
| Fixed mode | Vacuum absorb | |||
| Supply voltage | AC 220V 380V±10%,50HZ | |||
| Rated power | 11KW or others | |||
