Product Description
| scope of work | 1.250*1.050mm(MPW1010),1.250*2.250mm(MPW1010) Up to 3 types of welding guns can be used for maximum working range |
| Welding Range | M3 to M8, diameter 3 to 8mm (10/12/12.7mm diameter can only be used after modification) |
| Stud length | 8 to 40 studs per minute (other lengths are customized according to customer needs) |
| Welding speed | Up to 40 studs per minute (depending on stud welding equipment, stud type, and stud positioning) |
| movement speed | 60m/min |
| Nail delivery method | Automatic nail feeding (each welding gun can transport up to 3 different lengths of studs) |
| Positioning accuracy of welding studs | ±0.05mm |
| Positioning accuracy and repetition accuracy | KAH412 optional: KAH412LA (mechanical length compensation – clearance) is not included in the scope of supply |
| welding gun | 4 (Each welding gun can use up to 3 different lengths of studs) |
| Maximum number of welding guns | electrical:400V, 16A(32A),50Hz |
| interface | Pneumatic: minimum 6bar/maximum 10bar/hose inner diameter 6mm |
| Engine driven Z-axis | Z=0-115mm(Due to the use of servo drive technology, it can be self programmed) |
| Size L * W * H | 2.300×2.350×2.200mm(MPW1010);3.500×2.350×2 .200mm(MPW2010) |
Product advantages:

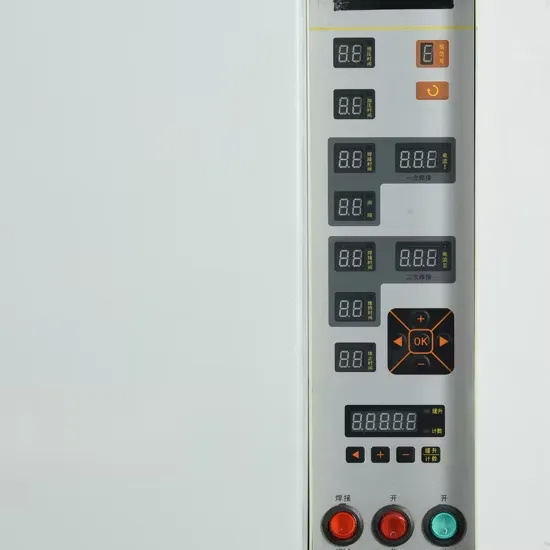

1. Welding Control System: WD-KD5 Intelligent Microcomputer Controller. The AC pulse spot welder that we produce can be matched with many types of welding controllers;
2. Silicon Controlled: Adopt the ,RON IXYS Silicon controlled from West Germany or IR Silicon controlled from United States;

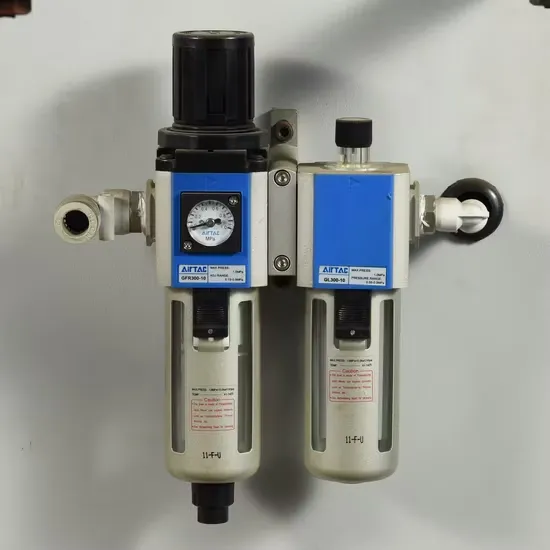

3. Pneumatic Control System: Adopt large displacement of magnetic valve and gas assembly, sufficient air supply;
4. Adopt the quick exhaust cylinder, quick response, good servo performance. Welding Transformer;
5. Adopt high purity silicon steel disc refined welding transformer, good permeability and electrical conductivity;
6. Less consumption of electricity;
7. Be able to weld the metal plates like 8mm+8mm low-carbon steel;
