Product Description

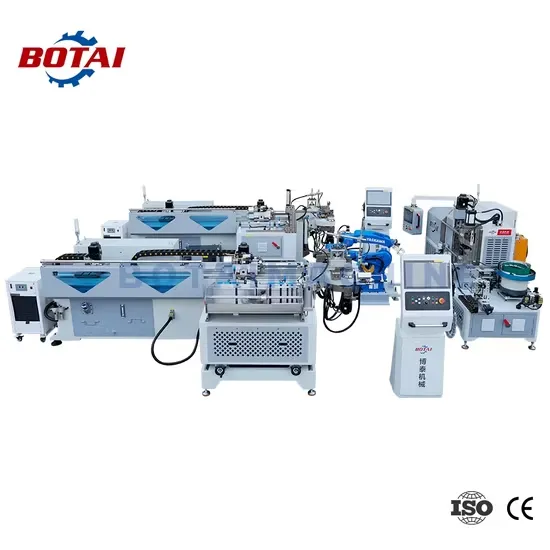

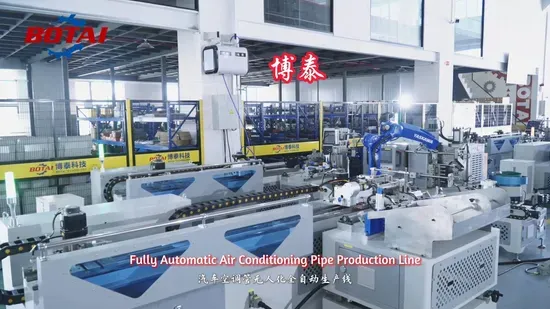

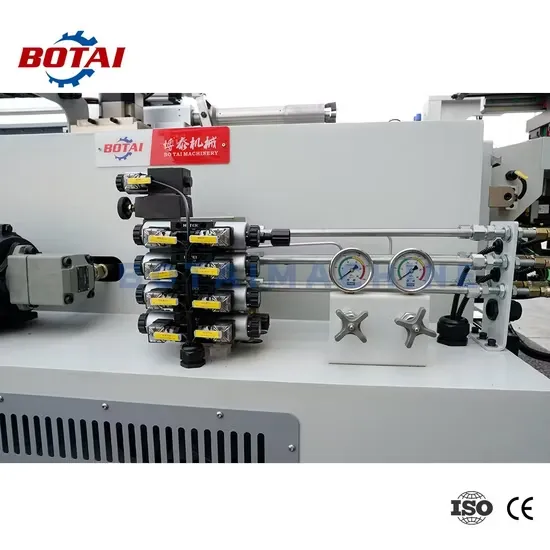

Fully Automatic Air Conditioning Pipe Production Line– PLC Control & Robot Labor
An innovative solution designed from Botai Machine to improve the efficiency and accuracy of bent pipes in the HVAC industry.
This fully automated production line replaces traditional manual operations with highly coordinated robotic arms, achieving true unmanned production. The entire system is centrally controlled and monitored through a PLC platform, enabling precise adjustment of parameters, real-time status tracking, and intelligent fault diagnosis to ensure stable and reliable operation.
Throughout every stage of production—automatic loading, feeding, bending, moving, end forming, and unloading—the robotic arms seamlessly connect each process. This continuous flow minimizes handling time, reduces human error, and ensures consistent product quality.
The system features high-precision servo control, intelligent motion coordination, and optimized production rhythms, allowing the line to operate efficiently and continuously. With standardized automation and digital management, the production line achieves high efficiency, high quality, and a high level of intelligence, while significantly reducing labor costs and improving overall competitiveness.

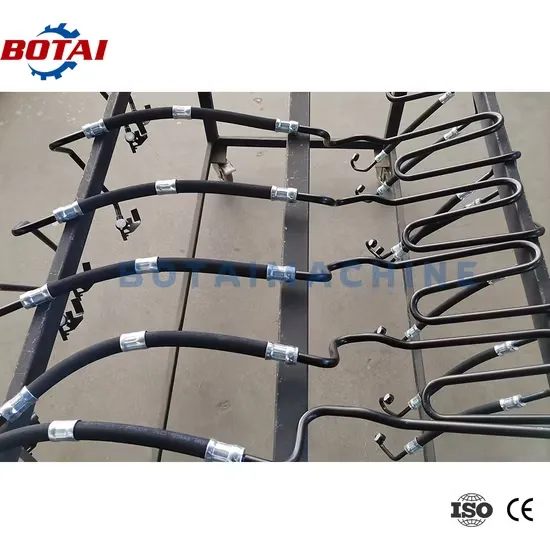

Application Areas
Single-Sided Flange
Double-Sided Flange
End Forming
Parameter
|
Model
|
18CNC
|
25CNC
|
38CNC
|
|
Max.Pipe Diameter
|
18mm*2mm
|
25mm*2mm
|
38.1mm*2mm
|
|
Max.Bending Radius
|
80mm
|
120mm
|
150mm
|
|
Max.Beding Angle
|
190°
|
190°
|
190°
|
|
Bending speed
|
Max.220°
|
Max.210°
|
Max.180°
|
|
Rotation speed
|
Max.300°
|
Max.280°
|
Max.280°
|
|
Feeding speed
|
Max.1250mm
|
Max.1200mm
|
Max.1000mm
|
|
Bending accuracy
|
±0.03°
|
±0.03°
|
±0.03°
|
|
Rotation accuracy
|
±0.03°
|
±0.03°
|
±0.03°
|
|
Feeding accuracy
|
±0.03mm
|
±0.03mm
|
±0.03mm
|
|
Power
|
4kw
|
4kw
|
5.5kw
|
|
Oil tank Volume
|
100L
|
100L
|
150L
|
|
Model
|
TM30
|
TM40
|
|
Max. Pipe Diameter
|
30mm*2mm
|
40mm*2mm
|
|
Max. Forming Length
|
80mm
|
100mm
|
|
Max. Clamping Length
|
50mm
|
60mm
|
|
Max. Forming Pressure
|
4.5T
|
5.5T
|
|
Max. Clamping Pressure
|
4T
|
5T
|
|
Max. Working Pressure
|
12Mpa
|
12Mpa
|
|
Oil volume
|
80L
|
100L
|
Functional Advantages

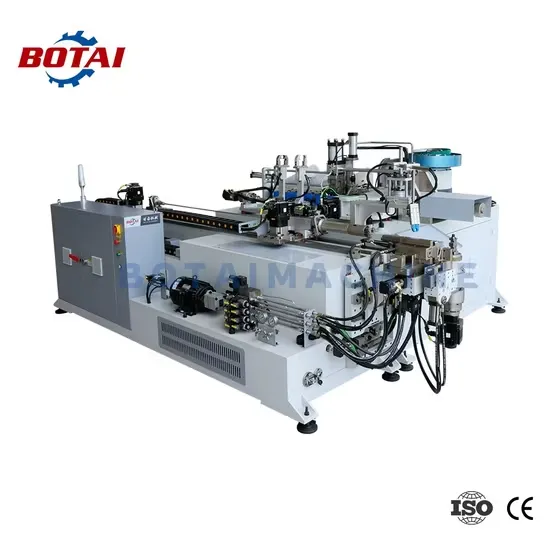

Automatic Loading and Pipe Bending Machine
Pipes are automatically loaded onto the production line without manual handling. The loading system ensures accurate positioning and continuous material supply, improving efficiency and safety while reducing labor intensity.
The bending machine performs precise pipe bending according to programmed parameters. With stable structure and advanced control systems, it guarantees high accuracy, smooth curves, and consistent forming quality for air conditioning pipes.

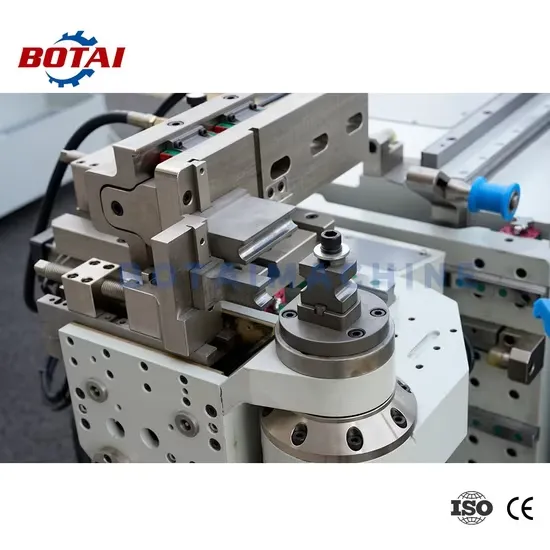

Multi-Layer Mold Controlled by Servo Motors
Each mold layer is driven by high-precision servo motors, which control the up–down and left–right movements for automatic mold selection and positioning. This replaces traditional manual adjustment and ensures rapid changeover without stopping production.
In addition, the machine can flexibly select different molds to achieve multiple bending radius on a single workpiece.
The multi-layer design saves space and tooling change time, while the servo system supports parameter setting and storage through PLC control. Operators can call preset programs for various pipe specifications, achieving highly efficient, precise, and intelligent mold management suitable for mass production with diverse product models.
Customizable Multi-Station Pipe End Forming
Each station is driven by precise hydraulic or servo systems to ensure stable force and accurate forming dimensions.
The pipe end forming unit adopts a multi-station modular design, allowing several forming operations to be completed in one continuous cycle. According to production requirements, stations can be freely configured for processes such as expanding, reducing, flaring, welding, chamfering and more.
Can reduce material transfer time, increase production efficiency, and ensure consistent quality across large batches. With quick-change tooling and parameter storage, different product specifications can be switched rapidly, making the system ideal for flexible, high-mix HVAC pipe production.

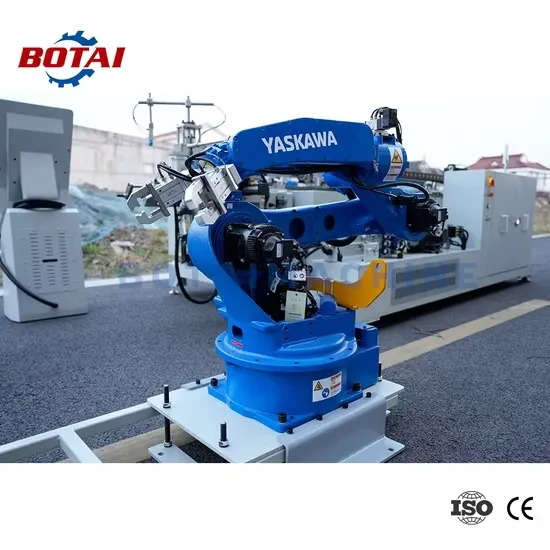

Excellent Robot Assisting Production
Industrial robots are integrated throughout the production line to connect each processing station and replace manual handling entirely. The robots automatically perform gripping, transferring, positioning, rotating, and loading/unloading of pipes between bending, flange forming, and end forming stations.
Robotic coordination enables uninterrupted flow production, minimizing idle time between processes and significantly increasing overall throughput. At the same time, robots greatly improve workplace safety by eliminating manual operations near bending tools, hydraulic units, and moving parts.
High Demanding Configuration Ensures Quality
The entire production line is built using a high-end, industrial-grade configuration to guarantee long-term stability and excellent product quality. Core components such as servo motors, reducers, hydraulic units, sensors, PLCs, and electrical elements are sourced from well-known international brands, ensuring reliability, precision, and easy maintenance.
Advanced PLC + HMI control systems enable centralized monitoring, automatic diagnostics, alarm functions, and data recording. This provides operators with intuitive process control while supporting network connectivity for production management and quality traceability.
