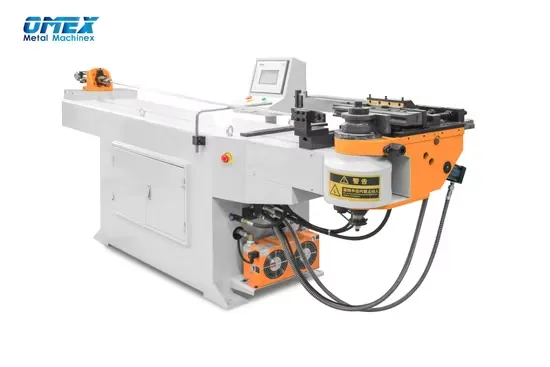

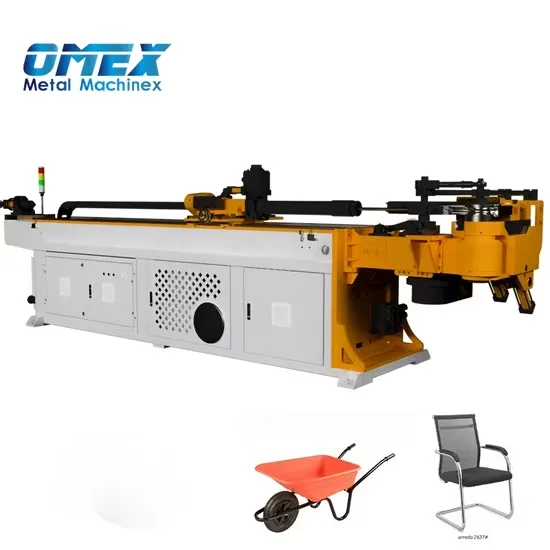

Product Description
|
Model
|
50CNC-2/3A-1S
|
75CNC-2/3A-1S
|
89CNC-2/3A-1S
|
|
CNC/Full Automatic 2/3A
|
hydraulic/electric bending 1s:1stack
|
hydraulic/electric bending 1s:1stack
|
hydraulic/electric bending 1s:1stack
|
|
Max Bending Capacity
|
50.5(2.5”)*4mm
|
75(2.5”)*4mm
|
89(2.5”)*4mm
|
|
Bending Degree
|
0-190°
|
0-190°
|
0-190°
|
|
Bending Radius
|
30-300mm(for machine)
|
30-300mm(for machine)
|
30-300mm(for machine)
|
|
Min Bending Radius
|
R≥1.4D(for pipe)
|
R≥1.4D(for pipe)
|
R≥1.4D(for pipe)
|
|
Mandrel Length
|
3800mm(can be customized)
|
3800mm(can be customized)
|
3800mm(can be customized)
|
|
Max.Bending Speed
|
80°/s
|
80°/s
|
80°/s
|
|
Max.Rotating Speed
|
180°/s
|
180°/s
|
180°/s
|
|
Max.Feeding Speed
|
800mm/s
|
800mm/s
|
800mm/s
|
|
Bending Accuracy
|
±0.1°/±0.05°
|
±0.1°/±0.05°
|
±0.1°/±0.05°
|
|
Rotating Accuracy
|
±0.05°
|
±0.05°
|
±0.05°
|
|
Feeding Accuracy
|
±0.05mm
|
±0.05mm
|
±0.05
|
|

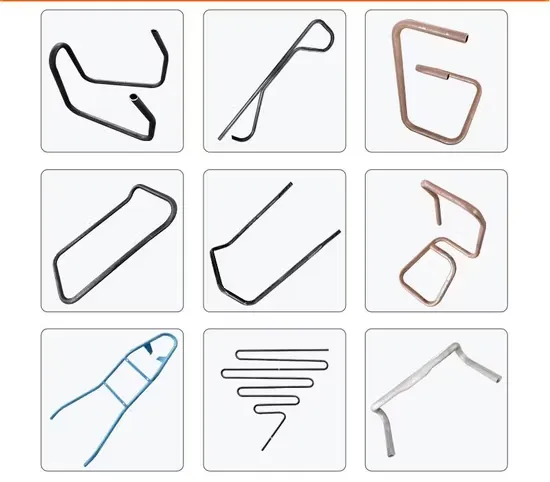

Application industry
|
|||
|
Furniture
|
Boiler
|
Exhaust
|
Shipyard /oil rig
|
|
Head rest
|
Heavy vehicle cabin
|
Green house
|
Health care
|
|
Aerospace/aviation
|
Serpentine bending
|
Fitness
|
Brake line
|
1. What is a CNC pipe bending machine, and how does it work?
A CNC (Computer Numerical Control) pipe bending machine is a highly automated piece of equipment used to bend pipes and tubes with high precision. The machine is controlled by a computer system that uses programmed commands to determine the exact angles, radii, and bend sequences required for the part. This ensures precise, repeatable bends without manual intervention.
2. What are the main benefits of using a CNC pipe bending machine?
The primary benefits of CNC pipe bending machines include high precision, increased production speed, the ability to handle complex geometries, consistent repeatability, reduced material waste, and enhanced safety. These machines also offer long-term cost savings by reducing labor, material, and maintenance costs.
3. How does a CNC pipe bending machine improve production efficiency?
CNC machines automate many aspects of the bending process, reducing the need for manual labor and minimizing human error. This results in faster production cycles, fewer machine setups, and less downtime, significantly improving the overall efficiency of the manufacturing process.
4. Are CNC pipe bending machines suitable for small-batch production?
Yes, CNC pipe bending machines are highly adaptable and can easily accommodate both large-scale production runs and small-batch custom jobs. Their programmable nature allows for quick adjustments to accommodate different pipe sizes, bend specifications, and unique project requirements, making them ideal for industries that need flexibility.
5. How do CNC pipe bending machines contribute to sustainability?
CNC pipe bending machines help reduce material waste through optimized cutting plans and material-saving algorithms. These features ensure that raw materials are used efficiently, which not only cuts costs but also supports sustainability by minimizing waste and reducing the environmental footprint of the manufacturing process.
