Product Description
Product Introduction
3-in-1 Air Atomization, Airflow & Overflow Dyeing Machine with Double Blower
The air flow or air atomization dyeing machines on the market now have inherent design defects, which generally have some limitations such as high power consumption, low wind pressure, uneven wind power for each pipe, heavy fuzzing of short fiber fabric, poor color fastness, uneven dyeing shades and poor levelness. With our innovative air atomization, airflow and overflow (3 in 1) design, combined with the double wind outlet direct connection blower, it perfectly solves the defects of those dyeing machines in the market.
The flexible and versatile dyeing modes with automatic switching perfectly solves defects such as high energy consumption, uneven wind power, easy pilling, poor levelness, poor color fastness and etc. This model is ahead of the previous generations for high density fabric creases that can not be solved by air atomization and airflow dyeing machines on the market. It is a revolutionary breakthrough in the dyeing industry, providing and optimal solution for improving fabric quality and reducing energy consumption.

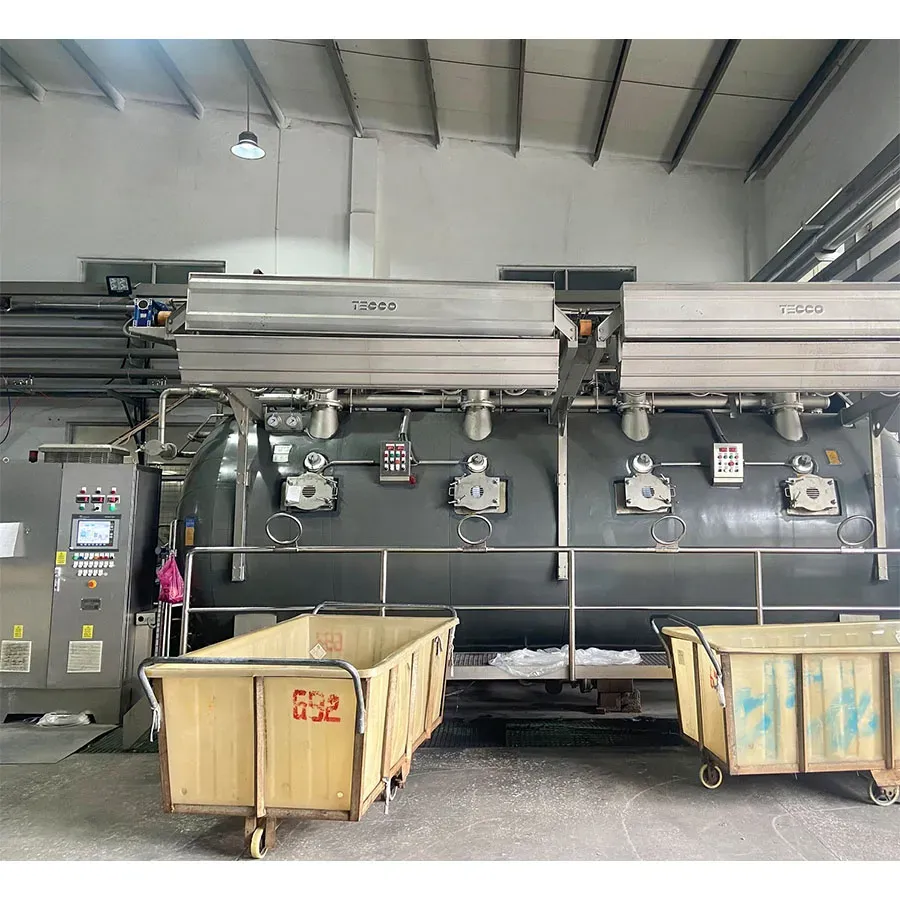

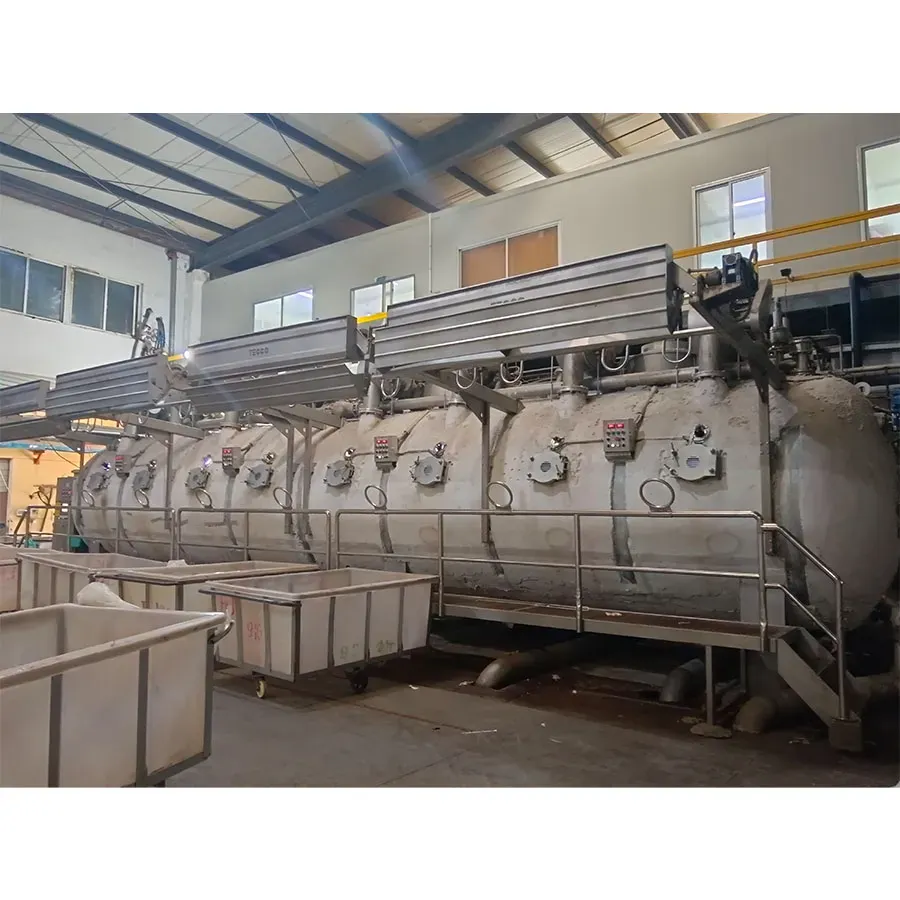

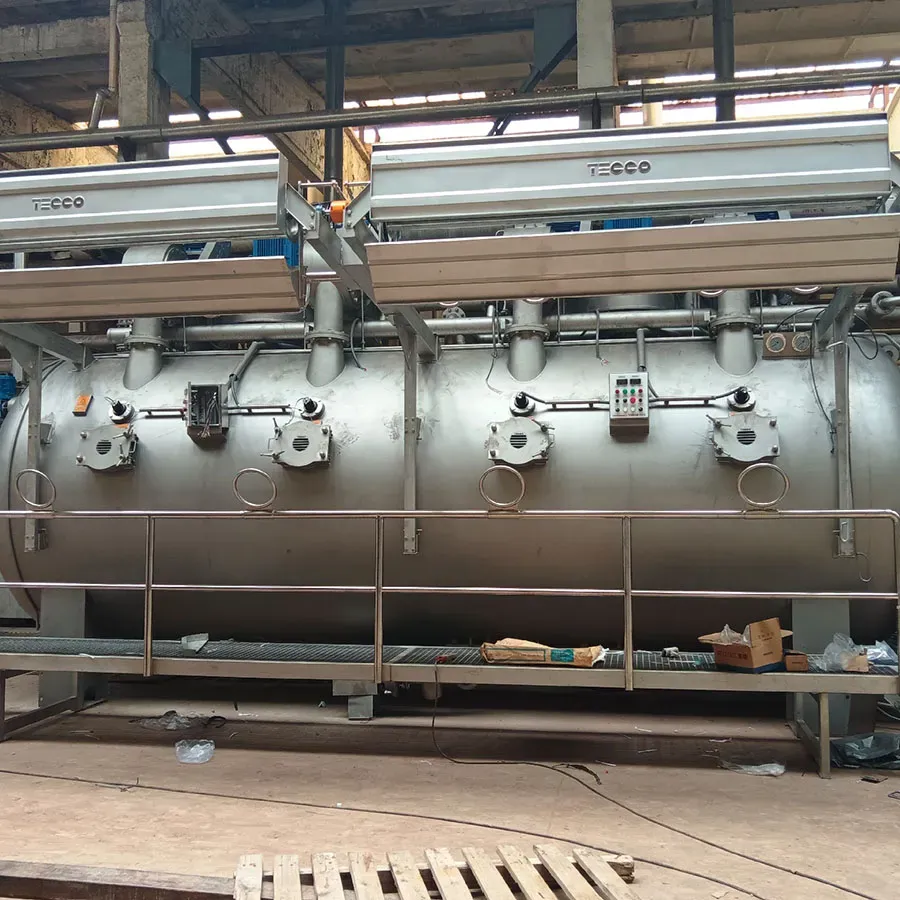

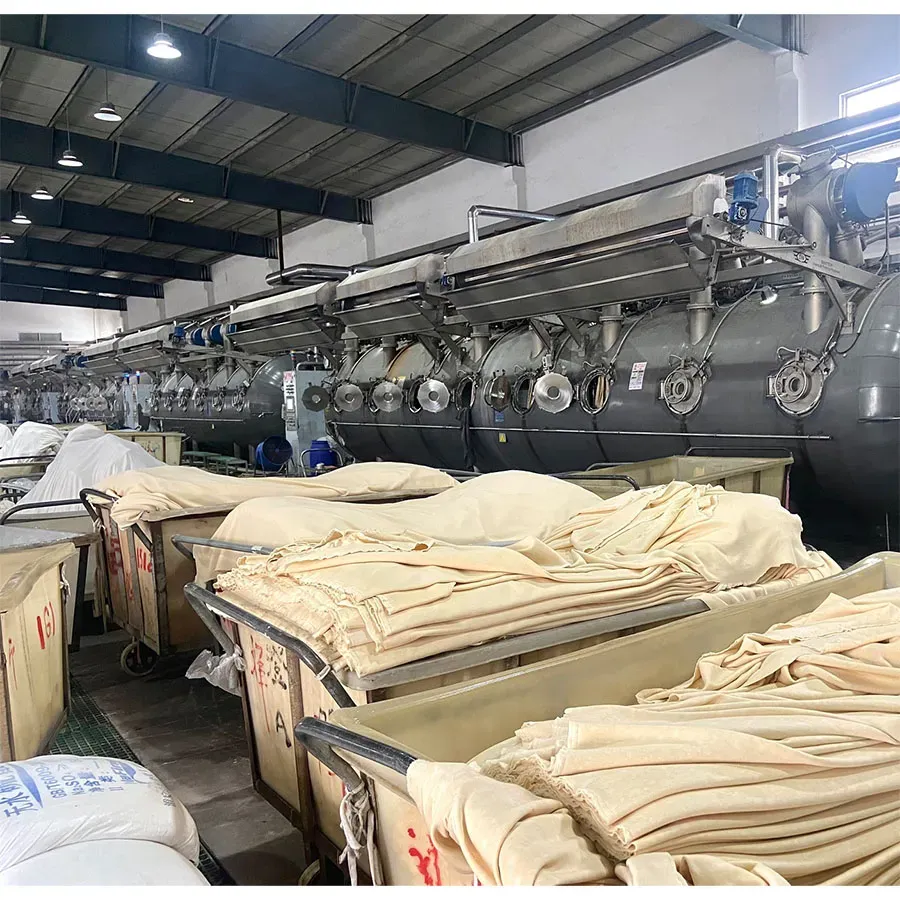

Actual photo
High-Capacity Airflow Dyeing Machine: Core Performance & Intelligent Control
Full-Mode Model
Can switch freely between air atomization, airflow and overflow dyeing. This model is suitable for both thick and tightly woven fabrics and normal knitted fabrics.The lowest liquor ratio of air atomization dyeing is 1:3, and the lowest liquor ratio of airflow dyeing is 1:4.
Can switch freely between air atomization, airflow and overflow dyeing. This model is suitable for both thick and tightly woven fabrics and normal knitted fabrics.The lowest liquor ratio of air atomization dyeing is 1:3, and the lowest liquor ratio of airflow dyeing is 1:4.
Pure Overflow Function(Option)
Three modes in one machine,can switch freely between air atomization, airlow and overflow. Pure overflow mode can be set according to customer’s requirement.
Three modes in one machine,can switch freely between air atomization, airlow and overflow. Pure overflow mode can be set according to customer’s requirement.
Patented Design
Patented direct-link blower with double air vent greatly increases wind pressure. Meanwhile,the minimum power of single tube is only 3.5KW, the energy consumption is much lower than other similar airflow dyeing machines in the market. A larger blower can be chosen for fabrics that are easy to crease.
Patented direct-link blower with double air vent greatly increases wind pressure. Meanwhile,the minimum power of single tube is only 3.5KW, the energy consumption is much lower than other similar airflow dyeing machines in the market. A larger blower can be chosen for fabrics that are easy to crease.
Highly Intelligent Control
The standard configurations include: Flow meter for water supply control; Automatic lint filtering system; Intelligent washing system; Seam detecting system; Proportional heating and cooling system; Dynamic drainage and etc.
The standard configurations include: Flow meter for water supply control; Automatic lint filtering system; Intelligent washing system; Seam detecting system; Proportional heating and cooling system; Dynamic drainage and etc.
Super Large Capacity
Max capacity of each tube: 400kg;
Max capacity of the dyeing machine: 4800kg.
Max capacity of each tube: 400kg;
Max capacity of the dyeing machine: 4800kg.
Ultra Low Energy Consumption
The blower minimum energy consumption is 3.5KW/tube, close to that of overflow dyeing machine. Meanwhile, the machine saves water similar as airflow dyeing machine.
The blower minimum energy consumption is 3.5KW/tube, close to that of overflow dyeing machine. Meanwhile, the machine saves water similar as airflow dyeing machine.
High Quality Dyeing
1.Knit: 8S-21S single jersey,16S-21S OE yarn, 26S-50S double-sided ply yarn, taffeta, TR/NR Ponte-de-roma, small circular knitting single jersey, four-way stretch five/seven layers of different materials composite fabrics, thick fleece and terry fabrics.
2.Woven: Memory like fabric, pongee, polyester taffeta,chiffon, nylon taffeta, polyester four-way stretch, CEY ice silk wrinkle, Vinegar Silk Cotton, 50D High Elastic,taslan, nylon four-way stretch.
3.Nylon synthetic fiber: swimwear fabric, nylon spandex 8020, polyester spandex, polyester spandex mesh fabric, lace, wedding fabric and etc. This machine effectively solved the difficult dyeing of fabrics by low liquor ratio overflow dyeing machines.
1.Knit: 8S-21S single jersey,16S-21S OE yarn, 26S-50S double-sided ply yarn, taffeta, TR/NR Ponte-de-roma, small circular knitting single jersey, four-way stretch five/seven layers of different materials composite fabrics, thick fleece and terry fabrics.
2.Woven: Memory like fabric, pongee, polyester taffeta,chiffon, nylon taffeta, polyester four-way stretch, CEY ice silk wrinkle, Vinegar Silk Cotton, 50D High Elastic,taslan, nylon four-way stretch.
3.Nylon synthetic fiber: swimwear fabric, nylon spandex 8020, polyester spandex, polyester spandex mesh fabric, lace, wedding fabric and etc. This machine effectively solved the difficult dyeing of fabrics by low liquor ratio overflow dyeing machines.
Product Parameters
|
General data sheet
|
||
|
Consumption (per ton fabric)
|
Cotton fabric (reactive dyes)
|
Woven polyester fabric (disperse dyes)
|
|
Water
|
Approx. 37 Ton in dark color
|
Approx. 18 Ton in dark color
|
|
Power
|
190KW
|
80KW
|
|
Steam
|
1.4 Ton
|
1.2 Ton
|
|
Auxiliaries
|
40% saved
|
40% saved
|
|
Model
|
Number of Tubes
|
Capacity(kg)
|
Total Power(kw)
|
Dimensions(mm)
|
||
|
Length
|
Width
|
Height
|
||||
|
SAF3-S30HT
|
1/1
|
30
|
17
|
2600
|
4300
|
3390
|
|
SAF3-S50HT
|
1/1
|
50
|
20
|
2600
|
4300
|
3390
|
|
SAF3-S150HT
|
1/1
|
150
|
22
|
3200
|
4600
|
3500
|
|
SAF3-1HT
|
1/1
|
300
|
28
|
3900
|
5780
|
3840
|
|
SAF3-2HT
|
2/2
|
600
|
38
|
5160
|
5980
|
3870
|
|
SAF3-3HT
|
3/3
|
900
|
58
|
7100
|
6000
|
3870
|
|
SAF3-4HT
|
4/4
|
1200
|
67
|
8380
|
6000
|
3870
|
|
SAF3-6HT
|
6/6
|
1800
|
98
|
11750
|
6000
|
4000
|
|
SAF3-8HT
|
8/8
|
2400
|
127
|
13950
|
6500
|
4010
|
|
SAF5-1HT
|
1/1
|
400
|
30
|
4050
|
5780
|
3840
|
|
SAF5-2HT
|
2/2
|
800
|
42
|
5460
|
5980
|
3870
|
|
SAF5-3HT
|
3/3
|
1200
|
63
|
7550
|
6000
|
3870
|
|
SAF5-4HT
|
4/4
|
1600
|
78
|
8980
|
6000
|
3870
|
|
SAF5-6HT
|
6/6
|
2400
|
117
|
12650
|
6000
|
4000
|
|
SAF5-8HT
|
8/8
|
3200
|
150
|
15500
|
6500
|
4010
|
|
SAF5-12HT
|
12/12
|
4800
|
240
|
21900
|
6280
|
4010
|
