Product Description

Product Description

Suitable for a variety of turning work, such as turning inside and outside cylindrical surface, cone surface, and other rotary surface, end surface, but also can process a variety of common threads – such as metric, inch, modulus, diameter pitch thread, as well as drilling, reaming, tapping, broaching groove and other work.
1. High torsion horizontal bed, high-quality cast iron carefully made, and the guide rail surface for medium-frequency induction hardening precision treatment;
2. The guide pair composed of the soft tape of the teflon guide rail is wear-resistant, vibration-absorbing and has good accuracy retention;
3. The main shaft adopts three support structure, good rigidity, high precision, and strong cutting;
4. Wide speed range, can choose a more reasonable speed;
5. Can directly turn metric and inch threads;
6. In addition to the conventional turning work, the saddle lathe can also turn a variety of flat and shaped parts.
7. There are more complete special parts for users to choose.

Product Parameters

Specifications
PARAMETERS
ITEMS UNIT CS6140
CS6240
CS6140B
CS6240B		 CS6150
CS6250
CS6150B
CS6250B		 CS6166
CS6266
CS6166B
CS6266B		 CS6150C
CS6250C		 CS6166C
CS6266C
Capacity
Max. swing dla. over bed mm Φ400 Φ500 Φ660 Φ500 Φ660
Wax. swing dia. over cross slide mm Φ200 Φ300 Φ420 Φ300 Φ420
Max. swing dia.over gap mm Φ630 Φ710 Φ870 Φ710 Φ870
Effective length In gap mm 240
Max. workpiece length mm 750/1000/1500/2000/3000
Max. turning length mm 700/950/1450/1950/2950
 Spindle
Spindle bore diameter mm Φ52 ;(Bseries) :Φ82;
Cseries:Φ105
Taper of spindle bore morse No.6; B  seriesΦ90 1:20; C  seriesΦ 113 1:20
Type of spindle nose ISO 702/III No.6
B and C  series:ISO 702/II No.8
Spindle speeds r/min Lv.24 9-1600r/min Lv.12 36-1600r/min
Feeds and threads
Max. travel of upper toolpost mm 145
Max. travel of lower toolpost mm 320 320 310 320 310
Tool section mm 25×25
X-axis feedrate m/min 50Hz:1.9; 60Hz:2.3
Z-axis feedrate m/min 50Hz:4.5; 60Hz:5.4
X-axis feeds mm/r 0.012-2.73    93 kinds 0.027-1.07 65 kinds
Z-axls feeds mm/r 0.028-6.43    93 kinds 0.63-2.52  65 kinds
Metric threads mm 0.5-224          48 kinds l-14mm     22 kinds
Inch threads t.p.i 72-l/8tpi       46 kinds 28-2 tpi      25 kinds
Module threads  π mm 0.5-112       42 kinds 0.5-7mm    18 kinds
Diametric pitch threads DP 56-1/4DP      45 kinds 56-4DP      24 kinds
Tailstock
Diameter of quill mm Φ75
Max. travel of quill mm 150
Taper of qulll(Morse)  Morse
No.5
Motor
Main motor power kW 7.5
Rapid traverse motor power kW 0.3
Coolant pump motor power kW 0.12
Others
Length mm 2382/2632/3132/3632/4632
Width mm 975
Height mm 1230/1270/1350/1270/1450
Weight kg 1975/2050/2250/
2450/2850		 2050/2200/2400/2600/3000 2150/2200/2400/2600/3000 2150/2200/2400/2600/3000

Detailed Photos

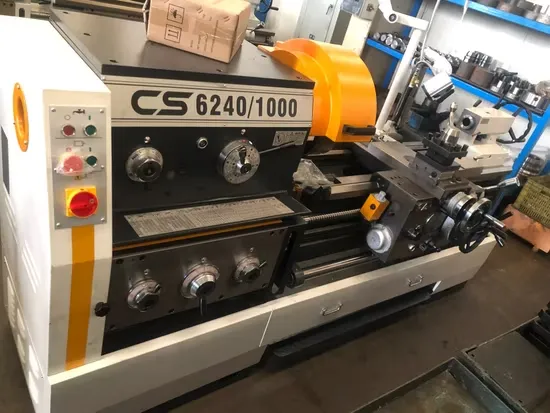

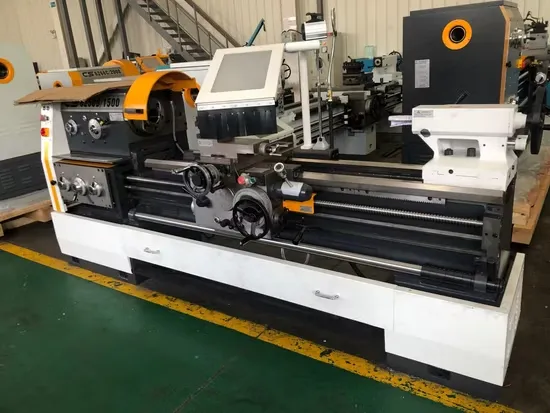

CS Series High Precision Horizontal Lathe, Turning Machine Tool

CS Series High Precision Horizontal Lathe, Turning Machine Tool

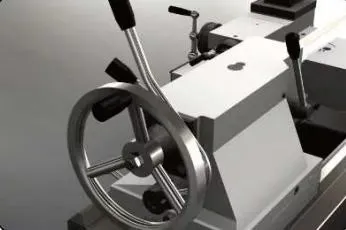

  • Tailstock quick locking handle
CS Series High Precision Horizontal Lathe, Turning Machine Tool

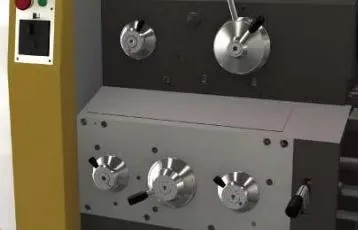

  • 24 speed change

CS Series High Precision Horizontal Lathe, Turning Machine Tool

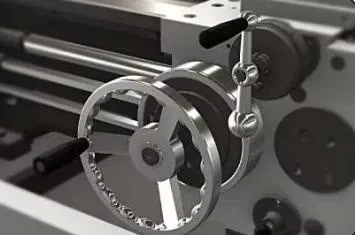

  • Handle operation conforms to the human body

CS Series High Precision Horizontal Lathe, Turning Machine ToolCS Series High Precision Horizontal Lathe, Turning Machine Tool
