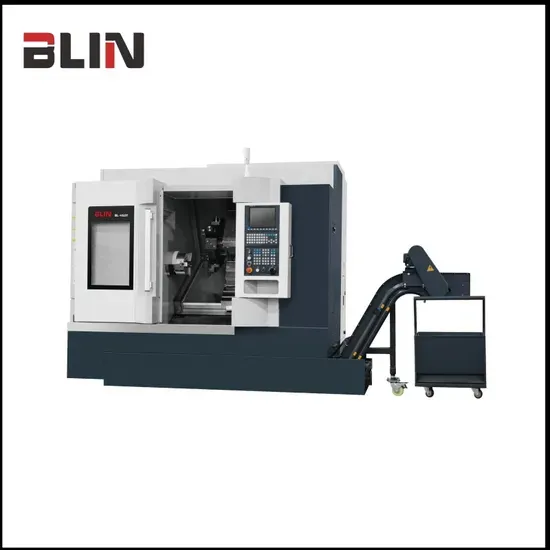

CNC Turning Center 8” Chuck 12t Powered Tool Turret CNC Lathe
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $46,000.00.$45,000.00Current price is: $45,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Category | Specification |
| Model Number | BL-H50Y |
| Machine Type | Horizontal CNC Lathe with Milling Capability |
| Automation Grade | Semiautomatic (CNC Controlled) |
| Guide Rail Type | Inclined Guide Rail (Slant Bed) |
| Power Source | Hydraulic Pressure |
| Trademark | BLIN |
| Origin | China |
BL-H50Y
TAIWANESE technology, 8” chuck, 12T powered tool turret with slant interpolation Y axes, servo programmable tailstock, high rigidity

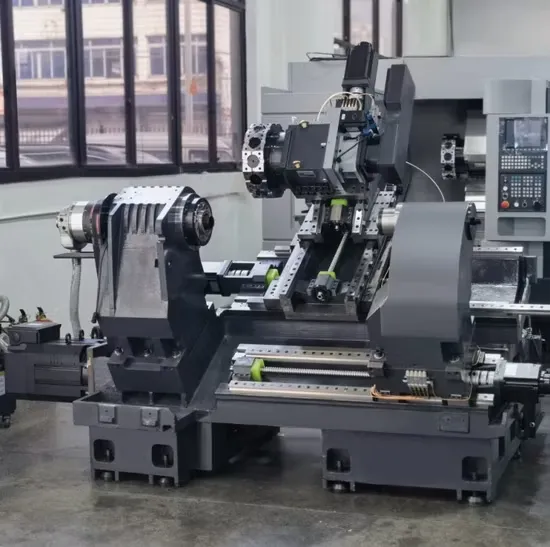

– Adopt 90% same structure as TAIWAN GOODWAY, bed adopt 30°slant design, high rigidity, good machining flexibility
– Adopt TAIWANESE technology, designed by TAIWANESE engineer, most parts adopt GERMANY/JAPAN/TAIWAN brand
– Adopt modularization design, has strong extended function, easy for various especial configuration choice
– Adopt HT300 resin sand cast iron, after aging treatment and FEA analysis, small distortion, good torsional strength, good heat stability
– Base adopt multilayer strengthening rib, ensure bed’s strength and stability
– Frame adopt oil-coolant separation design, adopt independent coolant tank

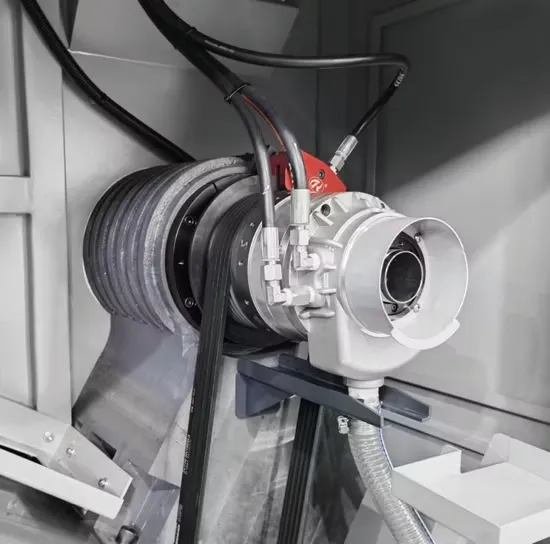

– Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range
– Adopt high precision pre-stretched ball screw(double nuts), coupled with motor directly by linkager,high transmission rigidity, can realize high precise turning
– Adopt high precision ROLLER type linear guideway, high rigidity, good accuracy holding, suitable for heavy loading and precise machining
– Adopt GERMAN SAUTER brand powered tool turret,fast tool changing, good repeatability,high efficiency
– Adopt servo programmable tailstock, tailstock quill not move, whole tailstock body driven by servo motor& ball screw on linear guideway

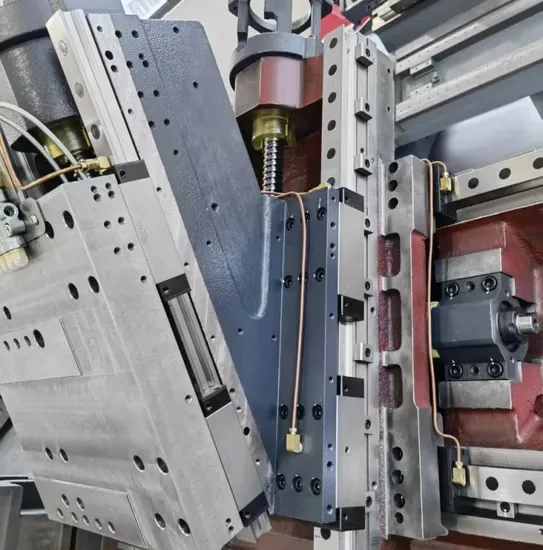

– With 30°slant interpolation Y axes, super higher machining rigidity
Details:
| Item | Specification | Unit | BL-H50Y |
| Capacity | Max. swing dia. over bed | mm | Φ600 |
| Max. swing dia. over slide | mm | Φ380 | |
| Max. turning length | mm | 500 | |
| Max. turning dia. | mm | Φ350 | |
| Spindle | Spindle bore | mm | Φ66 |
| Spindle end type | / | A2-6 | |
| Spindle speed | rpm | 4000 | |
| Spindle max. bar through dia. | mm | Φ51 | |
| Spindle motor power | kw | 11/15(FANUC) | |
| Spindle chuck size | ‘’ | 8’’ | |
| Spindle C axes division accuracy | Deg | 0.001° | |
| X/Y/Z axes | X/Y/Z axes linear guideway type | / | ROLLER type |
| X/Y/Z axes linear guideway width | mm | 30/30/35 | |
| X/Y/Z axes travel | mm | 210/±50/600 | |
| X/Y/Z axes torque | kw | 1.8/1.4/1.8(FANUC) | |
| X/Y/Z axes rapid moving speed | m/min | 24/15/24 | |
| Tool turret | Tool turret type | / | BMT55 Powered tool turret |
| Tool qty | / | 12T | |
| Vicinal tool changing time | s | 0.28 | |
| Farthest tool changing time | s | 0.4 | |
| Toolshank size | mm | 25×25, Φ40 | |
| Live tool motor power | kw | 2.7(FANUC) | |
| Live tool max. speed | rpm | 4000 | |
| Tailstock | Tailstock type | / | tailstock body’s movement driven by servo motor&ball screw |
| Travel of tailstock body | mm | 500 | |
| Tailstock rapid moving speed | m/min | 20 | |
| Tailstock type | / | MT4# | |
| Tailstock servo motor | kw | 1.4(FANUC) | |
| Accuracy | Positioning accuracy(X/Y/Z) | mm | 0.008/0.008/0.008 |
| Repeat positioning accuracy(X/Y/Z) | mm | 0.004/0.004/0.004 | |
| Others | Coolant pump motor | w | 500 |
