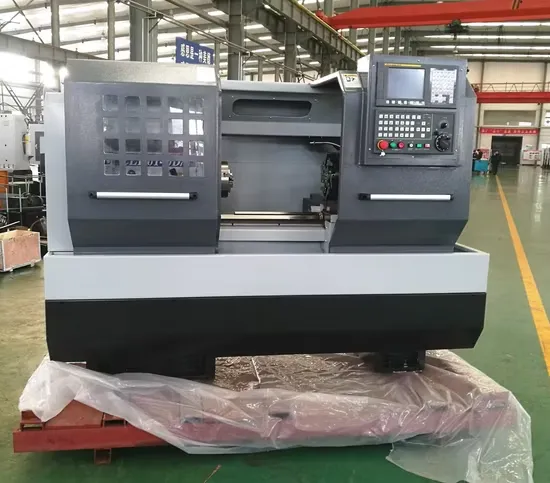

6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 2
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 3
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 4
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 5
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 6
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 7
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 8
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 9
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 10
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2 - Image 11

6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Max. Swing Over Bed 400 mm
Spindle Bore 51 mm
Z-Direction Guideway Span 320 mm
Tool Holder Single-Tool Holder CNC Lathe
Tool Shank Size 25 mm × 25 mm
Precision Tier High-Precision
Processing Accessory Chuck CNC Lathe

Original price was: $12,000.00.Current price is: $11,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

            6140  CNC  Lathe Machine  Cnc  Machine Tools Clk6140d-2

6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2

1.Introduction and use:

Electromechanical integration with 2-shifts of high /low speed, once programming can automatically realize machining such like cylindrical,inner hole, thread, complex surface.Widely used in machinery, automobiles, motorcycles, oil pump, nozzle, chemical industry, instrument, medical and other parts of mechanical processing.

2.  SPECIFICATION

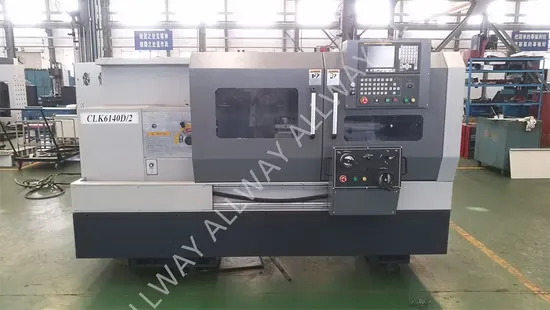

CLK6140D/2  Items UNIT 750 1000
Max. swing over bed mm 400
Max. swing over cross slide mm 170(standard)/option:150( with T-slot)
End surface of standard chuck (doesn’t contain claws) to enter of tailstock mm 680 1000
X/Z axis travel mm 220/550 220/860
Z direction guideway span mm 320
Spindle bore mm 51(standard manual chuck )
Code for spindle nose A2-6
Spindle nose tape No Morse 6
Spindle speed range rpm 2 shifts:80-400,400-2000
Tailstock sleeve dia. mm 55
Tailstock No MT4
Tailstock sleeve travel mm 150

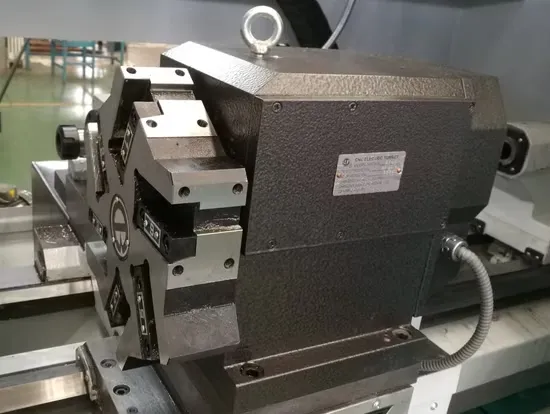

Electric tools pcs 4/6(option)
Tools Size mm 25×25
Screw pitch mm X:4;Z:6
X, z rapid feeding m/min X:6; Z:8
X/z axis smallest unit set mm 0.001
Main motor KW 5.5KW
cool pump AB-25
Cool pump motor w 90
Power form AC voltage V 3  380±10%
Frequency HZ 50±10%
Total Power capacity KVA 10
Net weight Kg 1800 1900
Overall dimension mm 2000×1100×1650 2320×1100×1650

6140 CNC Lathe Machine CNC Machine Tools Clk6140d-26140 CNC Lathe Machine CNC Machine Tools Clk6140d-2

 Optional:
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2
6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2



Customer Reviews

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “6140 CNC Lathe Machine CNC Machine Tools Clk6140d-2”

Your email address will not be published. Required fields are marked *

Related Products

-2%
Add to wishlist

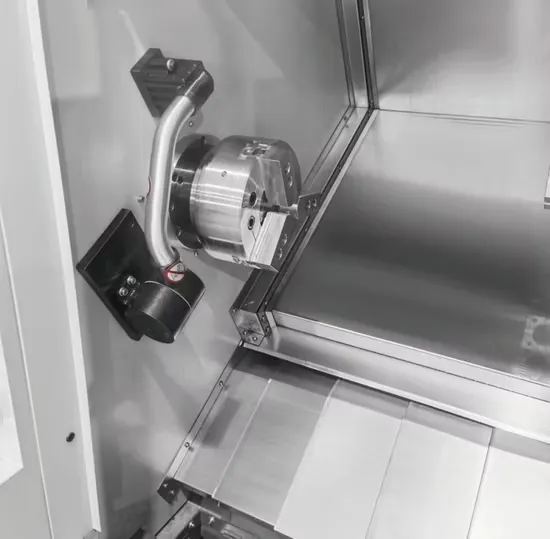

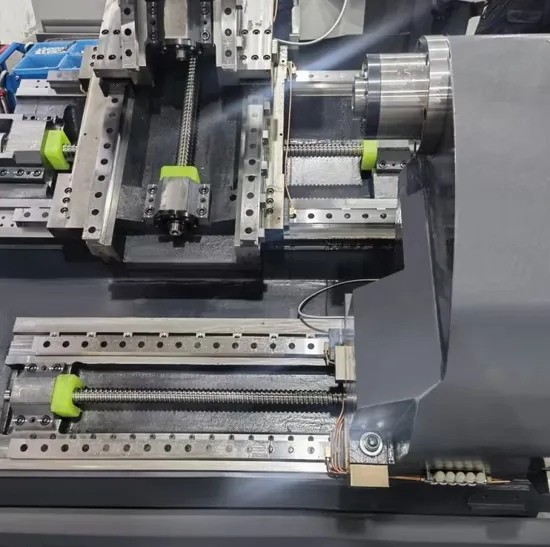

CNC Turning Center 8” Chuck 12t Powered Tool Turret CNC Lathe

Original price was: $46,000.00.Current price is: $45,000.00.
Compare
Quick view
-2%
Add to wishlist

CS Series High Precision Horizontal Lathe, Turning Machine Tool

Original price was: $51,000.00.Current price is: $50,000.00.
Compare
Quick view
-4%
Add to wishlist

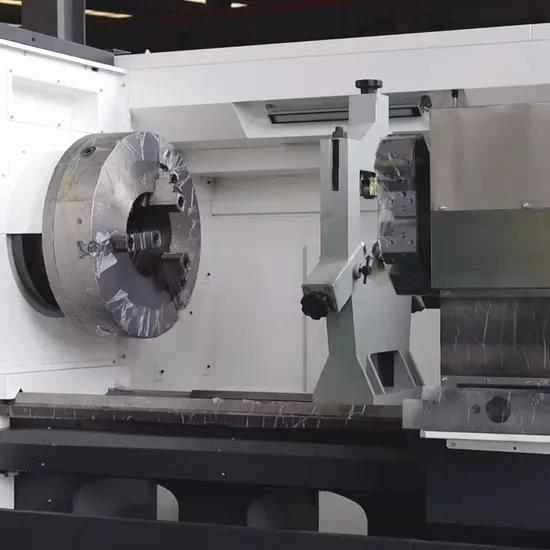

Flat Bed CNC Turning Lathe Machines
