Product Description

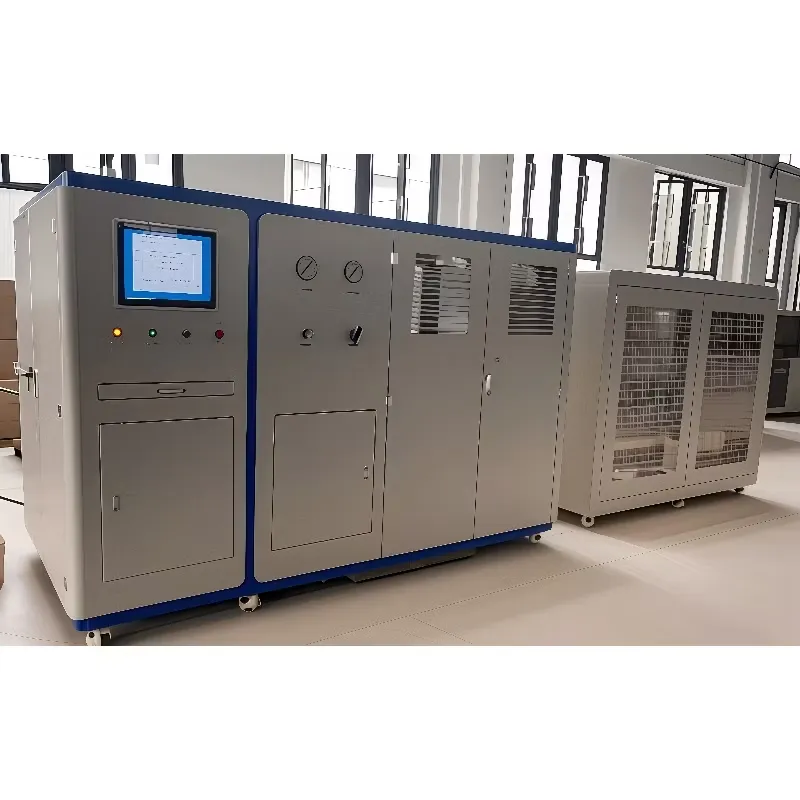

Air Leakage Testing Bench
Air leak test machine is mainly used for air leaking testing for kinds of hoses, metal pipes, kinds of automobile pipelines, condenser, heat exchanger and hydraulic hoses for construction machinery, steel tube, pressure vessel, stop valve, plug valve, check valve, ball valve, regulating valve, valve bank etc high pressure valves, petroleum machinery and instrument valve etc.


Application:
Automobile steering pipe, brake pipe, air conditioning pipe, fuel pipe, cooling water pipe, radiator hose, heating hose, air filter hose, worm gear, booster system hose, engineering hydraulic hose, aviation hose and manifold, hard pipe or connector, heat exchanger, air conditioner, filter, etc.
1. Maximum test pressure: 100MPa
2. Test frequency: 10-100 seconds/time; (The larger the shape variable, the greater the pressure and the lower the number of times)

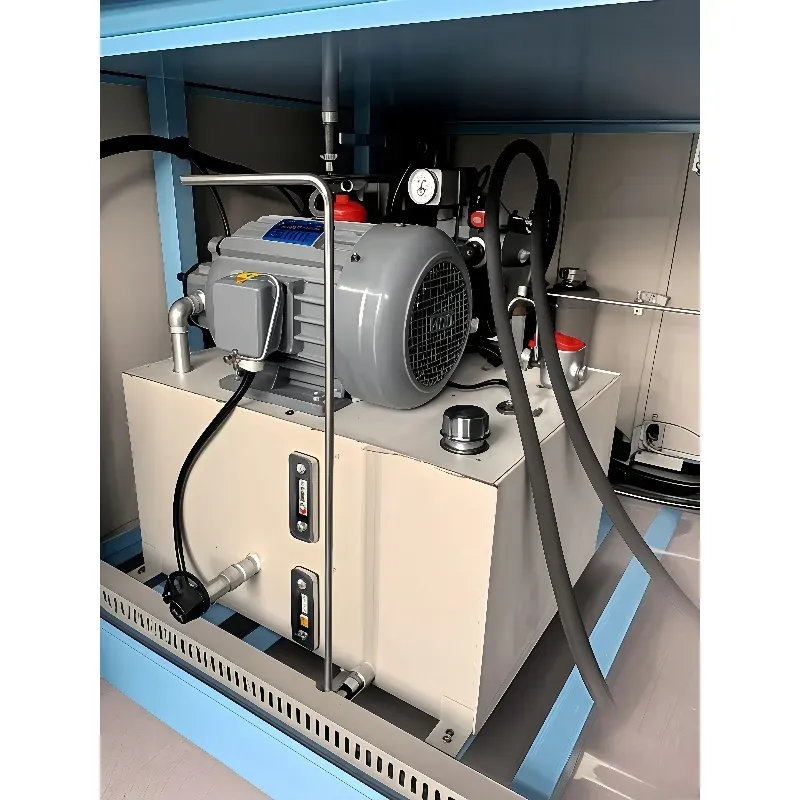

3. Motor power: 22KW;
4. Power supply: 380V;
5. System pressure: 10MPa;
6. The pressure ratio of high-pressure hydraulic drive fatigue cylinder is 10:1, and the rated output pressure is 100MPa
7. Control mode: LabVIEW software + proportional valve control;
Product Description

Air Leakage Testing Bench
Air leak test machine is mainly used for air leaking testing for kinds of hoses, metal pipes, kinds of automobile pipelines, condenser, heat exchanger and hydraulic hoses for construction machinery, steel tube, pressure vessel, stop valve, plug valve, check valve, ball valve, regulating valve, valve bank etc high pressure valves, petroleum machinery and instrument valve etc.


Application:
Automobile steering pipe, brake pipe, air conditioning pipe, fuel pipe, cooling water pipe, radiator hose, heating hose, air filter hose, worm gear, booster system hose, engineering hydraulic hose, aviation hose and manifold, hard pipe or connector, heat exchanger, air conditioner, filter, etc.
1. Maximum test pressure: 100MPa
2. Test frequency: 10-100 seconds/time; (The larger the shape variable, the greater the pressure and the lower the number of times)
3. Motor power: 22KW;
4. Power supply: 380V;
5. System pressure: 10MPa;
6. The pressure ratio of high-pressure hydraulic drive fatigue cylinder is 10:1, and the rated output pressure is 100MPa
7. Control mode: LabVIEW software + proportional valve control;
