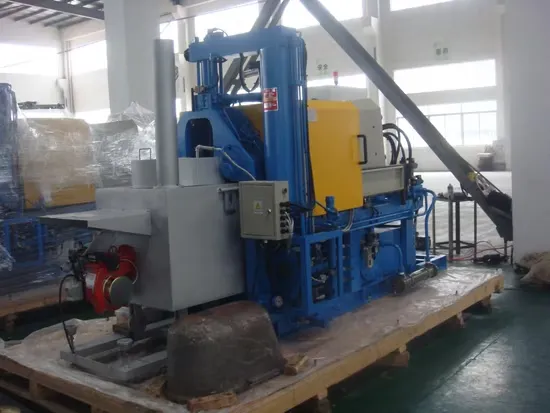

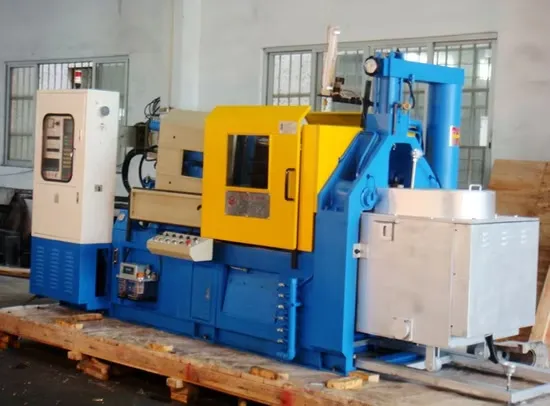

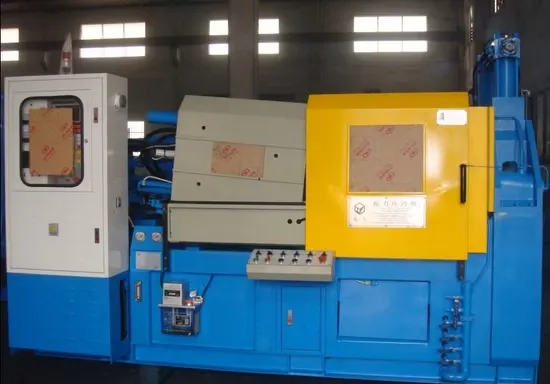

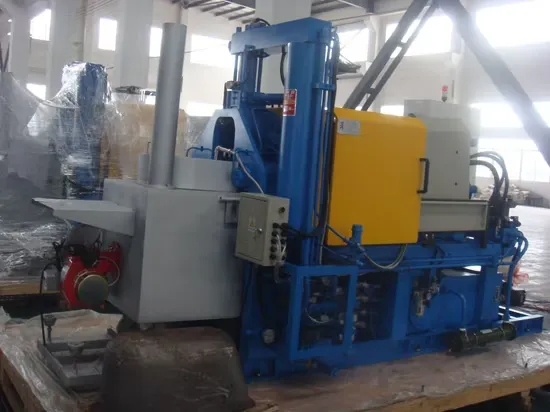

Zinc Alloy Medal Making Machine 180t Hot Chamber Die Casting Machine
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $60,650.00.$59,650.00Current price is: $59,650.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Rated Power | 18.5 kW |
| Oil Tank Capacity | 310 L |
| Accumulator Capacity | 25 L |
| Weight | 6200 kg |
| Production Capacity | 100 Pieces / Year |
Product Description
The hydraulic main system adopts double proportional control ,which is convenient for adjusting the pressure and speed of every movement in the operation .The outlay precise suction filter ensures the hydraulic system of cleanness and decreases weariness of the hydraulic components.
Appliances control:
1.Adopts precise artificial intelligent computer control,can control and supervise the data and status of every movement,which is convenient for operation and maintenace.
2.The large screen LCD monitor can realize conversion between Chinese and English.
3.Its powerful memory can store 100 sets of moulding data, such as the time,times,speed,pressure,traveling distance,mould thickness,options,etc.
4.Has self-check and alarm functions to failures of computer hardware,and display function of mechanical failures,which is convenient for mechanical failure removal .
5.Mould closing adopts high precision E-ruler positioning test,which can control the precise distance to 0.1mm.
Standard Configuration
| Double-toggle lock mould structure, high strength spheroidal graphite iron casting plate. |
| Low pressure mold closing protection. |
| Mould adjustment device for gear train oil motor. |
| Concentrated automatic lubrication system. |
| Fast hydraulic ejector device and core pulling device. |
| 4th level injection control system. |
| Independent piston 2-speed and pressure charging energy accumulator. |
| Hydraulic elevator sprue platform. |
| E-ruler control on mould opening and closing |
| Power saving high and low pressure twin pump hydraulic system. |
Machine Configuration
| Siemens 200 control system with LCD monitor (Germany). |
| Imported components are used for hydraulic units including YUKen(Japan), Rexroth(Germany) and Vickers(USA) to ensure the stability of hydraulic system. |
| Sealing members are bought from Sealtech of Hong Kong or Veco of France. |
| Posts and columns are purchased from Zhejiang Huading. |
| Electric parts are purchased from France Schneider. |
After-sales Service
When shipment arrives, the seller appoint engineer to buyer’s factory for machine commissioning and installation and training workers.
Warranty
We provide one year warranty for machine three months for easy-broken parts.
Technological Date
| ITEMS | UNIT | ZL-180 | ||
| Locking Force | KN | 1800 | ||
| Die Open Stroke | mm | 385 | ||
| Ejector Force | KN | 90 | ||
| Ejector Stroke (Max) | mm | 88 | ||
| Die Height (Min-Max) | mm | 190-505 | ||
| Tie Bar Diameter | mm | 85 | ||
| Space Between Tie Bars | mm | 450×450 | ||
| Injection Position | mm | 0,-80 | ||
| Plunger Stroke | mm | 150 | ||
| Traverse Stroke | mm | 210 | ||
| Injection Force (Max) | KN | 108 | ||
| Diameter of Plunger | mm | 60 | 65 | |
| Max Shot Weight | kg | 1.9 | 2.3 | |
| Hydraulic Pressure | MPa | 14.0 | ||
| Motor Power | KW | 18.5 | ||
| Crucible Capacity (Zn) | kg | 400 | ||
| Capacity of Accumulator | L | 25 | ||
| Furnace | Diesel-fired Furnace | kg/h | 4.8 | |
| Energy Consumption | Electric Furnace | kW | 30 | |
| Capacity of Oil Tank | L | 310 | ||
| Dimension (Lx Wx H) | mm | 4700x1600x2030 | ||
| Machine Weight | kg | 6200 | ||
