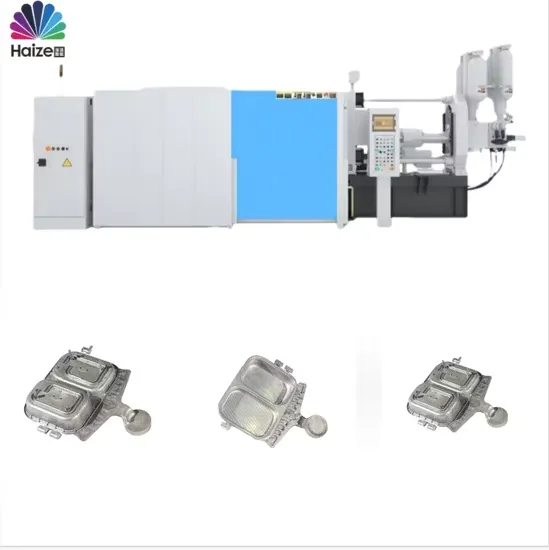

500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine - Image 2
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine - Image 3
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine - Image 4
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine - Image 5
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine - Image 6

500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Clamping Force 500 Tons
Material Compatibility Aluminum, Magnesium, and Zinc Alloys
Production Grade Industrial / Automotive OEM
Customization Available across 180T–3000T Range

Original price was: $61,000.00.Current price is: $60,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
Specification

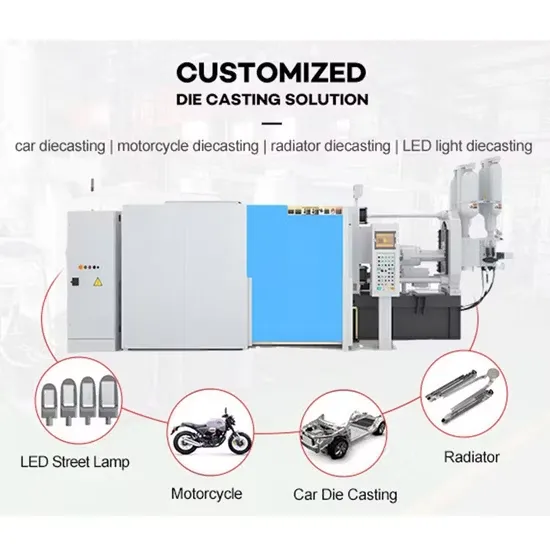

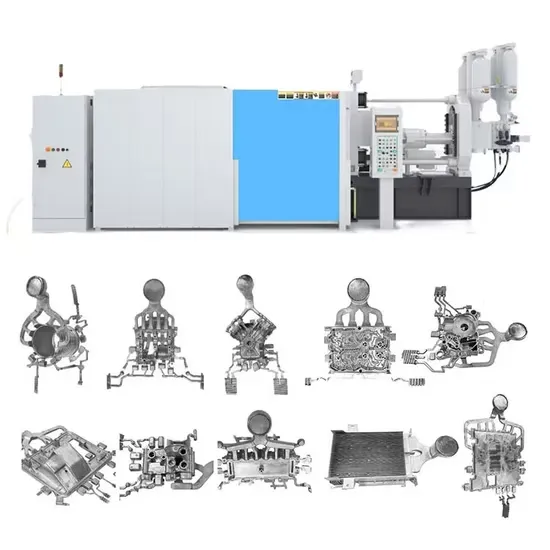

Application
1. Automobile: Cylinder head, motor housing, engine hood
2. Home furnishings: door handles, door locks, baking pans
3. Lighting fixtures: home lamps, street lamps, car lamps, panel lamps
Main configuration
Hydraulic system: Precisely controlled pumps and valves ensure smooth operation
Communication method: It adopts IO module and is equipped with network communication
Power supply: 380V 50Hz
Motor: Standard motor/servo motor
Control system: PLC control panel
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine

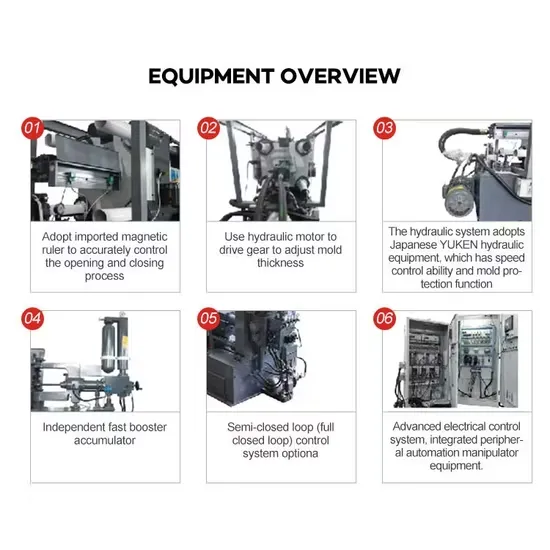

Key Configurations
Pumping station system: Ordinary motor + system pressure and flow proportional valve
Main oil pump: Ordinary oil pump
Oil temperature monitoring: Ordinary oil temperature gauge
Liquid level monitoring: Ordinary oil level gauge
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
Servo ladle
Servo sprayer
Servo extractor
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
Technical Specifications
(Custom configurations available upon request.)
Model
Unit
280T
400T
580T
630T
Claming force
kN
2800
4000
5800
6300
Mode-locking stroke
mm
460
550
580
650
ejection force
kN
150
180
240
315
ejection stroke
mm
105
125
140
150
Mold thickness (min – Max)
mm
250-650
300-700
350-850
350-850
Template size (horizontal X straightened)
mm
860×860
1019×1019
1162×1162
1200×1200
About way 2 bar brace
mm
560×560
669×669
750×750
760×760
Shot position
mm
-125
-175
-175
-250
Shot stroke
mm
400
500
580
600
Injection force
kN
330
410
480
590
Hammer diameter
mm
50,60,70
60,70,80
70,80,90
70,80,90
Injection volume(Al)
kg
1.5,2.1,2.9
2.7, 3.6, 4.7
4.2,5.4,6.9
4.3,5.6,7.2
Casting pressure
MPa
168,116,85
145, 106, 81
124,95,75
153,117,92
Casting area
cm 2
166,239,326
275,375,490
465,607,768
410,536,679
Maximum casting area(40MPa)
CM 2
700
1000
1250
1575
Injection chamber flange diameter
mm
101.6
101.6
165
165
The injection chamber flange protrudes to the height of the plate
mm
12
12
15
15
Ejector head push distance
mm
140
200
250
250
System operating pressure
MPa
14
14
14
14
Motor power
kW
18.5
22
30
37
Tank capacity
L
670
800
1000
1000
Body size (Lx WxH)
mm
6300×1785×2675
7190×1990×2810
7750x2240x2855
8200x2280x2900
Machine weight
T
11.5
15.5
20.5
24.5
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
500t High-Pressure Aluminum Alloy Cold Chamber Die Casting Machine
