Sunswell leads the market in the field of machinery and process technology for liquid packaging.
The wide range of liquid packaging plant machinery
Machinery for the most comprehensive scope of processes in connection with liquid packaging
Worldwide presence
10+ years of global market experience
Large number of customers worldwide
The various range of possible end products
The Sunswell product range covers types of machinery for packaging of liquid including water, tea, juice, carbonated soft drinks, energy drinks, alcoholic drinks, beer, edible oil, dairy products, etc.
Leadership in quality and technology from raw material to bottled liquid to selling products – Sunswell, A-Z turnkey plant supplier, is known for developing innovative high-end products and new technologies.

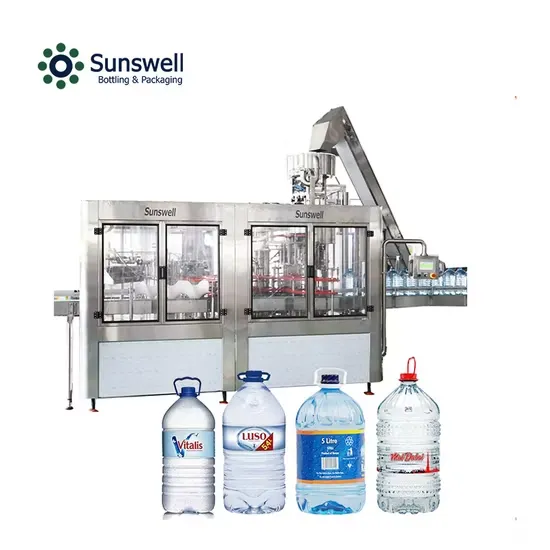

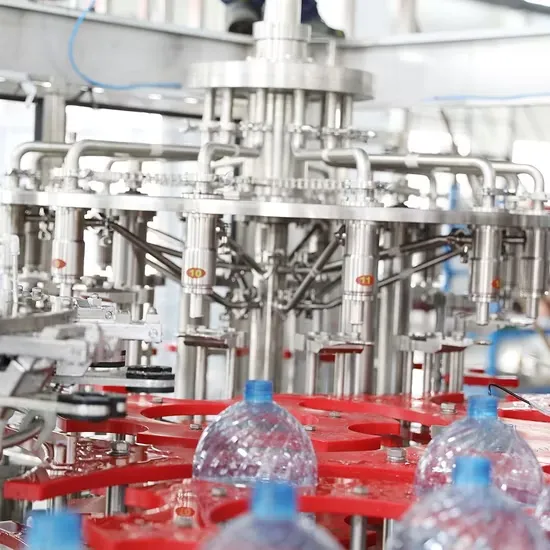

TGX series linear & rotary 3-in-1 filling monoblock, combined with rinsing, filling and capping. It is innovated and designed in the requirement of still pure water and mineral water in big jars, on the bases of introducing, digesting and absorbing advanced technology from Germany and Italy.
Main features
Rinsing part
The Rinsing machine connect with empty bottle conveyor frame, when empty bottle input rinsing machine extent, through photoelectrical reaction, Circuit control system command Pneumatic electromagnetic valve movements, let the Clip bottles of cylinder clip the bottle, then the oVERTUrn cylinder operate, the bottleneck turn down, then the pure water pump open, spurt pure water to the bottle, after 30s, stop it, the oVERTUrn cylinders reset, input the conveyor system and go to filling machine.
Filling machine

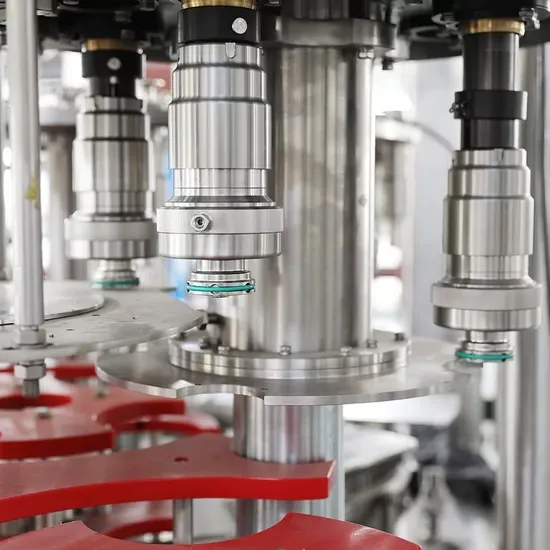

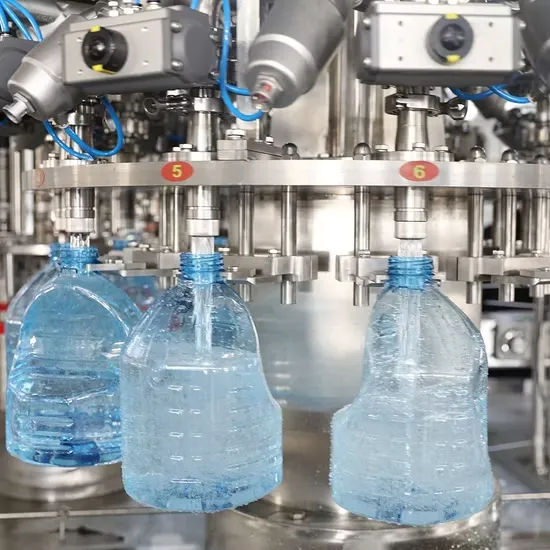

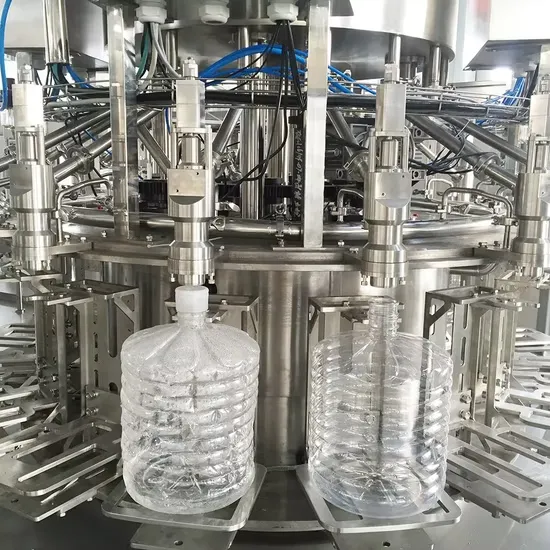

After-wash empty bottle input the filling machine through conveyor system, two push-barrel cylinders operate beside conveyor, then the bottle arrive filling part, the bottle bottom separate the conveyor belt. After filling, the bottle drop on the conveyor belt. Output to the capping part.
Screw capping machine

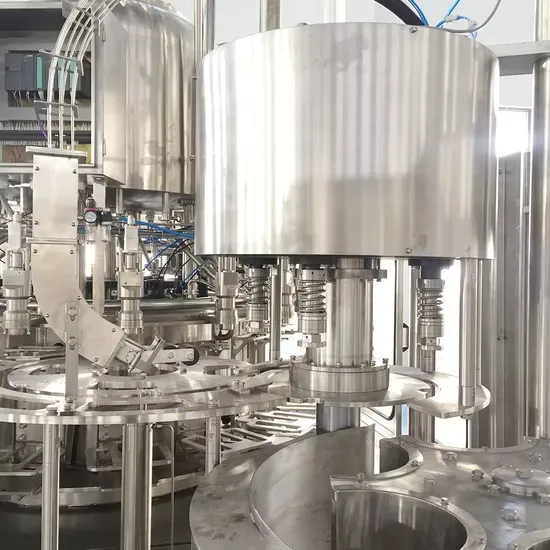

The screw capping machine is made of 4 screw capping heads frame, after the filled bottle convey to the screw capping machine station, through air cylinder start to screw cap, again and again, the finished bottle output to the warehouse and check.
Main Specification
Touch screen: Mitsubishi, Thinget or Weinview
PLC program controller: Mitsubishi or Omron
Inverter: Mitsubishi or Omron
Photoelectrical controller: AUTONICS
Other electrical components: Schneider
Pneumatic component: Airtac
Pump: Nanfang
Technical Parameters:
TGX4-4-2
Capacity: 500BPH (5L)
