Product Description
* We provide the complete cooking oil filling and package solution ,from Blow molding machine, Conveyor system, Weighing type filling capping 2 in 1 mono-bloc, Liquid nitrogen dosing machine, Automatic Rotary type OPP hot glue labeling machine, Carton packing machine, Weight checker, Carton labeling machine, Automatic robot palletizer system, Automatic stetch wrapping machine ,which is widely used for the beverage ,beer ,juice , CSD industry and so on.
| NO. | Items | Specification |
| 1 | Model : | 24 filling heads and 8 capping heads |
| 2 | Capacity : | 6000 B/H for 1L |
| 3 | Filling precision : | ±4g |
| 4 | Pressure of washing : | 0.2 Mpa |
| 5 | Compressed air consumption : | 600L /Min |
| 6 | Power of main motor : | 5 Kw |
| 7 | Dimension: | 3150 * 2500 * 2300 MM |
| 8 | Weight : | 3500 Kg |
This machine is a new generation of filling and capping integrated machine, using Toledo load cell. No bottle, no filling, no capping, reducing loss; continuous filling and capping, high output, no material splashing; twists, star wheel, etc. are all fast-loading designs, easy to change specifications, short time consuming, and high efficiency (replacement Specifications one-key adjustment of the lifting height).
Complete machine (introduction)
It adopts the most advanced weighing filling method in the world, and is equipped with high-precision sensors such as Toledo to realize dynamic online weighing technology, which has high measurement accuracy and is not affected by various characteristics of materials (foam, impurities, temperature, density, etc.).

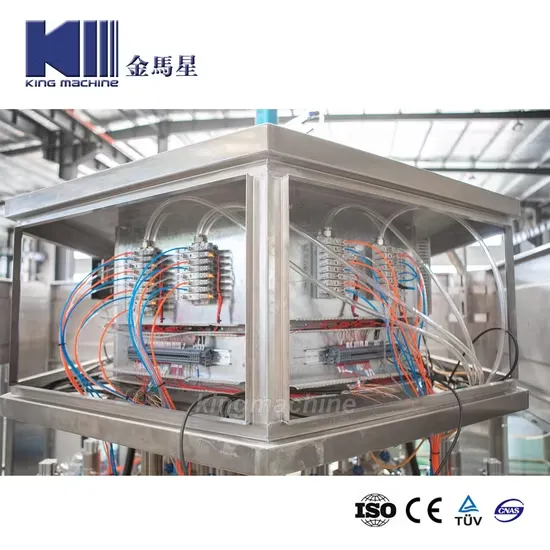

The filling valve
Fast and slow filling methods can be used for filling, fast filling first, then slow filling, which effectively guarantees the filling accuracy.
Capping part
The capping, capping, bottle feeding, capping, and bottle feeding speeds are all adjustable by frequency conversion and are adjusted separately on the touch screen, which avoids the occurrence of bottle pouring and bottle blockage caused by uncoordinated speeds and improves Work effectiveness.
Flow chart :
Complete cooking oil filling and package solution ,from Blow molding machine, Conveyor system, Weighing type filling capping 2 in 1 mono-bloc, Liquid nitrogen dosing machine, Automatic Rotary type OPP hot glue labeling machine, Carton packing machine, Weight checker, Carton labeling machine, Automatic robot palletizer system, Automatic stetch wrapping machine
