Product Description

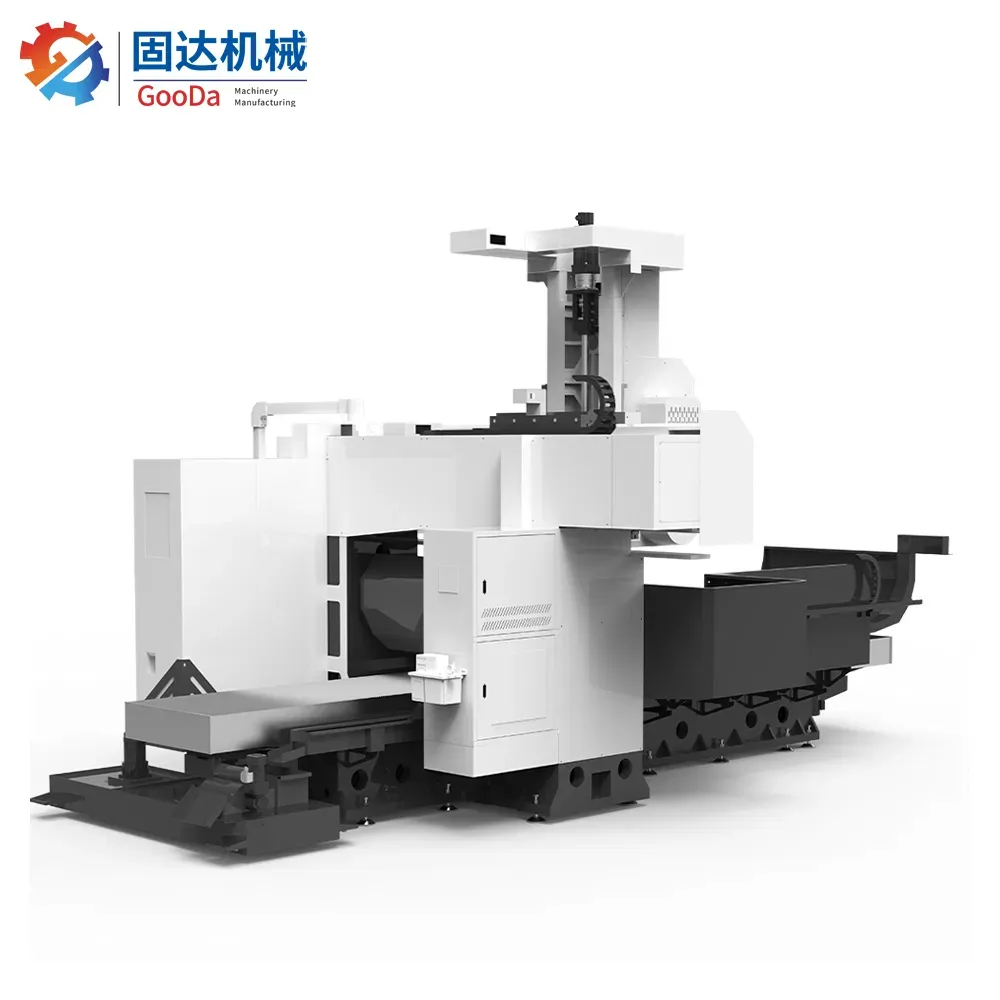

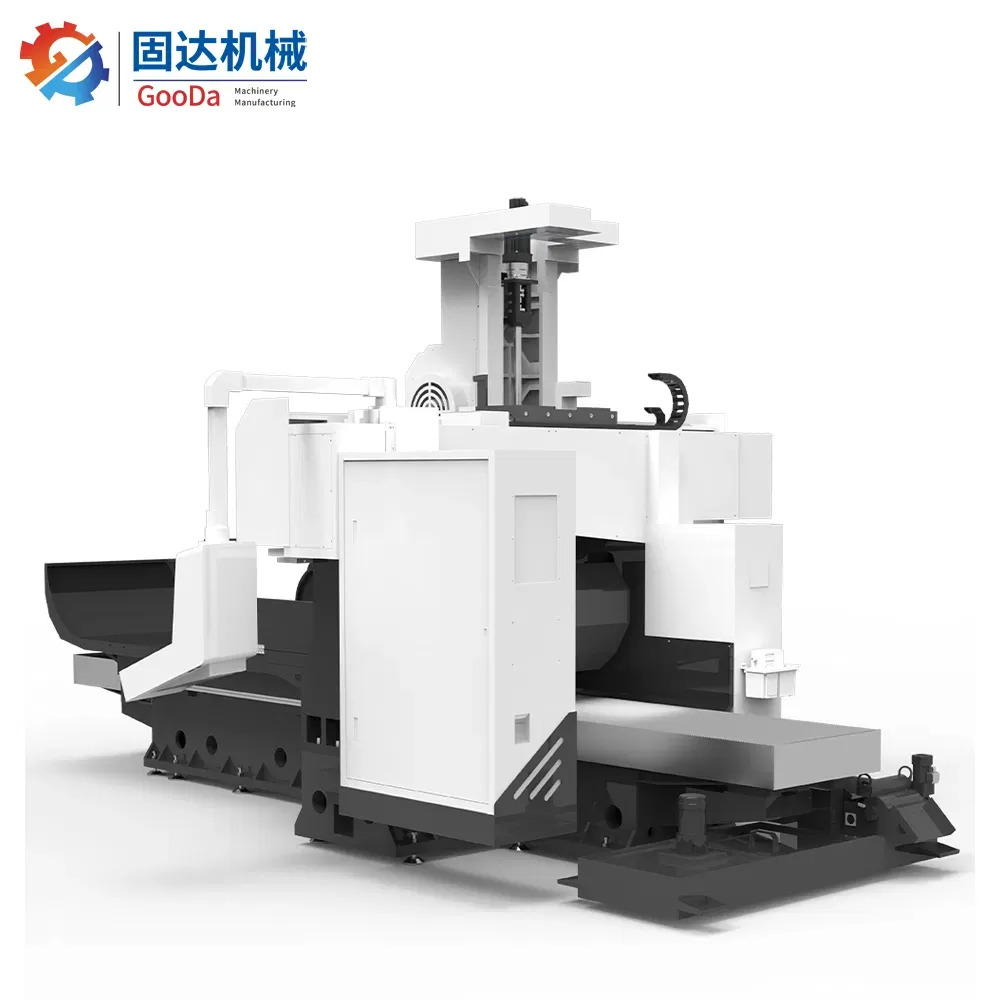

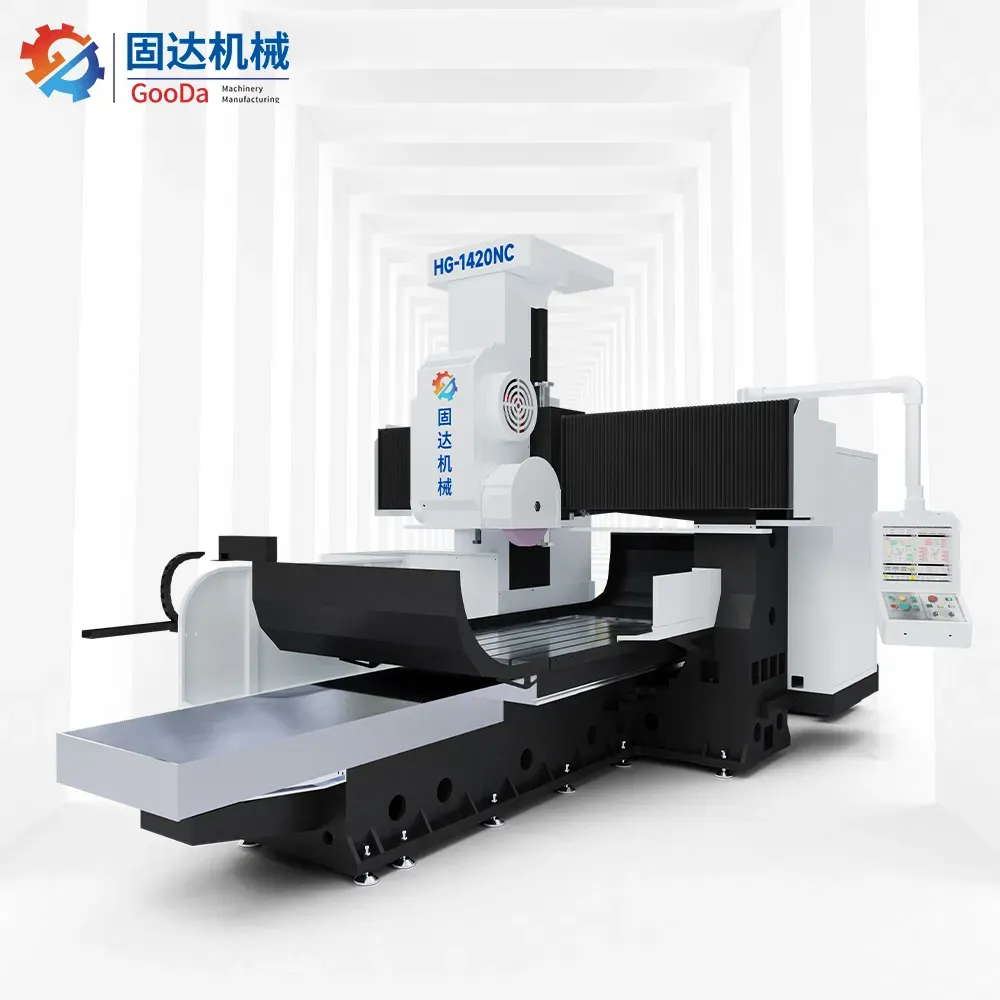

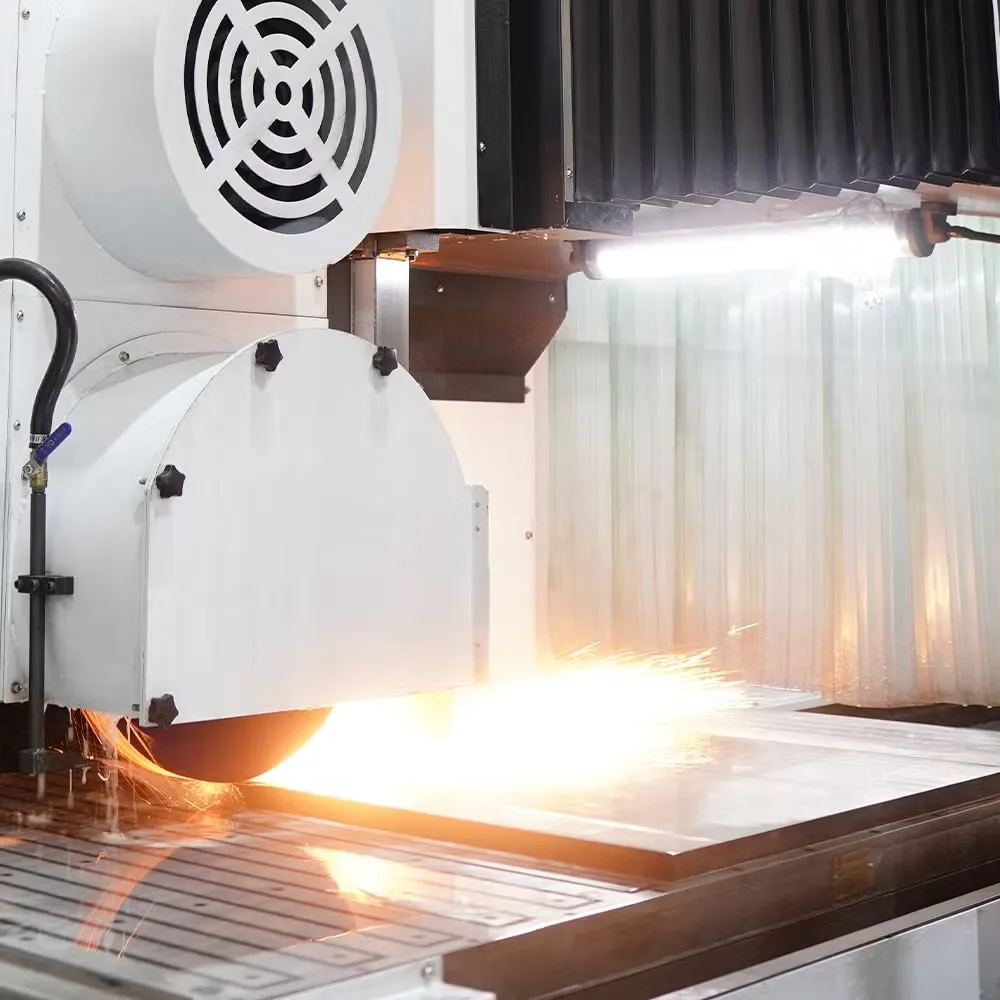

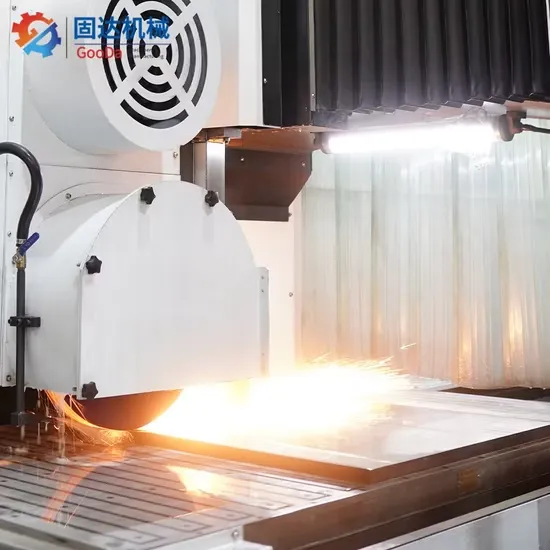

GooDa Gantry Surface Grinding Machine HG-series incorporates a robust gantry-type design, where the bed, column, and beam unite to form a steadfast frame structure. This unique build guarantees exceptional precision and performance, significantly enhancing the quality of your production processes.
For added safety and user convenience, this machine offers the flexibility of being fitted with either a semi- or full-enclosed protective cover, along with waterproof sliding doors.
The machine is composed of vital components including the gantry frame, bed, grinding head lubrication and transmission system, worktable transmission, lubrication system, cooling system, hydraulic control system, and electrical system.
-Ra≤0.8, tolerance ≤0.01/1000mm
-An all-in-one solution with planning, milling, and grinding capabilities in a single machine;
-Features a unique double-deck workbench structure;
-Equipped with an independent hydraulic system;
-Provides automatic cycle grinding and intermittent feed grinding, ensuring safe machine operations;
-Incorporates a user-friendly simple numerical control system;
-Includes fault protection for feed drives, enhancing reliability;
-Perfect for processing high-speed steel, hard alloy tools, and various ferrous, non-ferrous, and non-metallic materials;

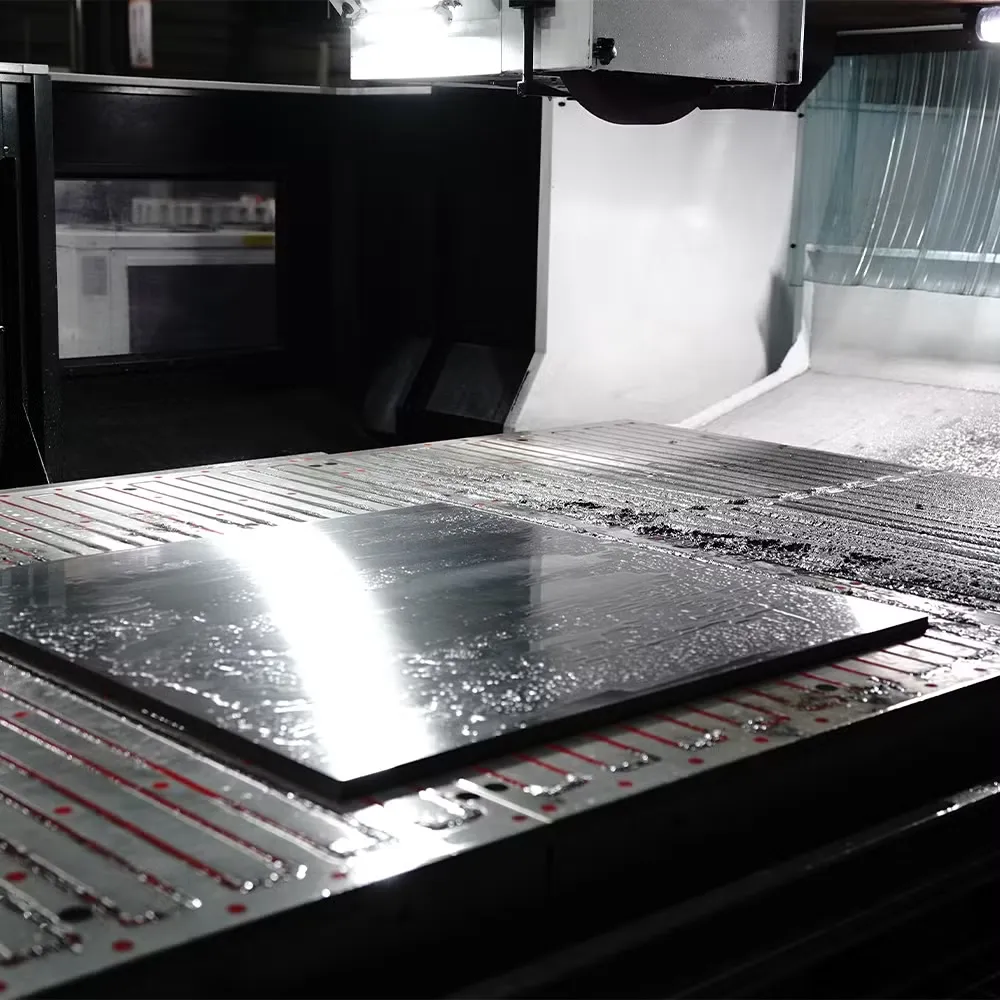

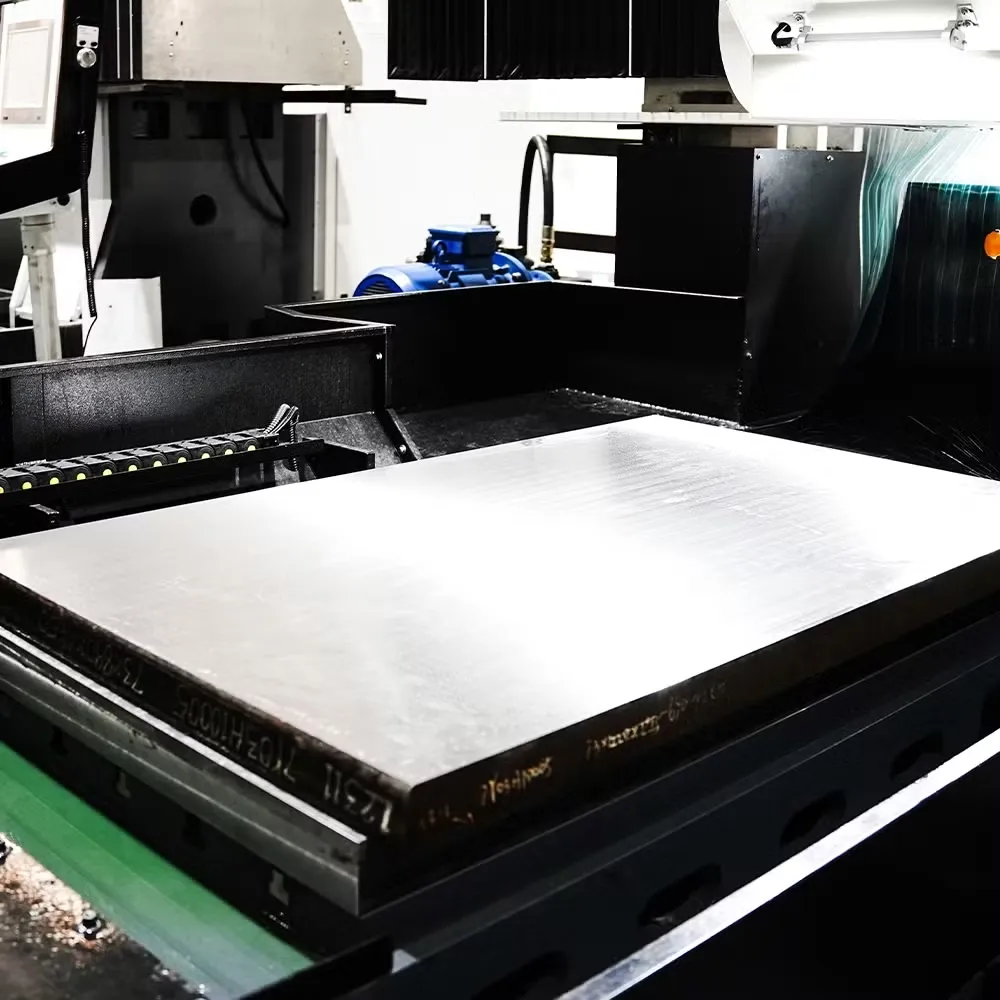

Examples of Processed Parts
| Model | HG-1420NC | ||
| Category | Attribute | Value | Unit |
| Processing capacity | Maximum grinding length | 2000 | mm |
| Maximum grinding weidth | 1000 | mm | |
| Maximum grinding height | 450 | mm | |
| Worktable | Worktable size | 2000*1000 | mm |
| Magnet chuck size | 2000*1000 | mm | |
| Max. load capacity | 3000 | KG | |
| Table T-slot specification | 22*150 | mm | |
| Spindle | Spindle motor power | 22 | KW |
| Spindle speed | 1400 | rpm | |
| Grinding wheel | 500*203*75 | mm | |
| Accuracy | Accuracy | X0.01/1000 Y0.015/1000 |
mm |
| Roughness | Ra0.8 | ||
| Feed speed | X axis movement speed | 5-28 | m/min |
| Y axis movement speed | 0-5000 | mm/min | |
| Z axis movement speed | 0-5000 | mm/min | |
| Oil pump motor | X axis oil pump motor | 11 | KW |
| Axis motor | Y/Z axis motor | 2.3/2.3 | KW |
| Size & weight | Machine net weight | About 13500 | KG |

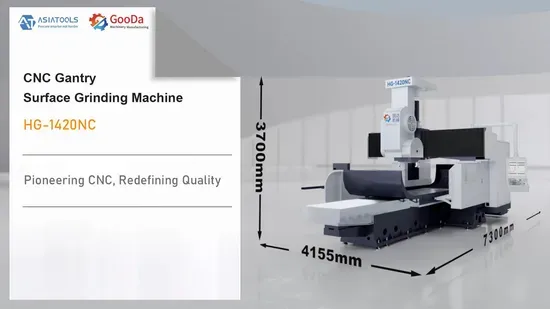

| Machine size (L*W*H) | 7300*4155*3700 | mm | |

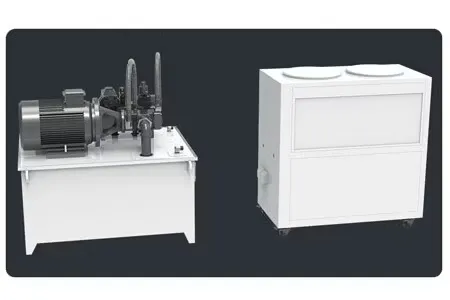

An independent hydraulic oil cooling system is employed, ensuring seamless transmission, preventing oil cylinder overheating, and maintaining impeccable precision.

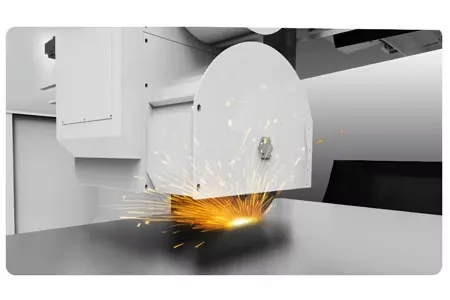

Featuring a hydrostatic spindle structure, the grinding head offers remarkable processing stability, high precision, and excellent shock absorption.

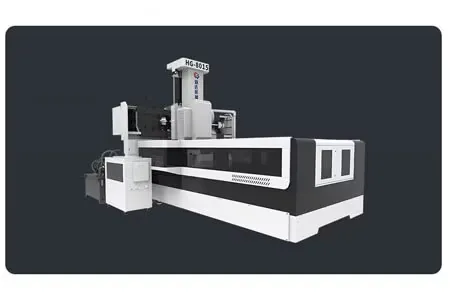

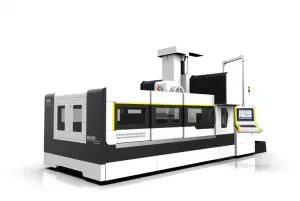

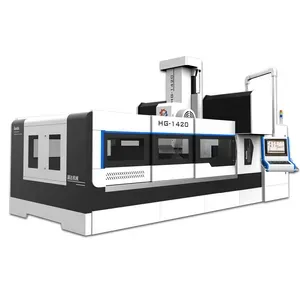

The machine can be optionally equipped with a semi or fully enclosed protective cover and waterproof sliding doors, enhancing operational safety and user convenience.
Driven by an oil cylinder and a powerful motor, the worktable delivers substantial torque, offers stepless speed adjustment, ensures smooth movement, and operates with minimal noise.
Utilizing a state-of-the-art CNC control system paired with an intuitive touch panel, the machine simplifies operation and facilitates automatic grinding of workpiece surfaces with efficiency.

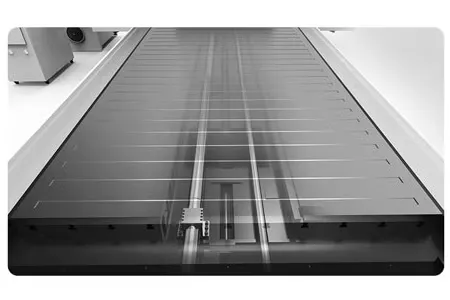

Boasting high strength and powerful magnetic force, this chuck offers outstanding waterproof and sealing capabilities.
