Feature Details
Machine Weight 14,000 – 15,000 kg (14-15 Tons)
Dimensions (L×W×H) 7,500 × 2,200 × 3,100 mm
Chassis Dimensions 2,820 mm (Length) × 600 mm (Width)
Engine Brands Cummins / Weichai / Yuchai / Isuzu (Optional)
Power Source High-Torque Diesel Engine
Travel Drive Mechanical Crawler System

Original price was: $67,000.00.Current price is: $66,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction 1.SANY SR75 excavator was used to convert the platform into a small rotary drilling rig DR-80Pro.

2.The imported Isuz u engine is used, the drilling depth is 18m, the aperture is 350-1200mm, the overall weight is 14-15t, the size is small, and the transportation is small, especially suitable for the construction of low narrow space.

Product Parameters

Product model Sany75 DR-80Pro
Chassis length(mm) 2820
Chassis width(mm) 600
Machine weight(t) 14-15
Maximum drilling depth(m) 18
Drilling diameter(mm) 350-1200
Engine brand ISUZU
Engine rated power(KW/rpm) 55KW
Maximum torque of power head(KN.m) 80
Power head speed(rpm) 40
Maximum pressure of the pressurization system(KN) 30
Maximum lifting force of the pressurization system(KN) 25
Maximum travel pressure system(mm) 1000
Maximum lifting force of the main winch(KN) 50
Maximum lifting force of the auxiliary winch(KN) 13
Left and right inclination angle of drilling mast(°) ±5
Forward and backward inclination angle of the drilling mast (°) 5/90
Maximum driving speed(KM/h) 3
Maximum climbing angle(°) 35
Overall length of transport status(mm) 7500
Overall width of transport status(mm) 2200-2800
Overall height of transport status(mm) 3100
Drill rod Kelly bar

Detailed Photos

Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Pump Electric brake + valve Engine
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Power box Tripod Air conditioning outlet
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Main/Auxiliary winch Dual instrument screen Rotary drilling screen

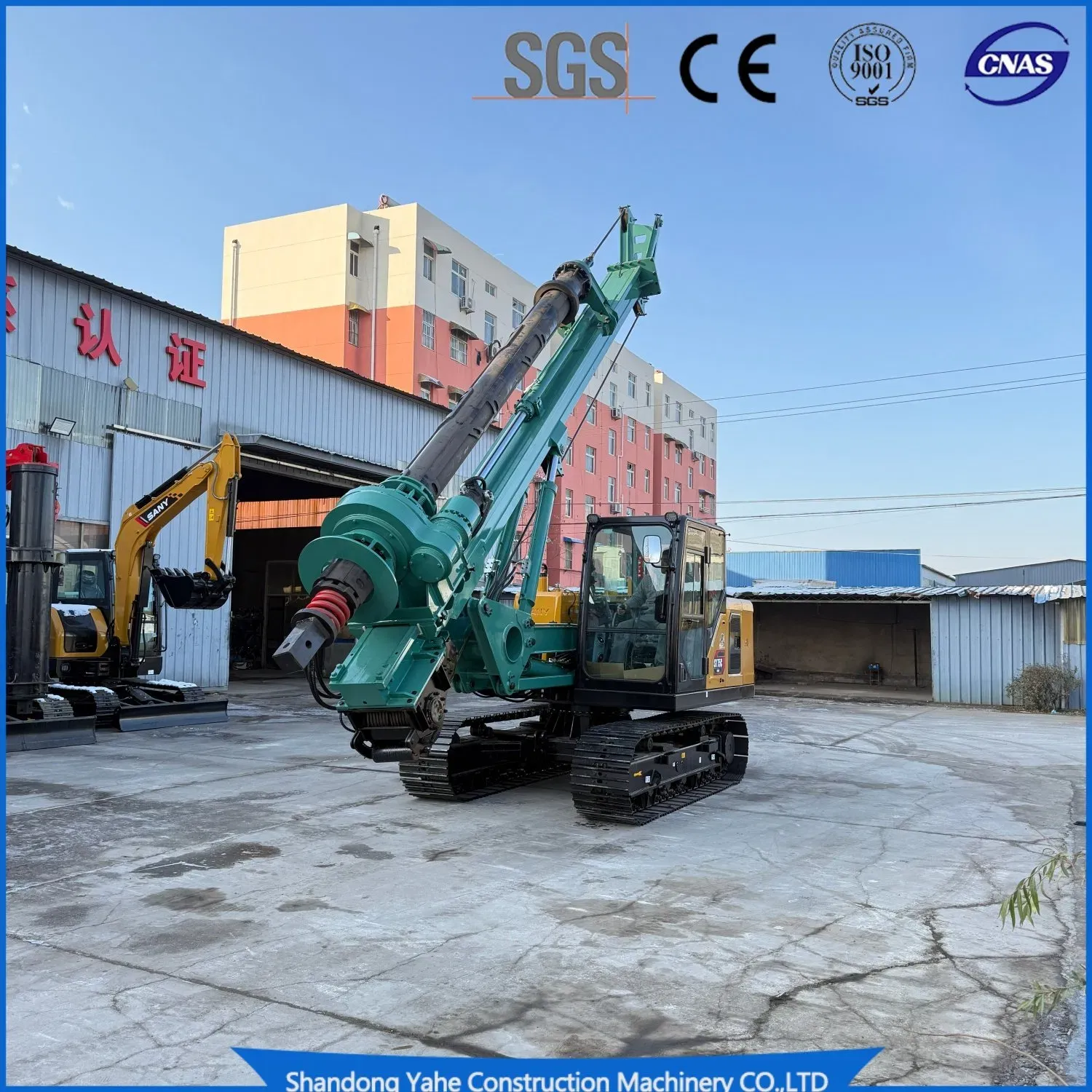

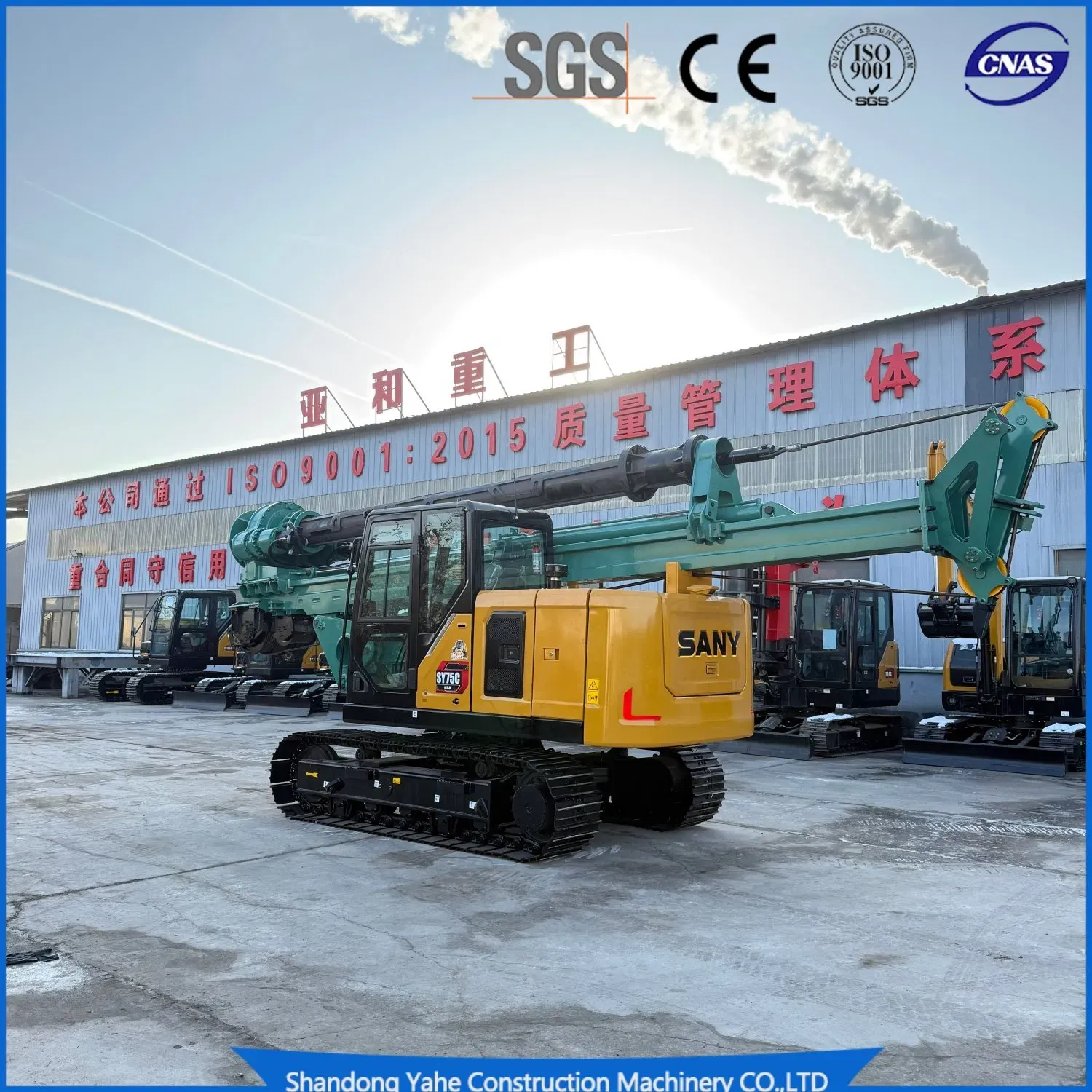

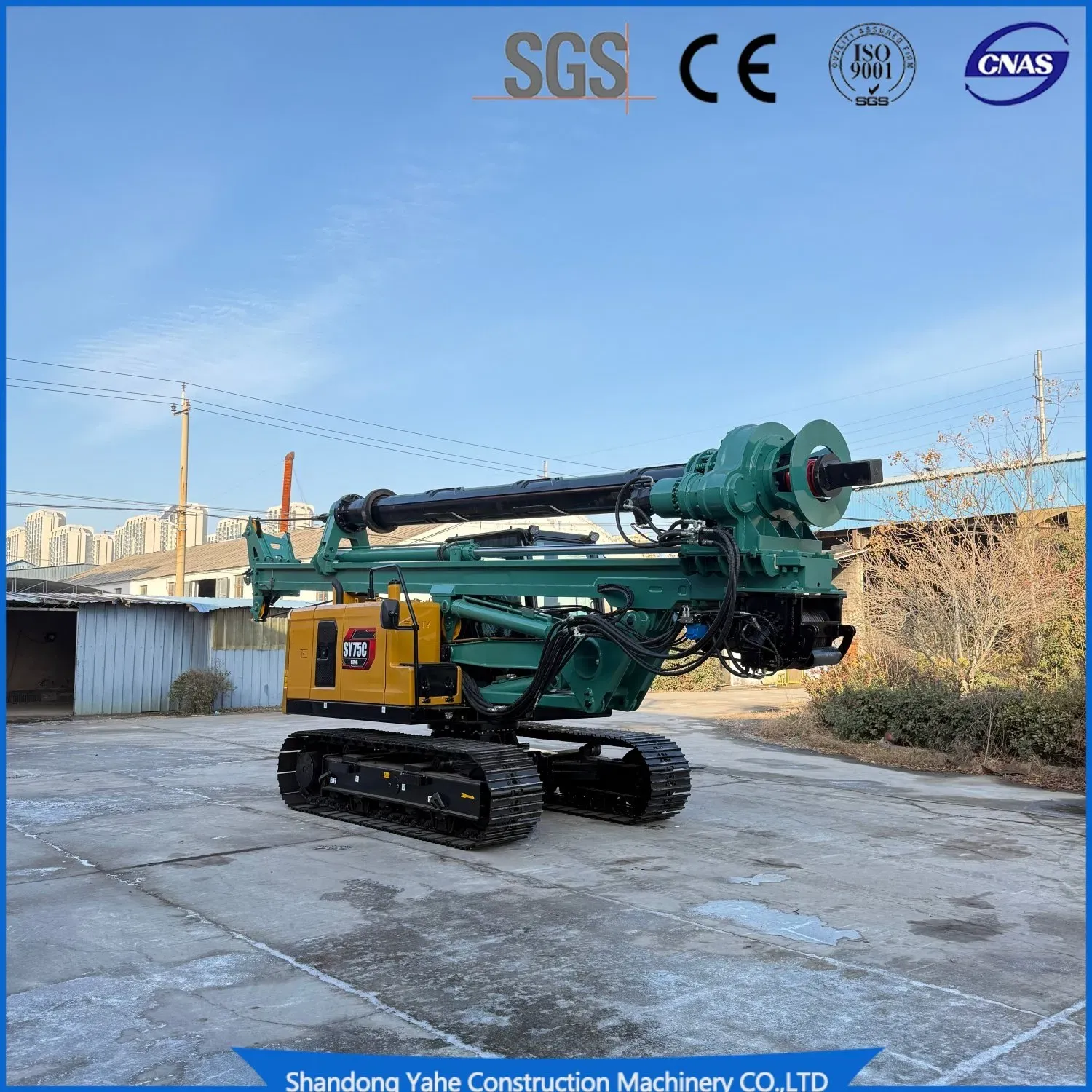

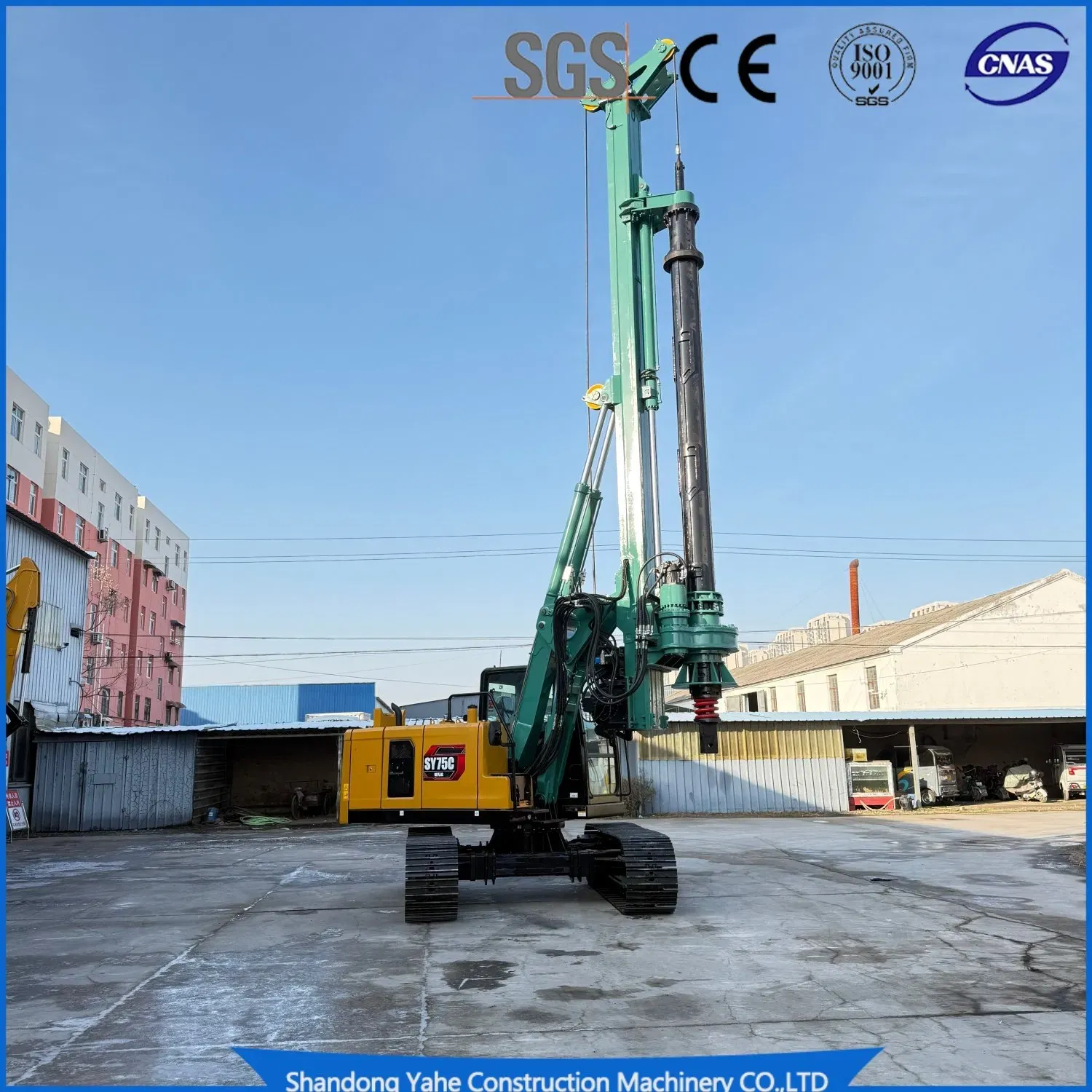

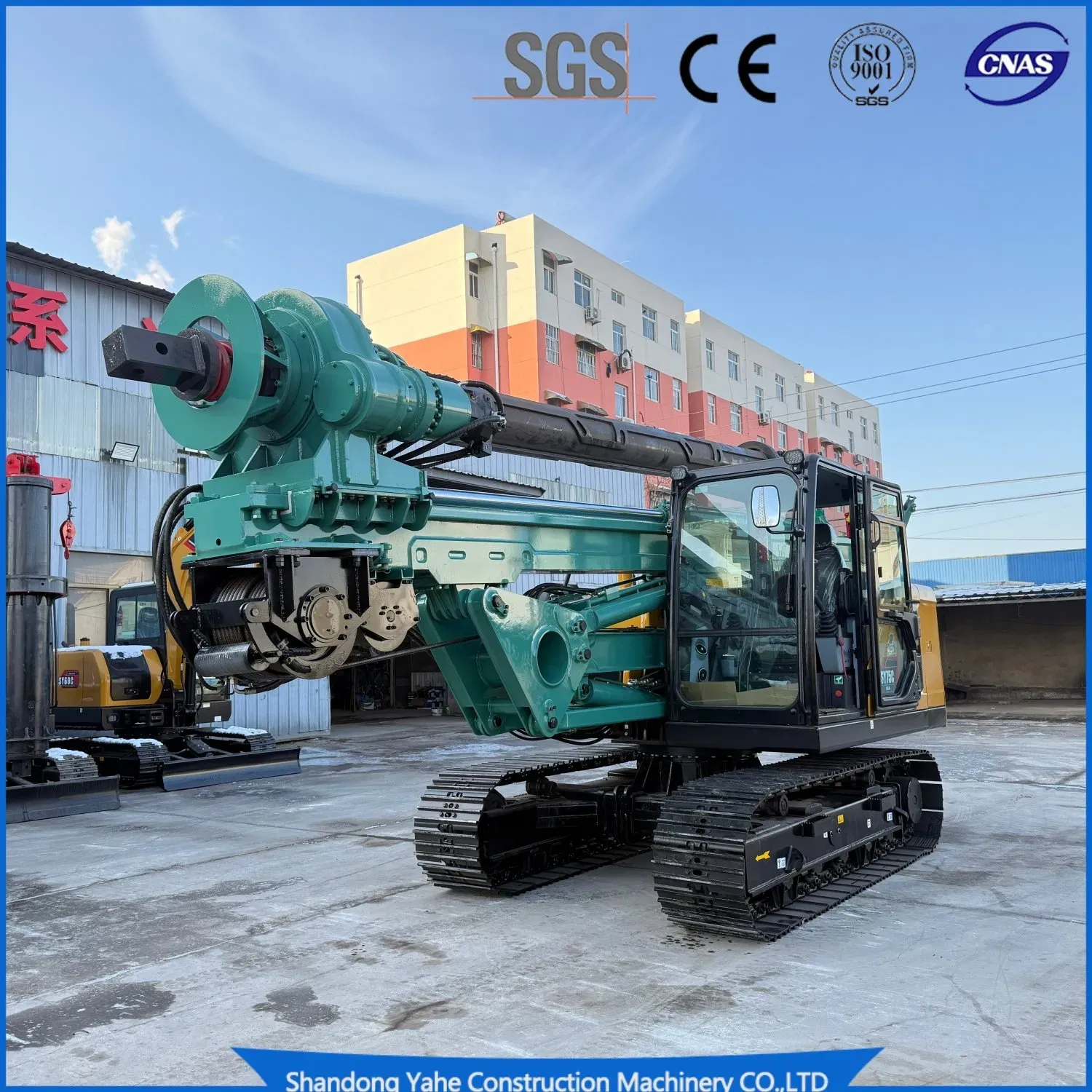

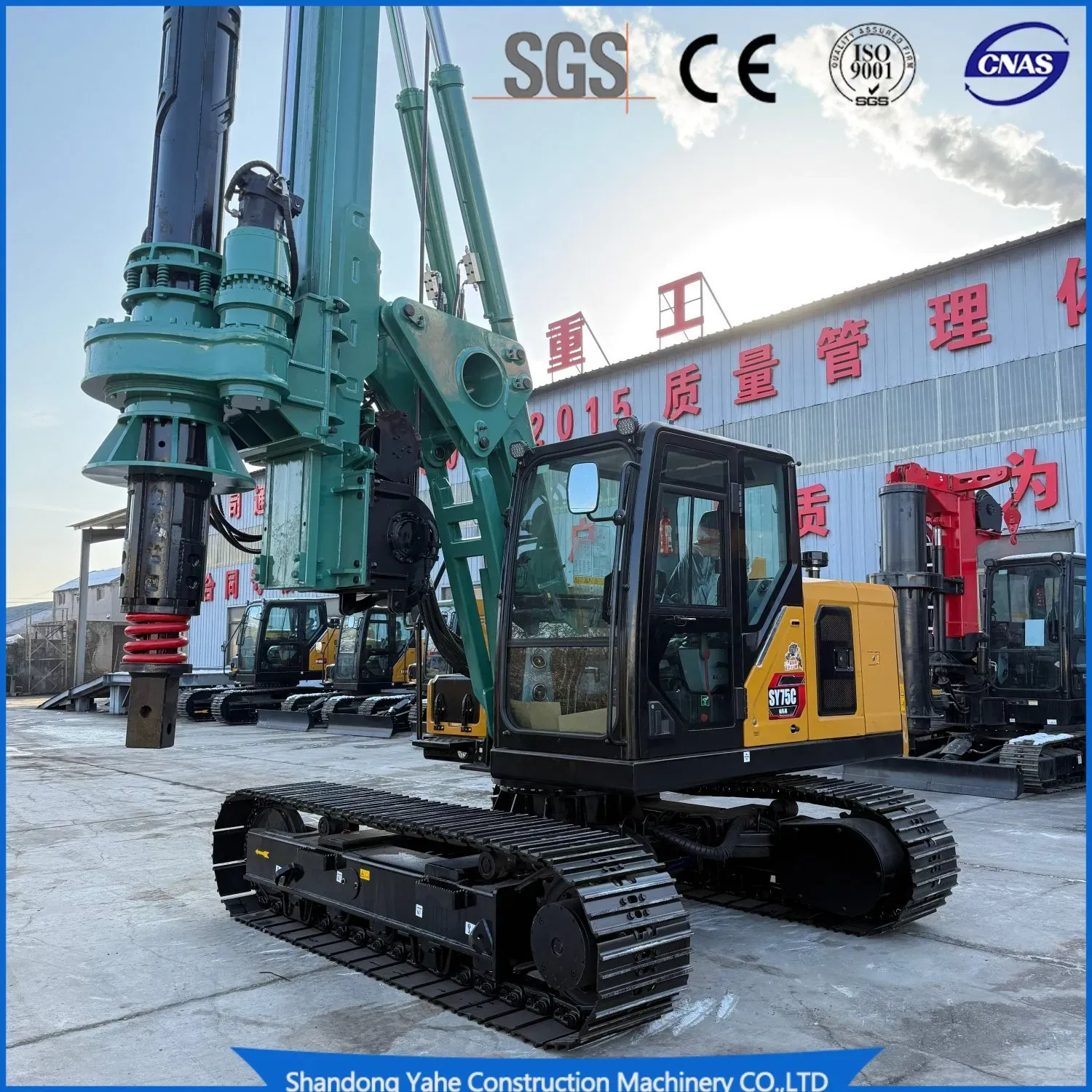

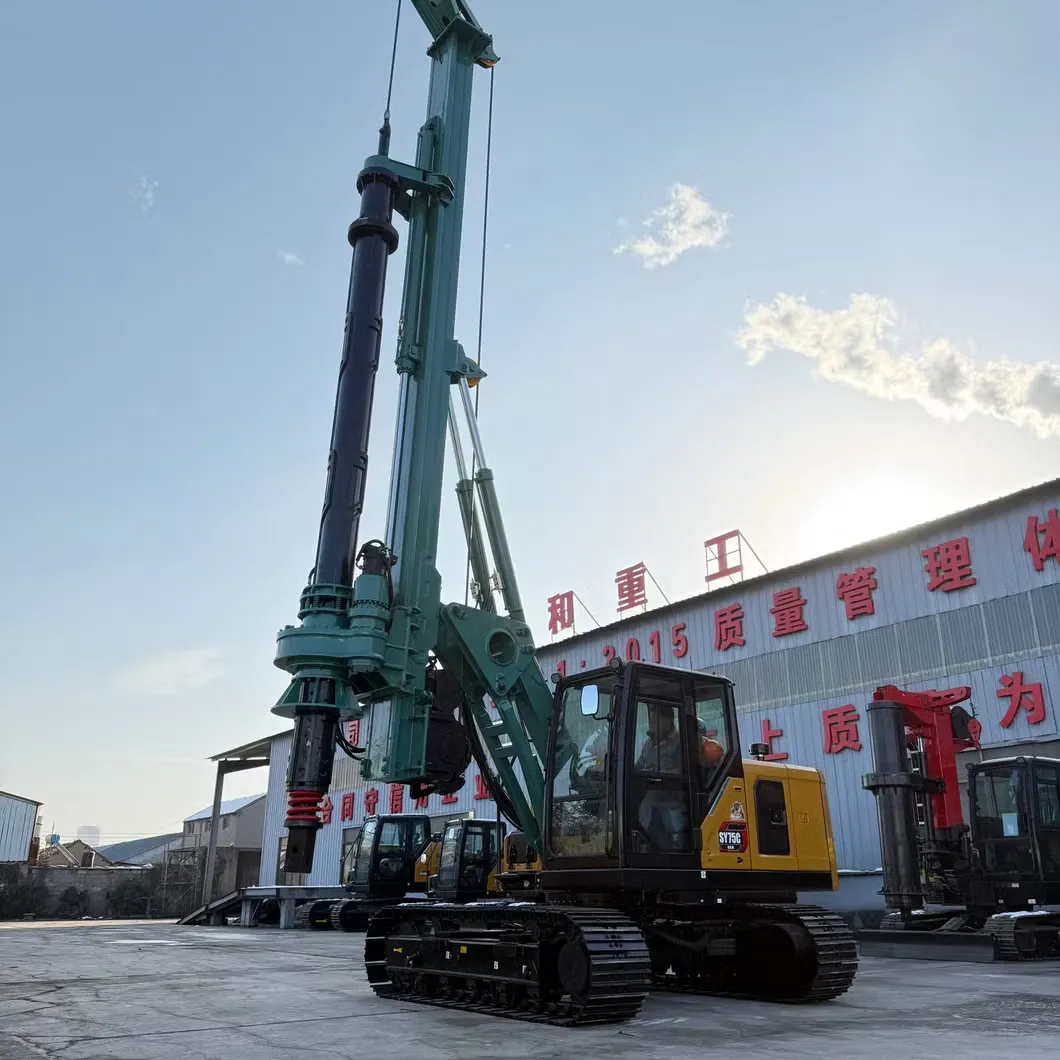

Machine photos

Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
Small Sany75 Excavator Modified Rotary Drilling Rig for Engineering Foundation Construction
