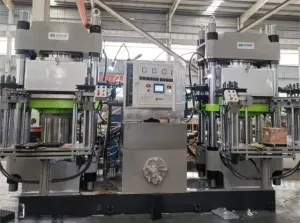

Product Description
Machine Features
Proportional oil system design,good stability,stable conversion,low failure rate,reliable ,easy to use and safe.
The whole machine body has sufficient rigidity,wear resistance,good guiding accuracy and stability.
Cooperate with the injection device to realize four-stage injection speed and injection pressure,and three-stage holding pressure.
It can meet the requirements of different rubber materials for injection conditions and has rapid production capacity.

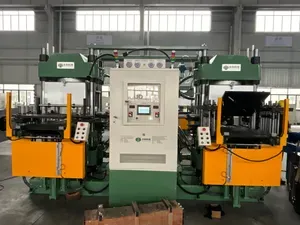

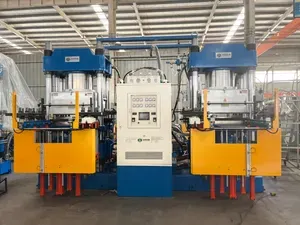

1, Double motor double pump double hydraulic system design, two stations independent control, independent operation, when the two stations curing time and take the product time staggered, only one operation, equivalent to one person to operate two machines;
2, The front top clamping clamping mechanism, the mold is opened in front of the machine, easy to take products;
3, The use of high vacuum vacuum cover design, can make the mold in a nearly complete vacuum environment, improve the mold exhaust performance;
4, The countertop installation mold ventilation spring is strong, with vacuum system, no bubbles form high-quality products;
5, Vacuum cover in 4 seconds to complete the vacuum of more than -650mmHG, easy to form, the requirements of the finished product is the most suitable;
6, The machine has complete functions, suitable for repeated mold and a variety of mold structure, needle and thimble optional equipment;
7, The unit area clamping force is large, to ensure that the mold seamless splicing tight, the product no flash, good quality.

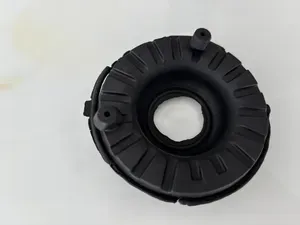

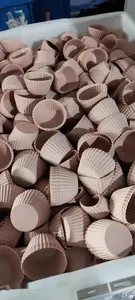

Suitable product
Industrial Rubber/Medical /Lifestyle/Aerospace/Auto Motives Parts/Seals
| Type | ZJC-200T | ZJC-250T | ZJC-300T | ZJC-350T | ZJC-400T |
| Clamping Force (Ton) | 200 | 250 | 300 | 350 | 400 |
| Heating Plate Dimension (mm) | 560*600 | 650*600 | 650*700 | 700*700 | 800*800 |
| Opening Stroke (mm) | 300 | 300 | 300 | 350 | 400 |
| Main Cylinder Diameter(mm) | 360 | 400 | 450 | 475 | 520 |
| Motor Power (kw) | 7.5*2 | 7.5*2 | 7.5*2 | 11*2 | 11*2 |
| Heating Power (kw) | 16.4*2 | 19.8*2 | 24*2 | 24*2 | 31.2*2 |
| Pump Rate Speed ( Cubic meter/h) | 100 | 100 | 200 | 200 | 200 |
| Molding Opening Form | Rise And Fall-Mold In And Out -Double Layer Open Mold-Front Top Open Mold(Multi Layer Open Mold) | ||||
| Machine Size (m) | 3.5*2.4*2.2 | 3.8*2.5*2.2 | 4.2*3.6*2.3 | 4.5*2.7*2.5 | 5*2.9*2.6 |
| Whole Weight (Ton) | 10 | 12 | 14 | 16 | 20 |
