Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 2
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 3
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 4
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 5
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 6
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 7
Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine - Image 8

Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Model ACS-H (PET Specialist)
Capacity Range $160\text{ kg/H}$ – $1200\text{ kg/H}$
Compacting Room Size $300\text{ L}$ – $1400\text{ L}$
Screw Type Single-Screw (Optimized for PET)
Heating System Ceramic or Far-Infrared Heater
Power System ABB / LS / Omron Components
Automation Grade Fully Automatic & Computerized (PLC)
Voltage $380\text{V} / 50\text{Hz}$ (Customizable)
Certifications CE, ISO9001:2008, TUV
HS Code 8477209000

Original price was: $51,000.00.Current price is: $50,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine

Product Description

ACS-H compacting and pelletizing system: Size reduction, per-heating and pelletizing, 3 in 1 integrated recycling system. Lower investment for a high performance machine. It can provide higher output but with lower energy consumption.

Product Parameters

SPECIFICATIONS
Machine Model ACS Series
Target Recycled Material HDPE, LDPE, PP, BOPP, CPP, OPP, PA, PC, PS, PU, ABS
Final Product Shape Particles

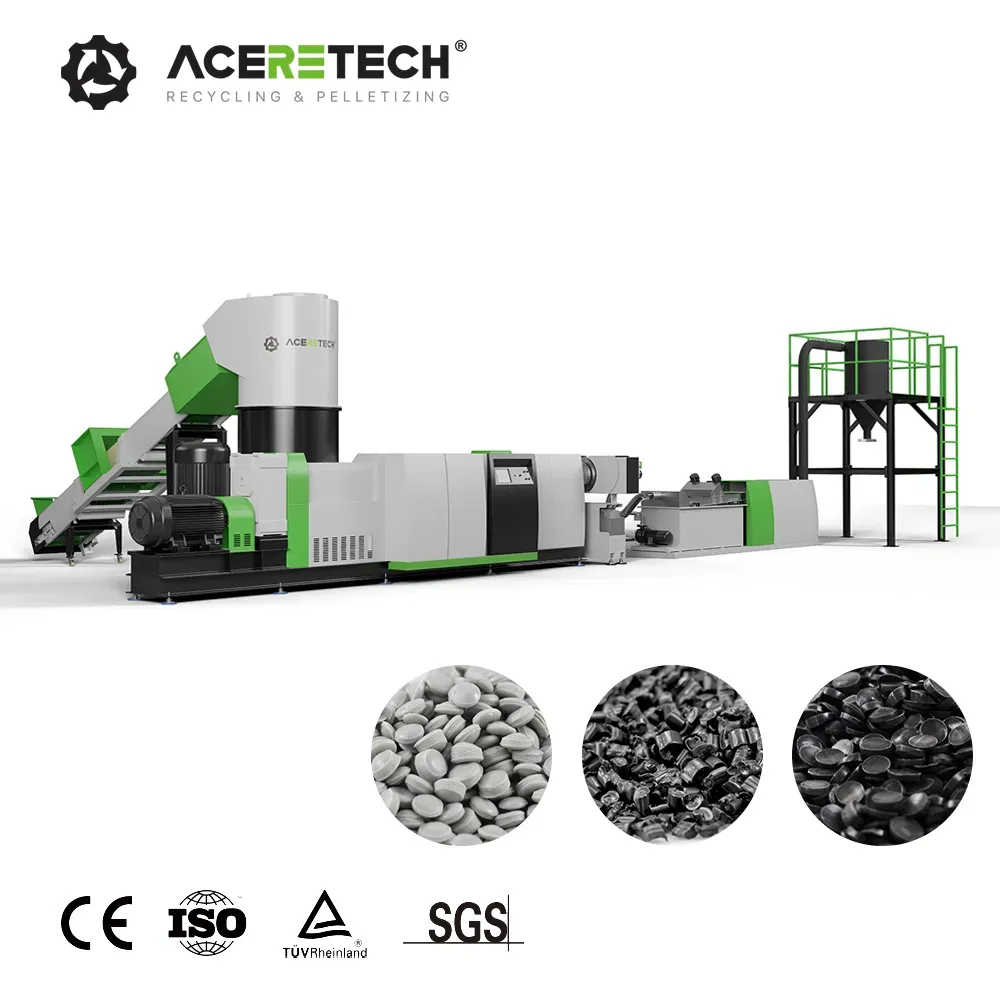

System Composition Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration,Pelletizer, Water Cooling Device, Dehydration Section,Conveyor Fan, Product Silo.
Output Range 150kg/h-1200kg/h
Feeding Device Belt Conveyor (Standard), Roll Hauling off device (Optional)
Compactor Volume 300L-1600L
Diameter of Screw 80mm-180mm (Standard)
Material of Screw 38CrMoAlA (SACM-645), Bimetal (Optional)
L/D of Screw 31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling)
Heater of Barrel Ceramic heater or Far-infrared heater
Cooling of Barrel Air cooling of fans through blowers
Vacuum Deashing Exhaust Two Double-zone vacuum degassing system (Standard)
Pelletizing Type Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard According to the Voltage of the Customer’s Location
Optioanl Device Metal detector, Roll hualing off device, Masterbatch and additives feeder
Warranty 13 months from the date of bill of lading
Technical Services project design, factory construction, installation and recommendations, commissioning
Machine Model
 Compactor Single Screw Extruder
Volume
(Liter)
Motor Power
(kw)
Screw Diameter
(mm)
L/D
Extruder motor
(kw)
Output capacity
(kg/h)
ACS-H300/80
 300 37 80
36
AC 55
160-220
ACS-H500/100
 500 75
100
36
AC 110
300-380
ACS-H800/120
 800 110
120
36
AC 160
450-550
ACS-H1000/140
 1000 132
140
36
AC 200
600-700
ACS-H1200/160
 1200 160
160
36
AC 250
800-1000
ACS-H1600/180
 1600 200
180
36
AC 315
1000-1200

Product Details

Reliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing MachineReliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing MachineReliable Factory Plastic Waste Pet Film/Fiber/Filament/Fiber Cloth Recycling Compactor Pelletizing Machine
