Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 2
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 3
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 4
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 5
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 6
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 7
Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine - Image 8

Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details

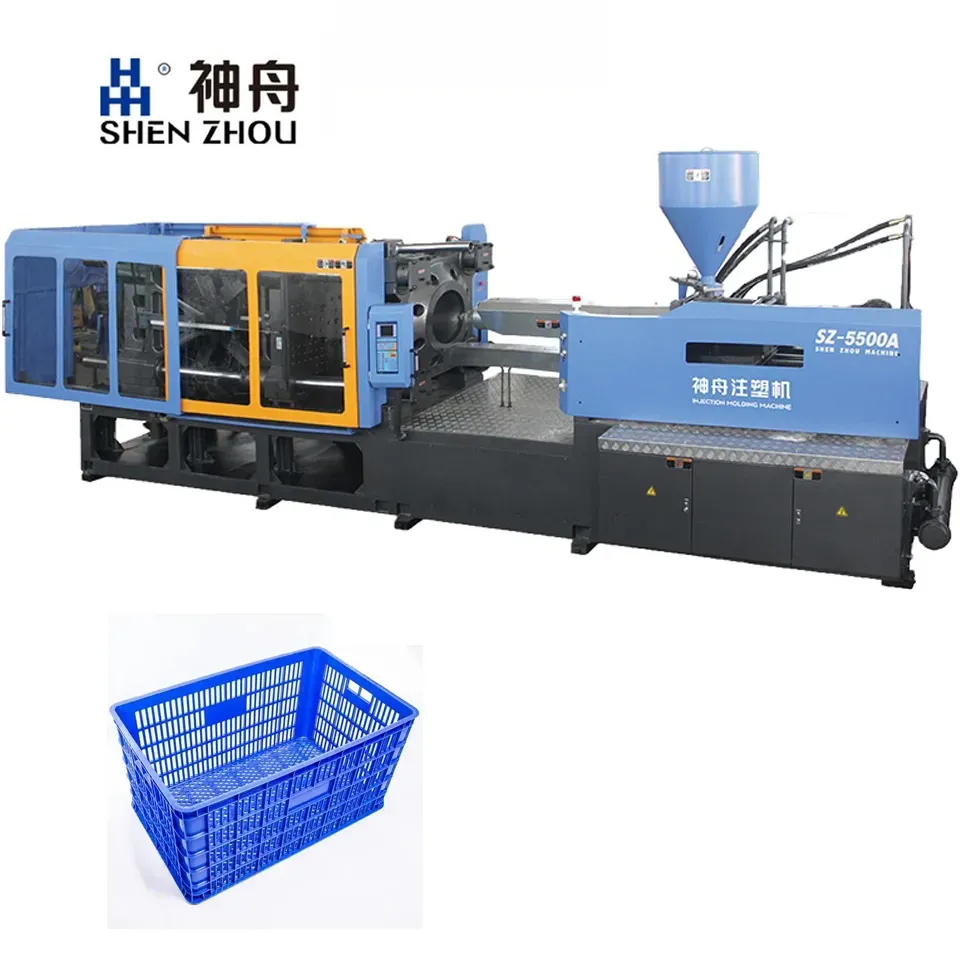

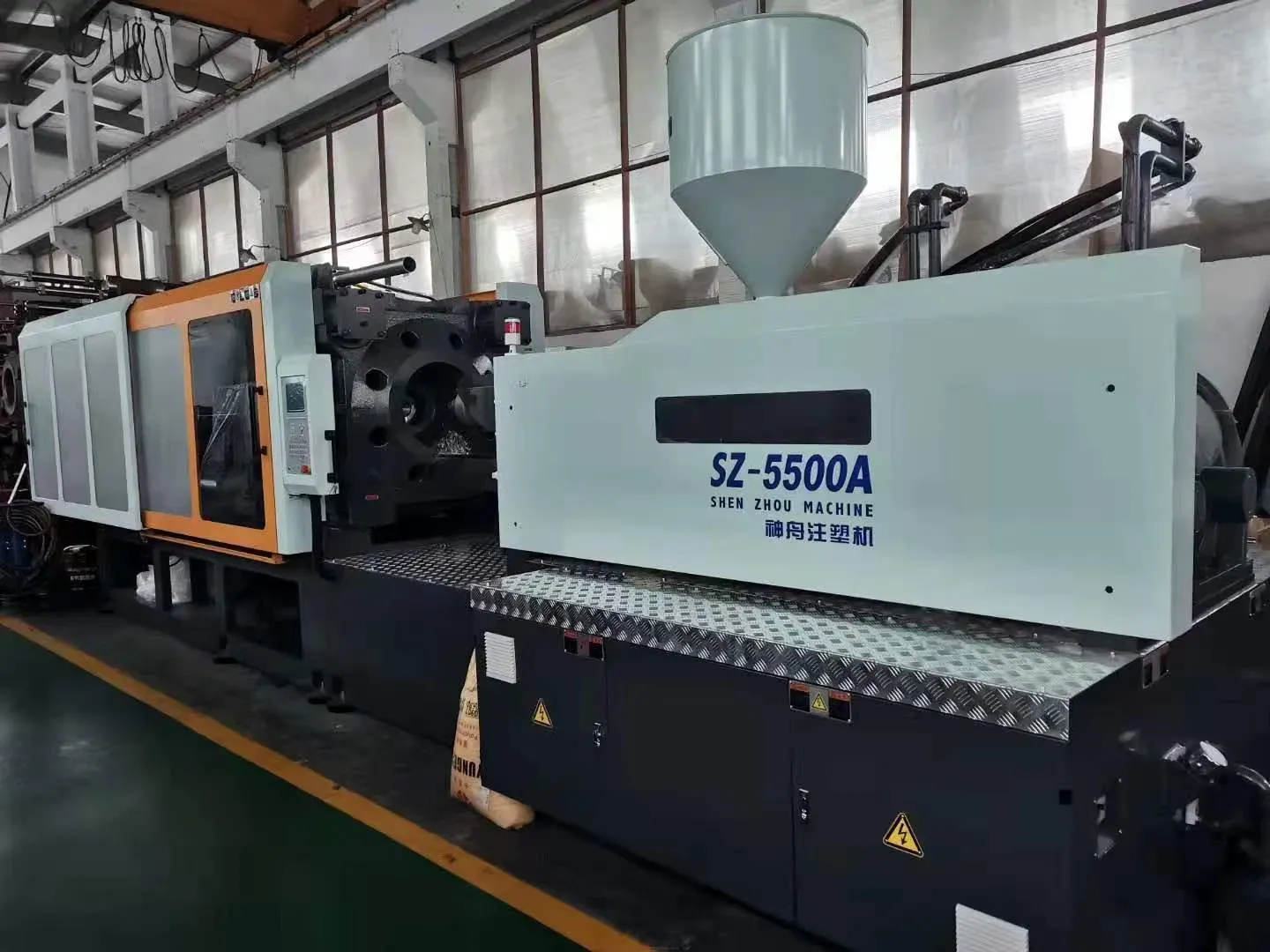

Model SZ-5500A
Clamping Force $5500\text{ KN}$
Injection Weight $2200\text{ g}$
Injection Rate $482\text{ g/S}$
Screw Diameter $85\text{ mm}$
Distance Between Tie Bars $810\text{ mm}$
Ejector Stroke $210\text{ mm}$
Ejector Force $150\text{ KN}$
Power Consumption $55\text{ kW}$
Weight $2350\text{ kg}$
HS Code 8477101090

Original price was: $66,000.00.Current price is: $65,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description



Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine

          Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine

Plastic Fruit Vegetable Crate Chair Bucket Container Basket Injection Molding Machine

Screw diameter mm 80 85 90
Screw L/D ratio L/D 22.3 21 19.8
Shot weight gram 1948 2200 2466
Injection capacity cm3 2141 2418 2710
Injection pressure Mpa 188 167 149
Theoretical injection rate g/s 427 482 541
Plastic capacity g/s 80 100 118
Injection stroke mm 425
Screw torque N.m 5170
Max screw rotate speed r/min 150
Clamping force Ton 550
Opening stroke mm 820
Space between tie bars mm 810×810
Mould height mm 350-820
Max daylight mm 1640
Ejector force ton 150
Ejector stroke mm 210
Ejector quantity 13
Oil pump motor kw 55
Pump pressure Mpa 16
Heating power kw 33
Machine size M 8.4*2.2*2.6
Machine weight ton 23.5
Oil tank capacity L 1000
International designation 5500-4040
