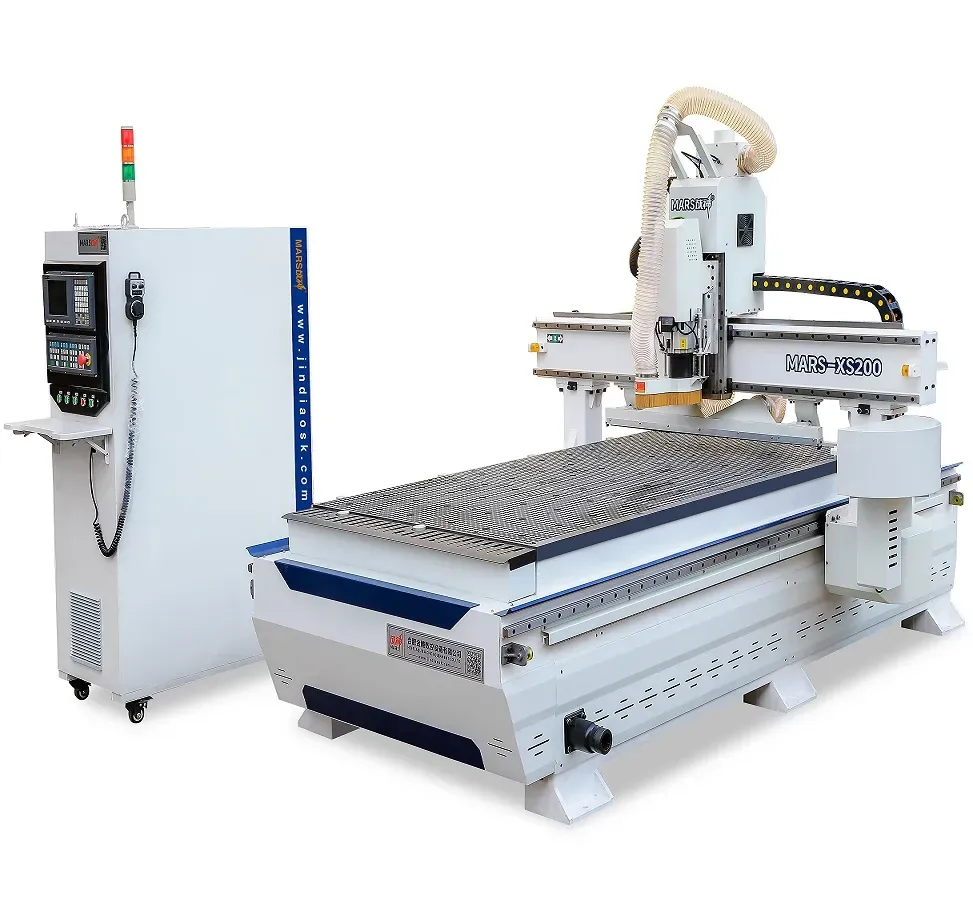

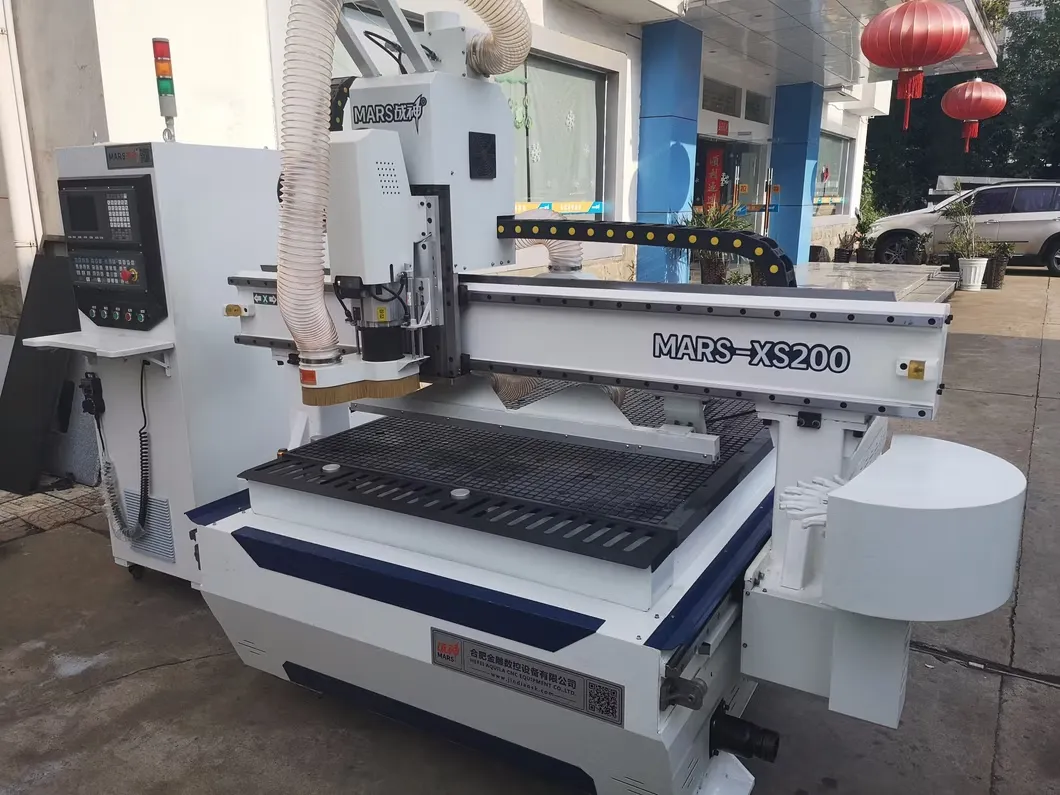

Mars S200 Disc Type Atc CNC Router Engraving Drilling Machine for Metal Wood
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $13,999.00.$12,999.00Current price is: $12,999.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Working Area | 1,230 × 2,450 × 200 mm |
| Max. Traveling Speed | 80 m/min (Ultra-High Velocity) |
| Max. Working Speed | 30 m/min |
| Spindle Speed | 0 – 24,000 RPM |
| X/Y Axis Transmission | High-Precision Rack and Pinion |
| Z Axis Transmission | Precision Ball Screw |
| Drive & Servo Motors | Yaskawa / Delta (High-Torque Performance) |
Product Description
| Model | Mars-XS200 | |
| Control System | YASKAWA/DELTA system and wheel | |
| Drive System | YASKAWA/DELTA servo | |
| Spindle | 9KW air cooling spindle;0~24000 rpm/min | |
| Configuration | 9KW spindle+Circular tools change | |
| Tool Magazine | Disc type servo tool magazine(8/12/16pcs optional) | |
| Working area | 1230*2450*200mm | |
| Max.Travelling Speed | 80*80*30m/min (X/Y/Z) | |
| Working voltage | AC380V/3 PHASE /50HZ | |
| Vacuun Pump Power | 11kw Water cycle | |
| Lubrication System | Automatic | |
| Transmission Mode | X,Y Axis rack and pinion ,Z Axis ball srew | |
| Running Commands | G code,F/S command compatible | |
| XY Axis Servo Motor | Taiwan Delta Bus servo | |
| Z Axis Servo Motor | Taiwan Delta Bus with band-type brake | |
| Adsorption Method | Cavity vacuum adsorption | |
| Pushing device | Automatic pushing and dustcollection,Dockable unloading platform | |
| Positioning Device | L-type cylinder positioning | |
| Tooling Setting | Automatic tooling setting | |
| Re-Positioning Accuracy | ±0.05MM | |
| Guide Rai | Taiwan CSK | |
| Ball Screw | Taiwan PYM | |
