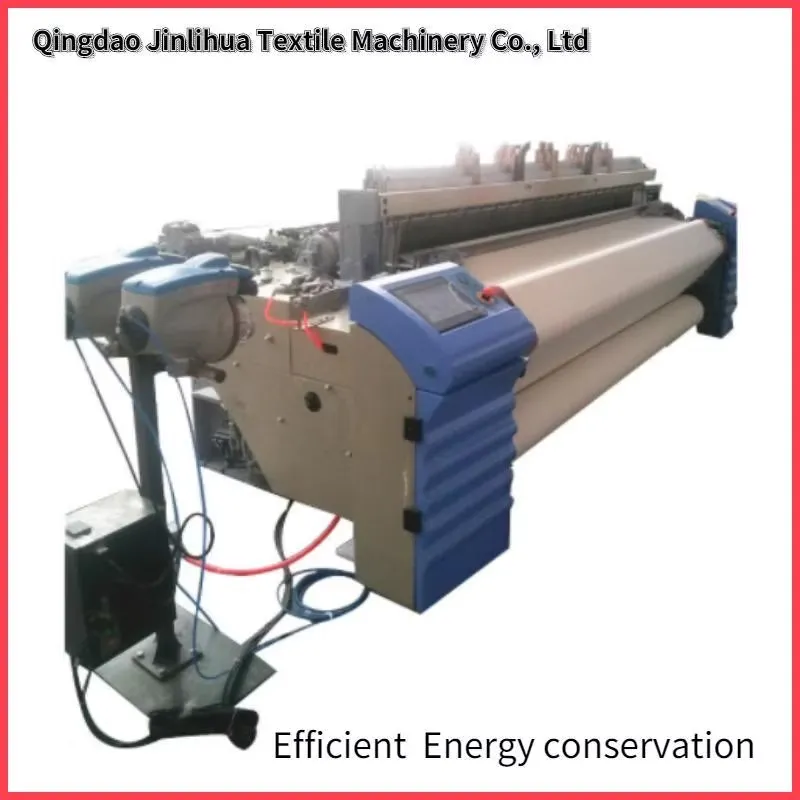

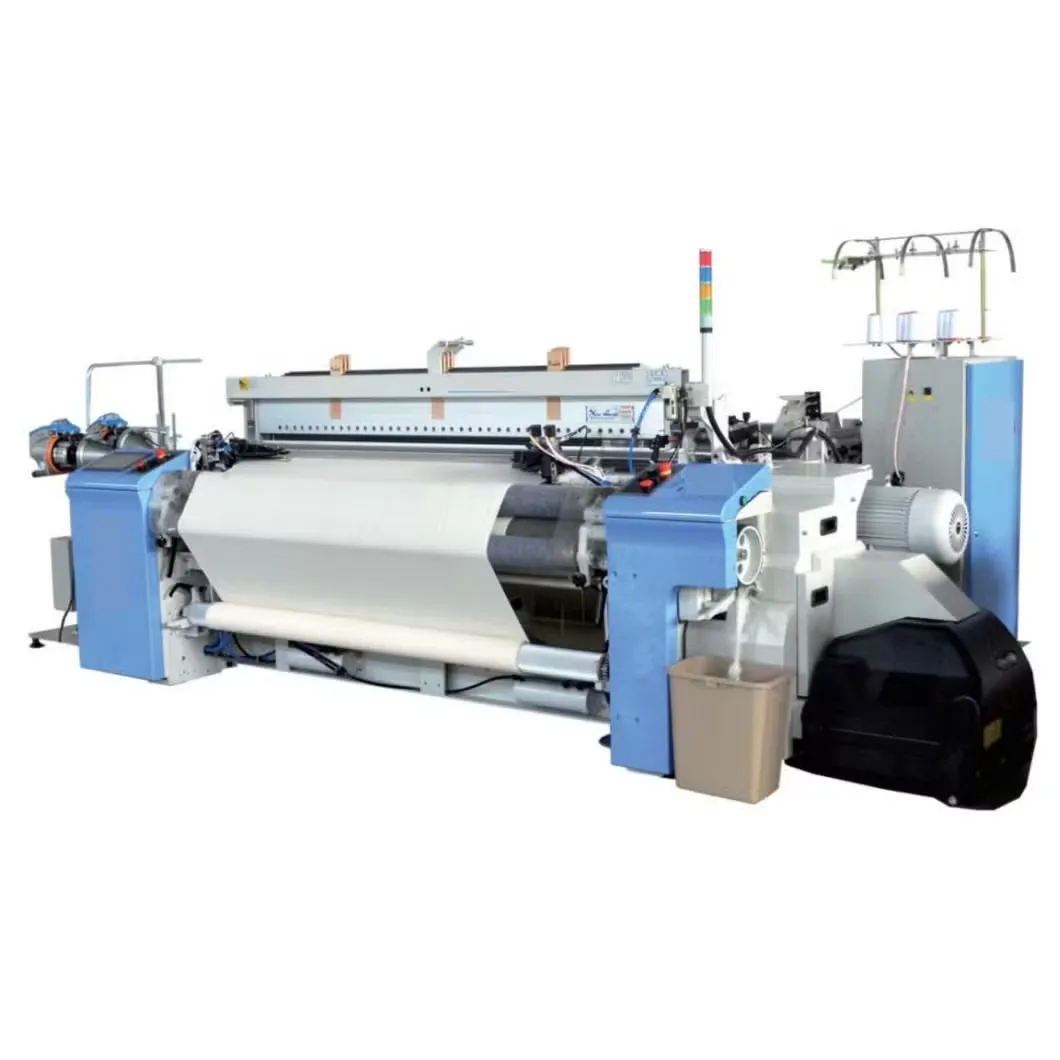

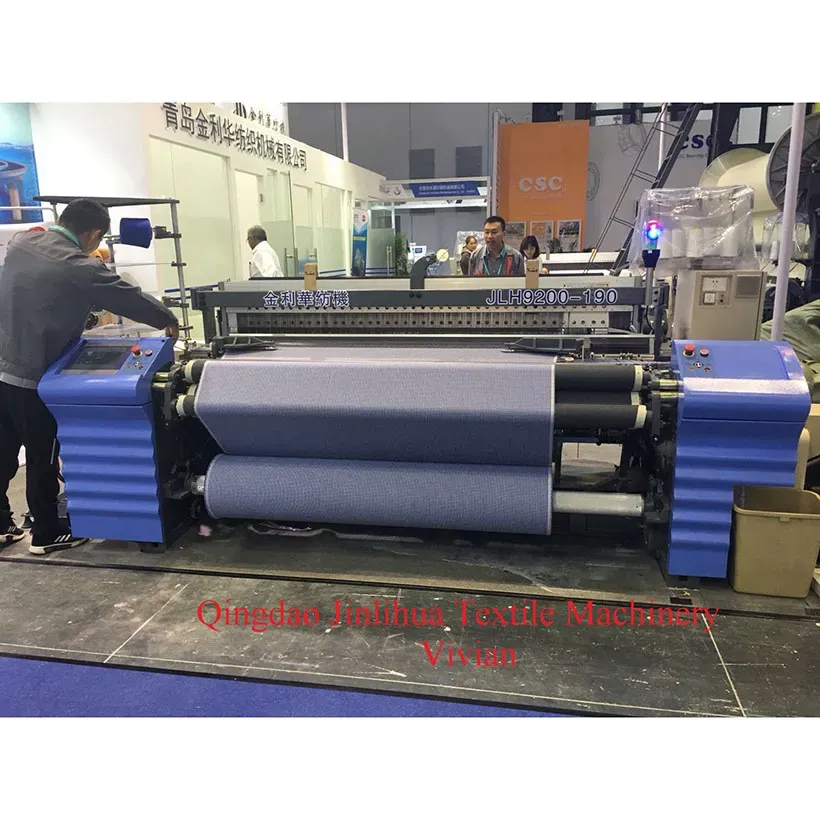

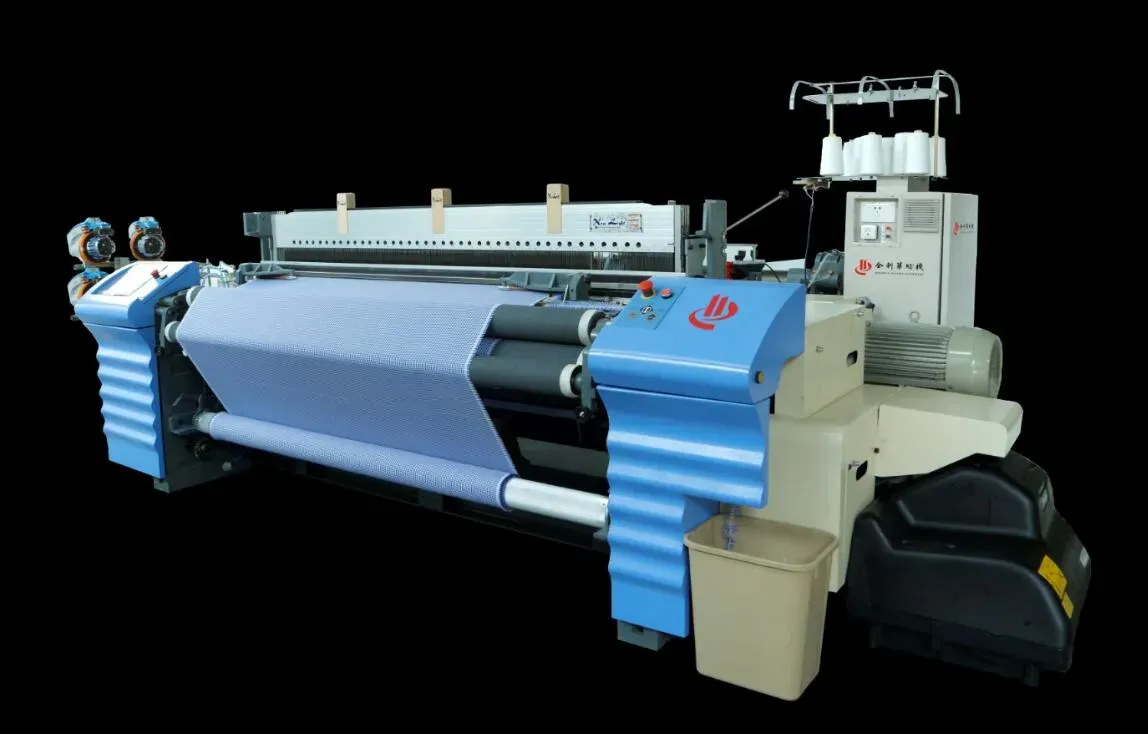

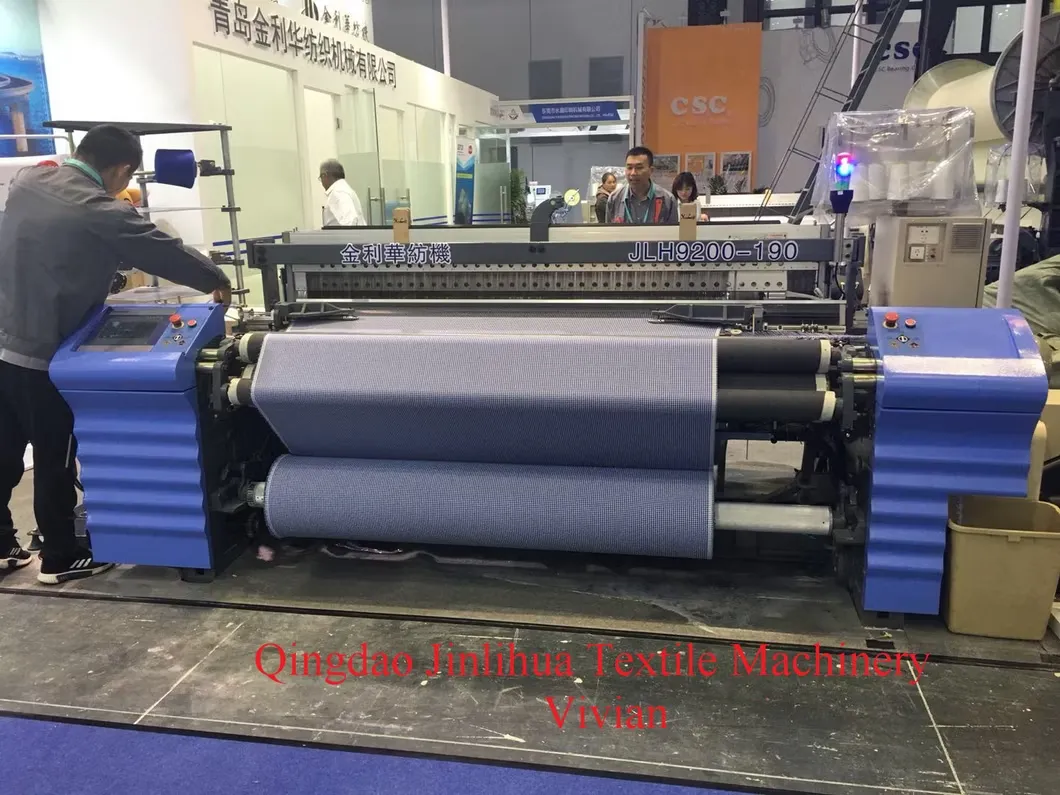

High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 2
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 3
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 4
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 5
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 6
High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200 - Image 7

High Speed Cotton Fabric Weaving Textile Machines Medical Gauze Bandage Making Air Jet Loooms Jlh9200

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Model JLH9200
Working Width $190\text{ cm} \text{ – } 280\text{ cm}$
Weft Density $25 \text{ – } 150 \text{ pick/Inch}$
Weft Selection $2, 4, \text{ or } 6 \text{ Colors}$
Shedding Motion Cam / Dobby / Jacquard
Let-off / Take-up Fully Electronic
Certifications CE, ISO9001: 2000, SGS
Power/Control Fully Computerized Precision
HS Code 8446305000
Production Capacity $1500 \text{ Sets / Year}$

Original price was: $14,000.00.Current price is: $13,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Air jet loom textile weaving machine Model JLH9200

It is our newly developped air jet loom ,ame with Tsudakoma ZAX9100,but with much lower price.
JLH9200 is the most advanced high speed air jet loom with wide weaving range, stable operation, saving gas and electricity, reducing production cost and improving production efficiency. Compared with other models, it can save 20%-30% of electricity and achieve efficiency of over 90%. It is more convenient to operate when the machine is moved down.

Detailed Photos



Product Parameters
TECHNICAL PARAMETERS
 Item
Specifications
 Optional parts
 reed space
Nominal reed space :190,210,230,250,280,340,360cm
 Yarn range
2-Nozzle,4-Nozzle,6-Nozzle for free choice
Drive
Direct control and positioning stop through electromagnetic brake
Push-button bimanual operation and forward-reverse inching motion
Ultra start motor 3.0KW (Cam shedding)3.7KW(Dobby shedding) 6.5KW (Jacquard shedding)

Weft insertion
Main nozzle and sub-nozzle combined type
 Stretch nozzle
Adopt profile reed
Auxiliary main nozzle

shedding
Positive cam shedding: Heald Frames max.8 pcs
Dobby shedding: Heald Frame max.16pcs
Jacquard shedding

Let-off
Positive easing,double back girder
Single warp beam (below 280cm)
Twin-beam
Positive easing,double back girder
Flange dia: 800
914;1000
Take up
Electronic take-up
Mechanical winding
Pick density range:25~205pcs/inch(mechanical take-up),25~300pcs/inch (electronic take-up)
Length counter:display of weaving reports, with fixed-length stop function
Max. Take-up dia.: φ600mm(cam, dobby,jacquard shedding); φ520mm (crank shedding)
Temple:top-mounted type.

Beating-up
Crank type multiple sley sword beating-up mechanism
4-Link rod beating-up(190~280om),6-Link rod beating-up (above 280cm)
Measuring/storing
Vibrating type pick storer
Weftstand
Floor-mounted 4 cones (2-nozzle);floor-mounted 8 cones(4-nozzle
Selvedge
Planetary gear motion
Waste filling removal
Catch cord type
Cutter
Mechanical type
Lubrication
Oil bath system for the main driving parts,centralized lubrication by manual
Automatic centralized lubrication

Auto-stop motion
Weft yarn:photoelectric weft feeler, double feelers
Warp yarn: electric contact-type 6-row droppers
Others: stop motion for selvedge and calch cord yarn
Stop cause indication: information display on toluch screen, multiple function 4-color lamp display

Automation
Artificial intelligent touch screen:with functions of parameter setting, Auto control, automatic monitoring, self-diagnosis.
Pick finding device: automatic shed finding
Slow inching by inverter(forward,reverse)
USB data interface
