Product Description
Highlights

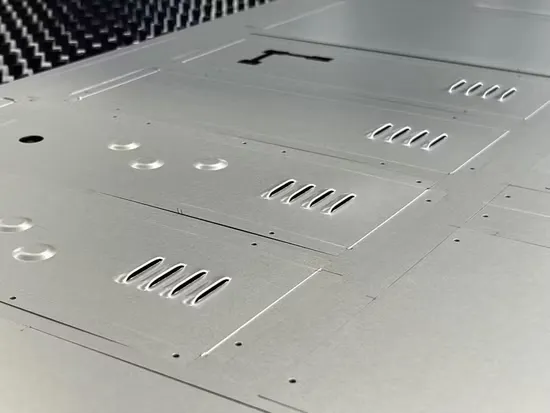

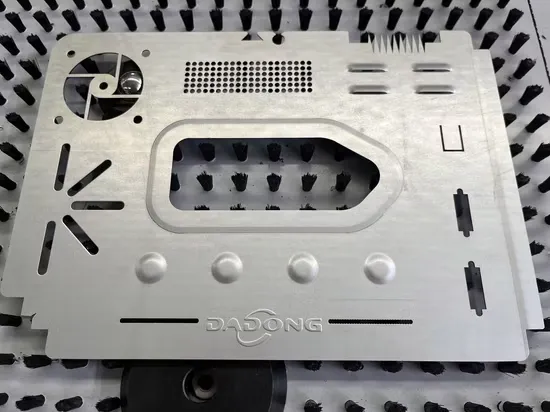

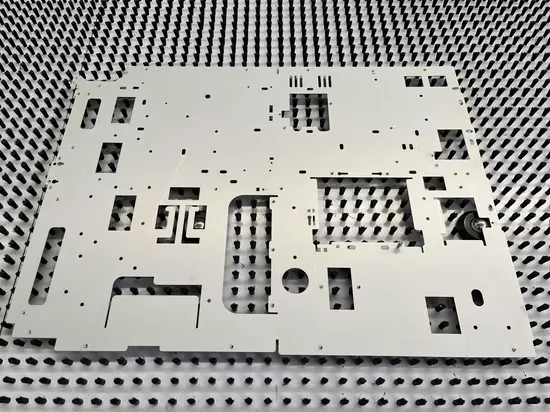

* Punching, forming, marking and laser cutting all in one
* Rexroth inside, high compatibility
* Remote machine supporting
* High speed and high productivity
* Flexible manufacturing choice
* Rexroth inside, high compatibility
* Remote machine supporting
* High speed and high productivity
* Flexible manufacturing choice
* Reduce secondary operation and achieve process range expansion
Frame
O-type closed integral welding press frame special for servo punch press.
Holistic welding structure, stress relief from tempering treatment.
The strong rigidity and high tonnage ensure the stable accuracy for long time, extend the service life of the machine and tools, and improve the positioning precision, reliability and durability.
Feeding System
Rexroth feeding motors, ball screw and liner guide.
The big space between guides will benefit with processing accuracy while fabricate large size sheet, and it has better balance capacity while moving in high speed.
The auxiliary platform can move with the sheet, reduce 30% of the friction force between the plate and brush platform.
Worktable
The worktable surface with hard brush and steel ball, to lower down the noise while working and protect the surface of the sheet.
Seamless worktable design to avoid collision during sheet metal movement.
Folding table design, side auxiliary platform automatic folding control, easy to change tooling.
Seamless worktable design to avoid collision during sheet metal movement.
Folding table design, side auxiliary platform automatic folding control, easy to change tooling.
Floatable Pneumatic Clamps
The pneumatic floatable clamps reduce the deformation of the plate.
The self-protection function makes no dead area for punching on sheet.
The clamps automatically float when clamping the plate, convenient for the plate clamp.
Automatic unloading when the clamp returns back.
The self-protection function makes no dead area for punching on sheet.
The clamps automatically float when clamping the plate, convenient for the plate clamp.
Automatic unloading when the clamp returns back.
Full Auto Indexed Station
DARDONTECH auto-index station adopts unique worm gear structure to ensure the accuracy of positive and negative bidirectional transmission.
Single import synchronous belt drive to ensure synchronization between up and down.
Single import synchronous belt drive to ensure synchronization between up and down.
D-station auto index is required if use Multi-tool to extend station amount.
Turret and Tooling
The turret is processed at one time by the Mazak 5-axis machining center, which avoids the accuracy error caused by the secondary processing.
Precision wear-resistant guide holder inlaid on turret, large machining center in pairs processed.
Reasonable stations distribution, international standard Japan AMADA long guide tool, tooling in common use.
Precision wear-resistant guide holder inlaid on turret, large machining center in pairs processed.
Reasonable stations distribution, international standard Japan AMADA long guide tool, tooling in common use.
Tapping Station-OPTIONAL
6 stations of tapping, support M2.5, M3, M4, M5, M6, M8 tapping.
Reduce the second processing, highly improve fabrication productivity.

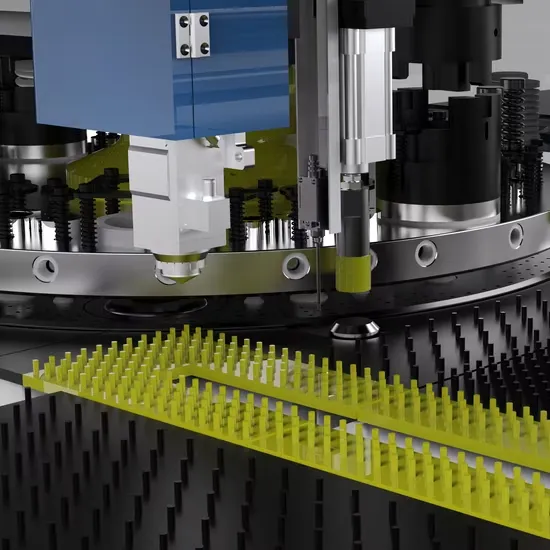

Intelligent Laser Head
It adopts fiber-optic laser cutting head, which has stable and reliable performance, and achieves high cutting speed while ensuring the best cutting quality. The non-contact capacitive sensor ensures a stable cutting follow-up gap and a good cutting result.
