Product Description
Brightsail Spice Grinding Machine spice powder pulverizer spice powder macking machine

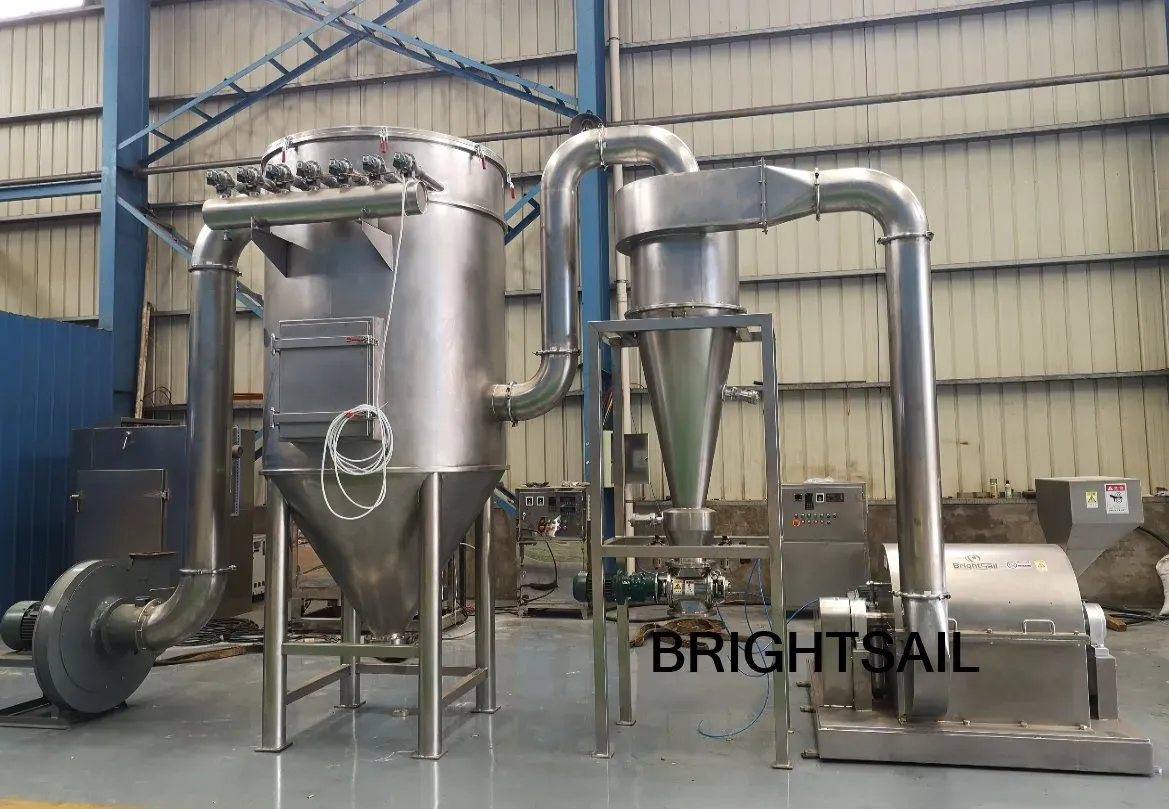

The machine is made up of crusher part, cyclone, dust collecting box, blower and control box.It uses fixed plate and the relative motion between the activity hammer, making materials impacted and shredded under effect of centrifugal force.
BS spice pulverizer set has a very good effect for different kinds of spices, like chilli, pepper, cinnamon, cumin, bandits, cardamom, garlic, star anise, cloves, geraniol, turmeric, ginger, fennel, angelica and other material with high content of oil or fiber. For root, herb and leaf, the grinding effect is also good.
With hammer type knife, this machine has a very good effect for milling spice,like chilli,cumin,turmeric….etc
BS spice pulverizer set has a very good effect for different kinds of spices, like chilli, pepper, cinnamon, cumin, bandits, cardamom, garlic, star anise, cloves, geraniol, turmeric, ginger, fennel, angelica and other material with high content of oil or fiber. For root, herb and leaf, the grinding effect is also good.
With hammer type knife, this machine has a very good effect for milling spice,like chilli,cumin,turmeric….etc
* The particle size can be easily adjusted by changing the hammer rotation speed as well as the screen size.
* The Hammer Mill is a suitable grinder for a wide variety of materials including heat sensitive ones.
* The pressure loss of the machine is very low, making it easy to incorporate the machine into any process line.
* The Hammer Mill is a suitable grinder for a wide variety of materials including heat sensitive ones.
* The pressure loss of the machine is very low, making it easy to incorporate the machine into any process line.

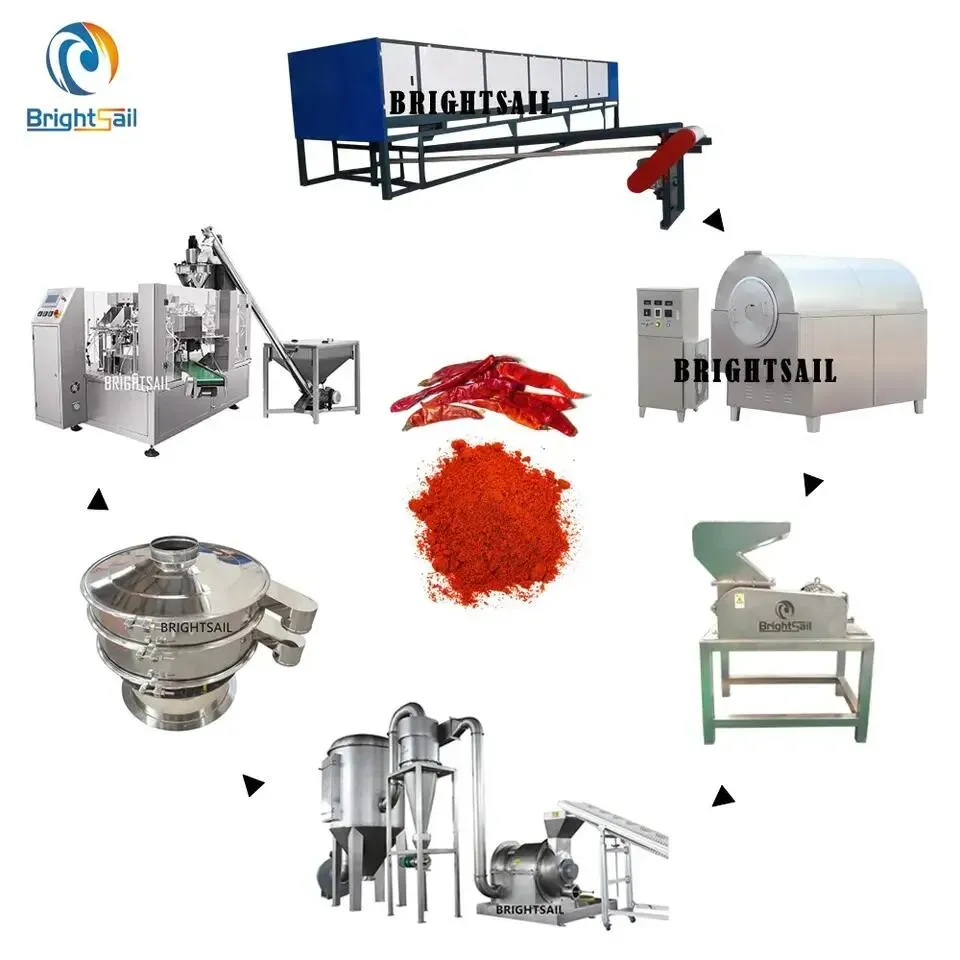

Below is the a complete processing line for various kinds of spice and herb powder making:
Technical data:
| Model | BS-200 | BS-320 | BS-400 | BS-630 | BS-880 | BS-1000 |
| Production capacity (kg/h) | 50-300 | 100-400 | 100-1200 | 300-1800 | 400-2000 | 1000-3000 |
| Output size (mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
| Main motor power (kw) | 7.5 | 11 | 22/37 | 37/45 | 55 | 45 |
| Discharging motor (KW) | 0.75 | 0.75 | 0.75 | 1.1 | 1.5 | 1.5 |
| Blower motor (KW) | 3 | 3 | 15 | 18.5 | 18.5 | 30 |
Main Features:
1) Simple structure ,easy in installation and maintenance.
2) Dust-Free Operation
4) Quick, Easy Cleaning
4) Long Service Life
4) During production,temperature remains normal, will not get hot. So material’s color and nature won’t change.
5) It can grind spice and oil material with oil content 10%~20%.
4) During production,temperature remains normal, will not get hot. So material’s color and nature won’t change.
5) It can grind spice and oil material with oil content 10%~20%.
Detailed Images:
Our BSZ spice pin mill can be used in food, pharmaceutical, chemical and other industries, mainly for pulverizing.
It is suitable for milling materials with high fat, oil or sugar into fine powder type.
For common materials, such as spices, grains, crystal materials, etc, it’s very suitable.
Our high speed wide chamber contraplex pin mill is very suitable for grinding seeds spices, like mustards seeds,cumin seeds, coriander seeds,black pepper,clove,nutmeg…etc
It can also grind cocoa nibs into cocoa liquor,and grind chemicals into fine powder.
Our BSZ spice pin mill can be used in food, pharmaceutical, chemical and other industries, mainly for pulverizing.
It is suitable for milling materials with high fat, oil or sugar into fine powder type.
For common materials, such as spices, grains, crystal materials, etc, it’s very suitable.
Our high speed wide chamber contraplex pin mill is very suitable for grinding seeds spices, like mustards seeds,cumin seeds, coriander seeds,black pepper,clove,nutmeg…etc
It can also grind cocoa nibs into cocoa liquor,and grind chemicals into fine powder.
