Product Description
| Product Model | BZ-GSD1725 | BZ-GSD2030 | BZ-GSD2330 | BZ-GSD2630 | Customizable Model |
| Cutting Range (W*L) | 1.70m*2.5m | 2.0m*3.0m | 2.30m*3.0m | 2.60m*3.0m | Customizable size |
| Production Capacity | 650 pairs of pants per hour, 500 pieces of clothing per hour, 6000 pieces of medical gowns per hour | ||||
| Applied Materials | Fabric,Textiles,Lace,Car interior,Fur,Leather,Denim,Calico,PVC,Foam,Cardboard,Acrylic,Curtain,Carpet,Gesket,etc. | ||||
| Cutting length | No limitation with automatic fabric feeding system | ||||
| Maximum Speed | 0-70m/min | ||||
| Cutting Precision | ± 0.1mm | ||||
| Total Power | 18KW | ||||
| Power Supply | 220V/380V , 50/60HZ | ||||
| Cutting Style | Straight Knife Continous Up-down Cutting | ||||
| Blade Cooling | Automatic temperature control air-cooled system and water cooling system | ||||
| Adsorption method | Frequency conversion vacuum constant pressure control mode | ||||
| Control System | The self-developed system is well compatible with any version of CAD software | ||||

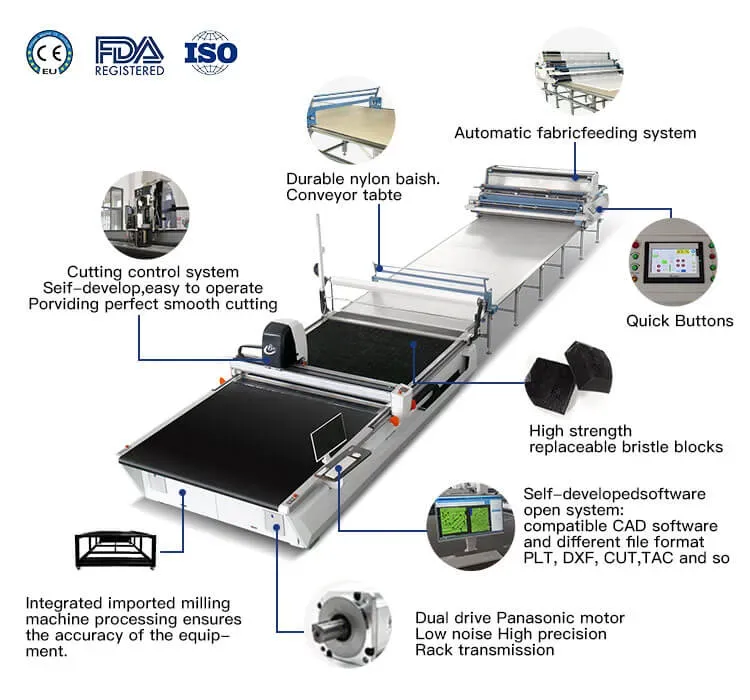

| Other functions | Mobile cutting device, automatic feeding device, pattern scanning, adsorption bed | ||||
| Main components | 1. Automatic multi-layer cutting bed 2. automatic cloth spreading machine 3. air floatation table | ||||
| Main Accessories | Motor | Guide Rail | Switch | Knife Drive | Conveyor Belt |
| Panasonic | HIWIN | DELIXI | Maxon | German | |

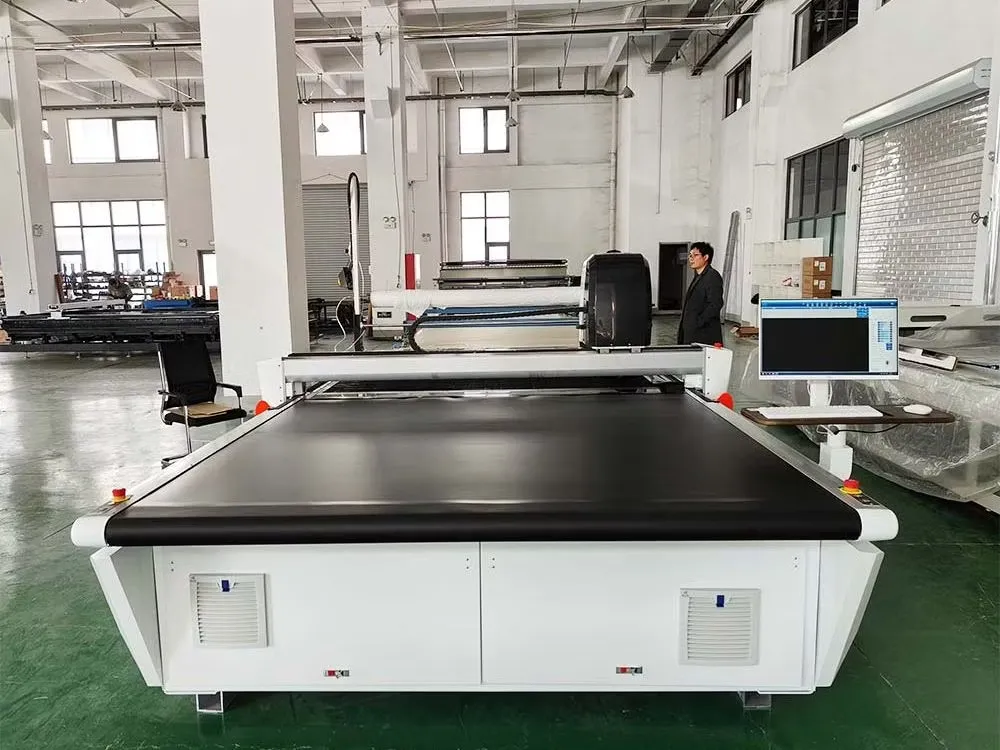

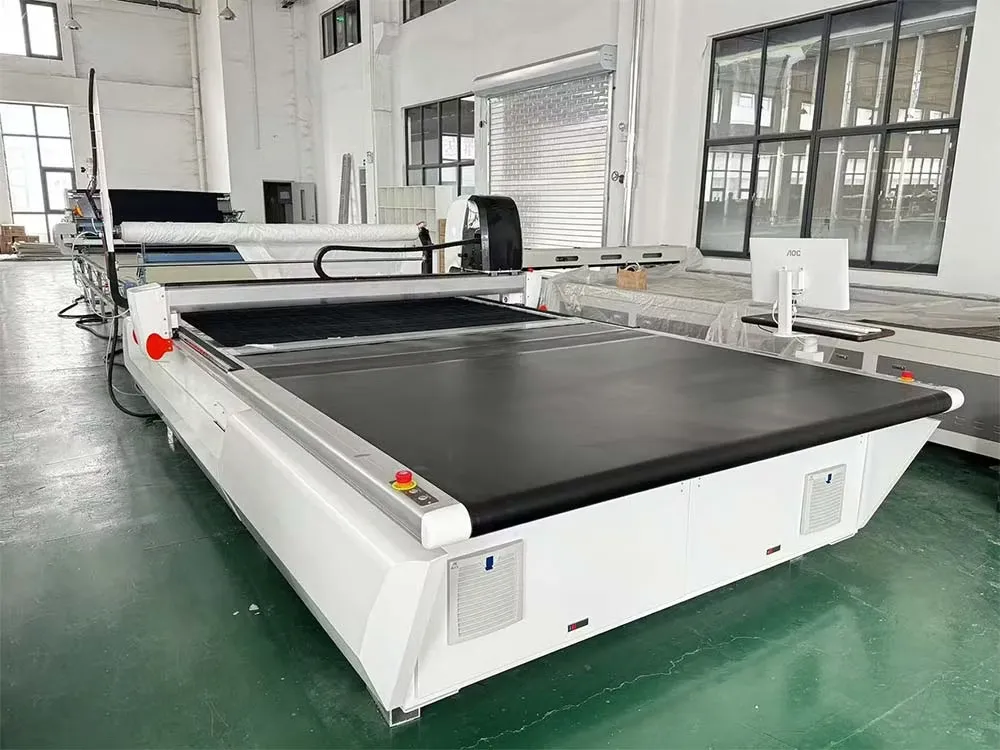

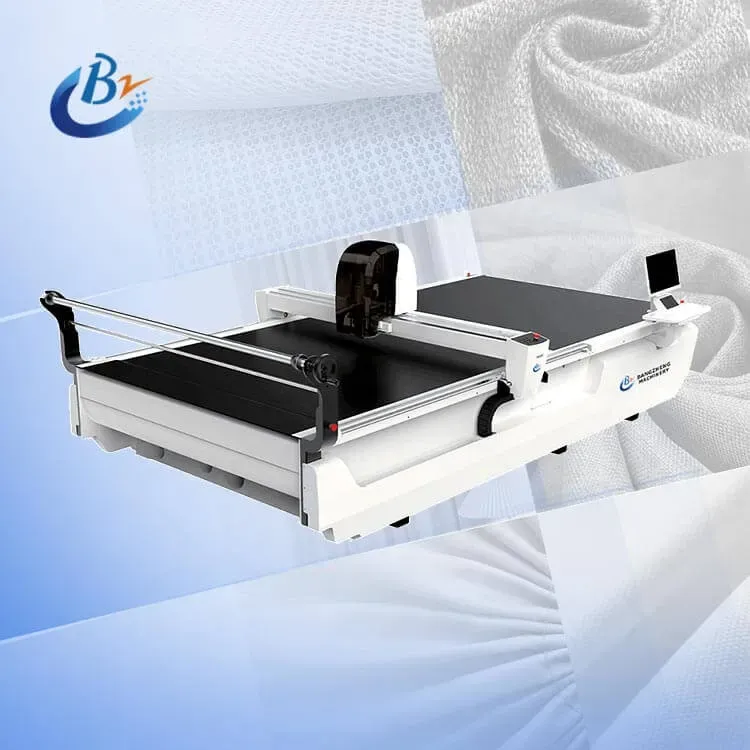

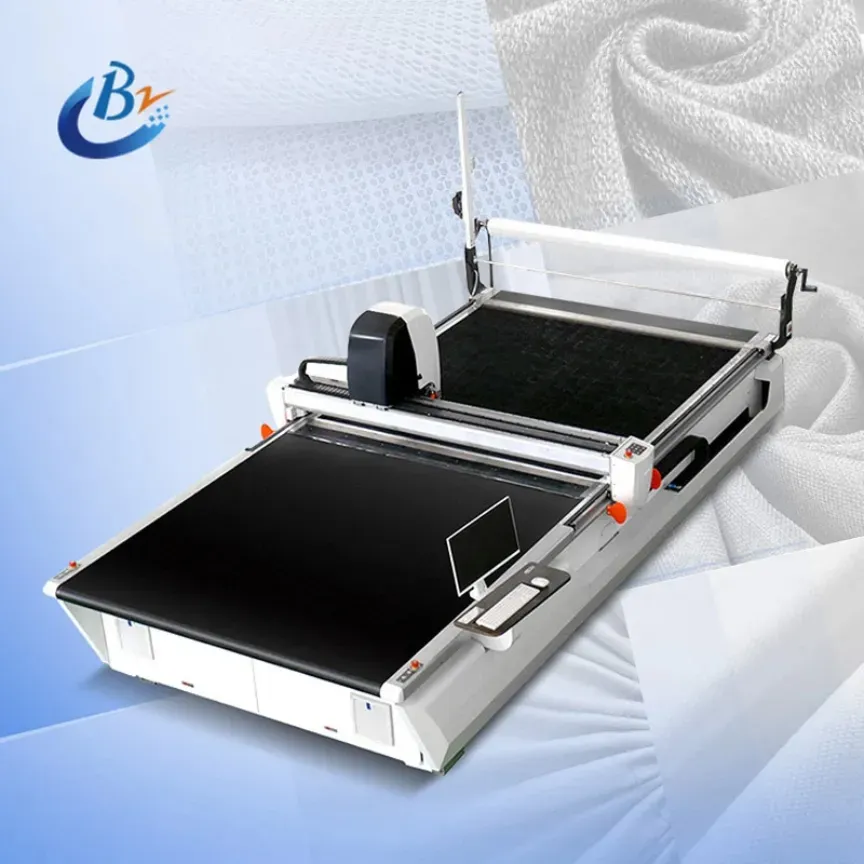

AUTOMATIC MULTI-LAYER CUTTING MACHINE
BANGZHENG Automatic Multi-layer cutting machine

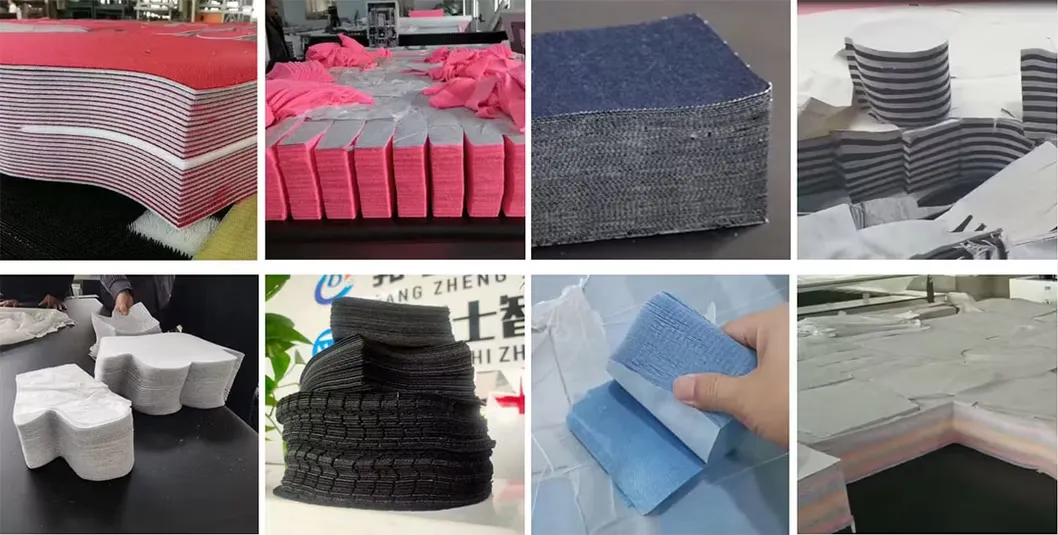

–This product is a cutting device specially designed for flexible materials, fully automatic computer control, one-button design layout, cutting thickness 0.1cm-11cm, suitable for multi-layer cutting.
–The maximum cutting speed is 70m/min, and the cutting accuracy is within 0.1mm, which is far higher than the traditional manual cutting efficiency.
–The built-in intelligent typesetting software can achieve a material utilization rate of more than 98%.
–Automatic material collection and feeding can save 5-6 labors, and the cutting process is smokeless and odorless
–This product is a cutting device specially designed for flexible materials, fully automatic computer control, one-button design layout, cutting thickness 0.1cm-11cm, suitable for multi-layer cutting.
–The maximum cutting speed is 70m/min, and the cutting accuracy is within 0.1mm, which is far higher than the traditional manual cutting efficiency.
–The built-in intelligent typesetting software can achieve a material utilization rate of more than 98%.
–Automatic material collection and feeding can save 5-6 labors, and the cutting process is smokeless and odorless
Automatic Multi-layer cutting machine
–Suitable for mass production in textile, furniture, automotive interior, luggage, outdoor and other industries.
–Equipped with high-speed electronic vibration cutter, it can cut soft materials at high speed, high precision and high intelligence.
–Equipped with crawler conveyor, automatic loading and receiving, completely saving labor costs.
—1.Straight blade:Various blade sizes(7cm/9cm/11cm) to accomodate different fabric types.
—2.Corrugated blade:Specially used for leather, PVC fabric and other materials, reducing friction and knife sticking, and improving cutting efficiency.
