Product Description

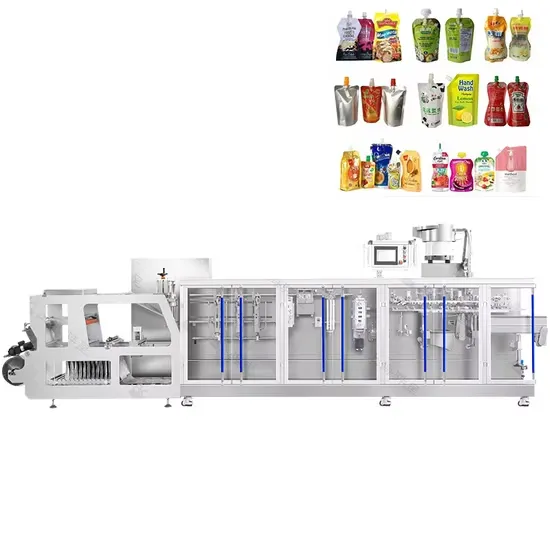

Horizontal Roll Film Forming Spout Doypack Filling and Sealing Machine
Huapack HC-SP series designed for doypack with spout,with functions of making hanging hole,special shape.
Adopt Euro technology improving along with Chinese production status. coming up with machine high quality with competitve price.
horizontal Form Fill Seal doypack machines are packaging machines in which Forming, filling and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
Adopt Euro technology improving along with Chinese production status. coming up with machine high quality with competitve price.
horizontal Form Fill Seal doypack machines are packaging machines in which Forming, filling and sealing of a package take place on the same machine. Filling occurs through the open-top part of the pouch.
Huapack packing machine has the wide range of Horizontal Form Fill and Seal machines in the market.
Our machines cover all the applications and are customized to be adapted to our customers’ needs.
Our machines cover all the applications and are customized to be adapted to our customers’ needs.
The design is based on the modular frame construction, composed of three independent modules: unwinder, pouch forming and dosing-sealing.
Pouches/sachets that are made using HFFS technology are less expensive than Pre-made ones.
Huapack Advangtages:
1. HMI Display includes instruction manual and troubleshooting
2. Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
3. Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
4. Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5. Multiple steps of sealing are needed to guarantee sealing quality
6. filling : allow hot and cold filling
2. Parallel motion of the vertical sealing bars enables for improved sealing quality and easier maintenance.
3. Full servo motion : This smart servo-control system allows independent operation between the different stations, offers great reliability and little maintenance.
4. Walking beam: transport system consisting of beams and grippers. They hold the pouches and transport them through the different stations, from the pouch forming to the pouch closing.
5. Multiple steps of sealing are needed to guarantee sealing quality
6. filling : allow hot and cold filling
Independent Film Unwind Unit
Multi-Specification Molding Device
Servo Advance System
1. Adopt air expansion shaft to fix the roll,
easy to load and unload
2. CNC made Powerless roller, low resistance and high concentricity
3. Multi-layer floating rollers to control tension and prevent film drop
4. With independent film release motor
5. Special unwinding high and low limit sensors
to control the start and stop of unwinding
easy to load and unload
2. CNC made Powerless roller, low resistance and high concentricity
3. Multi-layer floating rollers to control tension and prevent film drop
4. With independent film release motor
5. Special unwinding high and low limit sensors
to control the start and stop of unwinding
Featuring Europe’s most popular design, it enables simpler and more convenient switching between multiple specifications. It delivers high forming precision with no film misalignment.
1. Digital specification switching, simple and convenient
2. Stable pouch advance with less deviation
3.Big torquemoment of pouch advance, suitable for big volume
3.Big torquemoment of pouch advance, suitable for big volume
Spout Function
Dosing units
Independent Sealing Device
1. Even spout seal with good appearance
2. High spout seal strength, no leakage
2. High spout seal strength, no leakage
3. Auto-Adding spout,custom-made working station
Dosing units for liquids available with different nozzles for any kind of product. Hygienic design and easy to dismantle filling system, with clamps. Huapack HFFS machines are suitable to work with different kinds of dosing systems:volumetric dosing units, multihead weighers, piston pumps fillers, etc
1. Higher seal strength, less leakage
2. Better pouch appearance, Good sealing stability, timely shaping prevents the mouth of the bag is propped up by the material in the bag ,It also prevents the bag from creasing caused by high sealing temperature after the bag leaves the platform.
Specification
|
Model
|
180SP
|
180SDP
|
240SP
|
240SDP
|
280SP
|
280SDP
|
330SDP
|
|
|
Pouch Size(mm)
|
Min
|
80*130
|
70*110
|
90*130
|
90*125
|
90*140
|
90*125
|
90*125
|
|
Max
|
182*250
|
90*225
|
240*300
|
120*250
|
280*300
|
140*250
|
165*250
|
|
|
Fillling Volume
|
ml
|
1000
|
300
|
2000
|
500
|
3000
|
500
|
700
|
|
Packaging Speed
|
ppm
|
≤60
|
60-120
|
≤60
|
60-120
|
≤50
|
60-100
|
60-90
|
|
Machine Size
|
mm
|
6500*970*1450
|
6900*970*1450
|
7200*970*1460
|
7200*970*1460
|
8000*1200*1800
|
8500*1100*1460
|
9500*1100*1460
|
|
Machine Weight
|
kg
|
2000
|
2100
|
2300
|
2500
|
3400
|
2500
|
2500
|
|
Power
|
kw
|
8
|
8.8
|
9
|
9.8
|
9.5
|
9.8
|
15.8
|
|
Air Consumption
|
l/min
|
300
|
400
|
400
|
400
|
650
|
650
|
650
|
Pouch Sample
Dosifying Products
