Feature Details
Packaging Speed 5 – 15 Bags / Hour
Weighing Accuracy ± 0.1% (High Precision)
Load Cell Grade C3 / C6 / C10 (Selectable)
Bag Storage Capacity 5 – 20 Bags (Expandable)
Communication Protocols Supports PN, DP, 485, etc. (Optional)
Applicable Materials Powdered Materials, Plastic Pellets, Animal Feed

Original price was: $51,000.00.Current price is: $50,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

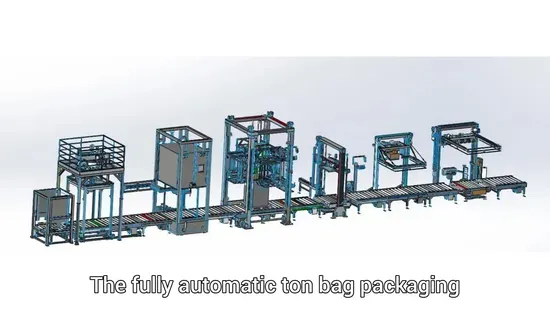

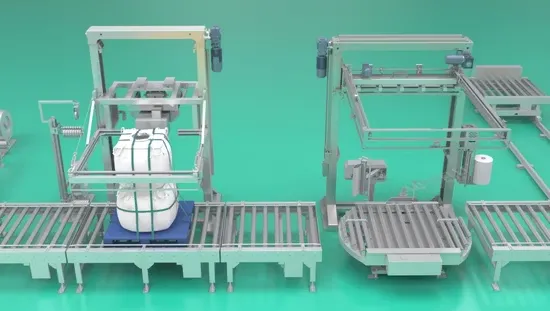

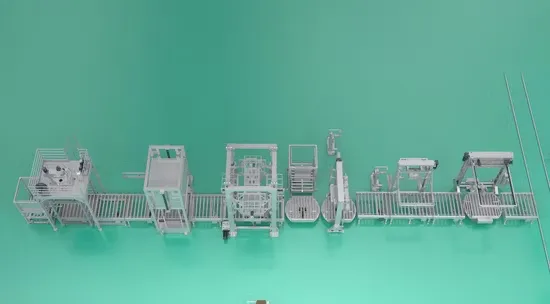

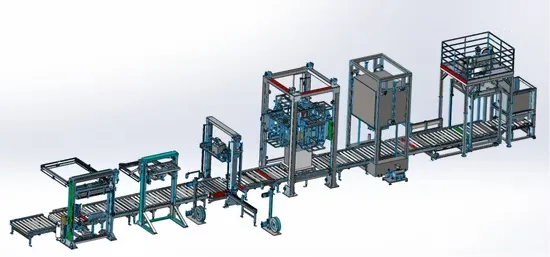

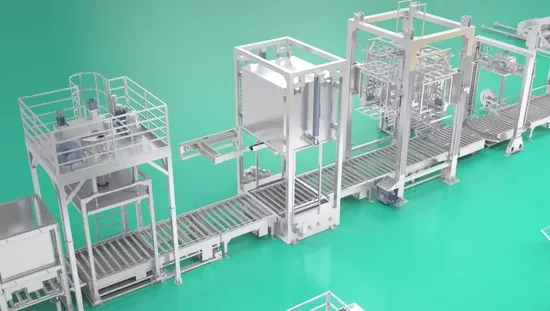

Fully Automatic Ton Bag Packaging Machine
The fully automatic ton bag packaging machine is primarily used for packaging various powdered materials, plastic pellets, feed, and other granular substances. Featuring a modular design, it achieves automated functions including metering, bag loading, filling, vacuum sealing, and re-inspection conveying.
Advanced Automatic Weighing and Bag Packing Machine for Bags
Advanced Automatic Weighing and Bag Packing Machine for Bags
Structural Advantages
1. Modular Design: Optional integration of functions including hot sealing, re-inspection, metal detection, and vacuum sealing based on requirements.
2. Safety Design: Complies with international PL d safety standards.
3. Precise Measurement: High-accuracy net-weight electronic scale with strong anti-interference capability and stable continuous operation.
4. Bag Loading System: Chain conveyor with centering adjustment; specialized suction cups accommodate various flexible bags; automatic bag detection compatible with M-fold and pillow-style bags.
5.Stable Bag Transfer: Utilizes an integrated “lower clamp, upper grip” mechanism for rapid, stable bag transfer to the sealing unit
Product Specifications
Feeding Method
Gravity feeding, horizontal (vertical) screw feeding, vibratory feeding
Packaging Specifications
300 – 1000 kg/bag
Main Unit Dimensions
3500 (L) × 2800 (W) × 3000 (H) mm
Total Power
Approx. 13 kW
Total Weight
3.5 – 6 tons
Load Cell Accuracy Grade
C3/C6/C10 (optional)
Measurement Accuracy
±0.1%
Packaging Speed
5 – 15 bags/hour (depending on material and feeding mode)
Bag Storage Capacity
5 – 20 bags (expandable)
Control Method
PLC + Touchscreen
Power Supply
380V, Five-wire Three-phase
Air Source
0.5-0.7 MPa
Noise Level
≤80 dB (at 1 meter from equipment)
Exterior Material
Carbon Steel Powder Coating / 304 Stainless Steel, etc. (optional)
Communication Protocol
Supports PN, DP, 485, etc. (optional)
