Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 2
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 3
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 4
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 5
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 6
Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine - Image 7

Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Filling Valve Heads Multi-Head Configuration
Dosing Device Capacity Cup
Feeding Structure Single-Room Feeding
Filling Precision $\pm$ 1% (Liquid Level)
Material Build SUS304 / SUS316L (Food Grade)
Control System PLC + Touch Screen
Certifications CE, ISO, SGS

Original price was: $56,000.00.Current price is: $55,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description



Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine
Cooperated Brand:

Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine



Detailed Photos



Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine

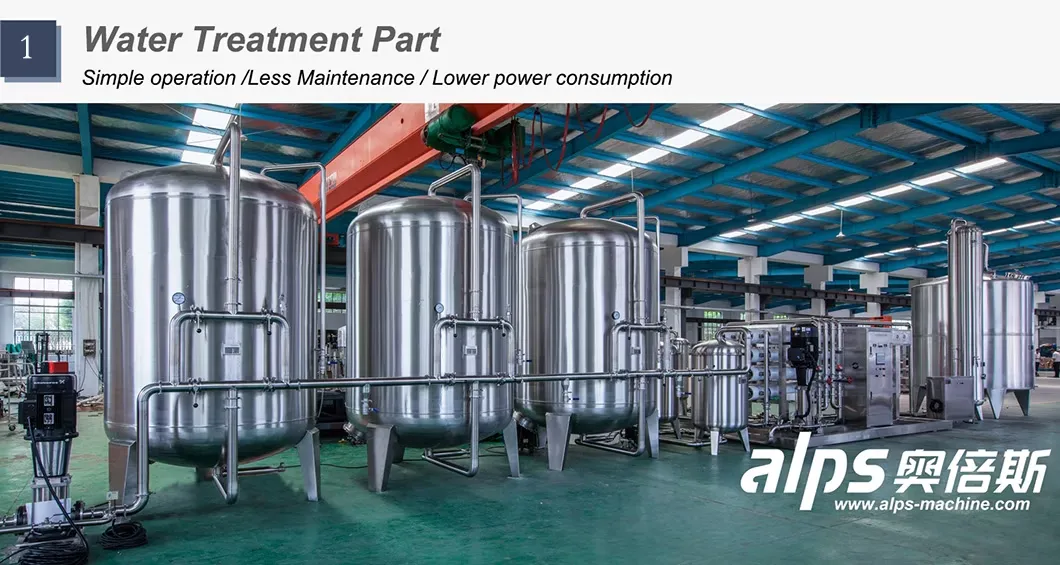

According to customer’s raw water analysis report and the final water standard request, we will suggest customer to choose the suitable water treatment plant.



Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine

Bottle blowing machine is to make plastic bottles for mineral water, carbonated drink, juice and so on. It is widely used in the food and beverage package industry.

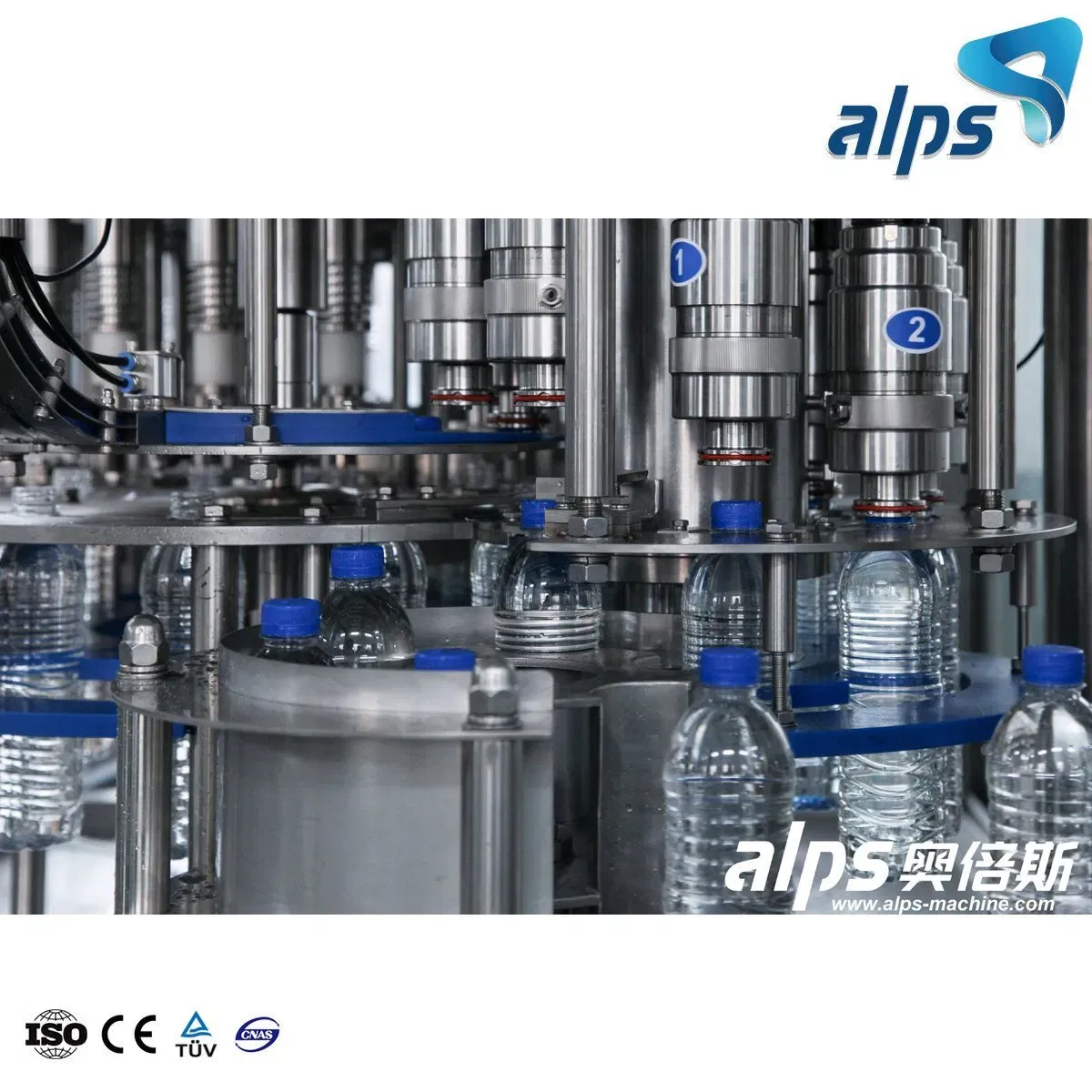

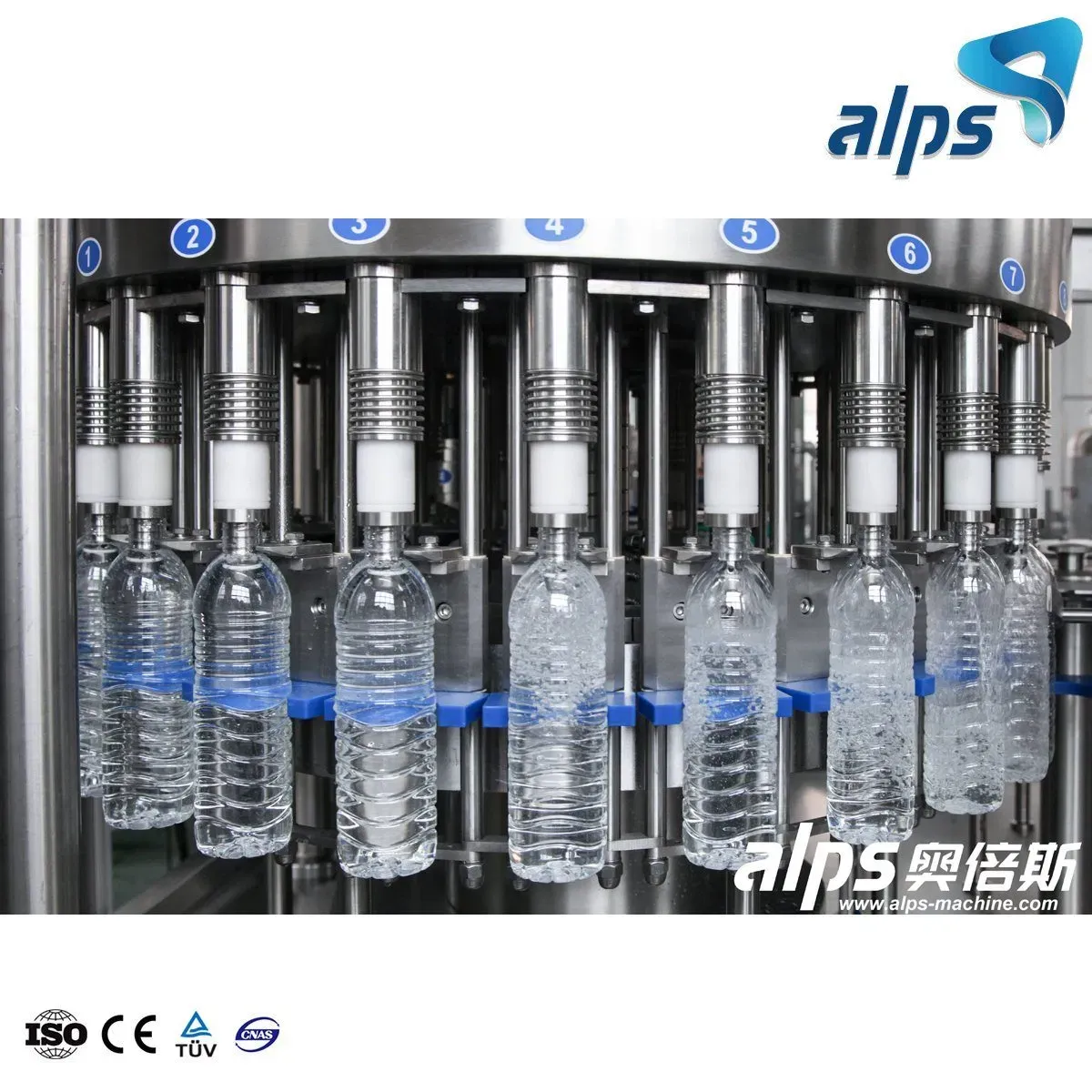

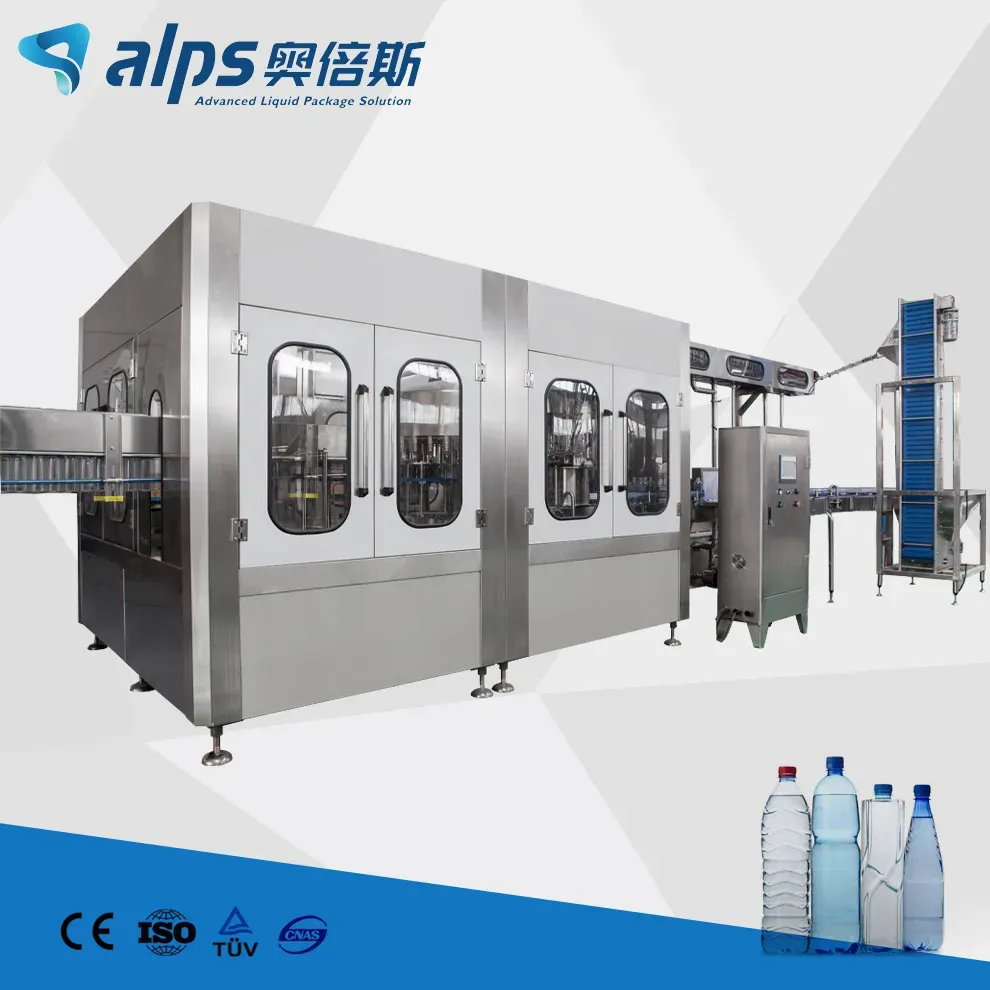

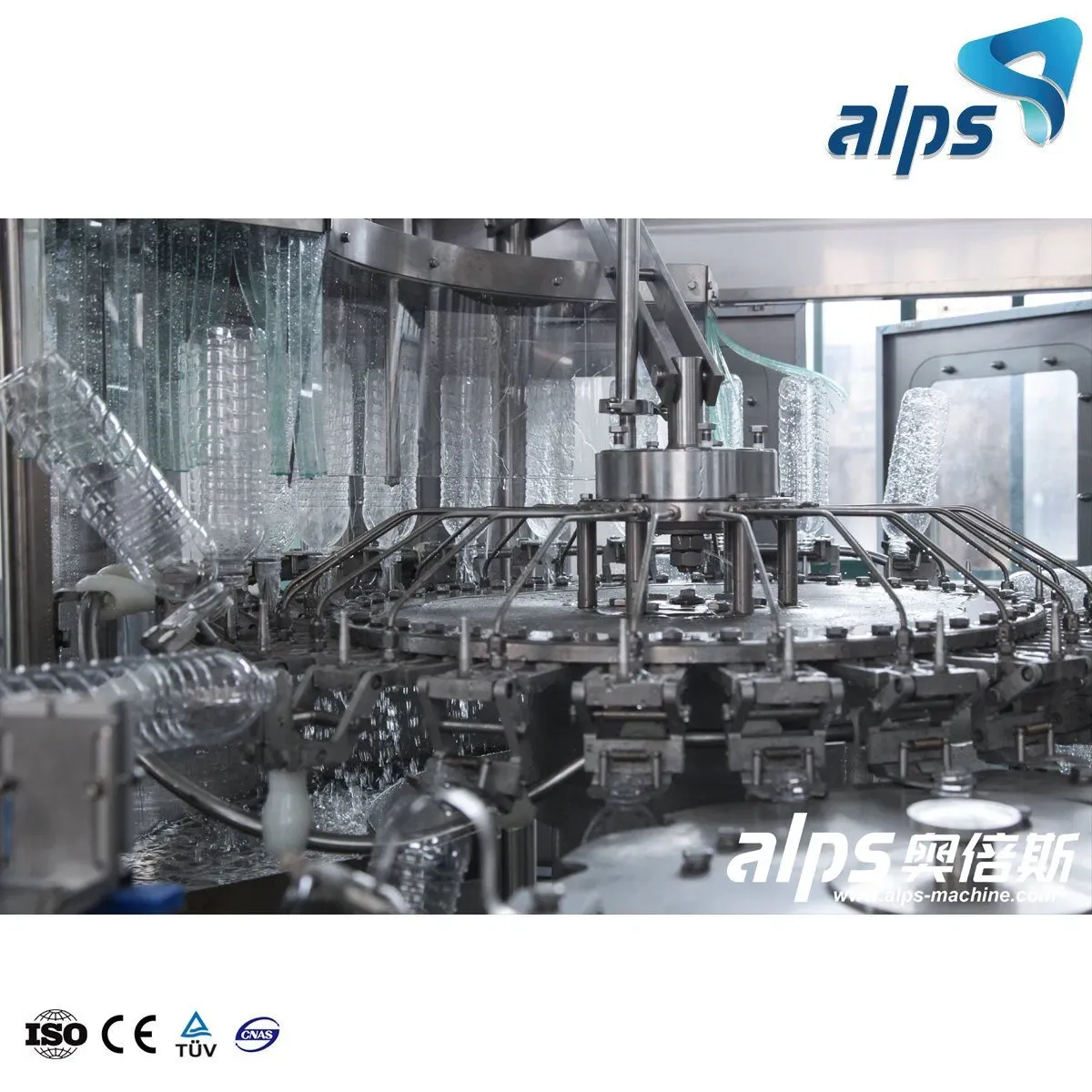

Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping MachineThis machine is mainly used in the water filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The machine is used in filling mineral water and purified water in bottles made of polyester and plastics. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. The advanced Mitsubishi programmed controller (PLC) is adopted to control of the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speed and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage manufacturers.

Technical Parameters
Model
CGF8-8-3
CGF14-12-5
CGF16-16-5
CGF24-24-8
CGF32-32-8
CGF40-40-10
Max Capacity
3000bph
4500bph
7000bph
12000bph
15000bph
18000bph
Bottle Material
PET Bottle
Bottle Diameter
φ50-φ116mm
Bottle Height
160-320mm
Air Pressure
0.2-0.8Mpa
Washing Pressure
>0.06MPa, ≤0.2MPa
Rated Power
3.8KW
4.5KW
4.8KW
5.5KW
7.5KW
8.5KW
Overall Size
2200*1600
*2200mm
2400*1880
*2300mm
2800*2200
*2300mm
3050*2400
*2300mm
3800*2600
*2500mm
4000*3150
*2500mm
Weight
2800kgs
3200kgs
4200kgs
5500kgs
6500kgs
7500kgs

Automatic Small Bottle Mineral Pure Drinking Water Making 3in1 Bottling Filling and Capping Machine
