Automatic Pure Drinking Water Beverages Plastic Pet Bottle Making Blowing Filling Labeling Packaging Machine
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $19,500.00.$18,500.00Current price is: $18,500.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model | XGF 8-8-3 (2000BPH Series) |
| Filling Type | Volumetric / Isobaric Pressure Filling |
| Filling Heads | Multi-Head Plunger System |
| Capacity | $2,000\text{ – }24,000\text{ BPH}$ |
| Volume Range | $0.2\text{ L – }2\text{ L}$ |
| Filling Precision | $\pm 1\%$ (Liquid Level) |
| Bottle Compatibility | PET Bottles / Glass Bottles |
| Lifting Structure | Pneumatic Lifting |
| Material | SUS304 Stainless Steel |
| Certifications | CE, ISO, SGS |
| HS Code | 8422309010 |
Product Description

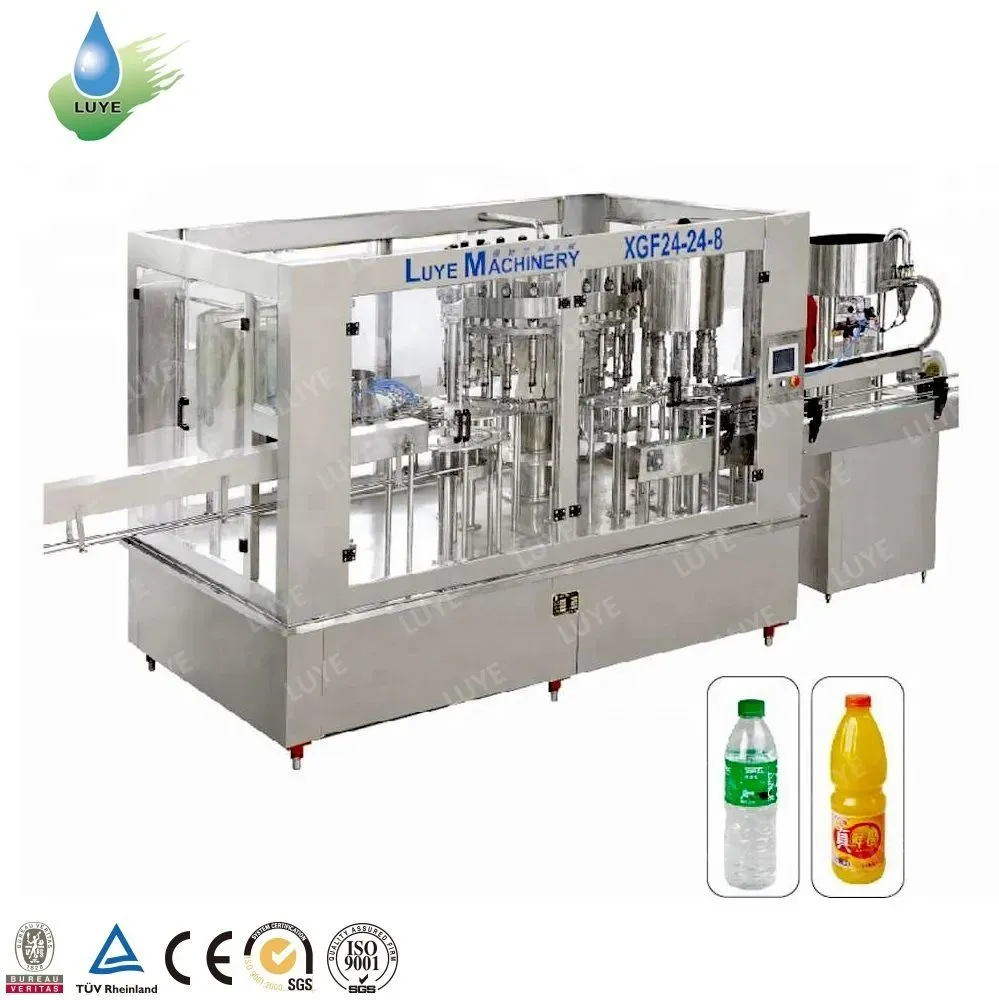

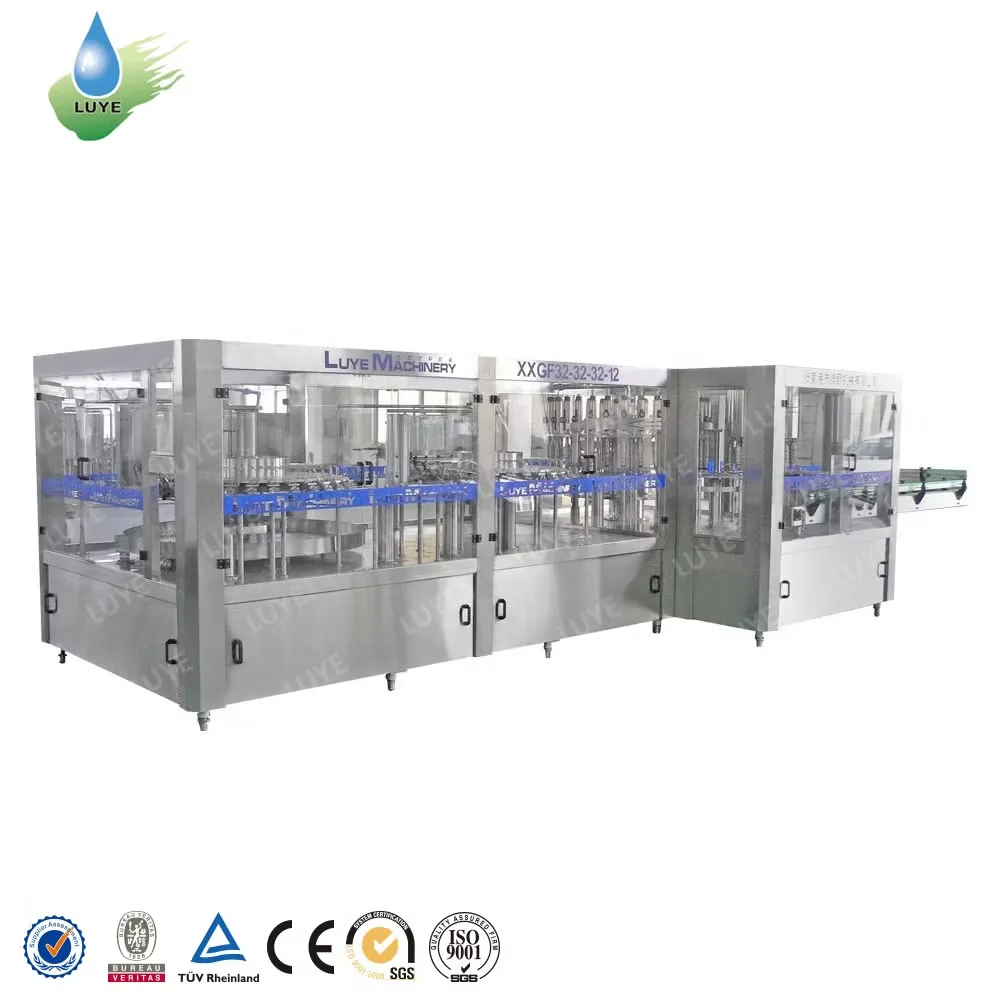

Automatic Beverage Bottle Water Liquid Filling Machine

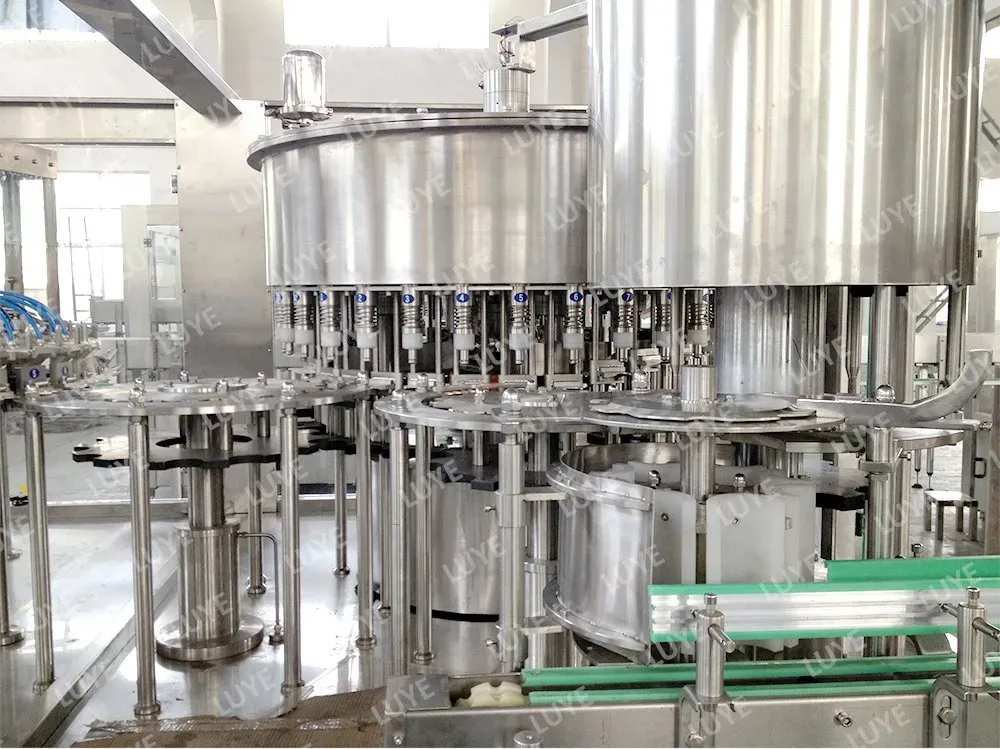

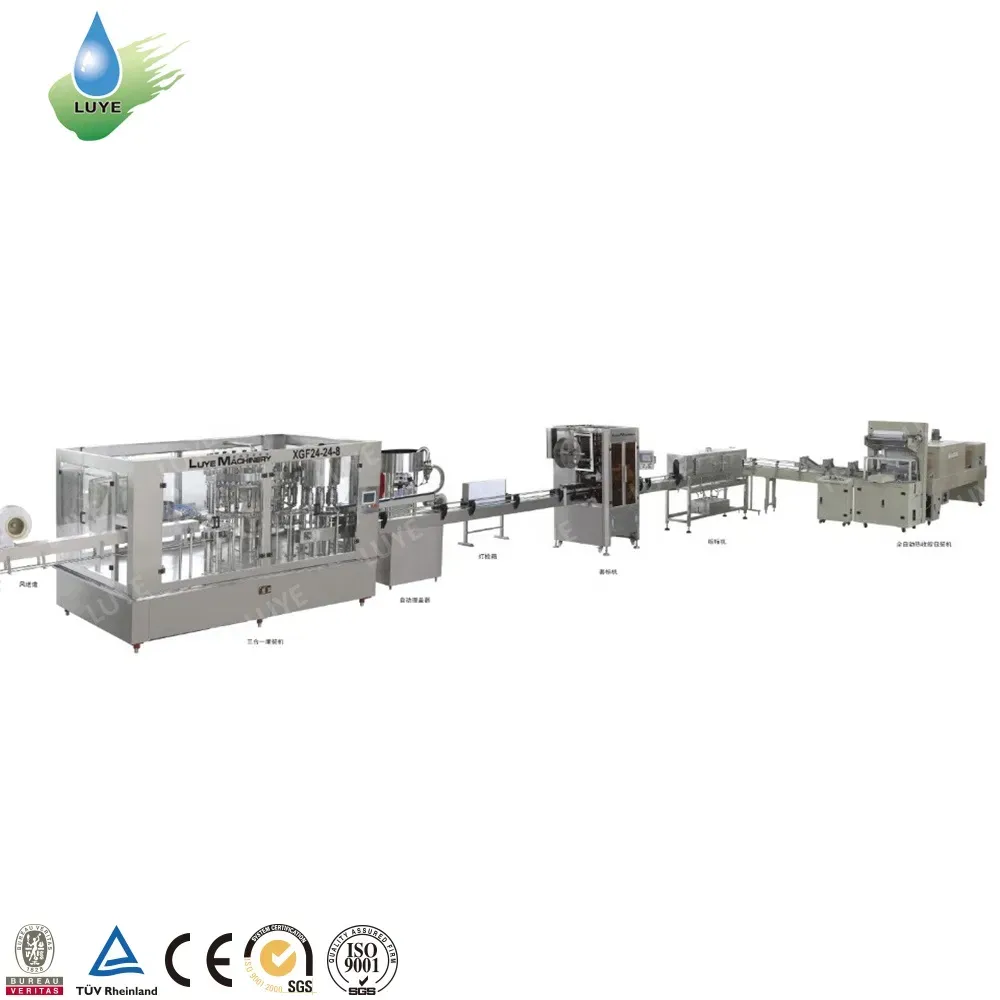

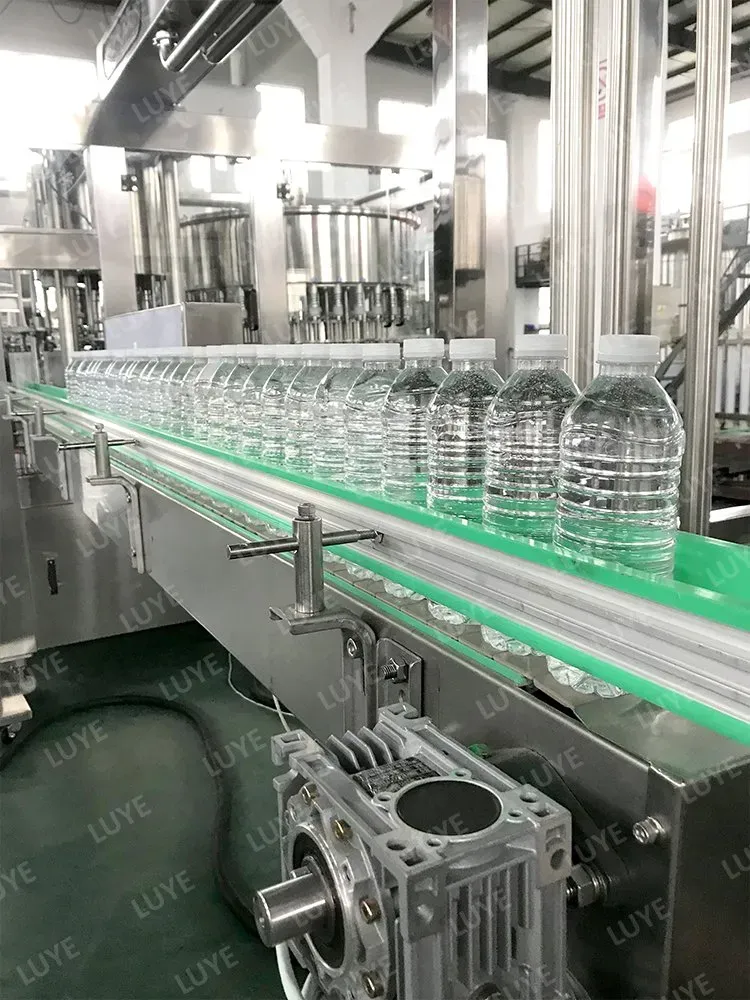

This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking water, mineral water, pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically i liquid filling tank, inlet material; feed bottles by air conveyer (or screw convey); automatically rinse, open valve and feed caps; not rinse, open valve and feed caps without bottles.
Compact structure: reasonable design and convenient operation and maintenance. Main machine is adopted frequency speed control, it runs stable and credibility. Material of contacted with product we use high food grade stainless steel. After exchanging changeover parts, it is applicable for different kinds of PET bottle filling.
We adopt advanced touch screen operation and realize human-machine communication. Function of control system as follows: product speed control, automatic stop with faults and take count of output, etc.
| EQUIPMENT TYPE | Full automatic |
| APPLICATION FOR BOTTLE | Round or square bottle Volume 200 – 2000ml Diameter: Φ50~120mm Bottle height:160~320mm Diameter of bottle mouth: Φ25~38mm |
| CAPACITY PER HOUR | 2000~24000BPH |
| GUARANTEE | Free warranty since12 months after installation & commissioning, or 15 month after delivery date |
| AFTER SERIVCE | Life- long maintenance |
 |

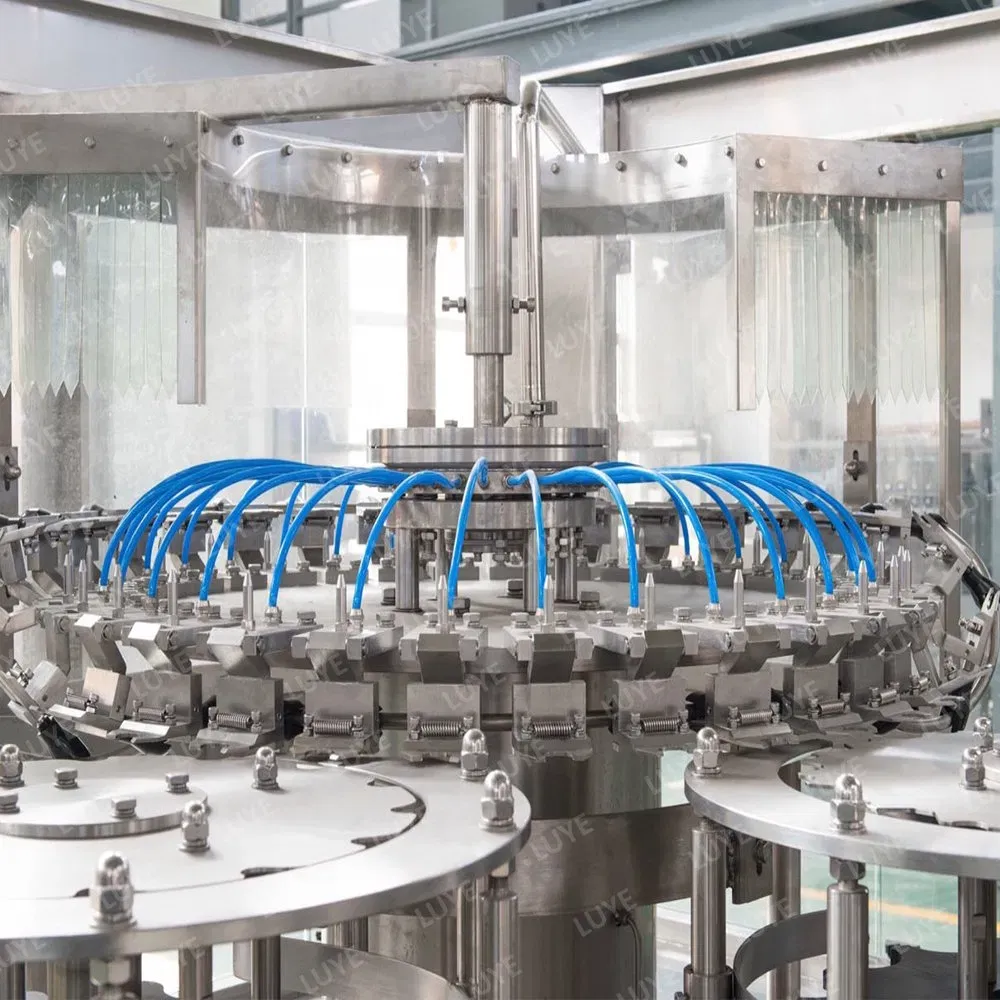

1.Washing part Composes of bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray etc. Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star wheel, which can clamp the bottle neck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts. |
 |

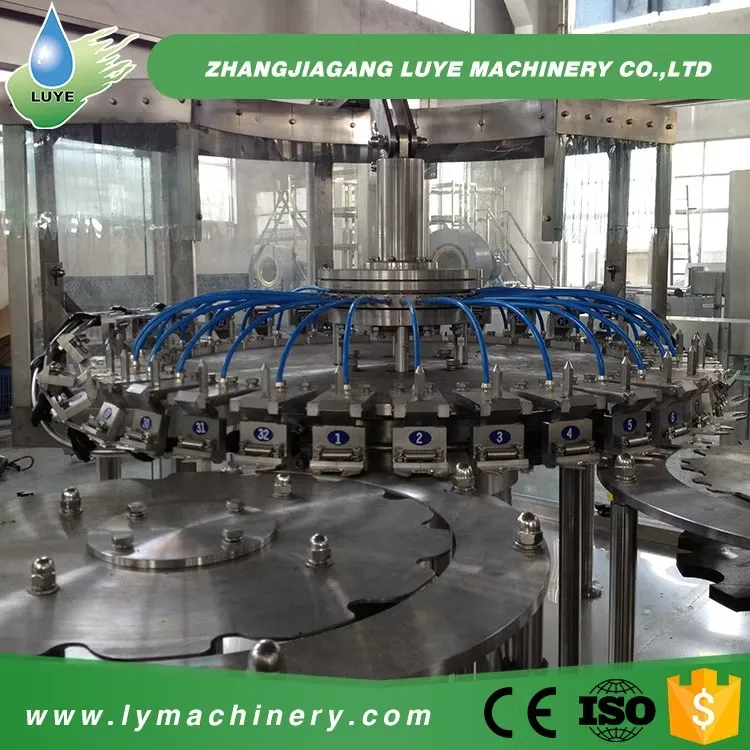

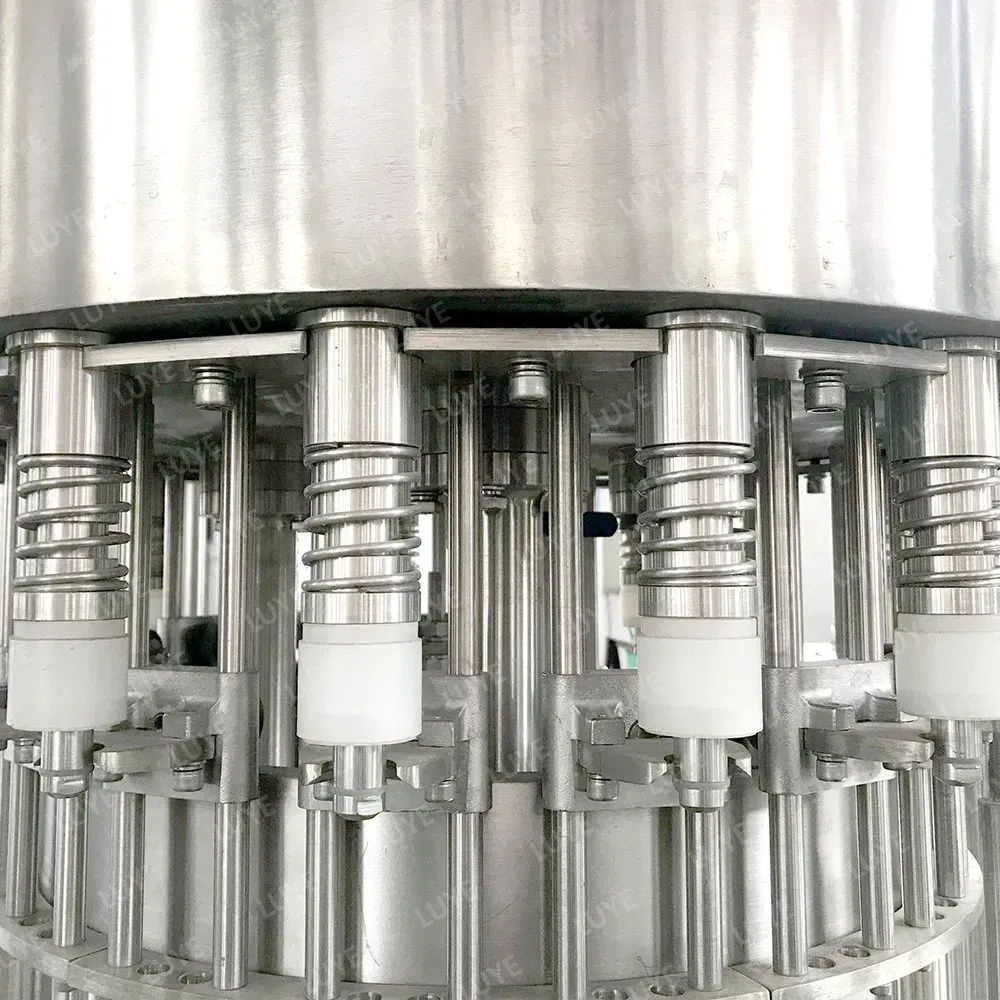

2.Filling part mainly composes of bottling barrel, bottling valve, guide rail, lifting device, bottle clamping lift device etc. Bottle is conveyed to the bottling machine with the clamp plate of star wheel drive IV, bottling bottle clamp plate supports the bottle neck and rotates together with the bottling, and ascend along the guide rail and then open the bottling valve for bottling, after finishing bottling, it descend and loose the bottling valve, bottling valve may automatically close. Bottle is discharged from the bottling machine along the clamp plate of star wheel drive. |
 |
3.Capping part composes of cap separating mechanism, capping machine and cap arranging mechanism. Bottle is conveyed into the capping machine with 3# star wheel and then is clamped with the bottle clamping block; the cap is arranged by the cap arranging mechanism and then is delivered to the cap separating mechanism from the lower cap tank; cap separating mechanism can separate the caps, and capping head may ascend and remove the cap and press it onto the bottle mouth with cam; under the drive of gear, capping head tighten the cap on the bottle mouth along the shaft, and keep constant capping moment; the well capped bottle is delivered out with 4# star wheel. The capping machine is connected with cap separating mechanism, lower cap tank, cap arranging mechanism with harmonious combination through several movements for delivering bottle, delivering cap, holding cap and capping. |
