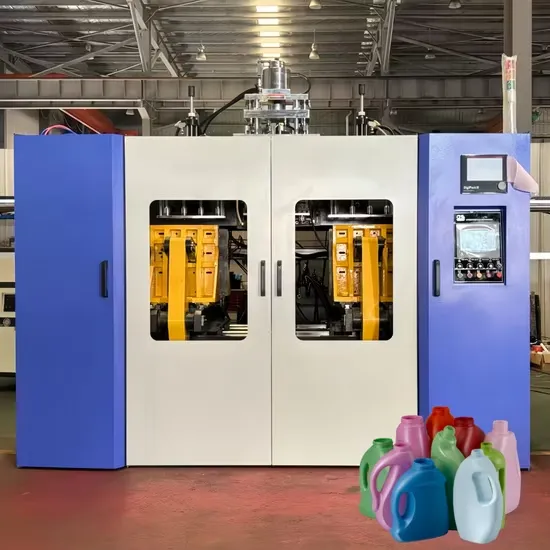

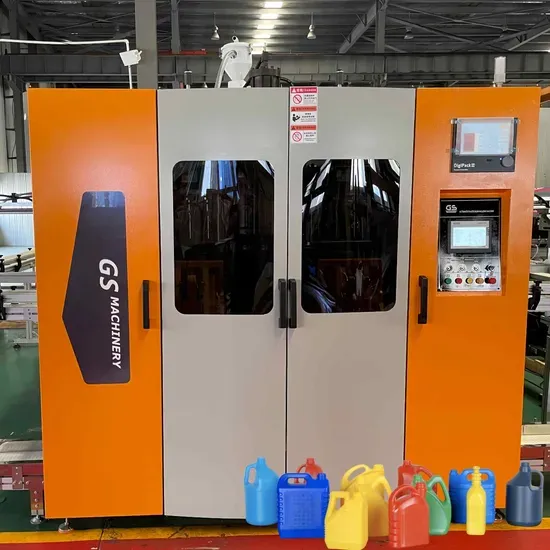

5-12L HDPE PP Plastic Bottle Blowing Machine Extrusion Blow Molding Machinery
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $50,000.00.$49,000.00Current price is: $49,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Component | Brand / Details |
| Parison Controller | Moog (200 Points) from Japan |
| Hydraulic System | Yuken from Taiwan |
| Electric System | ABB, Siemens, Omron, etc. |
| Inverter Brand | ABB, Delta |
| Pneumatic System | Delta |
| Computerization | Integrated PLC with High-Precision Monitoring |

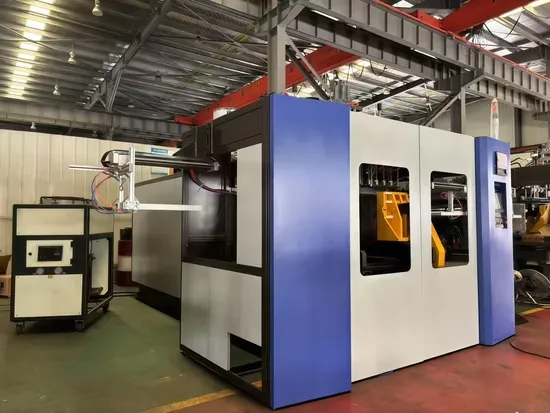

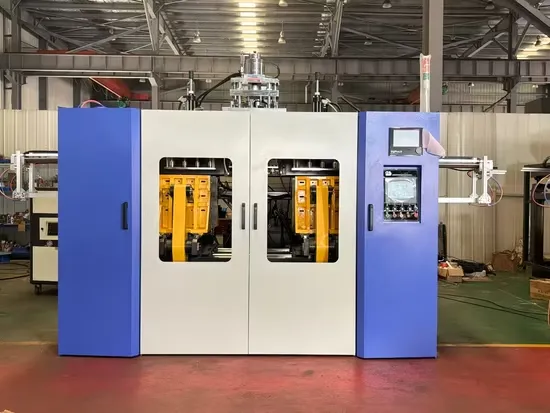

- GS-12L-II double station machine is different from the single station machine in that it has one additional station with high-precision linear guide. The same as the single station machines, it can be used to produce a wide variety of materials, such as PE, PP, etc. The largest capacity of the product can be 12L, and its production capacity is 60 to 70% more than the single station machine. In accordance with different type of products, die heads can be changed to achieve multi-type production
- MACHINE ADVANTAGES
1. Toggle-balanced clamping frame, with well-known liner guide rail from Taiwan; great clamping force and explosion-proof;
2. Can be achieved 16 blow pins at the same time perpendicular to the mold pin blow hole; patented die head, easy for changing color.
3. Computer intelligent control system, operation, set and modify the production process conveniently
4. Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
5. Strengthened and hardened cold treated screws, screw and barrel are with wear resistance; parts of tube wall thickness are very uniform
6. Various components are produced with Japan’s CNC machine tools, use Mazak to process six-sided installation surfaces at the same time. Imported well-known brands Hydraulic, pneumatic and electrical parts are equipped to ensure that the rigorous process, stable and reliable quality. \
Toggle-balanced clamping frame,
Mold carriage is with high-precision linear railway guide HIWIN from Taiwan;
The end positions & slow speed positions are controlled by proximity switches and braking valves
great clamping force and avoid mold swelling problem;
Whole blow pin frame could be turned over onto top platform, convenient for mold change
DIE HEAD
Head mode: the continuous extrusion head is designed double lips torpedo type die head with individual flow control valve;
Deep mirror treatment is used inside the die head, curve flow channels are smooth, no dead ends, no carbon left;
convenience to refueling, change color, purge, disassembly and cleaning with those die head.
Symmetry part of the wall thickness is very uniform;
Double proportional valve control oil flow and pressure, directional valve control flow way, deceleration valve brakes, achieve smooth and fast action;
Hard steel pipes fully avoid oil leaking;
World famous brand Yuken from Taiwan for oil pump & valve, Siemens motor, bigger oil cooler.
Computer intelligent control system, operation, set and modify the production process conveniently.
provide remote control system to assist client’s operatation;
have English, Russian, Arabic, Spanish, French, etc different language on touch screen, easier for operators in different countries.

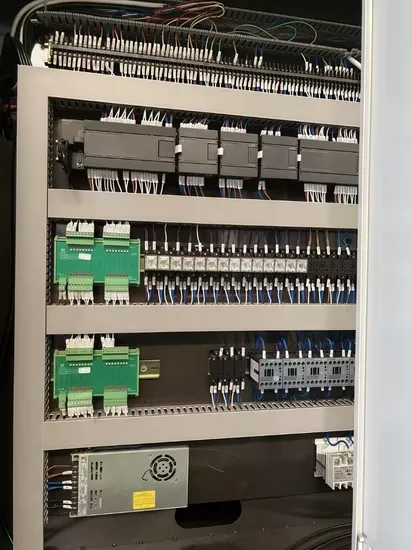

World famous brands like SIEMENS, OMRON, MINGWELL etc, full y-guaranteed machine preformance and liftspan.
could control bottle wall thickness precisely, saving production cost in a long run.
| Specification | GS-12L-II | |
| Material | PE,PP… | |
| Max. container capacity | L | 12 |
| Number of die | set | 1, 2, 3, 4,6 |
| Machine Dimension | m | 4.1×2.5×3 |
| Total weight | ton | 9.5 |
| Accumulator head | GS-12L-II | |
| Number of die heating | zone | 3 |
| Power of die heating | KW | 6-7 |
| Max die -pin diameter | mm | 140 |
| Center distance of twin-die | mm | 240 |
| Center distance of tri-die | mm | 160 |
| Center distance of four-die | mm | 120 |
| Center distance of six-die | mm | 85 |
| Clamping Unit | GS-12L-II | |
| Clamping force | KN | 110 |
| platen opening stroke | mm | 219-600 |
| platen size | mm | 460×500 |
| Max mould size | mm | 560×500 |
| Mould thickness | mm | 220-380 |
| Extruder Unit | GS-12L-II | |
| Screw diameter | mm | 80 or 90 |
| Screw L/D ratio | L/D | 25\1 |
| Extruding Volume | Kg/hr | 130-160 |
| Number of heating zone | zone | 4 |
| Extruder heating power | KW | 8.2-9.3 |
| Extruder driving power | KW | 37 |
| Power consumption | GS-12L-II | |
| Oil pump drive power | KW | 15 |
| Fan power for screw | KW | 0.6 |
| Total power | KW | 67 |
| Air pressure | Mpa | 0.6 |
| Air consumption | M3/min | 1.0 |
| Average energy consumption | KW | 35 |
