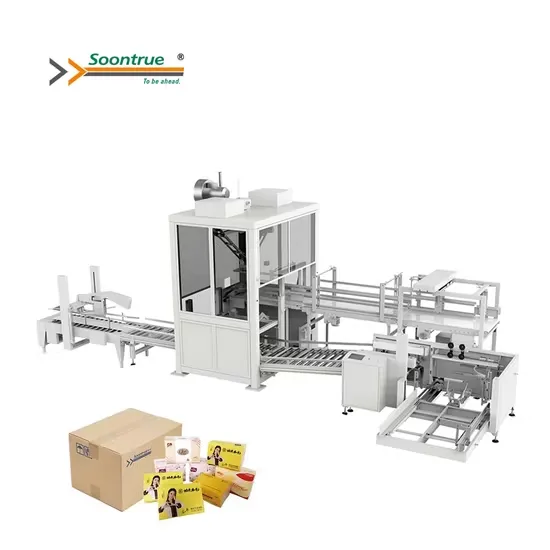

Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 2
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 3
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 4
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 5
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 6
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging - Image 7

Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Packing Speed 5 – 15 Cartons / Minute
Forming Function Integrated Box Molding, Filling, and Sealing
Material Handling Solid Products / Multi-Pack Items
Packaging Material Composite Materials / Corrugated Cartons
Key Selling Point Flexible Manufacturing (Supports Multiple SKU Sizes)
Condition New

Original price was: $51,000.00.Current price is: $50,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Specification
Machine model
ZX660B
Carton packing speed
5-15cartons/min ( according to different product and packing type, the speed is different )
Carton L
270-650mm
Carton W
180-500mm
Carton H
150-450mm
Sealing tape
48mm or 70mm
Machine dimension
8000×3200×2600mm
(LXWXH, including arranging conveyor)
Carton total power
15kw (including arranging conveyor)
Air supply
0.5~0.7Mpa,
air consumption
200L/min (need customer prepare)
Weight
about 3000kg (including arranging conveyor)
Noise
80dB
Machine color
RAL1013;Machine color
Storage cartons
80-90 (3 layers)
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Machine Performance And Feature
ZX660B case packing machine is controlled by Inovance controller and servos. Reasonable design and fine processing of the whole machine, and famous electric components makes the machine stable and wide application. The whole machine is combined with in-feeder, tissue pile up device, and filling conveyor among which the pile up device is controlled by servos.
The machine can be equipped with side feeding unit and vertical feeding unit for different requirement.
The machine has precise case sending and will alarm if the cartons are missing.
When the machine stops, the machine will stop the conveyors for operator checking. The machine has overload alarm and can be reset by manually solve the overload problem and press the reset button to make the servo control system to back to the origin point(slowly back).
The cases will be sealed by the tapes to assure the better sealing effect.

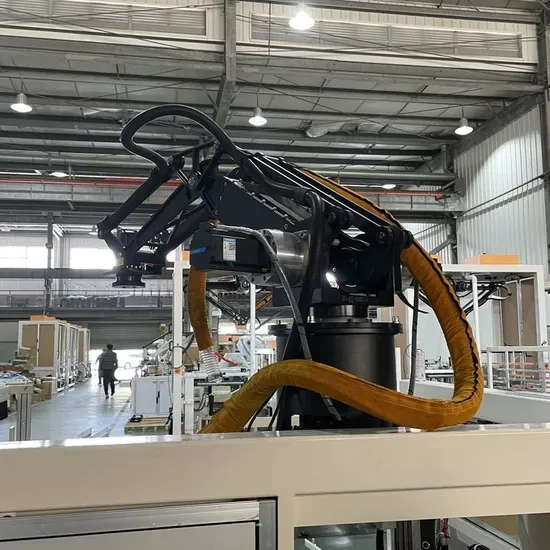

Detailed Photos
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
Automatic Manipulator Box Packing Machine / Cartoning Machine and Carton Packing System (5-15 Cartons/Min) , Designed for Household Paper Products Packaging
