Automatic CNC Multi Layers Fabric Curtain Leather Glove Quilt Clothing T Shirt Spreading Cutter Cutting Machine Price
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $47,300.00.$46,300.00Current price is: $46,300.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Model | PE-B2233 |
| Max Cutting Speed | $60,000\text{ mm/Min}$ |
| Blade Working Speed | $6000\text{ rpm}$ |
| Cutting Height | $6\text{cm / } 9\text{cm}$ (Post-Adsorption) |
| Working Width (Y) | $1800\text{mm / } 2000\text{mm / } 2200\text{mm}$ |
| Cutting Length (X) | $2500\text{mm / } 3300\text{mm}$ |
| Acceleration | $1 \text{ – } 1.2\text{ g (N/Kg)}$ |
| Power Supply | Three Phase $380\text{V, 50-60Hz}$ |
| Max Power Consumption | $18\text{ kW}$ |
| Compressed Air | $0.55\text{MPa, 160L/Min}$ |
| Noise Level | $< 72\text{ dBa}$ |

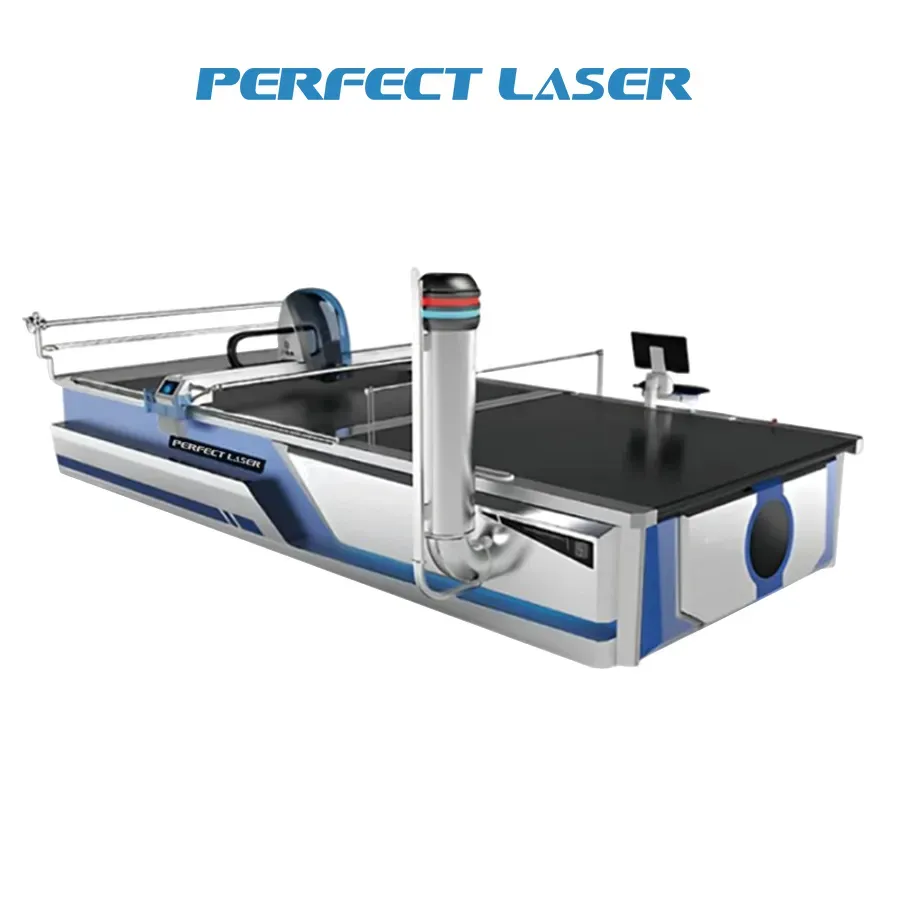

The fully automatic fabric cutting machine produced by Perfect Laser is equipped with an adjustable high-speed electric vibrating knife, which has strong cutting power and can cut through multiple layers. The vibration of the head enhances the dynamic balance, enabling it to handle high-speed, high-precision, and highly intelligent cutting of various flexible materials. It is specially designed for users with a higher demand for cutting techniques.
Applicable materials
It’s mainly used for knitting, weaving, and composite cotton, such as cutting warm underwear, bras, T-shirts, jeans, non-woven fabrics, plush toys, leather, etc
Applicable industry:
It’s widely used in the clothing industry, footwear industry, packaging industry, advertising industry, composite materials industry, etc

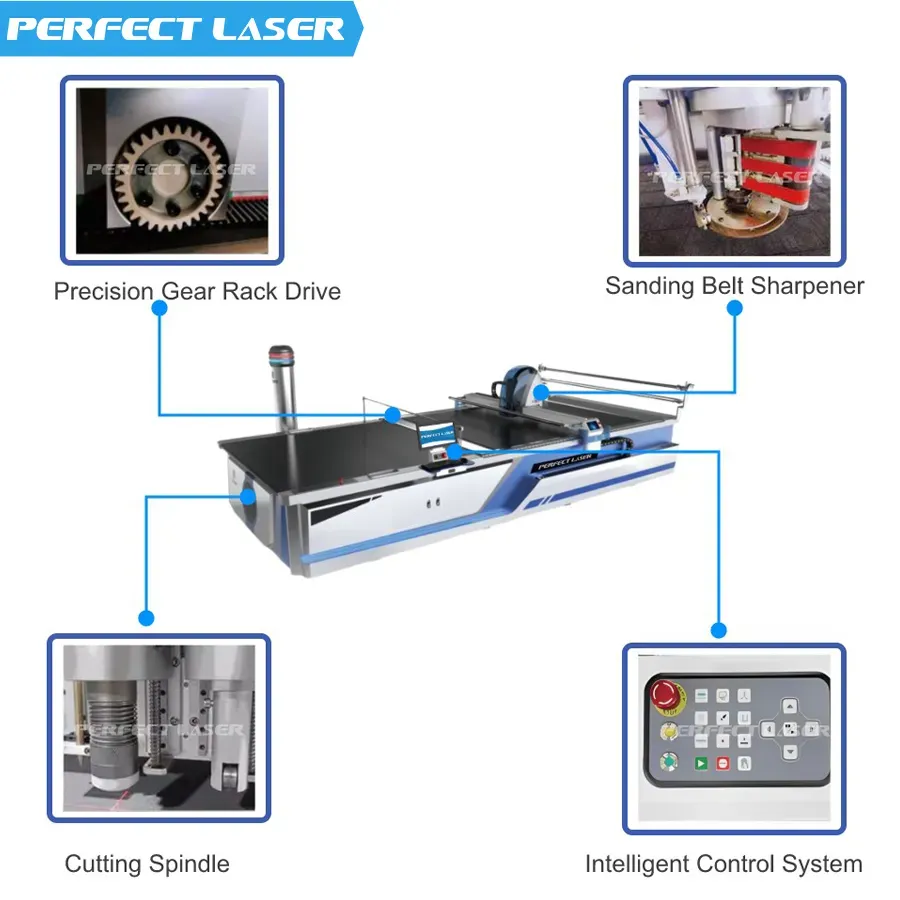

1.The auto fabric cutting machine adopts Integrated frame design, processed by a 540° high-temperature stress annealing process for 12 hours.
2.The track mounting surface and the support surface of the bristle feeding mechanism, both processed by the large CNC gantry milling machine, ensures the accuracy of installation and improve the stability of the drive components during high-speed motion.
3.The XY axis of the fabric cutter adopts a precision gear rack drive, which increases both accuracy and stability.
4.The one-piece open mold beam is made of high-strength industrial aluminum extrusion molding, processed by a high-precision CNC gantry milling machine, improving stability and enhancing aesthetics.
5.The filter structure of vacuum pump improves the safety and lifetime of the air pump and also reduces the environmental impact of cutting beds
