Product Description
The Standard Parcel & Package Singulating System

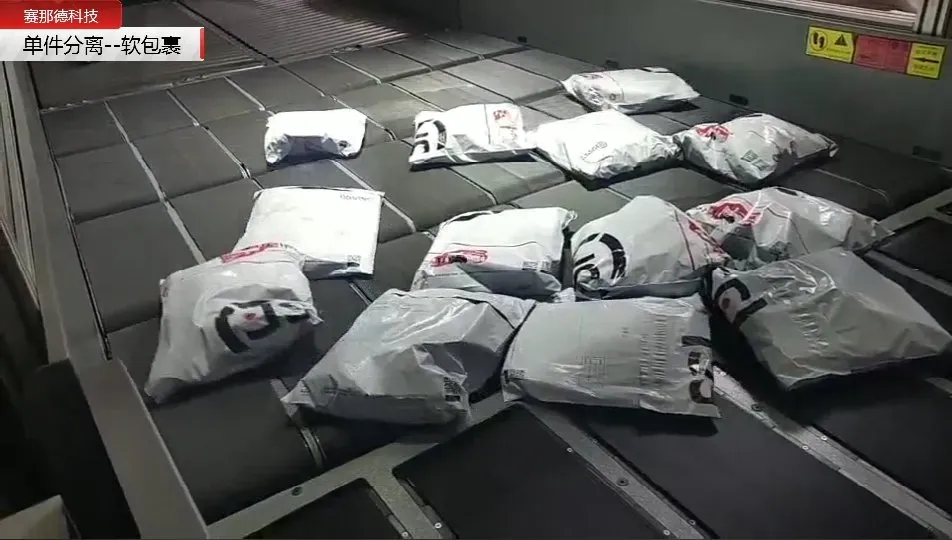

Based on AI vision, this equipment would automatically capture the parcel’s information by using image processing algorithm and in motion unit to realize fast packages singulating. It greatly improves the sorting efficiency and reduce the operating area occupied by goods. With 99.9% precision and high efficiency, this equipment could largely improve the parcel sorting efficiency and save the labor and logistic cost.
 |
MAIN FUNCTION:
SINGULATING;
CODE SCANNING;
VOLUME MEASUREMENT;
WEIGHING;
SORTING;
|
| APPLICATION AREA: E-commerce, Express, Warehouse, Logistic,etc. |
|
| Advantage Full automatic High highly efficient |
Features
* Inline parcel profile visial recognizing
* Single parcel positioning

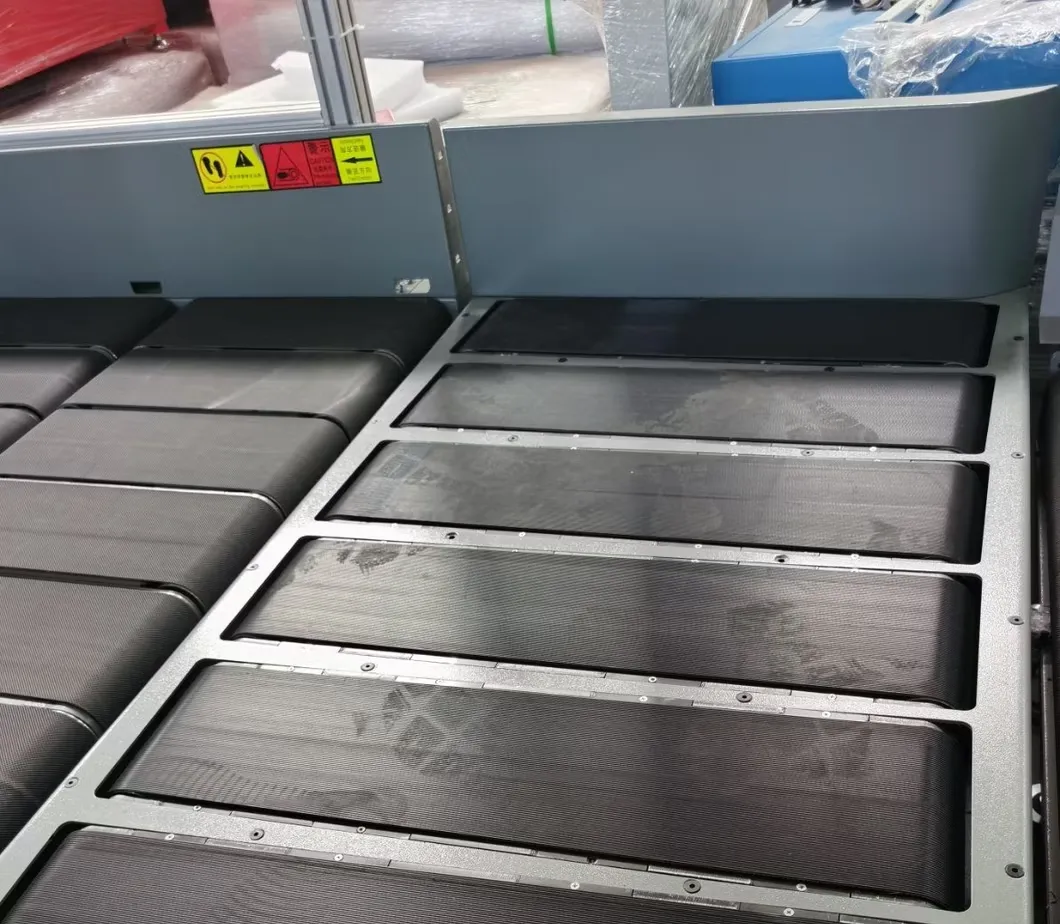

* Modular motors control the conveying order

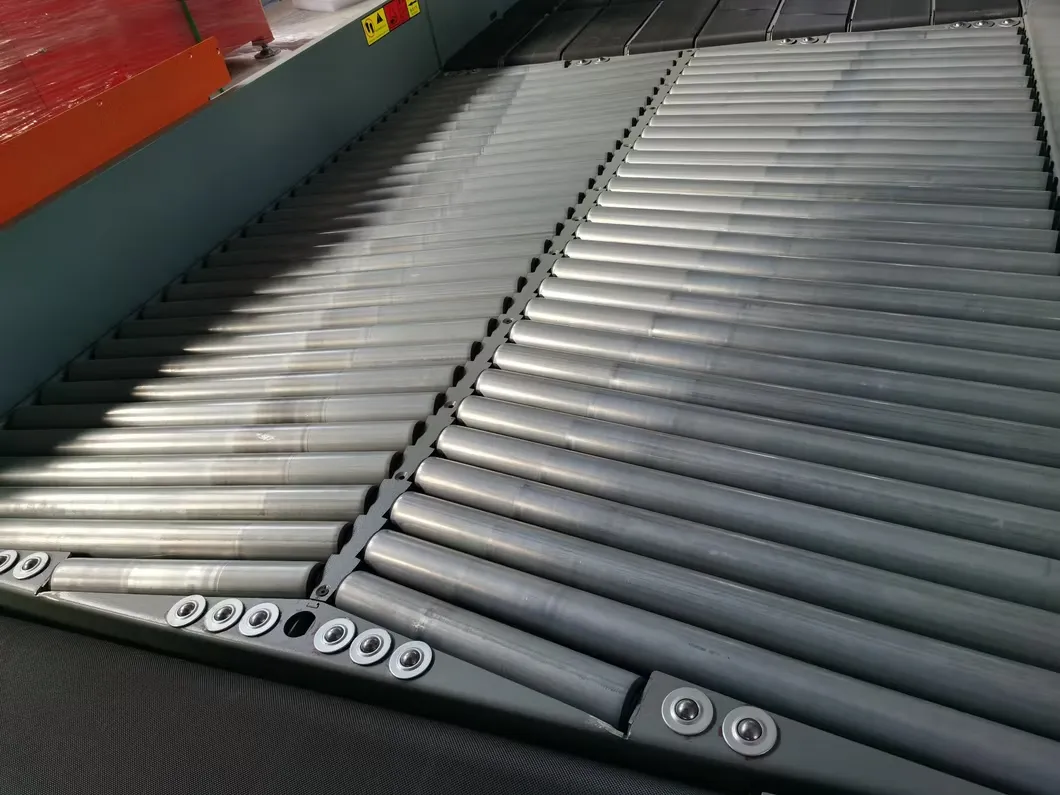

* Centralized roller conveyor conveys the parcels in a single stream line (one by one)
 |
 |
 |
Specification
|
Items
|
For reference
|
|
Main function
|
parcel/packs/package singulating, weighing, volume measurement and sorting;
|
|
Package type
|
includign paper box, soft package, nylon bag, thin envelope etc. most of parcels;
|
|
Package size
|
L*W*H 80*80*20 mm~~1000*800*800 mm(customization accepted);
|
|
Accessory equipment
|
Belt conveyor part in front ; Centripetal roller in the back;
|
|
Singulating efficiency
|
5,000~8,000 Pcs /Hour
|
|
Package abnormal rate
|
< 0.5%
|
|
Equipment size
|
L*W*H 1650*1290*2950 mm
|
|
Width of Assembly line
|
1000 mm
|
|
Working voltage
|
380V/220V~~50Hz
|
|
Working temperature
|
-5~50ºC
|
|
Total power
|
25 KW
|
|
Remarks
|
|
|
Software type
|
SENAD DWS software
|
|
Support system
|
windows 7/10 or above; 32/64 bits
|
|
Software interface
|
http; tcp; 485;
|
