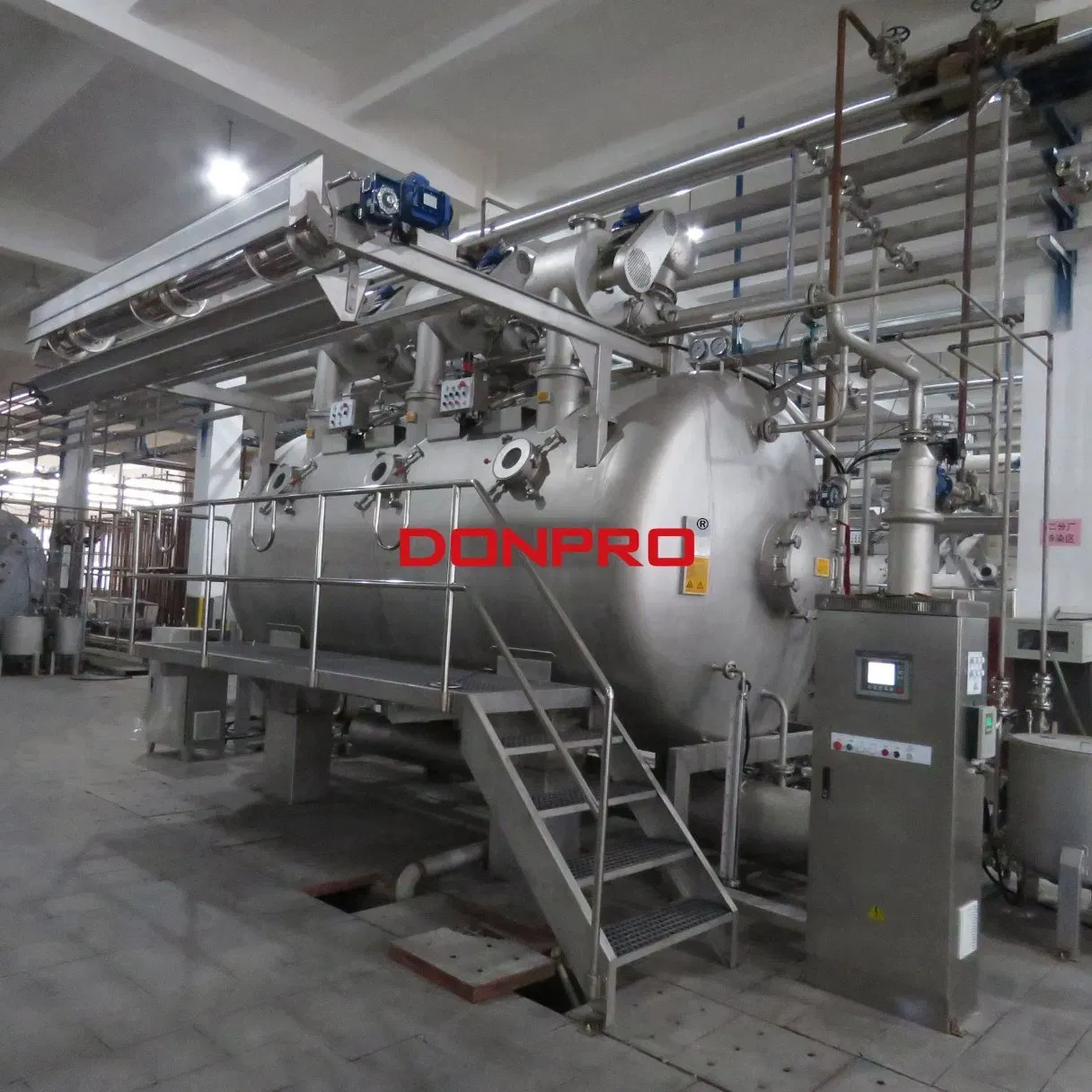

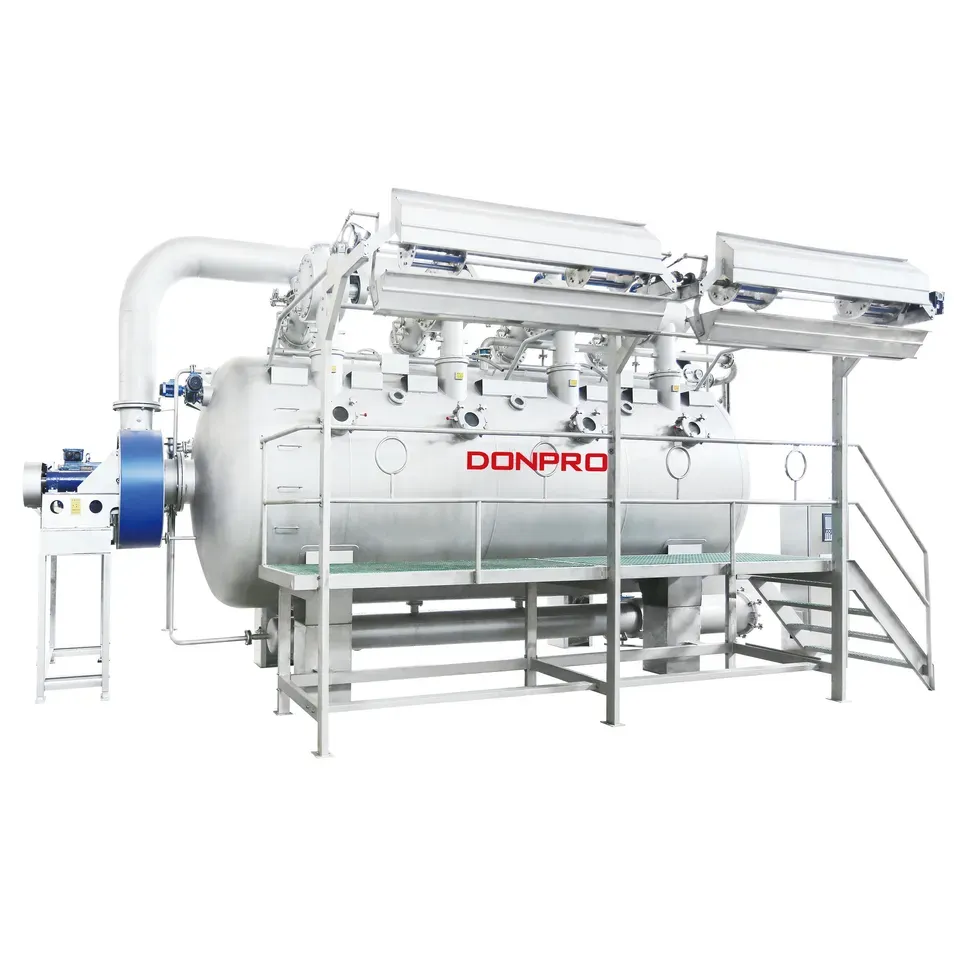

HTHP Air & Liquid Flow Multifunction Dyeing Machine
Product Description
The innovative Air & Liquid Flow Multifunction Dyeing Machine is a high temperature, high pressure air & liquid dyeing machine, suitable for a wide range of knitted and woven fabrics: 100% Polyester, Polyester blends, etc. High efficient and economic, it saves over 50% water, 40% auxiliaries and steam consumption compared with traditional dyeing machines.
Specification
Special Features
– Traditional outside blower, more stable, and easy to maintenance.
– Special designed vessel which is available for overload.
– tubes are arranged at the bottom of the vessel to protect the fabric and drain the water faster.
Technical Details
– Main tank & liquor carrying parts are made of stainless steels 316L
– Touch screen controller
– tube chamber for smooth and secure fabric transport
– Frequency- controlled lifting, plaiter and main pump system.
– 360°Rotary spray rinsing device
– Automatic and programmable touch screen computer
– Automatic temperature control system
– Ration dosing system
– Dyeing liquor atomization nozzle and overflow nozzle
– Air and liquid filter
– Dyeing liquor second time circulation system
– Infrared monitoring fabric anti-tangle device
– High efficient heat exchanger
– Analog water level, Water level Auto display and control
– Glass fiber reinforced plastics working platform
Optional
– Second preparation tank
– 100% Hot water stock tank, preparation of the complete process bath
– Auto self-cleaning filter
– Fast dosing system, bypass function
right elevation
left elevation
front elevation
Technical Specifications
(Custom configurations available upon request.)
|
Model
|
Dimension
|
Blower Power(KW)
|
|||
|
A
|
B
|
C
|
D
|
||
|
1-chamber
|
5275
|
4227
|
4160
|
960
|
18.5
|
|
2-chambers
|
5840
|
4415
|
4300
|
960
|
37
|
|
4-chambers
|
8912
|
4450
|
4380
|
960
|
75
|
|
6-chambers
|
12242
|
4562
|
4480
|
960
|
132
|
Drawings & Dimensions
Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.
