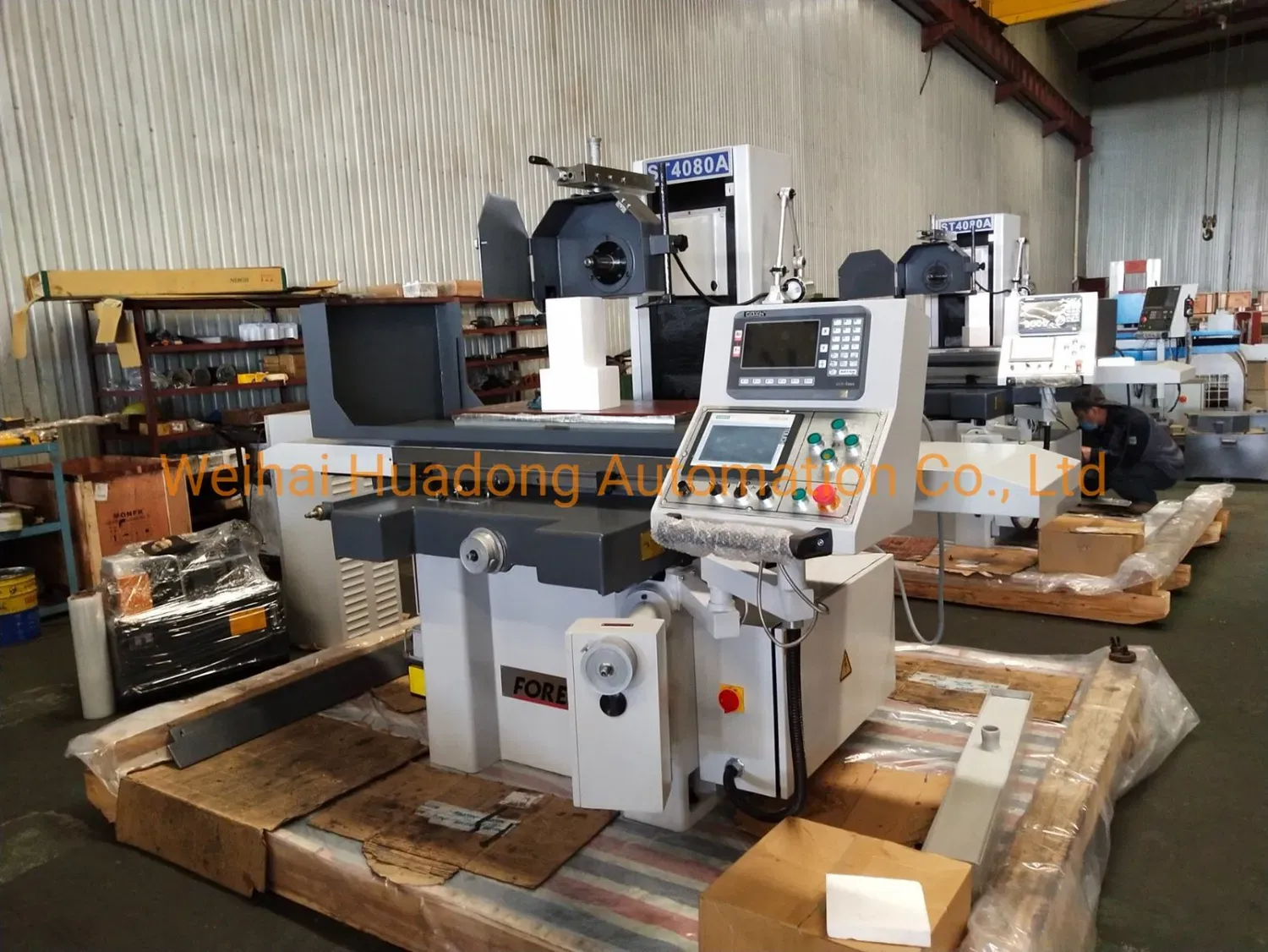

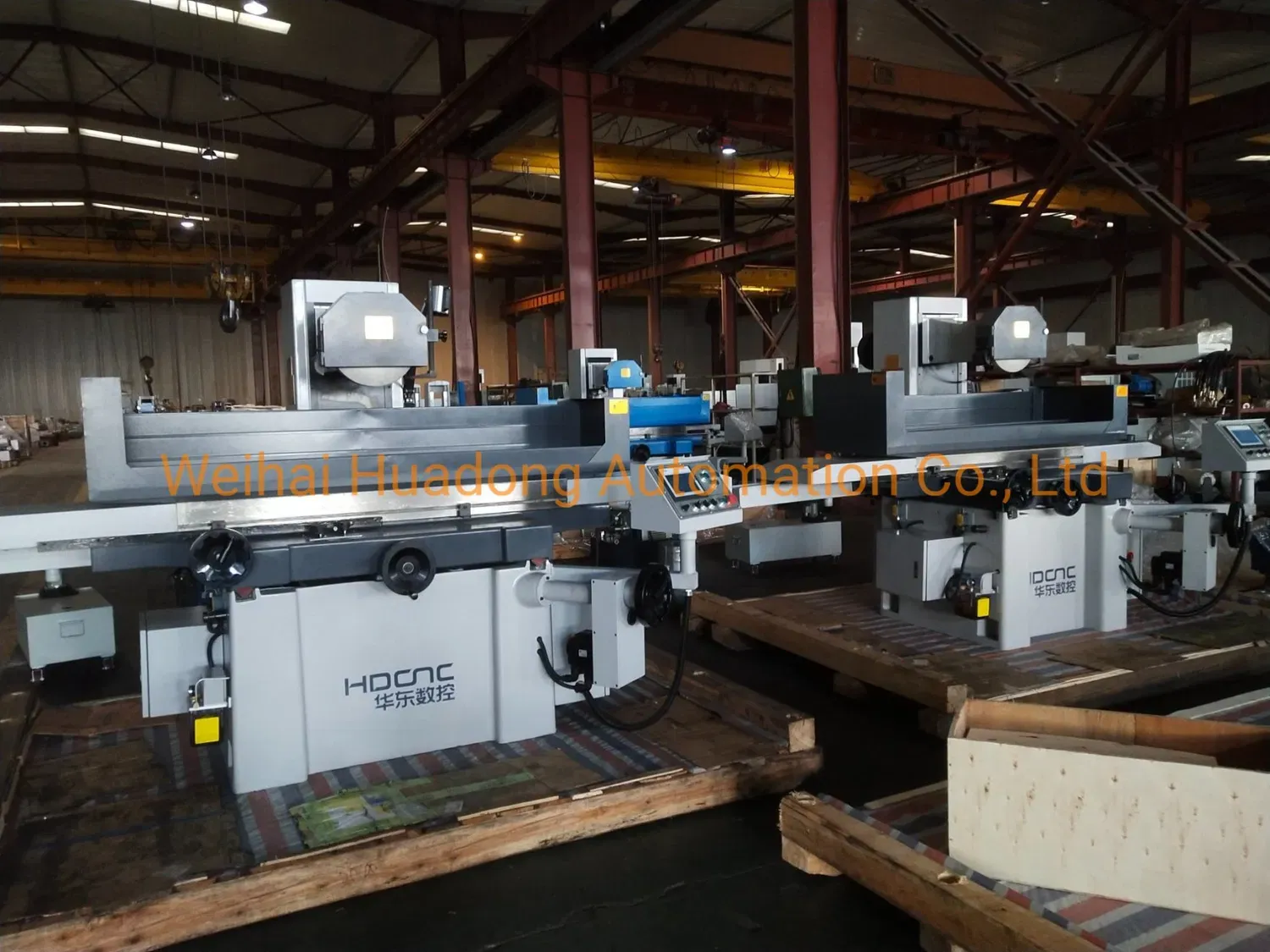

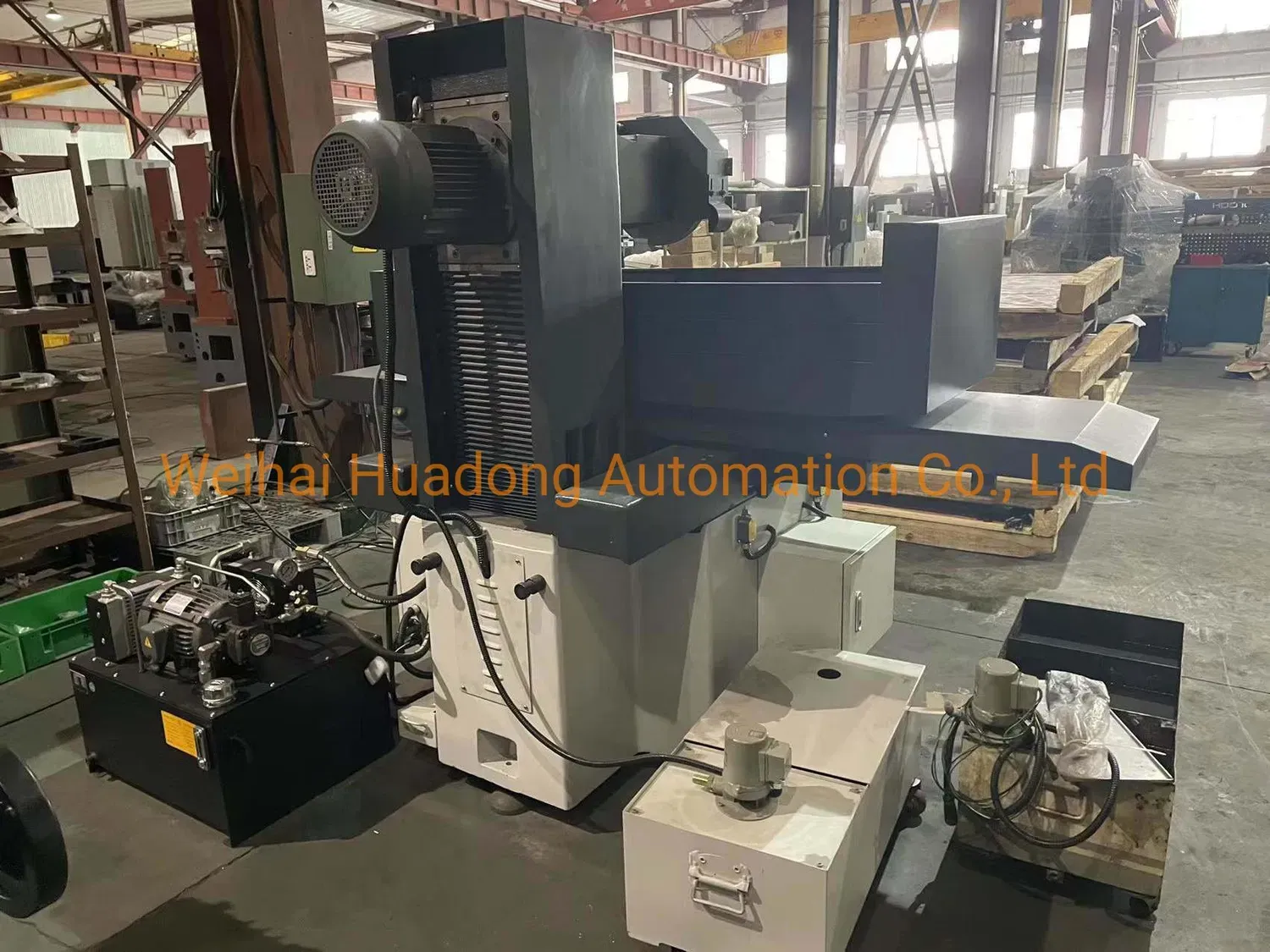

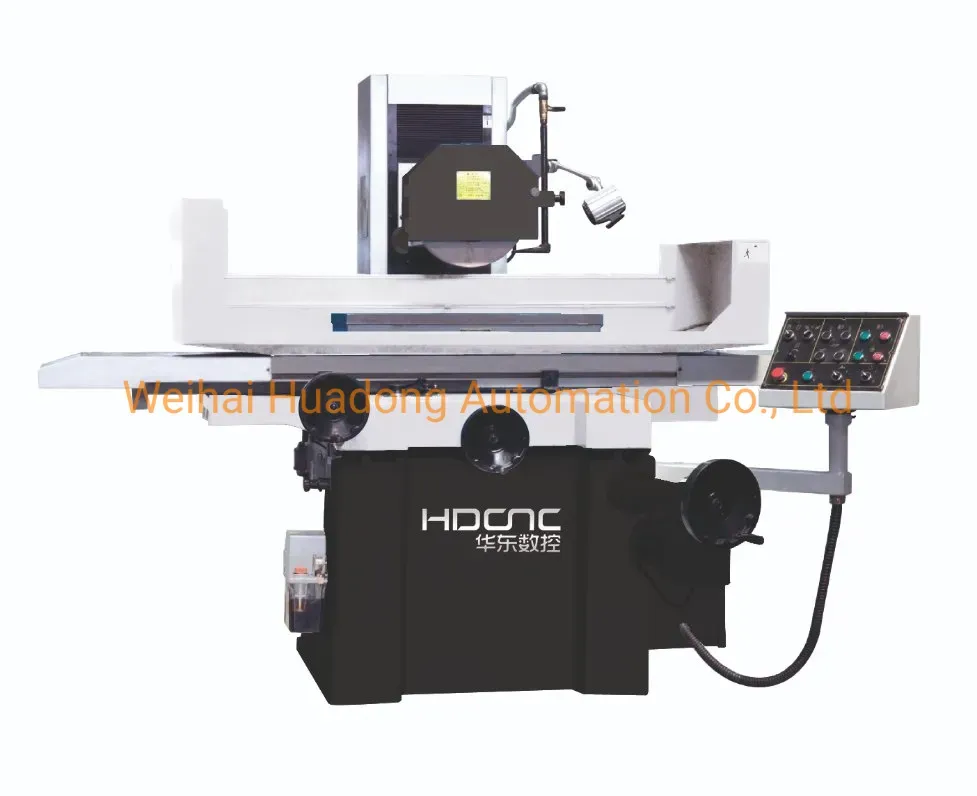

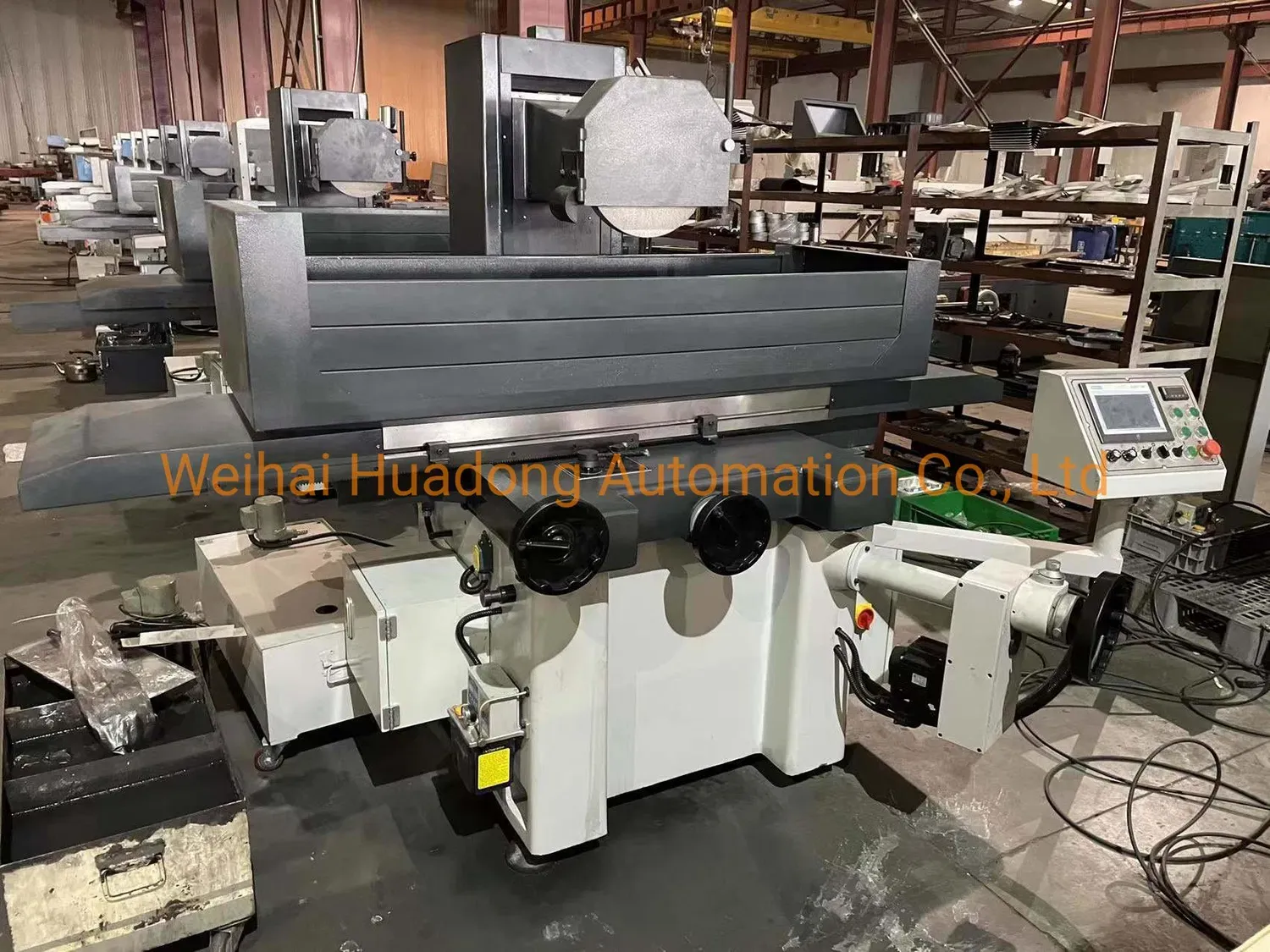

Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 2
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 3
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 4
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 5
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 6
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal - Image 7

Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Processing Objects Metal, Ceramics, and Composite Materials
Auto Downfeed Rate 0.005 mm (Precision Increment)
Spindle Bearing NSK Brand (P4 High-Precision Grade)
Electrical Standards Full CE Standard Components
Abrasives Standard Industrial Grinding Wheel
Precision Tier Industrial Normal Precision

Original price was: $17,000.00.Current price is: $16,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

1.Machine Features

The machine adopts the layout form of “+” , and the transverse guide rail is covered with soft belt. The table movement adopts closed hydraulic system. The front and back feed can be manually fed or the screw rod can be driven by the motor for intermittent feed. The grinding head can be moved up and down by lifting motor for fast lifting (AHR), or servo motor for fast lifting and automatic feeding (AHD), or manually controlled. Sliding screw, high strength cast iron foundation, grinding head spindle adopts precision angular contact rolling bearing, high rigidity sleeve structure, the overall quality of the machine is stable, smooth operation.
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal

2.Details parameters

SGA series parameters
Specifications SG2050AH
SG2050AHR
SG2050AHD		 SGA2550AH
SGA2550AHR
SGA2550AHD		 SGA3063AH
SGA3063AHR
SGA3063AHD		 SGA4080AH
SGA4080AHR
SGA4080AHD		 SGA30100AH
SGA30100AHR
SGA30100AHD		 SGA40100AH
SGA40100AHR
SGA40100AHD
table size(W*L) mm 200*460 250*500 305*635 406*813 305*1020 406*1020
Max.longitudinal travel mm 510 560 765 910 1130 1130
Max. transverse travel mm 238 275 340 450 340 450
Max. distance from spindle
center to table		 mm 450 580
magnetic chuck size mm 200*460 250*500 300*600 400*800 300*1000 400*1000
Longitudinal feed m/min 7~23
worktable transverse movement
Auto feed mm/min 0.1-8
rapid speed mm/min 990
handwheel feed mm/div. 0.02
wheelhead vertical movement
Auto feed mm/stroke ————(AH/AHR)   0.005/0.01/0.02/0.03/0.04/0.05(only for AHD model)
rapid speed mm/min ———-(AH)  460(only for AHR/AHD model)
handwheel feed mm/div. 0.005
wheel Speed Rpm 2850 1450
wheel size mm 200*20*31.75 350*40*127
Spindle motor Kw 1.5 2.2 5.5
hydraulic motor KW 0.75 2.2
cooling motor KW 0.04 0.125
total rated power KW 3 3.7 9
Max. table load (include chuck) Kg 120 180 270 500 400 600
Gross weight Kg 1600 1800 2600 3300 3200 3800

  3.Standard accessories
Weihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal
4.Optional accessories you can chooseWeihai Huadong Machine Tools Saddle Moving Type Surface Grinding Polishing Machine for Metal
