We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 2
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 3
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 4
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 5
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 6
We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length - Image 7

We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length

MACHINES IN CHINA
Only orders placed and paid through Alibaba.com can enjoy free protection by

Manufacturer Verification Applied

  • Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Feature Details
Automation Grade Fully Automatic CNC Control
Applicable Materials Carbon Steel, Stainless Steel, Aluminum, Copper, Alloy
Precision Tier High-Accuracy Synchronized Hydraulic System
Bending Logic Electro-hydraulic Servo Synchronization
Color Options Fully Customizable (All Colors Available)
Condition New

Original price was: $23,000.00.Current price is: $22,000.00.

Compare
Add to wishlist
Shipping and returns

Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.

Product care

Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.

Product Description

Product Description

We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length

Product Parameters
Type 70T/2600 90T/3200 110T/3200 110T/4100 130T/3200 130T/4100 170T/3200 170T/4100 220T/3200 220T/4100
Nominal Force(KN) 700 900 1100 1100 1300 1300 1700 1700 2200 2200
Bending Length(MM) 2600 3200 3200 4100 3200 4100 3200 4100 3200 4100
Between Columns(MM) 2100 2700 2700 3500 2700 3500 2700 3500 2700 3500
Throat Depth(MM) 350 350 450 450 450 450 400 400 400 400
Slider Travel(MM) 150 150 200 200 200 200 200 200 200 200
Working Table Height(MM) 780 850 850 890 890 890 840 840 900 900
Main Motor Power(KW) 5.5 7.5 7.5 7.5 7.5 7.5 11 11 15 15
Backgauge Travel(MM) 600 600 600 600 600 600 600 600 600 600
Backgauge Speed(MM/S) 200 200 200 200 200 200 200 200 200 200
Dimension(mm) 2900*2200
*1600		 3600*2350
*1850		 3600*2750
*1900		 4500*2700
*2000		 3700*2630
*1950		 4500*2700
*2100		 3700*2600
*2000		 4500*2750
*2100		 3500*2750
*2000		 4500*2850
*2150
Weight(T) 5.5 6 7.3 8.3 7.8 8.8 9.5 10.6 11.3 13
Product Features

1.Energy saving, environmental protection and high efficiency CNC hydraulic press brake.
2.Unique closed-loop servo hydralic energy-saving system with remarkable economic benefits.
3.Adopting mechanical compensation structure (selection) to ensure perfect bending qyality.
4.Back shield is controlled by imported international famous brand digital AC servo motor.
5.Large lead precision ball screw drive, linear guide.

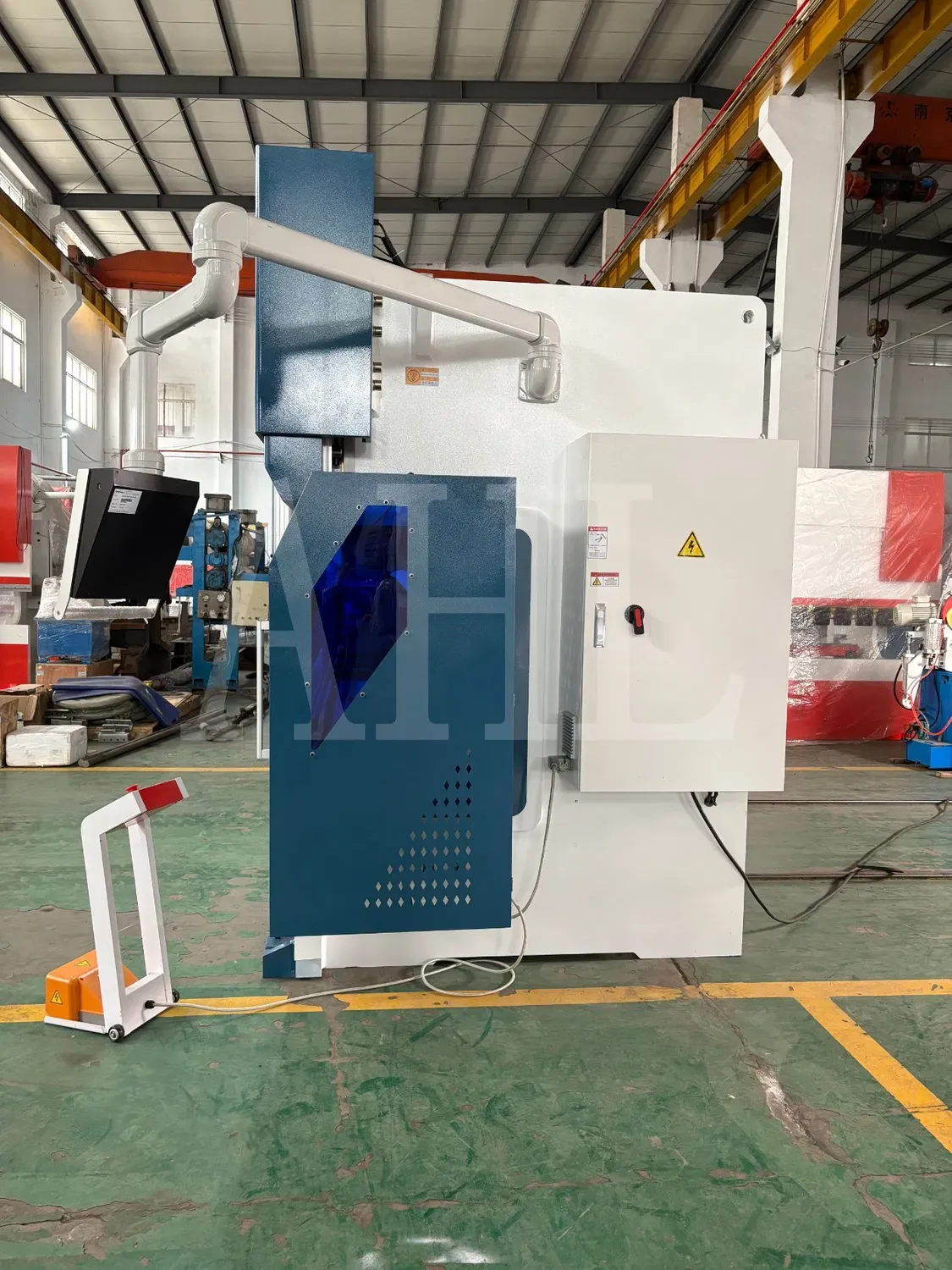

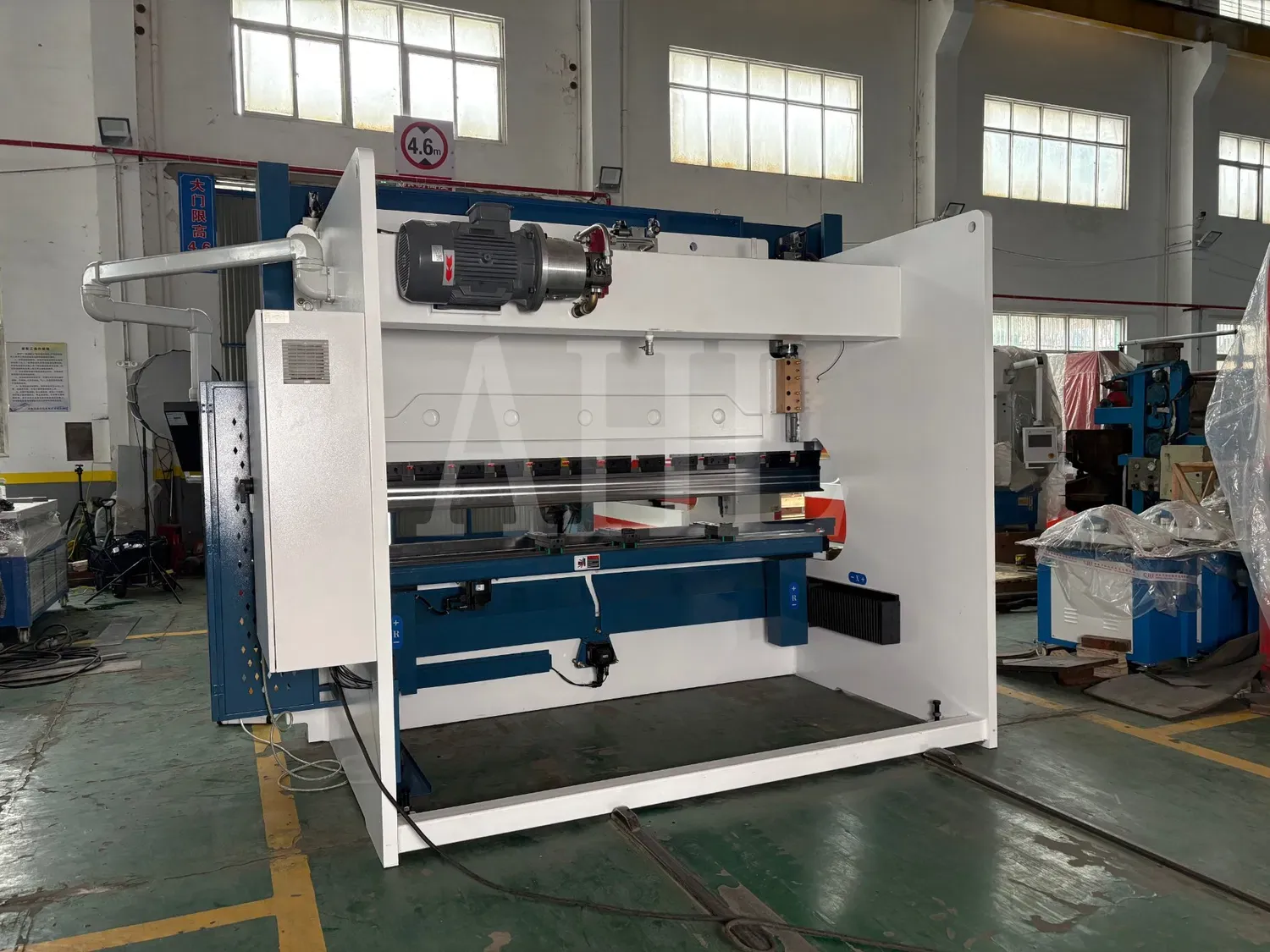

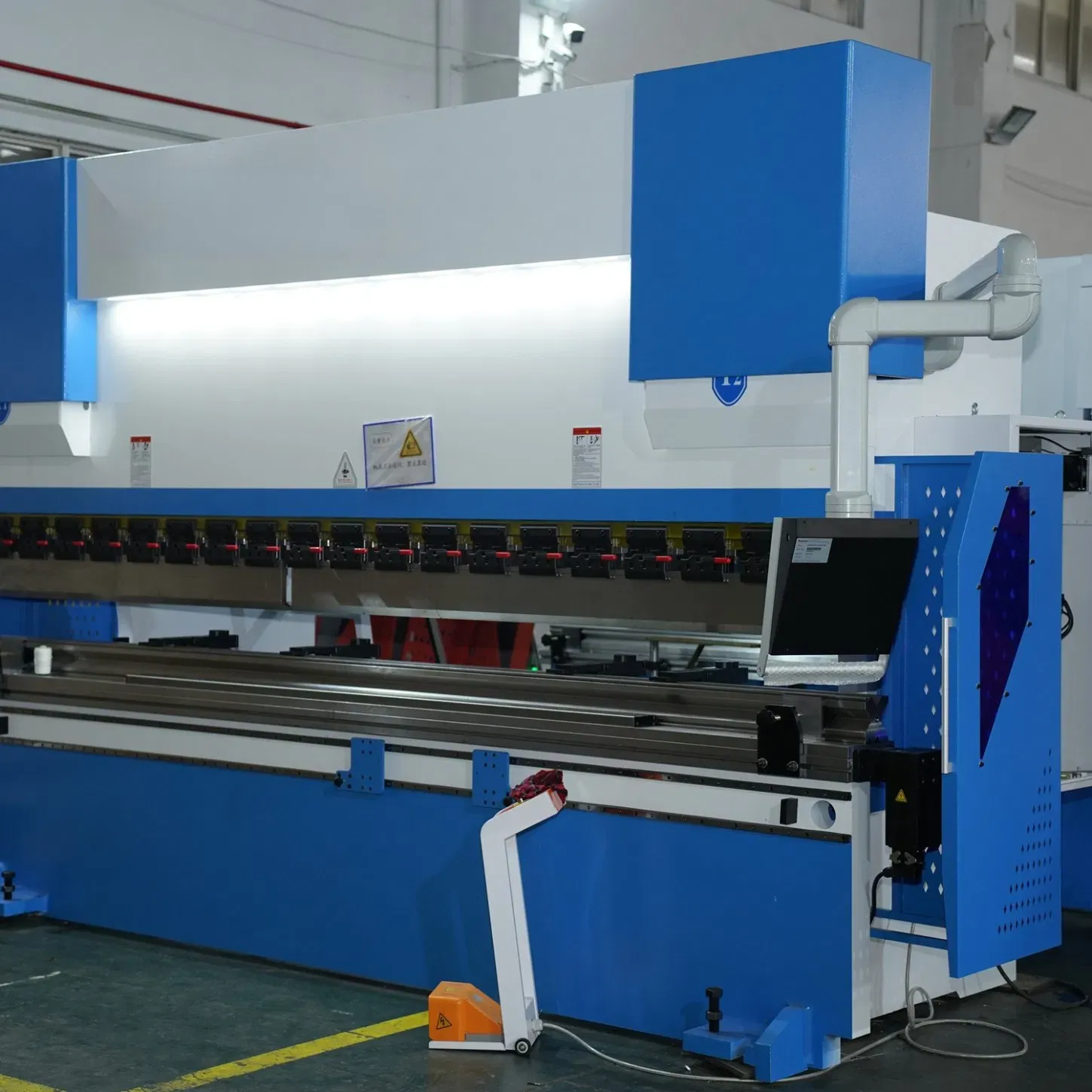

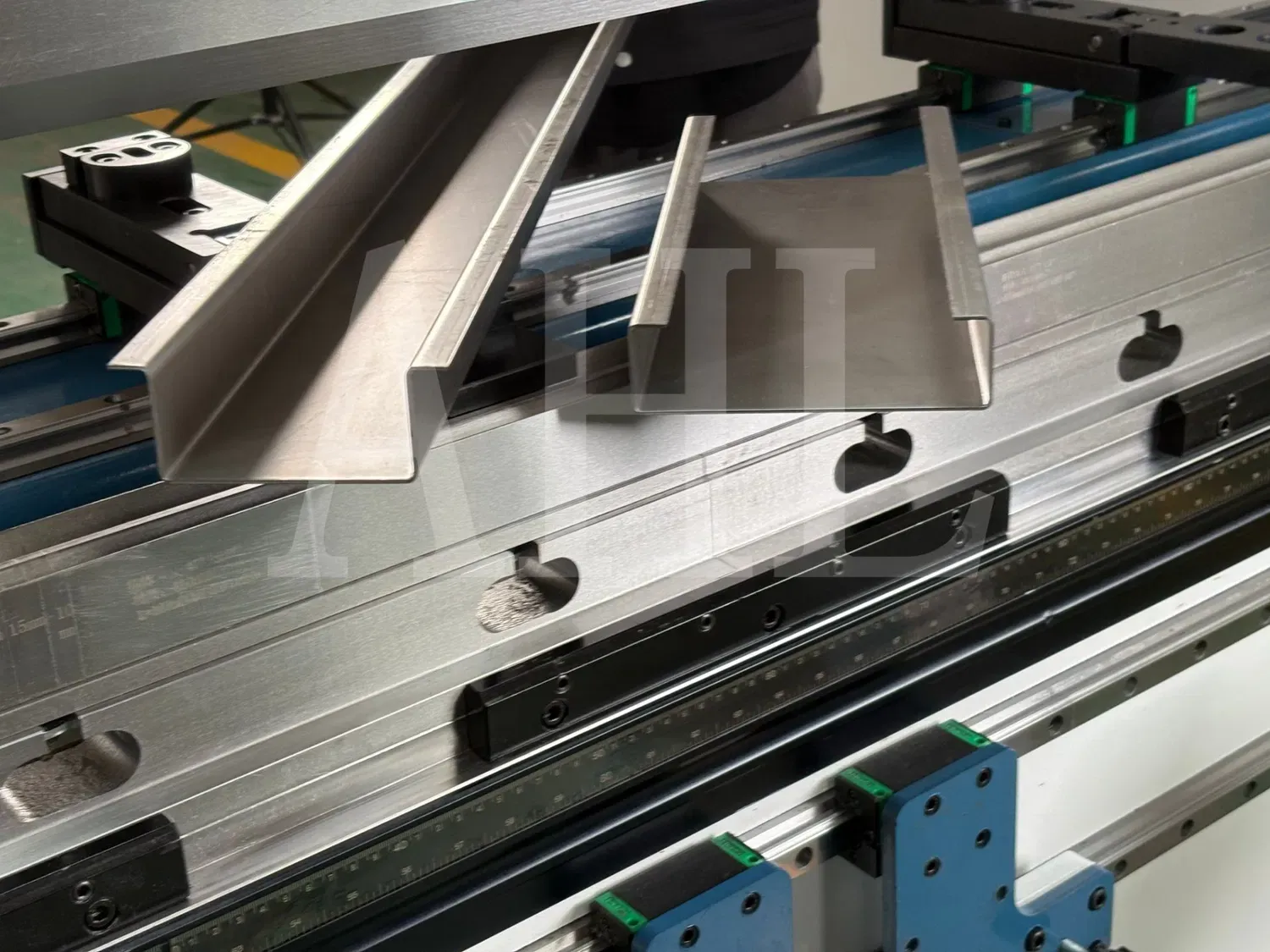

Detailed Photos

We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm LengthWe67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length



Customer Reviews

0 reviews
0
0
0
0
0

Reviews

Clear filters

There are no reviews yet.

Be the first to review “We67K CNC Bending Hydraulic Press Machine Sheet Metal Brake with Da53t System for Complex Metal Shapes, 180 Ton Pressure, 3200mm Length”

Your email address will not be published. Required fields are marked *

Related Products

-3%
Add to wishlist

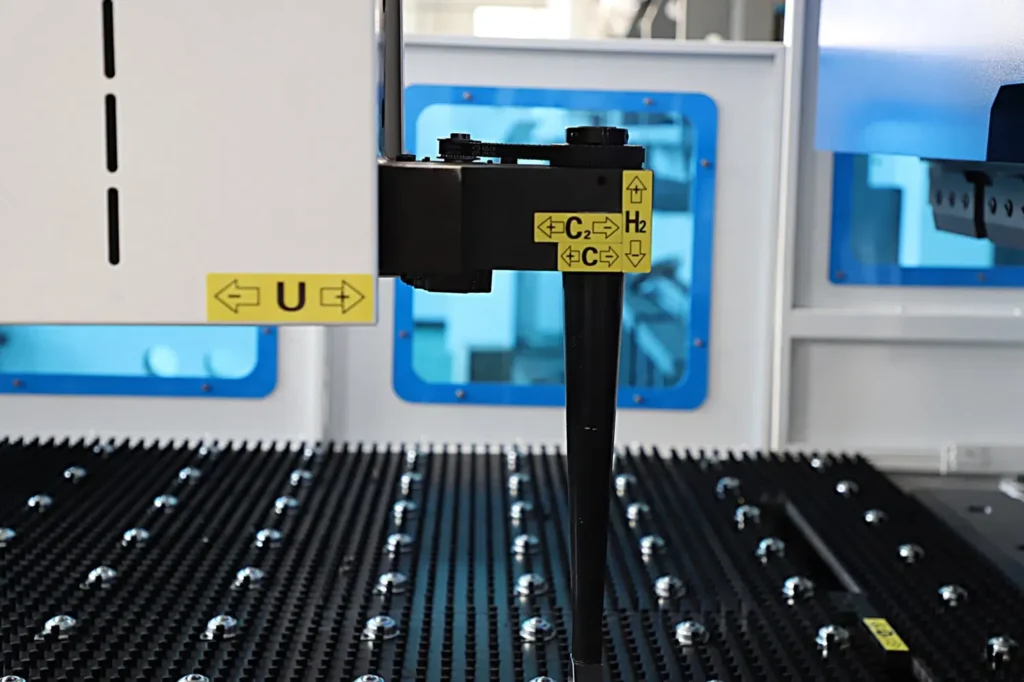

Automatic Servo Control Steel Sheet Intelligent Flexible Bending Steel Panel Bending Machine Sheet Metal Panel Bender
