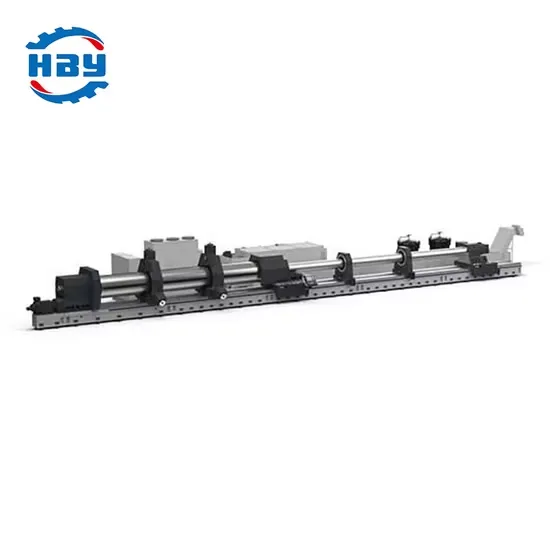

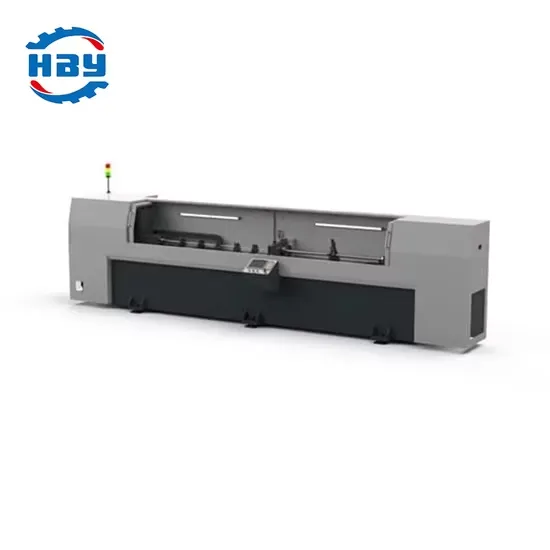

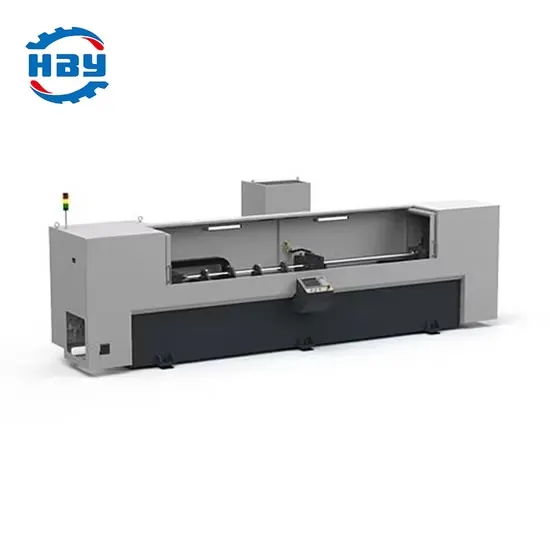

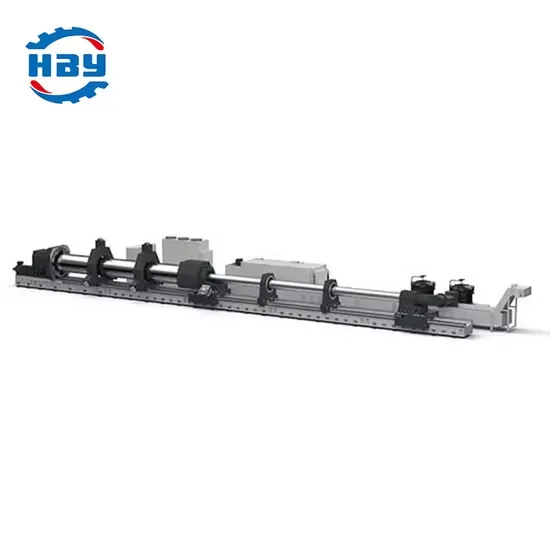

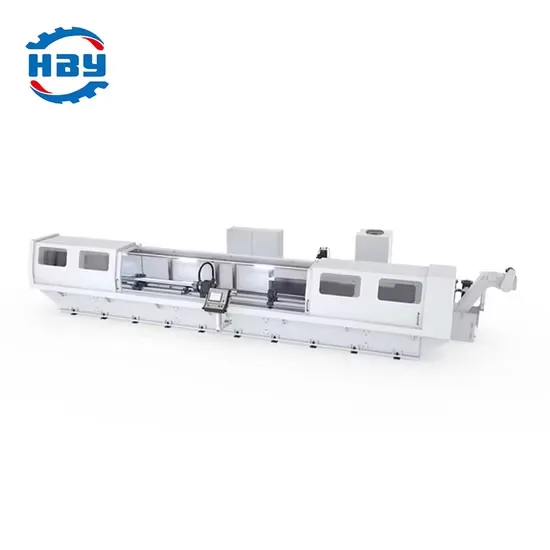

T2225g Composite CNC Deep Hole Boring Machine Tools
Manufacturer Verification Applied
- Claim a refund if your order doesn't ship, is missing, or arrives with product issues
Original price was: $101,000.00.$100,000.00Current price is: $100,000.00.
Authorities in our business will tell in no uncertain terms that Lorem Ipsum is that huge, huge no no to forswear forever. Not so fast, I'd say, there are some redeeming factors in favor of greeking text, as its use is merely the symptom of a worse problem to take into consideration.
Anyway, you still use Lorem Ipsum and rightly so, as it will always have a place in the web workers toolbox, as things happen, not always the way you like it, not always in the preferred order.
| Feature | Details |
| Processing Precision | 0.02 – 0.03 mm |
| Primary Process | Deep-Hole Drilling |
| CNC System Options | Siemens / Fanuc (Industrial Standard) |
| Scalability | Machine Length Can Be Lengthened to Specification |
| Processing Scope | Metal-Cutting, Non-Conventional, and Metal-Forming |
| Accessories | Fully Customized Based on Production Needs |
Product Description
Equipped with imported high-precision roller linear guides and preloaded double-nut ball screws, ensuring positioning accuracy of ±0.01mm.
The spindle system features high-rigidity precision bearings, with radial runout ≤0.005mm.
Includes an automatic tool compensation system for real-time error correction, guaranteeing bore straightness ≤0.02mm/m.
2. Efficient & Intelligent Production
Powered by the latest CNC system (options include FANUC, SIEMENS, or premium domestic systems).
Integrated automatic tool-setting device for fast positioning and wear compensation.
Standard high-pressure coolant system (up to 10MPa) effectively resolves chip evacuation and heat dissipation challenges in deep hole machining.
Optional automatic loading/unloading systems enable 24/7 continuous production.
3. Robust & Reliable Mechanical Structure
Monolithic cast iron bed, optimized via finite element analysis for superior vibration damping and stability.
High-torque servo motor-driven spindle with wide speed range (50–1500 rpm stepless).
Ultra-precision ground guideways paired with an automatic lubrication system ensure long-term accuracy.
|
Category
|
Parameters
|
Technical indicators
|
Remarks
|
|
Basic parameters
|
Max processing diameter
|
Φ50-600mm
|
Customizable up to Φ800mm
|
|
Max processing depth
|
5000mm
|
Can be lengthened in integer multiples of 50mm
|
|
|
Main shaft system
|
Rotational speed range
|
20-1500rpm (continuously variable speed)
|
Direct drive by servo motor
|
|
Taper
|
BT50
|
Optional HSK, CAT, etc
|
|
|
Power
|
22-45KW
|
Constant power characteristic
|
|
|
Feed system
|
X-axis travel
|
6000mm
|
Roller guide rail + grating closed loop
|
|
Z-axis travel
|
5500mm
|
0.001mm resolution
|
|
|
Fast moving speed
|
X/Z axis 10m/min
|
Acceleration: 0.5g
|
|
|
Accuracy
|
Positioning accuracy
|
±0.01mm/1000mm
|
ISO 230-2 standard
|
|
Repeat positioning accuracy
|
±0.005mm
|
After laser compensation
|
|
|
Hole straightness
|
≤0.02mm/m
|
The follow-up support can reach 0.01mm/m
|
|
|
Cooling system
|
Pressure
|
Adjustable from 1 to 10 Mpa
|
High-pressure atomization is optional
|
|
Flow
|
100-500L/min
|
Three-stage filtration system
|
All accuracy indicators were tested in a constant temperature environment of 20±1℃
2. An optional B-axis milling function can be equipped to achieve compound processing
3. Provide a machine tool thermal deformation compensation system (optional)
4. The standard configuration includes an automatic centralized lubrication system
Construction Machinery: Hydraulic cylinders, excavator arms.
Aerospace: Landing gear actuators, engine shafts.
Heavy Machinery: Rolling mill rolls, large hydraulic cylinders.
